Crestron ZUM-FLOOR-HUB Bedienungsanleitung

The Crestron® Zūm® Floor Hub enables centralized management and time

clock for Zūm wireless commercial lighting systems. The device provides a

web-based user interface for easy configuration, control, monitoring, and

scheduling. The time clock feature enables automation of room lighting

and sensing behavior. The Zūm Floor Hub supports up to 1,000 individual

rooms equipped with Zūm lighting systems. The device also enables

integration with other Crestron lighting systems, control systems, touch

screens, shading, HVAC, and more.

In the Box

1 ZUM-FLOOR-HUB, Zūm® Floor Hub

Additional Items

1 Connector, 4-Pin (2003576)

1 Power Pack, 24 VDC, 2.5 A, 100-240 VAC (2045873)

2 Bracket, Rack Ear, 1U (2032122)

4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Rubber, Black (2002389)

1 Power Cord, 5 ft 10 in. (1.78 m) (2042043)

Installation

The ZUM-FLOOR-HUB can be mounted into a rack or placed onto a flat

surface.

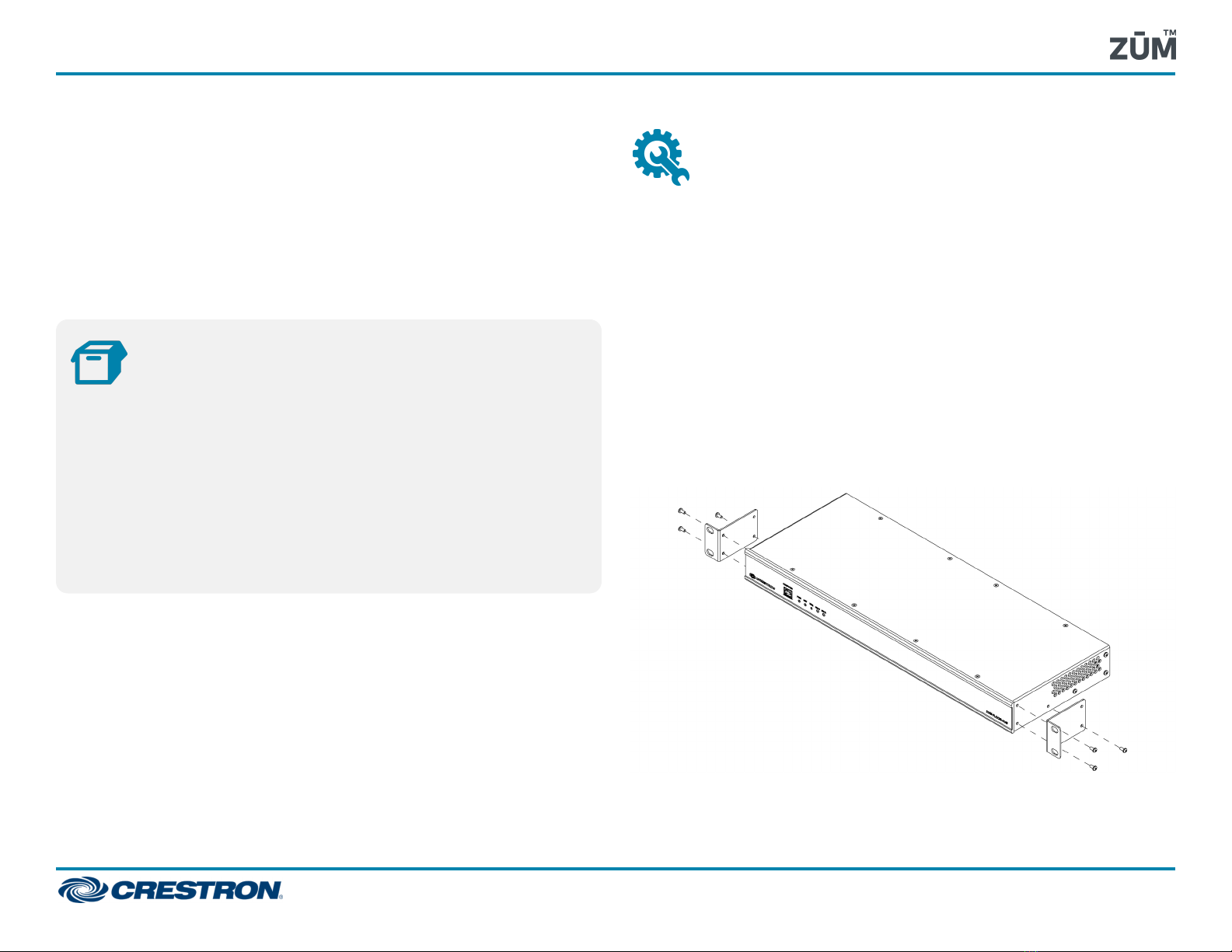

Mounting Into a Rack

The ZUM-FLOOR-HUB occupies 1U of rack space.

To install the included rack ears:

1. Use a #1 or #2 Phillips screwdriver to remove the three screws from

each side of the front of the device as shown in the following illustration.

2. Use the screwdriver and the screws removed in the previous step to

attach the included rack ears to the device.

3. Mount the device into the rack using four mounting screws

(notincluded).

ZUM-FLOOR-HUB

Zūm® Floor Hub

Placing onto a Flat Surface

When placing the device onto a flat surface or stacking it with other

equipment, attach the included feet near the corners on the underside of

the device.

Make Connections

Hardware Hookup

Make the necessary connections as called out in Connect the Control

Subnet.

When making connections to the ZUM-FLOOR-HUB, note the following:

lUse Crestron power supplies for Crestron equipment.

lThe included cable(s) cannot be extended.

NOTES:

lEnsure the unit is properly grounded by connecting the chassis

ground lug to an earth ground (building steel).

lThe ZUM-FLOOR-HUB can be powered by the 4-position terminal

block connector labeled NET or with the (included) 24 VDC power

pack.

Connect the Control Subnet

The ZUM-FLOOR-HUB has a dedicated Control Subnet that is used for

communication between the control system and Crestron Ethernet

devices. This subnet allows for dedicated communication between the

control system and Crestron Ethernet devices without interferences

from other network traffic on the LAN.

NOTE: Do not connect the CONTROL SUBNET port to the LAN. The

CONTROL SUBNET port must be connected only to Crestron Ethernet

devices.

For details on using the Control Subnet, refer to the 3-Series® Control

Systems Reference Guide (Doc. 7150).

ZUM-FLOOR-HUB

Zūm® Floor Hub

Configure the ZUM-FLOOR-HUB

The ZUM-FLOOR-HUB is configured using the web interface. Connect to

the device by entering the device hostname into a web browser. The

hostname is comprised of “ZUM-FL-” and the last 8 digits of the MAC

address (e.g., ZUM-FL-7F8764BF). The New User Registration screen is

displayed during the first connection. Enter the Username, Password,

Firstname, Lastname, and Email Address, and then tap Submit.

The ZUM-FLOOR-HUB settings page opens next, as shown below.

For further configuration, refer to the ZUM-FLOOR-HUB Supplemental

Guide (Doc. 8355A).

ZUM-FLOOR-HUB

Zūm® Floor Hub

Visit the Product Page

Scan the QR code to visit the product page.

ZUM-FLOOR-HUB

www.crestron.com/model/6507931

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, Cresnet, and Zūm are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the United States and/or other

countries. Other trademarks, registered trademarks, and trade names may be used in

this document to refer to either the entities claiming the marks and names or their

products. Crestron disclaims any proprietary interest in the marks and names of others.

Crestron is not responsible for errors in typography or photography.

Doc ID 7912B

07/27/20

ZUM-FLOOR-HUB

Zūm® Floor Hub
