Crestron IM-TCCV Kurzanleitung

Crestron IM-TCCV

iMedia Table Mount Computer Center

with Video

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron IM-TCCV iMedia Table Mount Computer Center with Video

Contents

iMedia Table Mount Computer Center w/Video: IM-TCCV 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

The iMedia System...................................................................................................... 1

Specifications ..............................................................................................................3

Physical Description....................................................................................................4

Industry Compliance ...................................................................................................6

Setup ..........................................................................................................................................7

Network Wiring........................................................................................................... 7

Installation................................................................................................................... 7

Hardware Hookup ..................................................................................................... 11

System Configuration................................................................................................ 12

Operation .................................................................................................................................13

Problem Solving ......................................................................................................................14

Troubleshooting......................................................................................................... 14

Reference Documents................................................................................................15

Further Inquiries ........................................................................................................ 15

Future Updates .......................................................................................................... 15

Return and Warranty Policies ..................................................................................................16

Merchandise Returns / Repair Service ...................................................................... 16

CRESTRON Limited Warranty.................................................................................16

Operations & Installation Guide – DOC. 6481 Contents •i

Crestron IM-TCCV iMedia Table Mount Computer Center with Video

iMedia Table Mount Computer

Center w/Video: IM-TCCV

Introduction

Features and Functions

• A flexible multimedia interface for portable, lectern-mount or under-

table installation

• Streamlined user controls for foolproof operation

• iMedia Transport for fast and easy single-cable installation

• Supports XGA resolution up to 84 feet, UXGA maximum up to 34 feet

• Supports composite video signals

• Complete system setup in minutes using iMedia Wizard Software

The iMedia Transport

The iMedia transport utilizes a single CAT5e* type cable to transmit computer RGB,

video, and stereo audio signals to a single projector or plasma display. A typical

XGA signal (1024 X 768 pixels at 60Hz) can be transmitted up to 84 feet using

iMedia, while higher resolutions up to 1600 x 1200 can be handled over shorter

distances. Audio is transmitted digitally at 20-bit, 48 kHz resolution. Control and

power signals are also contained on the same wire, eliminating the need for separate

control or power cables.

* For iMedia use CresCAT-IM cable, or quality CAT5e/CAT6 cable having a maximum delay skew

of 15ns per 100m.

Table Mount Multimedia Interface

The IM-TCCV is an iMedia (IM) transmitter designed to install flush in any flat

surface or underneath a tabletop using the mounting brackets provided. Composite

video, RGB, and stereo audio inputs on the front of the IM-TCCV provide for

connection to the output of a computer or AV source. Installing wiring for the

IM-TCCV is extremely simple requiring just a single CresCAT-IM cable. Up to

three IM-TCCV, or other IM transmitters, may be installed as part of a complete

system to provide multiple input locations within the room.

Operations & Installation Guide – DOC. 6481 iMedia Table Mount Computer Center w/Video: IM-TCCV •1

iMedia Table Mount Computer Center with Video Crestron IM-TCCV

Foolproof Operation

Every iMedia system is easy and intuitive to use. A simple press of the VIDEO or

PC buttons on the face of the IM-TCCV selects the appropriate input, turns on the

projector (or plasma, etc.), lowers the screen or lift, and routes all the signals where

they need to go. The front panel volume control affords easy adjustment of the audio

level, and the entire system can be turned off at any time by simply holding down

either button for five seconds.

For systems having more than one IM transmitter, selecting an input at a given input

location overrides the previously selected input at any other location. The audio level

for each input location is controlled individually by its respective volume control.

Applications

The IM-TCCV is part of the Crestron®iMedia line of network devices, room control

systems and signal routing solutions. The line of iMedia devices includes receivers

and transmitters. Consult the Crestron website for a complete and current listing of

the iMedia product line.

The IM-TCCV can be placed in a lectern or mounted to a surface using the included

brackets.

The IM-TCCV is part of a family of compatible iMedia devices, all capable of

working together to put on simple to complex media presentations. As shown in the

following diagram, iMedia transmitters provide input points for video and PC

sources on an iMedia receiver.

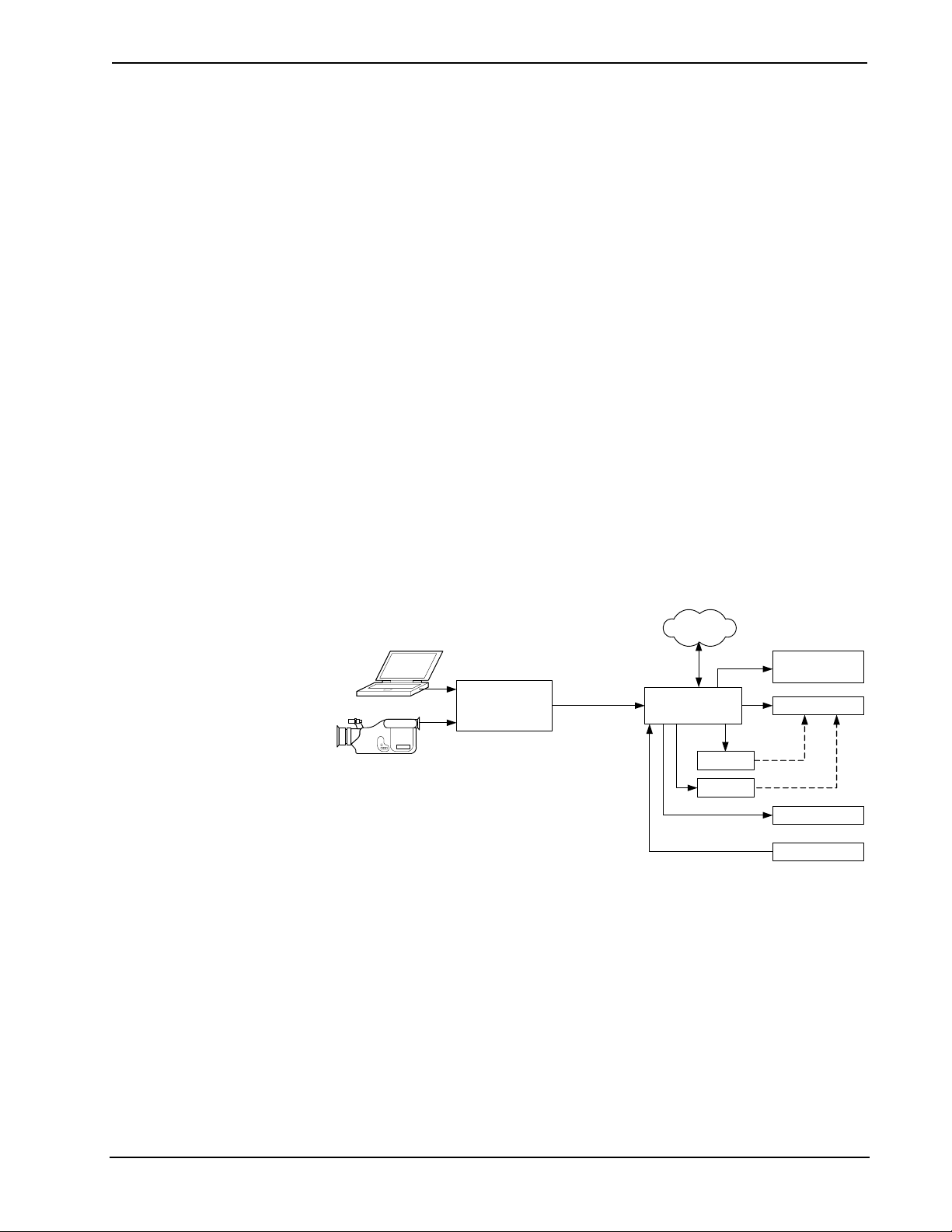

iMedia System Diagram

iMedia Receiver Display Device

iMedia

Transmitter

IM-TCC

IM-WCC

IM-FTCC-B

IM-RXV1

IM-RXV3

CresCAT-IM

Screen/Lift

Room Sensor

Audio Amplifier

or Speakers

LAN

Control

RS-232 Control

IM-TCCV

IM-WCCV

IM-WCCV-S

IM-FTCCV*

Computer

Video

*IM-FTCCV available 3Q 2006

2 •iMedia Table Mount Computer Center w/Video: IM-TCCV Operations & Installation Guide – DOC. 6481

Crestron IM-TCCV iMedia Table Mount Computer Center with Video

Specifications

Specifications for the IM-TCCV are listed in the following table.

IM-TCCV Specifications

SPECIFICATION DETAILS

Video Formats

RGB Video

Gain

Max. Input Voltage

Input Impedance

Resolutions

Composite Video

Gain

Max. Input Voltage

Input Impedance

Bandwidth

RGBHV (VGA), RGBS, RGsB, composite

R/G/B: 0 dB (unity gain, 75 ohm termination)

R/G/B: 1.0 VPP H/V: 5 VPP

R/G/B: 75 Ohms

H/V: 1k Ohms

Supports video up to XGA @ 60 Hz vertical

rate with maximum cable length of 84 feet

and maximum compensation at receiver. For

higher pixel resolutions (up to 1600 X 1200

pixels at 60 Hz vertical rate) refer to the

chart on page 8.

Composite: 0 dB (unity gain, 75 ohm

termination)

1.0 VPP

75 Ohms

> 100 MHz (-3 dB) at unity gain

Audio

Max. Input Level

Input Impedance

Audio Analog/Digital

Conversion

Frequency Response

2 VRMS

10k Ohms

20-bit, 48 kHz

20 Hz to 20 kHz

Power Requirements Power is provided by the iMedia receiver via

the IM transport

Environmental

Temperature

Humidity

41° to 104°F (5° to 40°C)

10% to 90% RH (non-condensing)

Enclosure Compact black metal housing suitable for

portable free-standing use, flush-mounted in

a flat surface, or surface-mounted below a

tabletop using universal brackets provided

Dimensions (without brackets)

Height

Width

Depth

1.50 in (3.81 cm)

7.40 in (18.80 cm)

3.13 in (7.95 cm)

Weight 14.8 oz (420 grams)

Operations & Installation Guide – DOC. 6481 iMedia Table Mount Computer Center w/Video: IM-TCCV •3

iMedia Table Mount Computer Center with Video Crestron IM-TCCV

Physical Description

This section provides information on the connections, controls, and indicators

available on your IM-TCCV.

IM-TCCV Physical View

IM-TCCV Overall Dimensions

1.31 in.

(3.33 cm)

1.50 in.

(3.81 cm)

0.60 in.

(1.53 cm)

7.40 in.

(18.80 cm)

3.13 in.

(7.95 cm)

7.08 in.

(17.99 cm)

7.24 in.

(18.38 cm)

1 4 5 6

4 •iMedia Table Mount Computer Center w/Video: IM-TCCV Operations & Installation Guide – DOC. 6481

Crestron IM-TCCV iMedia Table Mount Computer Center with Video

Connectors, Controls, & Indicators

# CONNECTORS,

CONTROLS, &

INDICATORS

DESCRIPTION

1 PC BUTTON

Turns on the system and selects the source

connected to the PC input of the IM-TCCV.*

2 VIDEO BUTTON

Turns on the system and selects the source

connected to the VIDEO input of the

IM-TCCV.*

3 IM

(1) Female RJ-45 connector for iMedia

connection to IM-RXV1 or IM-RXV3 receiver

over CresCAT-IM cable or other high-quality

CAT5 wire. For iMedia pin assignments, refer

to the chart on page 8.

4 VOLUME CONTROL

KNOB

Turn clockwise to raise the volume of the

selected input; turn counterclockwise to

lower the volume of the selected input.

5 VIDEO

(1) RCA-type female connector for composite

video input.

(1) Pair of RCA-type female connectors for

audio feed of composite video input.

6 PC

(1) Female DB15HD connector is used for

connecting a computer’s RGB video output

to the display device.

The following table lists pin assignments:

PIN FUNCTION PIN FUNCTION

1 Red Video 9 No Connect

2 Green Video 10 Ground

3 Blue Video 11 No Connect

4 Reserved 12 Monitor

Sense 1

5 Ground 13 Horizontal

Sync

6 Red Ground 14 Vertical Sync

7 Green Ground

8 Blue Ground

15 Monitor

Sense 2

(1) 3.5mm female mini-jack connects to audio

output of PC.

* Refer to “Operation” on page 13 for more information.

Operations & Installation Guide – DOC. 6481 iMedia Table Mount Computer Center w/Video: IM-TCCV •5

iMedia Table Mount Computer Center with Video Crestron IM-TCCV

Industry Compliance

As of the date of manufacture, the IM-TCCV has been tested and found to comply

with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

6 •iMedia Table Mount Computer Center w/Video: IM-TCCV Operations & Installation Guide – DOC. 6481

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Crestron Sender Handbücher

Crestron

Crestron DM-TX-4KZ-202-C Maßzeichnung

Crestron

Crestron Digitalmedia 8G+ Transmitter 401 Bedienungsanleitung

Crestron

Crestron HD-TXA-4KZ-101-1G Bedienungsanleitung

Crestron

Crestron DM-TX-4KZ-100-C-1G Bedienungsanleitung

Crestron

Crestron IM-WCVI Bedienungsanleitung

Crestron

Crestron HD-TX-4KZ-111-1G Bedienungsanleitung

Crestron

Crestron IM-WCVP Kurzanleitung

Crestron

Crestron DigitalMedia DM-TX-300N Bedienungsanleitung

Crestron

Crestron ST-4T Bedienungsanleitung

Crestron

Crestron DigitalMedia 8G+ DM-TX-4KZ-100-C-1G Bedienungsanleitung

Crestron

Crestron DM-TX-201-C Anleitung zur Verwendung

Crestron

Crestron DM-TX-4K-202-C Bedienungsanleitung

Crestron

Crestron DM-TX1-4K-C-1G Bedienungsanleitung

Crestron

Crestron CNLCDRFHT-A Bedienungsanleitung

Crestron

Crestron HD-TXCA-4KZ-101 Bedienungsanleitung

Crestron

Crestron DigitalMedia HD-TX-4KZ-421-CHGR Bedienungsanleitung

Crestron

Crestron IM-FTCC-B Anleitung zur Verwendung

Crestron

Crestron CNRFHT-15A Bedienungsanleitung

Crestron

Crestron IM-TCC Anleitung zur Verwendung

Crestron

Crestron DM-TX-4K-100-C-1G Maßzeichnung

Crestron

Crestron DigitalMedia 8G+ DM-TX-201-C Maßzeichnung

Crestron

Crestron DigitalMedia DMCF-TX-4K-SFP Maßzeichnung

Crestron

Crestron CNIRHT-MM Technisches Handbuch

Crestron

Crestron QM-TX Bedienungsanleitung

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
