READ AND SAVE THESE INSTRUCTIONS PN:241824401(June2007)

Congratulations on your purchase of a new refrigerator! We

here at Crosley Corporation are very proud of our product and

we are completely committed to providing you with the best

service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. Itcontains

valuable information on how to properly maintain your new

refrigerator.

We know you'll enjoy your new refrigerator and ThankYou for

choosing our product. We hope you consider us for future

purchases.

PLEASE READ AND SAVETHESE iNSTRUCTiONS

This Use & Care Manual provides specific operating

instructions for your model. Use your refrigerator only as

instructed in this manual. These instructions are not meant to

cover every possible condition and situation that may occur.

Common sense and caution must be practiced when installing,

operating and maintaining any appliance.

Please record your model and serial numbers below for

future reference.This information is found on the serial

plate located inside the refrigerator compartment.

i: a i i

Model Number:

Serial Number:

Purchase Date:

PLEASE COMPLETE

AND MAIL IN THE

PRODUCT

REGiSTRATiON

CARD INCLUDE[

WITH YOUR

REFRIGERATOR.

FOR PRODUCT INFORMATION CONTACT:

336=761=1212

Crosley Corporation

111 Cloverleaf Dr.

Winston-Salem, NC 27103

www.croslev.com

Please attach sales receipt

here for future reference.

FORYOURSAFETY

,, Donotstoreorusegasoline,orotherflammableliquidsin

thevicinityofthisoranyotherappliance.Readproduct

labelsforwarningsregardingflammabilityandother

hazards.

,, Donotoperatetherefrigeratorinthepresenceof

explosivefumes.

,, Avoidcontactwithanymovingpartsofautomaticice

maker.

,, Removeallstaplesfromthecarton.Staplescancause

severecuts,andalsodestroyfinishesiftheycomein

contactwithotherappliancesorfurniture.

CHILDSAFETY

Destroyorrecyclethecarton,plasticbags,andanyexterior

wrappingmaterialimmediatelyaftertherefrigeratoris

unpacked.ChildrenshouldNEVERusetheseitemstoplay.

Cartonscoveredwithrugs,bedspreads,plasticsheetsor

stretchwrapmaybecomeairtightchambers,andcanquickly

causesuffocation.

PROPER DISPOSAL OFYOUR REFRIGERATOR OR

FREEZER

Risk of child entrapment

Child entrapment and suffocation

are not problems of the past.

Junked or abandoned refrigerators

or freezers are still dangerous -

even if they will sit for "just a few

days." If you are getting rid of your

old refrigerator or freezer, please

follow the instructions below to

help prevent accidents.

Before you throw away your old refrigerator/freezer:

,, Remove doors.

,, Leave shelves in place so children may not easily climb

inside.

,, Have refrigerant removed by a qualified service

technician.

ELECTRICAL iNFORMATiON

,The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Nz., 15 Amp, AC only electrical

outlet. The power cord of the appliance is equipped with a

three-prong grounding plug for your protection against

electrical shock hazards. It must be plugged directly into a

properly grounded three prong receptacle. The receptacle

must be installed in accordance with local codes and

ordinances. Consult a qualified electrician. Avoid

connecting refrigerator to a Ground Fault Interruptor (GFI)

circuit. Do not use an extension cord or adapter plug.

,, If the power cord is damaged, it should be replaced by an

authorized service technician to prevent any risk.

,, Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out

from the receptacle to prevent damaging the power cord.

,, Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

,, Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with insufficient

power can damage the compressor. Such damage is

not covered under your warranty.

,, Do not plug the unit into an electrical outlet controlled by a

wall switch or pull cord to prevent the refrigerator from

being turned off accidentally.

ThisUse&CareManualprovidesgeneraloperating

instructionsforyourmodel.Usetherefrigeratoronlyas

instructedinthisUse&CareManual.Beforestartingthe

refrigerator,followtheseimportant first steps.

LOCATION

*Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

*If possible, place the refrigerator out of direct sunlight

and away from the range, dishwasher or other heat

sources.

*The refrigerator must be installed on a floor that is level

and strong enough to support a fully loaded refrigerator.

,Consider water supply availability for models equipped

with an automatic ice maker.

iNSTALLATiON

Installation Clearances

*Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical

connections:

Sides & Top 3/8"

Back 1"

DOOR OPENING

To Remove Toe Grille:

2. Open freezer and fresh food compartment doors.

Working from left side of toe grille, slip your fingers

between top of toe grille and cabinet. Gently pull

forward until first set of

tabs are free. Slide

your hand down past Cabinet

the free tabs and pull

forward again until the

second set of tabs are

free. Continue this ,-_./

process until all tabs

are free and the toe

grille can be removed.

(See graphic at top of _

page in right column.)

LEVELING

All four corners of your refrigerator must restfirmly on a solid floor.

Your refrigerator is equipped with adjustable front rollers to help level

your unit. To ensure proper door seal and assist door closing, the

refrigerator should be tilted 1/4" (6 mm), front to back.

ToLeve/ Your Refrigerator:

1. Remove toe grille. (See 'To Remove ToeGrille".)

2. Use fiat-bladescrewdriver or 3/8" socket wrench to adjust

front rollers.

Your refrigerator should be positioned to allow easy access to a

counter when removing food. For best use of drawers and freezer

baskets, the refrigerator should be in a position where both the

refrigerator and freezer doors can be fully opened.

TOE GRILLE iNSTALLATiON /REMOVAL

To/nstafl Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Line up toe grille at base of refrigerator, making sure the

four bottom tabs are resting through holes at base of

cabinet.

3. Starting from left side of toe grille, press in on first top tab

using your thumb and push toe grille forward until it snaps

in place. Continue this process until all tabs are snapped

in place and toe grille is secured to refrigerator.

Raise

3. Check both doors to be sure seals touch cabinet on all four

sides.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON

water supply and flush supply line until water is clear. Turn

OFF water supply at shutoff valve.

3. Unscrew plastic cap from water valve inlet and discard

cap.

4. Slide brass compression nut, then ferrule (sleeve) onto

water supply line, as shown.

5. Push water supply line into water valve inlet as far as it will

go (¼ inch). Slide ferrule (sleeve) into valve inlet and

finger tighten compression nut onto valve. Tighten another

half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to

rear panel of refrigerator as shown.

7. Coil excess water supply line (about 2Y2turns) behind

refrigerator as shown and arrange coils so they do not

vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any

connections that leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (side mounted)

or set the ice maker's On/Off power switch to the "r'

position (rear mounted).

Before installing The Water Supply Line, You Will Need:

,, Basic Tools: adjustable wrench, flat-blade screwdriver,

and Phillips TM screwdriver

,, Access to a household cold water line with water pressure

between 30 and 1OOpsi.

,, A water supply line made of ¼ inch (6.4 mm) OD, copper

tubing. To determine the length of copper tubing needed,

you will need to measure the distance from the ice maker

inlet valve at the back of the refrigerator to your cold water

pipe. Then add approximately 7 feet (2.1 meters), so the

refrigerator can be moved out for cleaning (as shown).

,, A shutoff valve to connect the water supply line to your

household water system. DO NOT use a self-piercing type

shutoff valve.

,, A compression nut and ferrule (sleeve) for connecting the

water supply line to the ice maker inlet valve.

Plastic Water Tubi- j

to Ice Maker

F Tube

Brass

Compression

tSleeve_

'V\X,_Coppe r

walerliee

terValve

Bracket

_-Valvelnlet

Copper water line

from household water supply

i[ncJuae enough tubing in loop to a.ow

moving refrigerator out for clean_ng,_

ToolsNecessary:

and

Fiat Head

Screw Driver

Door

Lower

• i

Screws _''_

TO D|SCONNECT

1. Press outer ring against face

remove TUDe

push ur_til mark touches face of fitting

DOOR REMOVAL iNSTRUCTiONS:

if it is necessary to move the refrigerator through narrow doorways, follow

these steps to remove the doors.

Before you start:

1 Make sure the electrical power cord is unplugged from the wall outlet.

2 Remove any food from the door shelves.

3 Close the doors.

To remove the hinge cover:

1 Remove the three screws from the cover over the top door hinges.

2 Pull the cover forward about a half inch and lift it off.

To remove the refrigerator door:

1 Trace lightly around the door's top hinge with a pencil. This makes reinstallation

easier

2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and

set it aside.

3 Remove the three bottom hinge screws and hinge, if necessary.

To remove the freezer door:

1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides

of the connector firmly and pull apart.

2 Trace lightly around the door's top hinge with a pencil. This makes reinstallation

easier

3 Detach the water tube from the connector located below the freezer door. The

connector releases when you press its outer sleeve inward.

4 Remove the screws from the top hinge and pull the multi-wire cable through it.

5 Lift the door off of the bottom hinge. Lay the door on its side to avoid damage to the

Remove the three bottom hinge screws and hinge, if necessary.

To reinstall the refrigerator and freezer doors, reverse the above steps.

Screws

Features may vary according to model

Fixed -

Door Bin

ice Container

Shelf

Tilt Out

Door Bin

Small Basket

Large

Glide Out

Basket

Tilt Out -

Door Bin

Large Basket

Door Bin

Freezer and Refrigerator SpiliProofTM

Controls _ v-Aspect Shelf

ice Cream Shelf_ /

-- .\ / /Water FIter

Ice r,laKer _ i _ /_ ..........................

-- i _ ..........._ ....................il ........

CAUTION:

Do Not Remove

let Behind

Dairy

Compartment

_Dairy

Compartment

..... Door Bin

BpilIProof T°

Sliding Shelf

Door Bin

Wine Rack

Tall Bottle

.....Retainer

-- Door Bin

Special Item

Rack

-- Meat Keeper

and Cover

--Can Rack

Crisper Pan

and Cover

--Fixed

Door Bin

--Toe Grille

Electronic Controls

Freezer and Refrigerator

Controls

ice Cream Shelf

SpillSafe"

Shelf

-- Water Filter

Door Bin --

Ice Container -

Pizza Shelf

Wire Shelf

Small Items

Door Bin

Wire Shelf

Door Bin

Small Basket

Large Basket

Door Bin

Large Basket

Door Bin

rDoor

rBin

r Bin

Keeper

and Cover

Fixed Shelf

Special Item

Retainer

and Cover

Door Bin

\ .....................................................Toe Grille

Mechanical Controls

COOL DOWN PERIOD

Toensuresafe foodstorage,allowthe refrigeratorto operatewith the doorsclosedfor at least 8 to 12hoursbeforeloadingit with

food.

REFRIGERATOR & FREEZER CONTROLS

TEMPERATURE ADJUSTMENT

,, After 24 hours, adjust the controls as needed. Adjust temperatures gradually; move the knob in small increments, allowing the

temperature to stabilize.

,, For colder temperatures, turn the knob towards Colder.

,, For warmer temperatures, turn the knob towards Cold.

Tomaintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air

vents with food items.

factory 5ettlt1?, factory Settitag

Freezer C_"T_O_ Fresh Food

Refrigerator & Freezer Controls

(Features may vary according to model.)

TEMPERATURE ADJUSTMENT GUmDE

If Fresh Food Compartment Is Too Warm Turn Fresh Food Control Slightly Towards Colder.

If Fresh Food Compartment Is Too Cold Turn Fresh Food Control Slightly Towards Cold.

If Freezer Compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.

If Freezer Compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.

* To Turn Refrigerator Off Turn Freezer and Fresh Food Controls To O.

ALLOWING COOLINGTIME BEFORE USE

Toensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During

this cooling period, you do not need to adjust the controls, which are preset at the factory.

SETTING COOMNGTEMPERATURES

Your refrigerator comes with a state-of-the-art electronic digital control system. The system's control panel is located at the top of the the fresh

food compartment.

The two digital displays on the left half of the control panel indicate the current settings or temperatures of your freezer and fresh food

compartments. The models with a2-digit temperature display are for reference only, and do not display the current accurate compartment

temperature. Should you desire to see what the current accurate temperature is, place a separate thermometer inside the freezer or fresh

food compartment in the desired location.

To adjust the temperature to a higher or lower setting, press the

Up (Cold) or Down (Colder) button closest to the display. The

first time you press the button, the display shows current

setting you entered. Each press of the button after that

changes the setting by one.

The display shows your new setting momentarily, then changes

back to the current temperature.

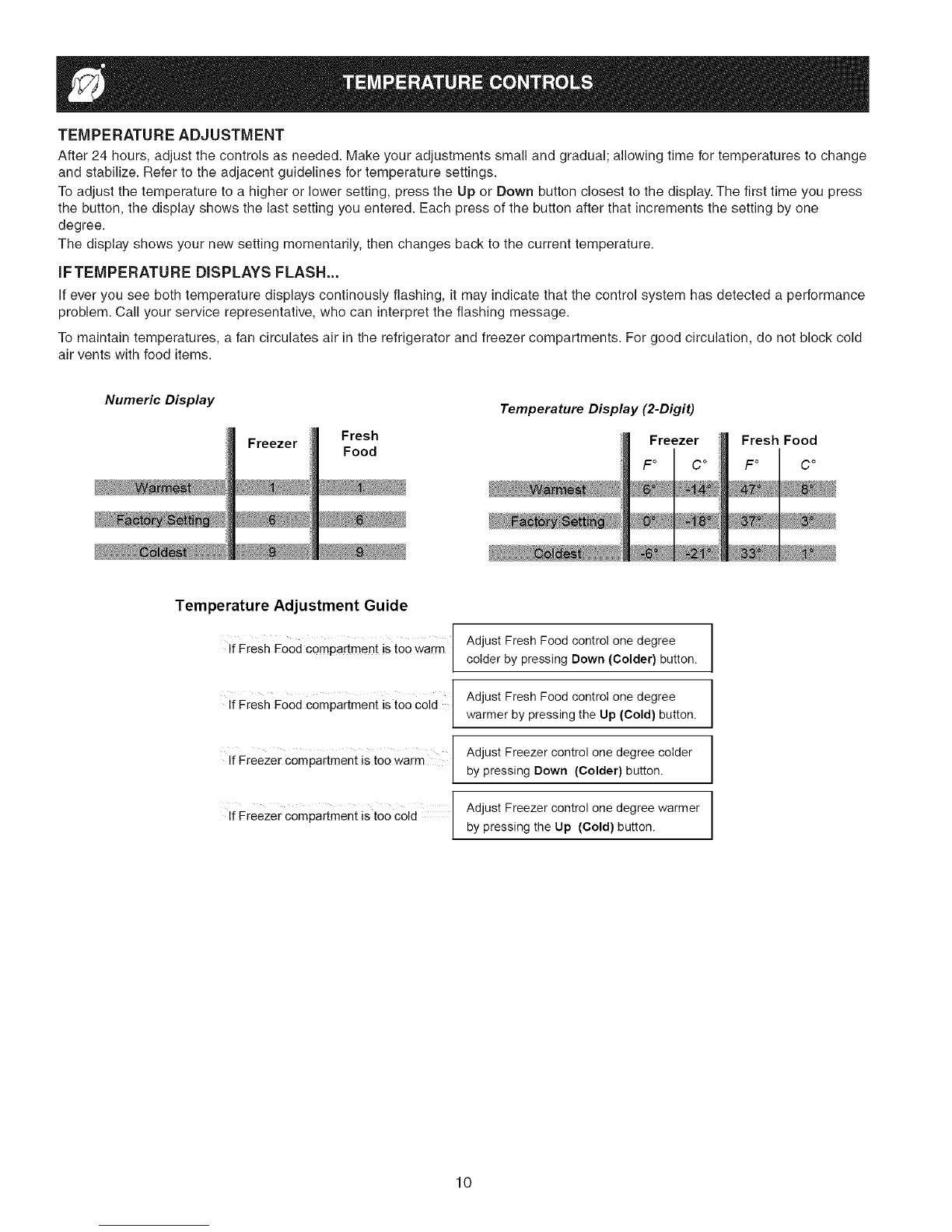

TEMPERATURE ADJUSTMENT

After 24 hours, adjust the controls as needed. Make your adjustments small and gradual; allowing time for temperatures to change

and stabilize. Refer to the adjacent guidelines for temperature settings.

To adjust the temperature to a higher or lower setting, press the Up or Down button closest to the display. The first time you press

the button, the display shows the last setting you entered. Each press of the button after that increments the setting by one

degree.

The display shows your new setting momentarily, then changes back to the current temperature.

IFTEMPERATURE DISPLAYS FLASH...

If ever you see both temperature displays continously flashing, it may indicate that the control system has detected a performance

problem. Call your service representative, who can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold

air vents with food items.

NumeHcD_p_y

Fresh

Freezer Food

Temperature Disp_y(2-DigiO

Freezer Fresh Food

FoC°FoC°

Temperature Adjustment Guide

FreShFo0d0mpartmentist0worm/

If Fresh Food €0mpartment iStoo C0id

if Freezei ComPaitmentiSt0o

if Freezer COmpartmentiStoo C01d

Adjust Fresh Food control one degree

colder by pressing Down (Colder) button.

Adjust Fresh Food control one degree

warmer by pressing the Up (Cold) button.

Adjust Freezer control one degree colder

by pressing Down (Colder) button.

Adjust Freezer control one degree warmer

by pressing the Up (Cold) button.

Dieses Handbuch passt für folgende Modelle

Andere Crosley Kühlschrank Handbücher

Crosley

Crosley CT14NKXHN00 Bedienungsanleitung

Crosley

Crosley CT14NKXJW00 Bedienungsanleitung

Crosley

Crosley CEDS563RB1 Bedienungsanleitung

Crosley

Crosley SIDE BY SIDE REFRIGERATOR Bedienungsanleitung

Crosley

Crosley CRSH268MB Bedienungsanleitung

Crosley

Crosley CRSS262QB Bedienungsanleitung

Crosley

Crosley CRH12RW Montageanleitung

Crosley

Crosley 241824400 Bedienungsanleitung

Crosley

Crosley CFDMH2257AS Bedienungsanleitung

Crosley

Crosley CFDN2216AS Montageanleitung

Crosley

Crosley 241024401 Bedienungsanleitung

Crosley

Crosley XSS23G Betriebsanleitung

Crosley

Crosley XNE25J Betriebsanleitung

Crosley

Crosley CFD28WIS3 Bedienungsanleitung

Crosley

Crosley CT16SKXSQ00 Bedienungsanleitung

Crosley

Crosley 242116500 Bedienungsanleitung

Crosley

Crosley XPS15BTH Betriebsanleitung

Crosley

Crosley CRSE264JSS1 Leitfaden

Crosley

Crosley CRT181LWA Bedienungsanleitung

Crosley

Crosley 2225405 Bedienungsanleitung

Crosley

Crosley CRTEH182TW0 Betriebsanleitung

Crosley

Crosley CT18GMXRQ01 Bedienungsanleitung

Crosley

Crosley CS25CFXTQ02 Bedienungsanleitung

Crosley

Crosley WCR18/W3 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
