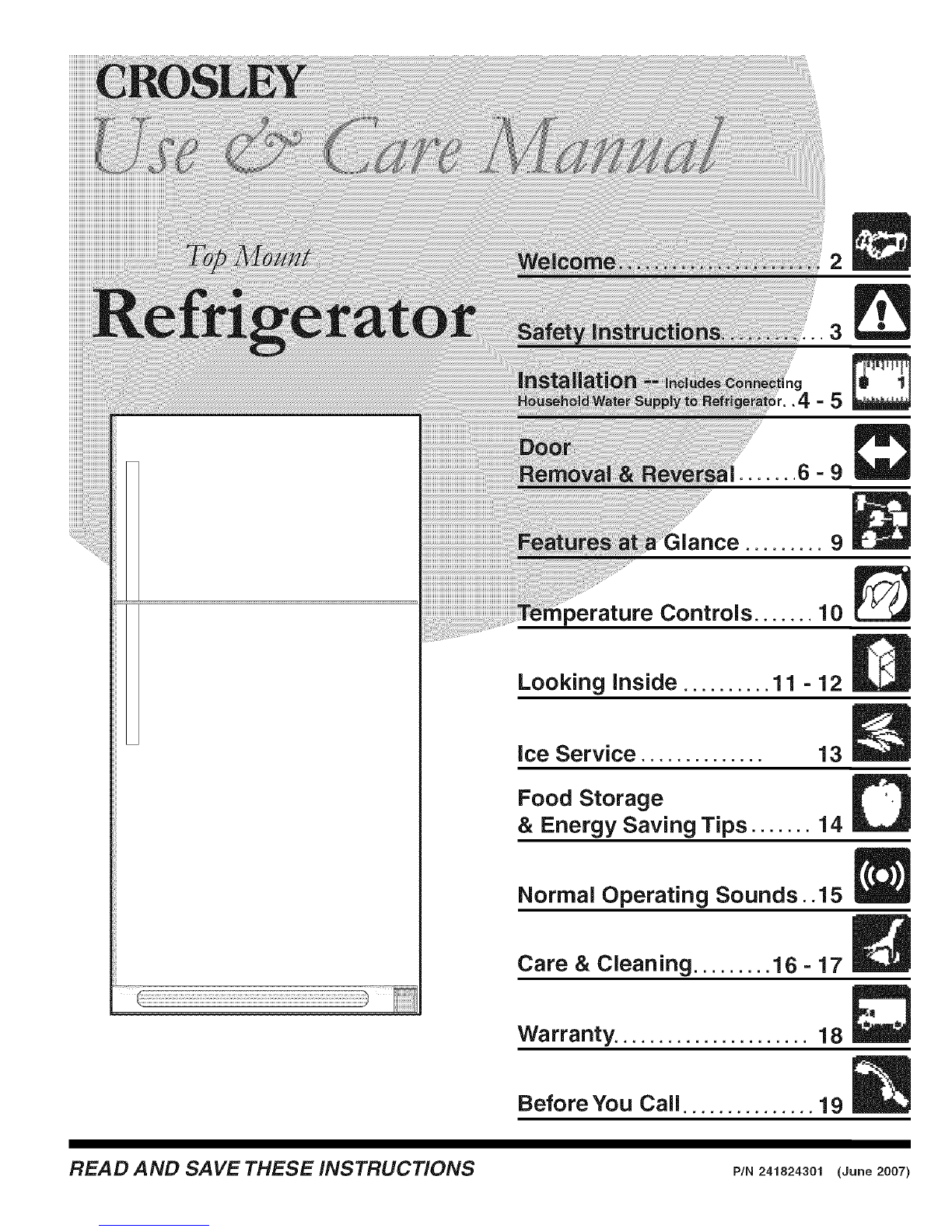

Crosley DGHT1844KF8 Bedienungsanleitung

...... 6=9

Controls ....... 10

Looking inside .......... 11=12

ice Service .............. 13

Food Storage

& Energy Saving Tips ....... 14

Normal Operating Sounds.. 15

Care & Cleaning ......... 16 =17

Warranty. ..................... 18

Before You Call ............... 19

READ AND SAVE THESE INSTRUCTIONS P/N241824301(June 2007)

Congratulations on your purchase of a new refrigerator! We here

at Crosley Corporation are very proud of our product and we

are completely committed to providing you with the best service

possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains

valuable information on how to properly maintain your new

refrigerator.

We know you'll enjoy your new refrigerator and Thank You for

choosing our product. We hope you consider us for future

purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions

for your model. Use your refrigerator only as instructed in this

manual. These instructions are not meant to cover every possible

condition and situation that may occur. Common sense and

caution must be practiced when installing, operating and

maintaining any appliance.

Please record your model and serial numbers below for

future reference. This information is found on the serial

plate located inside the refrigerator compartment.

Model Number:

Serial Number:

Purchase Date:

Please complete and

mail in the Product

Registration Card

included with your

refrigerator.

FOR PRODUCT iNFORMATiON CONTACT:

336-761-1212

Crosley Corporation

111 Cloverleaf Dr.

Winston-Salem, NC 27103

www.croslev.com

Please attach sales receipt

here for future reference.

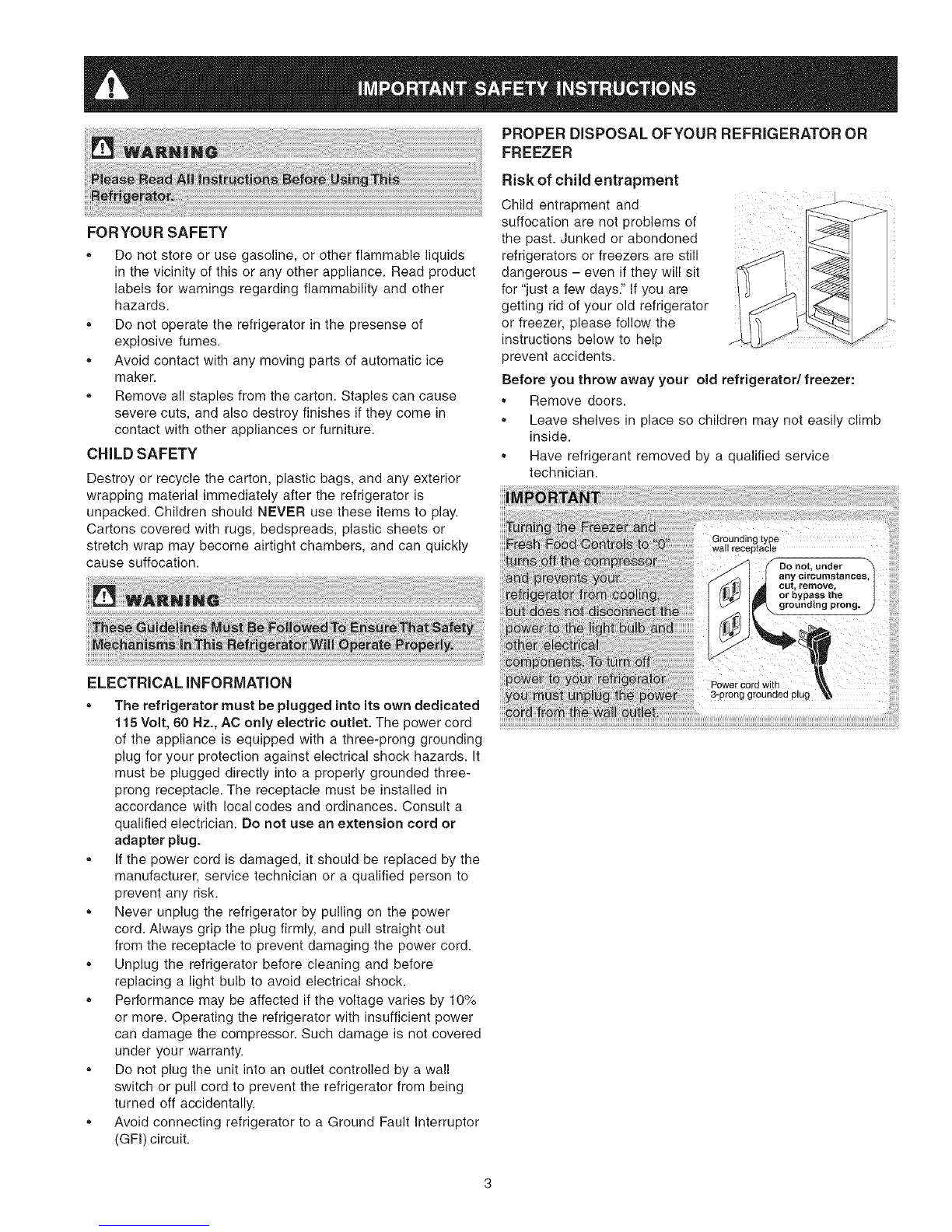

FORYOUR SAFETY

,, Do not store or use gasoline, or other flammable liquids

in the vicinity of this or any other appliance. Read product

labels for warnings regarding flammability and other

hazards.

,, Do not operate the refrigerator in the presense of

explosive fumes.

,, Avoid contact with any moving parts of automatic ice

maker.

,, Remove all staples from the carton. Staples can cause

severe cuts, and also destroy finishes if they come in

contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton, plastic bags, and any exterior

wrapping material immediately after the refrigerator is

unpacked. Children should NEVER use these items to play.

Cartons covered with rugs, bedspreads, plastic sheets or

stretch wrap may become airtight chambers, and can quickly

cause suffocation.

ELECTRICAL iNFORMATiON

,, The refrigerator must be plugged into its own dedicated

115 Volt, 60 Nz., AC only electric outlet. The power cord

of the appliance is equipped with a three-prong grounding

plug for your protection against electrical shock hazards. It

must be plugged directly into a properly grounded three-

prong receptacle. The receptacle must be installed in

accordance with Iocalcodes and ordinances. Consult a

qualified electrician. Do not use an extension cord or

adapter plug.

,, If the power cord is damaged, it should be replaced by the

manufacturer, service technician or a qualified person to

prevent any risk.

,, Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out

from the receptacle to prevent damaging the power cord.

,, Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

,, Performance may be affected if the voltage varies by 10%

or more. Operating the refrigerator with insufficient power

can damage the compressor. Such damage is not covered

under your warranty.

,, Do not plug the unit into an outlet controlled by a wall

switch or pull cord to prevent the refrigerator from being

turned off accidentally.

,, Avoid connecting refrigerator to a Ground Fault Interruptor

(GFI) circuit.

PROPER DISPOSAL OFYOUR REFRIGERATOR OR

FREEZER

Risk of child entrapment

Child entrapment and Y_

suffocation are not problems of

the past. Junked or abondoned

refrigerators or freezers are still

dangerous - even if they will sit

for "just a few days." If you are

getting rid of your old refrigerator

or freezer, please follow the

instructions below to help

prevent accidents.

Before you throw away your old refrigerator/freezer:

, Remove doors.

®Leave shelves in place so children may not easily climb

inside.

Have refrigerant removed by a qualified service

technician.

any circumstances

This Use & Care Manual provides specific operating

instructions for your model. Use the refrigerator only as

instructed in this Use & Care Manual. Before starting the

refrigerator, follow these important first steps.

LOCATION

, Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

, If possible, place the refrigerator out of direct sunlight

and away from the range, dishwasher or other heat

sources.

, The refrigerator must be installed on a floor that is level

and strong enough to support a fully loaded refrigerator.

, Consider water supply availability for models equipped

with an automatic ice maker.

INSTALLATION

DOOR OPENING

Your refrigerator should be positioned to allow easy access to

a counter when removing food. To make this possible, the

direction in which the doors open can be reversed. See Door

Removal & Reversal Instructions.

LEVELING

All four corners of your refrigerator must rest firmly on a solid

floor. Your refrigerator is equipped with adjustable front rollers

or front leveling screws to help level your unit.

To LevelYour Refrigerator:

1. Remove toe grille.

2. Use fiat-blade

or 3/8" socket wrench to

adjust front rollers. Use

adjustable wrench to ......

adjust leveling screws. I

Installation Clearances

,, Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical

connections:

Sides & Top 3/8"

Back 1"

Raise

Adjustable Front Roller

(some models)

Stationary Front Roller

with Leveling Screw

(some models)

To Connect Water Supply LineTo ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON

water supply and flush supply line until water is clear. Turn

OFF water supply at shutoff valve.

3. Unscrew plastic cap from water valve inlet and discard

cap.

4. Slide brass compression nut, then ferrule (sleeve) onto

water supply line, as shown.

5. Push water supply line into water valve inlet as far as it

will go (¼ inch). Slide ferrule (sleeve) into valve inlet and

finger tighten compression nut onto valve. Tighten another

half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to

rear panel of refrigerator as shown.

7. Coil excess water supply line (about 2V2 turns) behind

refrigerator as shown and arrange coils so they do not

vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any

connections that leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (see ice

maker front cover for ON/OFF position of arm).

Before InstallingTheWater Supply Line,You Wil Need

,, Basic Tools: adjustable wrench, flat-blade screwdriver,

and Phillips TM screwdriver

,, Access to a household cold water line with water pressure

between 30 and 100 psi.

,, A water supply line made of ¼ inch (6.4 mm) OD, copper

tubing. To determine the length of copper tubing needed,

you will need to measure the distance from the ice maker

inlet valve at the back of the refrigerator to your cold water

pipe. Then add approximately 7 feet (2.1 meters), so the

refrigerator can be moved out for cleaning (as shown).

,, A shutoff valve to connect the water supply line to your

household water system. DO NOT use a self-piercing type

shutoff valve.

,, A compression nut and ferrule (sleeve) for connecting the

water supply line to the ice maker inlet valve.

Steel

Plastic Water Tubing Clamp

to Ice Maker

\_ /u// Compression

u -- Nut

4 _ Ferrule

. i

/// ::L.,T."-°

pp 'e

from household water supply

_in loop to allow

moving refrigerator out for cleaning.)

Sockot Adjustable

Wrench Set Wrench

Awl

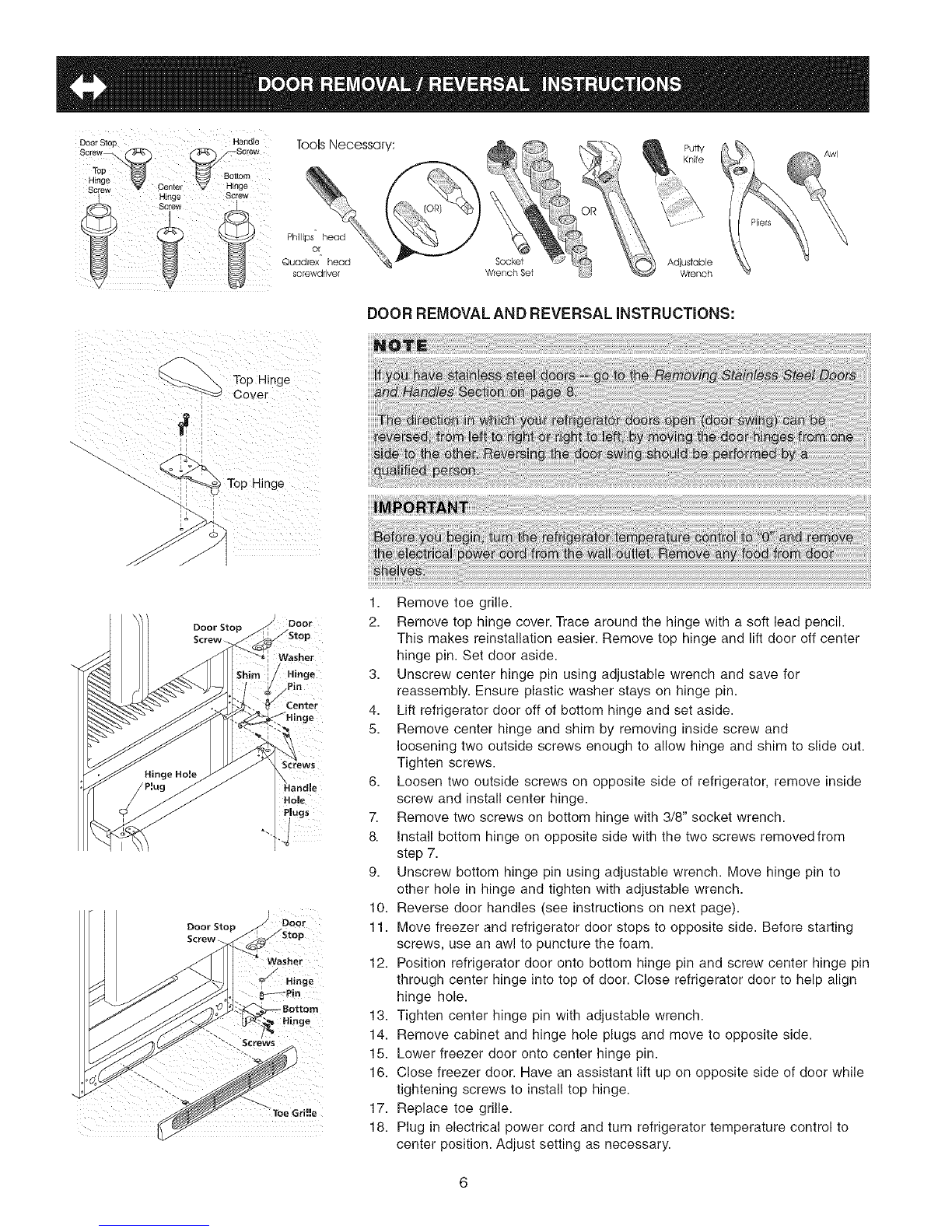

DOOR REMOVAL AND REVERSAL iNSTRUCTiONS:

Top Hinge

Cover

Washer

Hinge

Door Stop

Screw _

Washer

-Pin

,Hinge

7"-. Screws

$i_

1. Remove toe grille.

2. Remove top hinge cover. Trace around the hinge with a soft lead pencil.

This makes reinstallation easier. Remove top hinge and lift door off center

hinge pin. Set door aside.

3. Unscrew center hinge pin using adjustable wrench and save for

reassembly. Ensure plastic washer stays on hinge pin.

4. Lift refrigerator door off of bottom hinge and set aside.

5. Remove center hinge and shim by removing inside screw and

loosening two outside screws enough to allow hinge and shim to slide out.

Tighten screws.

6. Loosen two outside screws on opposite side of refrigerator, remove inside

screw and install center hinge.

7. Remove two screws on bottom hinge with 3/8" socket wrench.

8. Install bottom hinge on opposite side with the two screws removed from

step 7.

9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to

other hole in hinge and tighten with adjustable wrench.

10. Reverse door handles (see instructions on next page).

11. Move freezer and refrigerator door stops to opposite side. Before starting

screws, use an awl to puncture the foam.

12. Position refrigerator door onto bottom hinge pin and screw center hinge pin

through center hinge into top of door. Close refrigerator door to help align

hinge hole.

13. Tighten center hinge pin with adjustable wrench.

14. Remove cabinet and hinge hole plugs and move to opposite side.

15. Lower freezer door onto center hinge pin.

16. Close freezer door. Have an assistant lift up on opposite side of door while

tightening screws to install top hinge.

17. Replace toe grille.

18. Plug in electrical power cord and turn refrigerator temperature control to

center position. Adjust setting as necessary.

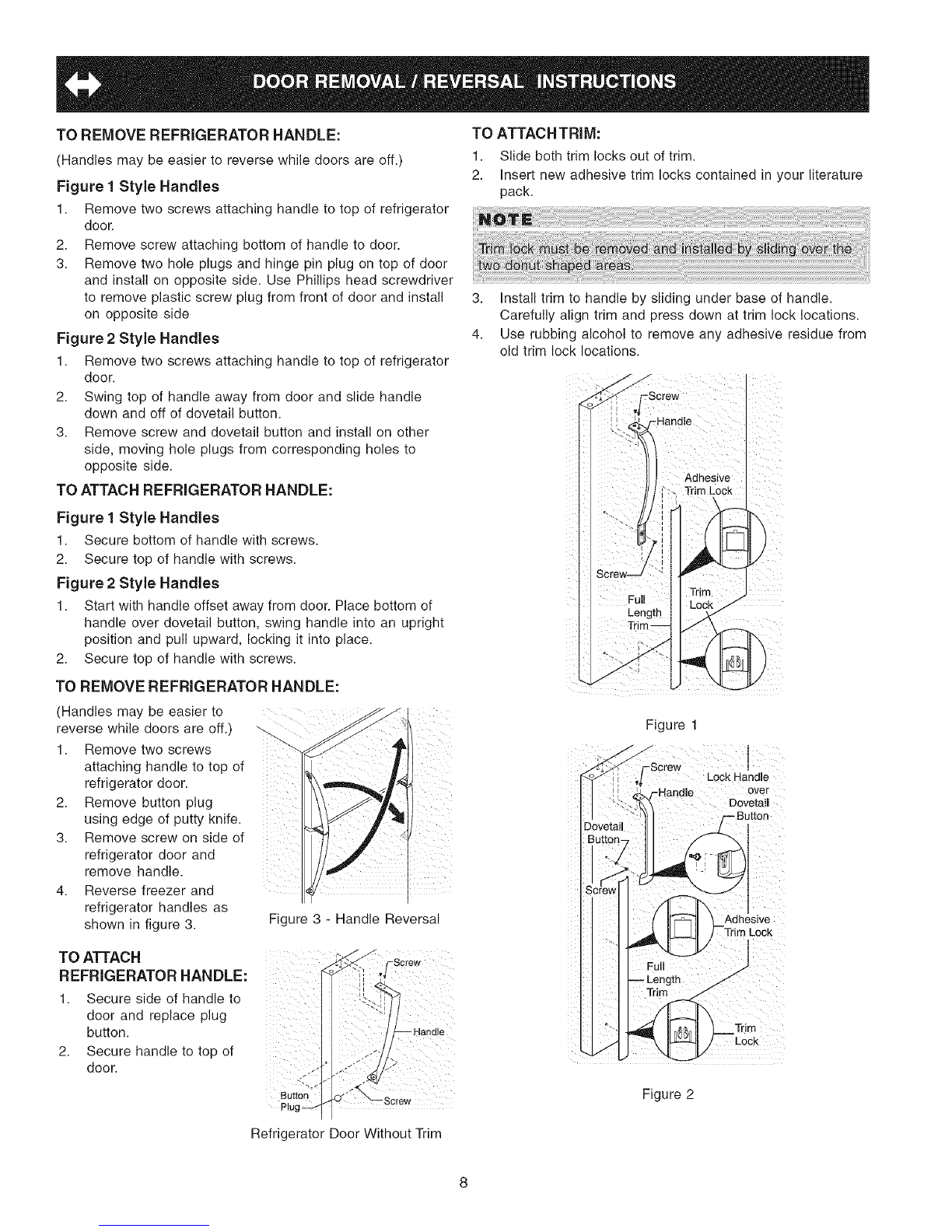

TOREMOVEFREEZERHANDLE:

(Handlesmaybeeasiertoreversewhiledoorsareoff.)

1. Removetwoscrewsattachinghandletobottomoffreezer

door•

Remove short trim piece by sliding trim straight up and off

of handle bracket•

Remove screw attaching top of handle to door.

Magnetic Nameplate Models: Gently pry magnetic

nameplate frame from door. Remove nameplate from its

frame, turn frame upside down and install tn old handle

holes• Insert magnetic nameplate into frame

Self-Adhesive

Nameplate Models:

Gently peel off Nameplate

nameplate from door

and reapply over old

handle holes•

TO ATTACH FREEZER

HANDLE:

1. Reinstall handle on

opposite side, using

same hole as

nameplate•

2. Attach handle to

bottom of door.

3. Slide trim piece

straight down onto

handle bracket•

Sell Adhesive

Nameplate

(some models)

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse while doors are off.)

1. Remove two screws attaching handle to bottom of freezer

door.

2. Remove button plug using edge of putty knife•

3. Remove screw on side of freezer door and remove

handle•

TOATTACHFREEZER

HANDLE:

1. Secure side of

handle to door and

replace button plug. Button

2. Secure handle to Plu

bottom of door.

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse while doors are off.)

1. Remove two screws attaching handle to bottom of freezer

door.

2. Swing bottom of handle away from the door and slide

handle straight up and off of dovetail button•

3. Remove screw and dovetail button and install on other

side, using the same holes as nameplate•

4. Magnetic Nameplate Models: Use putty knife to gently pry

magnetic nameplate frame from door. Remove nameplate

from its frame, turn frame upside down and install in old

handle holes• Insert magnetic nameplate into frame•

Self-Adhesive Nameplate Models: Use putty knife to

gently peel off nameplate from door and reapply over old

handle holes•

TO ATTACH FREEZER Self Adhesive

HANDLE: Nameplate Nameplate

1 Start with handle (somemodels)JFrame_

•

offsetawayfrom

door. Place top of

handle over dovetail

button, swing handle

into an upright

position and pull

downward, locking it

ntop ace

2. Secure bottom of

handle with two _:,_j Lock Handle

\ - . i,_-!J o¥?r

screws removed Screw.._.L_,_ Dovetai! Butto n

earlier.

TRiM REMOVAL (FULL-LENGTHTRIM MODELS ONLY)

In some models, the refrigerator door has a full length trim

piece which continues from the bottom of the handle to the

bottom of the door. The top of the trim attaches to the handle

bracket (Figure 1) or fits around the base of the handle (Figure

2). An adhesive "trim lock" is positioned about halfway down.

The bottom of the trim is held in place by either an adhesive

trim lock, or a trim lock with two prongs inserted into a hole on

the face of the door.

TO REMOVETRIM:

1. Remove trim by gently pulling trim lock areas out and

away from door.

2. When trim is free from door, slide the trim straight down

and away from base of handle•

iiiiili!!!!!!!!!!;iiii! i! iii i ii¸ ;;ii¸iiliiiiiiiiiiiiiiiiiiii!!iiiiii!!!!!!;i¸ ;ii i J i!!ii¸ i¸ i i

TO REMOVE REFRIGERATOR HANDLE:

(Handles may be easier to reverse while doors are off.)

Figure 1Style Handles

1. Remove two screws attaching handle to top of refrigerator

door.

2. Remove screw attaching bottom of handle to door.

3. Remove two hole plugs and hinge pin plug on top of door

and install on opposite side. Use Phillips head screwdriver

to remove plastic screw plug from front of door and install

on opposite side

Figure 2Style Handles

1. Remove two screws attaching handle to top of refrigerator

door.

2. Swing top of handle away from door and slide handle

down and off of dovetail button.

3. Remove screw and dovetail button and install on other

side, moving hole plugs from corresponding holes to

opposite side.

TO ATTACH REFRIGERATOR HANDLE:

Figure 1 Style Handles

1. Secure bottom of handle with screws.

2. Secure top of handle with screws.

Figure 2 Style Handles

1. Start with handle offset away from door. Place bottom of

handle over dovetail button, swing handle into an upright

position and pull upward, locking it into place.

2. Secure top of handle with screws.

TO REMOVE REFRIGERATOR HANDLE:

TO ATTACH TRIM:

1. Slide both trim locks out of trim.

2. Insert new adhesive trim locks contained in your literature

pack.

3. Install trim to handle by sliding under base of handle.

Carefully align trim and press down at trim lock locations.

4. Use rubbing alcohol to remove any adhesive residue from

old trim lock locations.

(Handles may be easier to

reverse while doors are off.)

1. Remove two screws

attaching handle to top of

refrigerator door.

2. Remove button plug

using edge of putty knife.

3. Remove screw on side of

refrigerator door and ........

remove handle.

4. Reverse freezer and

refrigerator handles as

shown in figure 3. Figure 3 - Handle Reversal

TO ATTACH

REFRIGERATOR HANDLE:

1. Secure side of handle to

door and replace plug

button.

2. Secure handle to top of

door.

"_-". screw

o .f

[L. !l

Refrigerator Door Without Trim

Dovetail

Figure 1 I

LockHandle

over

Dovetail

Adhesive

Full -J

Trim

Figure 2

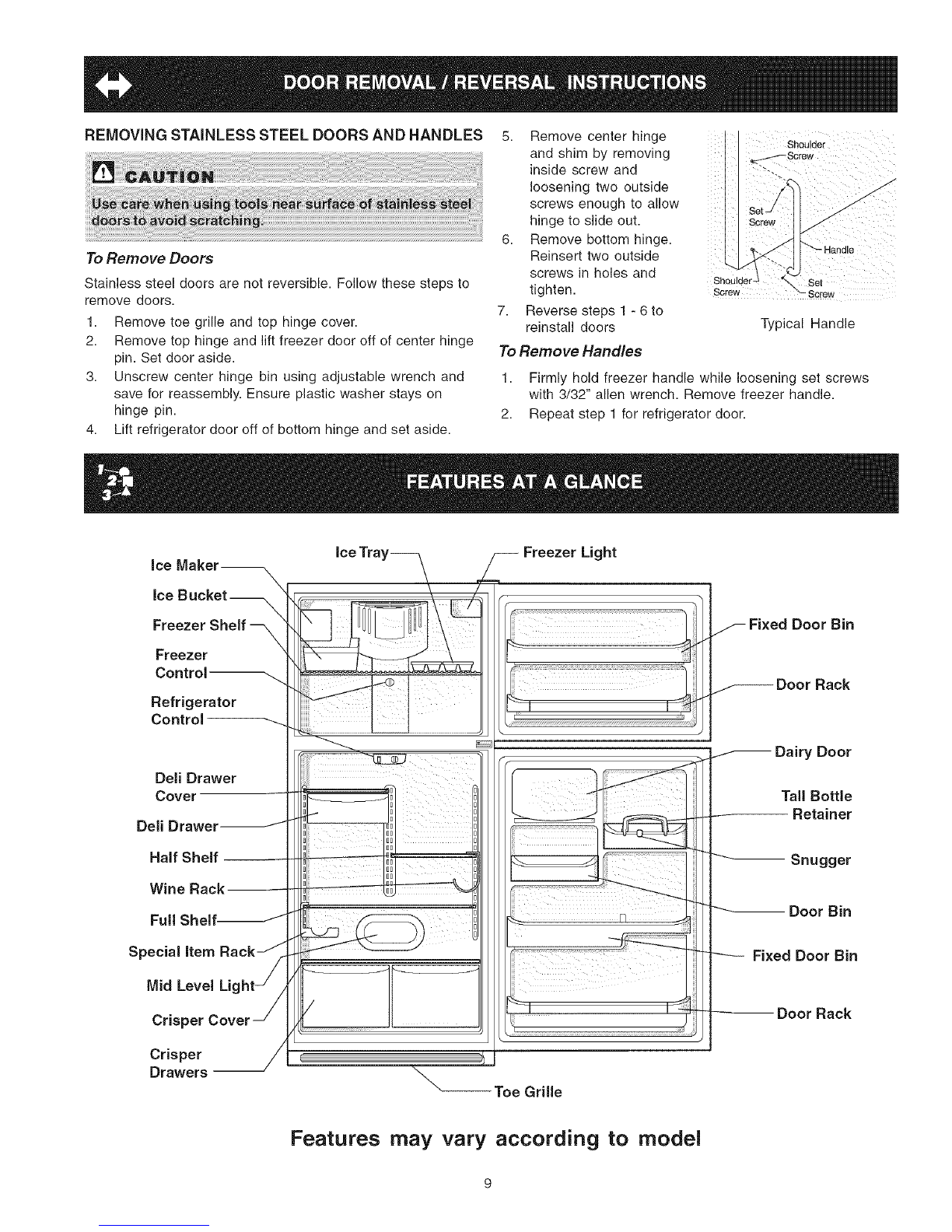

REMOVING STAINLESS STEEL DOORS AND HANDLES

To Remove Doors

Stainless steel doors are not reversible. Follow these steps to

remove doors.

1. Remove toe grille and top hinge cover.

2. Remove top hinge and lift freezer door off of center hinge

pin. Set door aside.

3. Unscrew center hinge bin using adjustable wrench and

save for reassembly. Ensure plastic washer stays on

hinge pin.

4. Lift refrigerator door off of bottom hinge and set aside.

5. Remove center hinge Shoulder

and shim by removing

inside screw and

loosening two outside

screws enough to allow

hinge to slide out.

6. Remove bottom hinge.

Reinsert two outside

screws in holes and Shoulder Set

tighten. Screw Screw

7. Reverse steps 1 - 6to

reinstall doors Typical Handle

To Remove Handles

1. Firmly hold freezer handle while loosening set screws

with 3/32" allen wrench. Remove freezer handle.

2. Repeat step 1 for refrigerator door.

ice Maker_

Freezer

Control -_

Refrigerator

Control _-

Dell Drawer

Cover

Deli Drawer

Half Shelf

Wine Rack

Full

Special item

Mid Level

Crisper

Drawers

y Freezer Light

-- Toe Grille

Fixed Door Bin

Door Rack

Dairy Door

Tall Bottle

Retainer

Snugger

Door Bin

Fixed Door Bin

Door Rack

Features may vary according to model

COOL DOWN PERIOD

To ensure safe food storage, allow the refrigerator to operate

with the doors closed for at least 8 to 12 hours before loading

it with food.

REFRIGERATOR & FREEZER CONTROLS

TEMPERATURE ADJUSTMENT

•Adjust temperature gradually: move the knob in small

increments, allowing the temperature to stabilize.

,For colder temperatures, turn the knob towards Colder.

,For warmer temperatures, turn the knob towards Cold.

Turning the refrigerator control will change temperatures in

both compartments. For example, if the refrigerator control is

turned to a colder setting, the freezer control may have to be

adjusted to a warmer setting. Turning the freezer control will

change only the freezer temperature.

To maintain temperatures, a fan circulates air in the

refrigerator and freezer compartments. For good circulation,

do not block cold air vents with food items.

Freezer Control (some models)

Refrigerator Control (some models)

Refrigerator & Freezer Control (some models)

TEMPERATURE ADJUSTMENT GUIDE

If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.

If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.

If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.

If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.

* To Turn Refrigerator Off Turn Refrigerator Control To 0.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Crosley Kühlschrank Handbücher

Crosley

Crosley CRSH268MB Bedienungsanleitung

Crosley

Crosley CRSE266FB3 Bedienungsanleitung

Crosley

Crosley CRSH268MS3 Bedienungsanleitung

Crosley

Crosley CRSE230KW0 Bedienungsanleitung

Crosley

Crosley XTS21 Betriebsanleitung

Crosley

Crosley CS25AFXKT04 Bedienungsanleitung

Crosley

Crosley Tribute Series Bedienungsanleitung

Crosley

Crosley WCR18/W3 Bedienungsanleitung

Crosley

Crosley CFDD265TS Bedienungsanleitung

Crosley

Crosley CFDMH 1834 AW Bedienungsanleitung

Crosley

Crosley CRSS262QB Bedienungsanleitung

Crosley

Crosley 242111500 Bedienungsanleitung

Crosley

Crosley CBMH1873AW Bedienungsanleitung

Crosley

Crosley CS25AFXKQ05 Bedienungsanleitung

Crosley

Crosley CFD27WIPW3 Betriebsanleitung

Crosley

Crosley CFDNH2218AS Montageanleitung

Crosley

Crosley CFDMH2257AS Bedienungsanleitung

Crosley

Crosley CRQN2215AS Montageanleitung

Crosley

Crosley CRT151HQW0 Betriebsanleitung

Crosley

Crosley SIDE BY SIDE REFRIGERATOR Bedienungsanleitung

Crosley

Crosley Conservator American Tribute ARX443UW Bedienungsanleitung

Crosley

Crosley CRSE264JSS1 Leitfaden

Crosley

Crosley CS22CFXTS02 Bedienungsanleitung

Crosley

Crosley 241024401 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
