SUMMIT

POU Water Dispenser User Manual

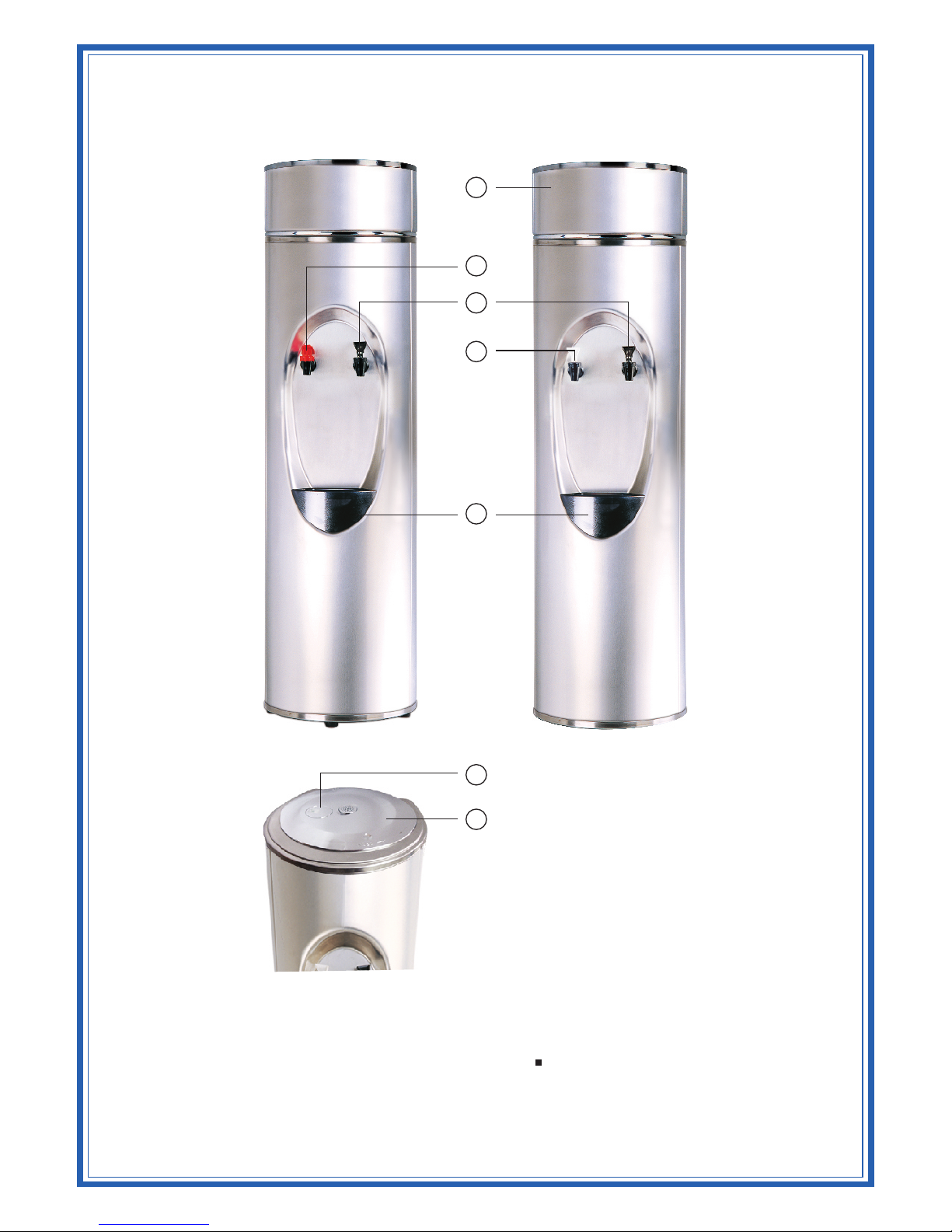

1. POU Top Cover

2. Hot Water Faucet

(with Child Safety Feature)

3. Cold Water Faucet

4. Cook Water Faucet

(room Temperature Water)

5. Drip Tray

6. Reset Button

7. POU Kit

Parts may not appear exactly as shown

RECEIVING

Inspect the cooler box for any evidence of shipping or handling damage. In case of shipping damage,

claims should be filed promptly with the carrier. Please note that the carrier will not accept claims

for any damage discovered after the signing for UNINSPECTED GOODS. Ensure cooler stands

upright for 24 hours before plugging it in.

OPERATION

1. Place the water cooler on a flat level surface in a cool shaded location near a grounded wall outlet.

Position water dispenser so that the back of the unit is a minimum of 2 inches / 5cm away from

the wall to ensure proper ventilation. (Figure 1)

2. Installation should only be executed by properly trained personnel. The connection must be to the

potable mains water supply and should be via a shut off valve. An anti-flood device should be

fitted as close as possible to the mains connection point. In line with local regulations, a check or

non-return valve must also be fitted prior to the equipment (Figure 2).

Water Inlet Pressure:

●Minimum 20PSI (0.138MPa)

●Maximum 80PSI (0.552MPa)

●Where pressures exceed 80PSI (0.552MPa) a Pressure Reducing Valve must be fitted

3. Ensure that the available power supply matches the cooler’s voltage specifications indicated on

the nameplate label (located at the rear). Plug power supply cord into receptacle(Figure 4). Please

ensure that cooler is set up so as access to the power outlet and plug is unobstructed.

Note: Remove the Protective plastic coating from the surface of the Stainless Steel body prior to use.

Note: On H&C models (Figure 3), vent the hot tank by holding the red faucet open until water

flows out. (Heater switch may now be turned on)

Note: To provide additional protection from the risk of shock, this unit MUST be connected to a

ground fault circuit interrupter (GFCI) outlet at all times. Use of an Extension cord will void any

warranties.

THANK YOU FOR BUYING A CRYSTAL MOUNTAIN WATER COOLER!

Figure 1 Figure 3Figure 2

2 inches (5 cm)

Figure 4

Figure 5 Figure 6

5. Ensure the following when cooler is to be serviced:

5.1 Turn off Hot Tank Switch (Hot & Cold models only) (Figure 7) and disconnect power supply cord (Figure 8).

5.2 Turn off the water supply via the shut off valve, and disconnect the water supply from the cooler (Figure 9).

5.3 Use a bucket to drain water from the cold water reservoir through faucets (Figure 10). On Hot & Cold models,

turn off hot tank switch as above (Figure 11). Allow 1 hour for the hot water to cool down inside the hot water

tank. Remove the drain plug at the rear of the cooler to drain into a container (Figure 12 and Figure 13).

Reservoir Removal (E&S Series)

On Cook & Cold and Hot & Cold models the reservoir can be removed easily by following the steps given below.

1. Unplug and approach the cooler from the front (Figure 14).

2. Turn off the water supply via the shut off valve, and disconnect the water supply from the cooler (Figure 15).

CAUTION! ALWAYS DRAIN WATER COMPLETELY

BEFORE SHIPPING OR STORING THE COOLER!

Figure 7 Figure 8 Figure 9

Figure 10 Figure 11 Figure 12 Figure 13

4. Do not draw water from the cooler for about 30 minutes to let the water cool or heat (Figure 5).

Optimum water temperatures will be reached after several hours of operation (Figure 6).

Figure 14 Figure 15

3. Remove the POU Cover (if installed) (Figure 16) Use the fingertips of both hands to press on the POU Lid

Assembly and turn counter clockwise till it is free from the cooler opening. (Figure 17, Figure 18) Lift off of

the cooler, and set aside. Drain the water from the reservoir and hot tank (Figure 19), remembering to cool

and drain hot tank. Allow 1 hour for hot water to cool down.

4. Using fingers of both hands to lift up and remove the insulation jacket covering the reservoir, from the cooler

opening (Figure 20 and Figure 21)

5. Remove the baffle cup by lifting straight out (Figure 22). Loosen & remove the baffle stem and wing nut by

turning counter-clockwise (Figure 23 and Figure 24).

6. Approach the cooler from the rear and open the latch provided on the evaporator band (Figure 25).

7. Use both hands to loosen the reservoir from the evaporator band and lift is straight though the

cooler opening (Figure 26).

Figure 21Figure 20

Figure 22 Figure 23 Figure 24

Figure 16 Figure 17 Figure 18 Figure 19

Figure 25 Figure 26

R, P, & G Series

On Cook & Cold and Hot & Cold models the reservoir can be removed easily by following the steps

given below.

1. Unplug (Figure 27) and approach the cooler from the front.

2. Turn off the water supply via the shut off valve, and disconnect the water supply from the cooler. (Figure 28)

3. Remove the POU Cover (if installed) (Figure 29) Use the fingertips of both hands to press on the POU Lid

Assembly and turn counter clockwise till it is free from the cooler opening. (Figure 30, Figure 31) Lift off of

the cooler, and set aside. Drain the water from the reservoir and hot tank (Figure 32), remembering to cool

and drain hot tank. Allow 1 hour for hot water to cool down.

4. Using fingers of both hands loosen and remove the insulation jacket covering the plastic reservoir from

the cooler opening (Figure 33 and Figure 34).

5. Approach the cooler from the rear and open the latch provided on the evaporator band (Figure 36).

6. Remove the faucets from the reservoir elbows by turning them counter clockwise (Figure 37).

7. Using both hands, loosen the reservoir from the evaporator band and lift it straight through the cooler

opening (Figure 38).

(Note: On Hot & Cold models, after step4 unscrew the

round plastic one piece baffle Figure 35)

Figure 27 Figure 28

Figure 29 Figure 30 Figure 31 Figure 32

Figure 34Figure 33 Figure 35

Figure 36 Figure 37 Figure 38

CLEANING

Do Not Immerse the Unit in Water for Cleaning

Remove any dust or contaminants from the cooler by rinsing the cold water reservoir and faucets with clean water

prior to use. IMPORTANT: Stainless steel surfaces require special cleaning products and treatment (Figure 39 and

Figure 40). Use only products specially formulated for use on stainless steel (Crystal Brite )

DO NOT USE abrasive cleaners or cloths when polishing

After installation of the

POU Assembly, the Reset

indicator should be located

towards the rear of the

cooler

Open

Figure 41

SLIDE TO RESET

(Figure 41)

Parts may not appear exactly as shown

Figure 39 Figure 40

Standup Series Bracket Installation Instructions

INSTALLATION

1. Remove the two mounting screws that secure the Bottom Plate to the outer enclosure.

2. While holding the "S" shaped bracket against the cooler (refer to diagram) reinstall and tighten

the bottom plate/outer enclosure screws securely.

3. Place the cooler in position against the wall and using the "S" bracket, mark the location of the

wall insert holes to be drilled (if required). If not required, secure the cooler to the wall using

the two screws provided.

Figure 43

Screw

Condenser Bottom Plate

"S" Mounting Bracket

WARNING:

The warranty and Underwriters’ Laboratory and CE listings for the coolers are invalidated if

any alteration, modification, or use or misuse in combination with any other machine or

devices is deemed to be the source of any claim. The manufacturer accepts no liability

(including for bodily injury) resulting from any alteration, misuse, neglect, accidents, improper

installations or repairs.

The Red Faucet dispenses hot water during normal operation that may cause severe burns.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from

the manufacturer or its service agent.

This marking indicates that this product should not be disposed with other household

wastes throughout the EU. To prevent possible harm to the environment or human

health from uncontrolled waste disposal, recycle it responsibly to promote the

sustainable reuse of sustainable resources. To return your used device, please use the

return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

The customer acknowledges that water, like other liquids, can cause damage to surfaces. The

customer takes full responsibility for placing the cooler within a residence or business, and

acknowledges that failure to address drips, leaks or spillages is at the customer’s risk.

Environmental application temperature: 10~32°C.

The unit is rated IP10. (This unit is not protected against ingress of water)

For more information on this product, please visit www.crystalcoolers.com
