Crystal Vision DDAA132 Bedienungsanleitung
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
E-mail: [email protected] Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059
DDAA132
SDI to composite or Y/C monitoring
encoder with distribution amplifier
Crystal Vision DDAA132 User Manual R7.2
113/01/05
Contents
1Introduction 3
2Hardware installation 5
2.1 Universal rear connectors 5
Rear module connections with RM01 5
Rear module connections with RM18 6
Rear module connections with RM02 6
2.2 General Purpose Interface 8
4U frame GPI connections 9
2U frame GPI connections 10
1U frame GPI connections 10
DTB-AV GPI connections 11
Indigo DT desk top box GPI connections 11
2.3 Configuration 11
Changing the standard selection mode 12
Changing output signal formats 12
3Card edge operation 14
4Problem solving 16
5Specification 17
Crystal Vision DDAA132 User Manual R7.2
213/01/05
Crystal Vision Introduction
13/01/05 3DDAA132 User Manual R7.2
1Introduction
The DDAA132 is an 8 bit serial digital to analogue composite converter with reclocked
serial and up to four selectable composite or Y/C analogue outputs.
The universal connection system allows a mixture of Crystal Vision modules in the frame.
The modules plug in the front, and the rear connectors plug in at the back. Depending on
frame design, a hinged or removable front panel reveals LED indication of input and PSU
status when opened.

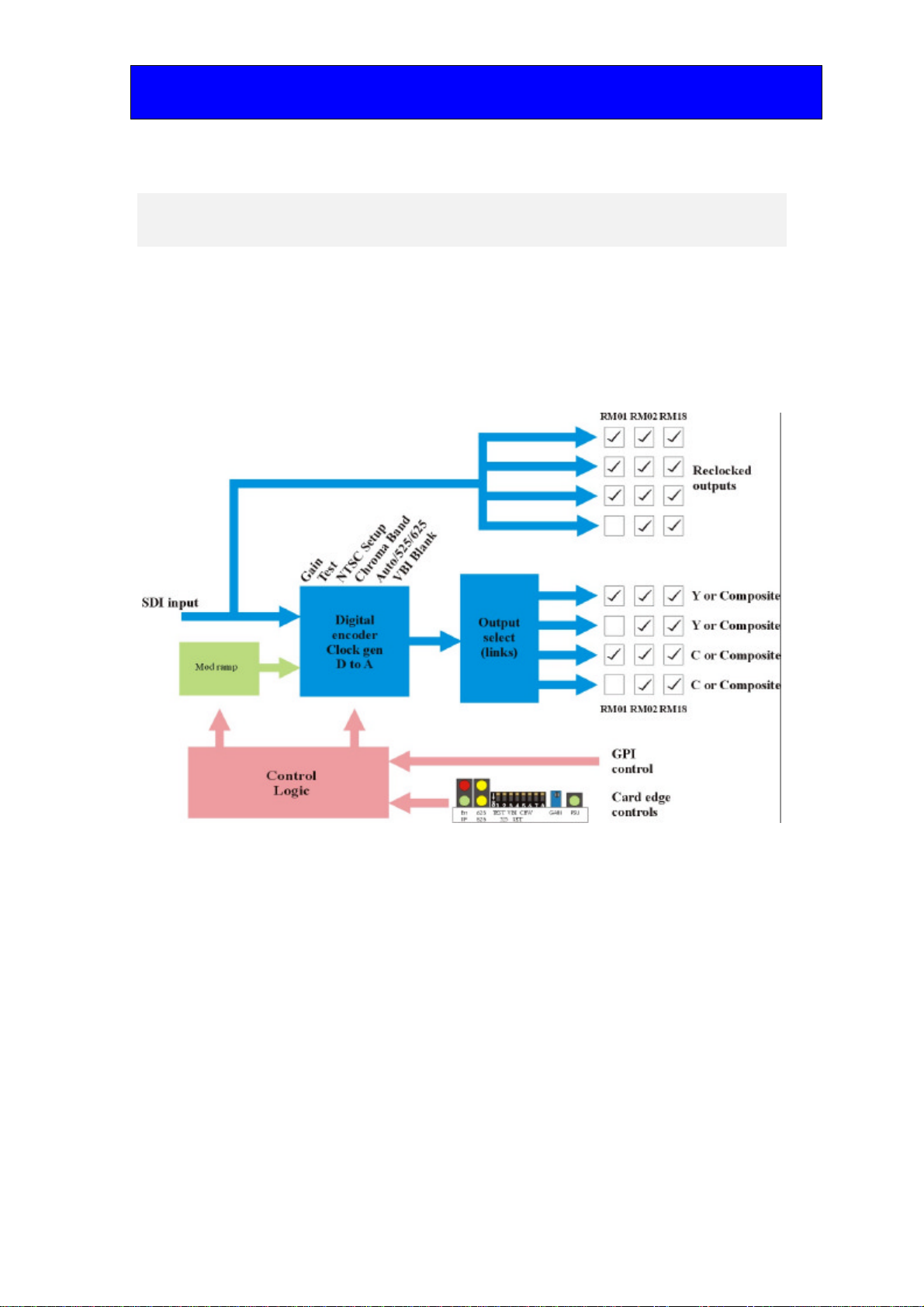

DDAA132 serial digital to analogue converter
The DDAA132 may be used with the RM01 single slot rear connector, the RM02
quadruple slot rear connector and the RM18 double slot rear connectors. The RM01
allows the highest frame packing density, with reduced output connections, whilst the
RM02 and RM18 provide access to all outputs but with reduced packing density.
The RM01 allows 24 modules in a 4U frame, 12 modules in 2U, six in 1U and two in a
desk top box. The RM02 allows 18 modules to fit in a 4U frame, 9 modules in 2U frame
and the RM18 allows 12 modules in a 4U frame, six modules in 2U frame, three in 1U
and one in a desk top box.
The analogue outputs can be switched between input video and an internal test pattern
under local or remote (GPI) control. DDAA132 accepts either 625 or 525 line input, with
automatic detection.
To produce the internal Luma/Chroma test pattern, the DDAA132 requires a valid SDI
input signal from which to extract clocking information.
Crystal Vision Introduction
13/01/05 4DDAA132 User Manual R7.2
The available test pattern is:
•Luma/Chroma Ramp
The main features are:
•8 bit serial digital to analogue composite converter
•Variable gain
•Automatic equalisation for up to 200 metres of coaxial cable
•Up to four reclocked SDI outputs and four composite or two Y/C outputs
•GPI/LED input presence indication
•Auto or manual PAL 625/NTSC 525 line selection
•VBI blanked or unblanked
•Modulated ramp test pattern or serial input
•NTSC setup on/off and chroma bandwidth select
•Card edge control
Note: This manual covers the DDAA132. The DDAA132P with a greater range of internal test
patterns, including PLUGE is also available, along with a dedicated manual.
Crystal Vision Hardware installation
13/01/05 5DDAA132 User Manual R7.2
2Hardware installation
The DDAA132 serial digital to analogue composite converter fits into all Crystal Vision
frames. All modules can be plugged in and removed while the frame is powered without
damage.
2.1 Universal rear connectors
When used with a single height rear connector, the 4U Indigo frame will house up to 24
modules and up to three power supplies, the 2U Indigo frame will house up to 12 modules
and dual power supplies, the 1U Indigo frame will house 6 modules and a single power
supply. The desk top box has a built-in power supply and will house up to two modules
with a single height rear connector.
The 4U, 2U and 1U frames have hinged front panels which give access to the PSU and all
modules. The desk top box has a removable front. The universal frame wiring system
allows any of the interface range of modules to be fitted in any position with the use of
removable rear modules.
The DDAA132 may be used with the RM01 single slot rear connector, the RM02
quadruple slot rear connector and the RM18 double slot rear connector.

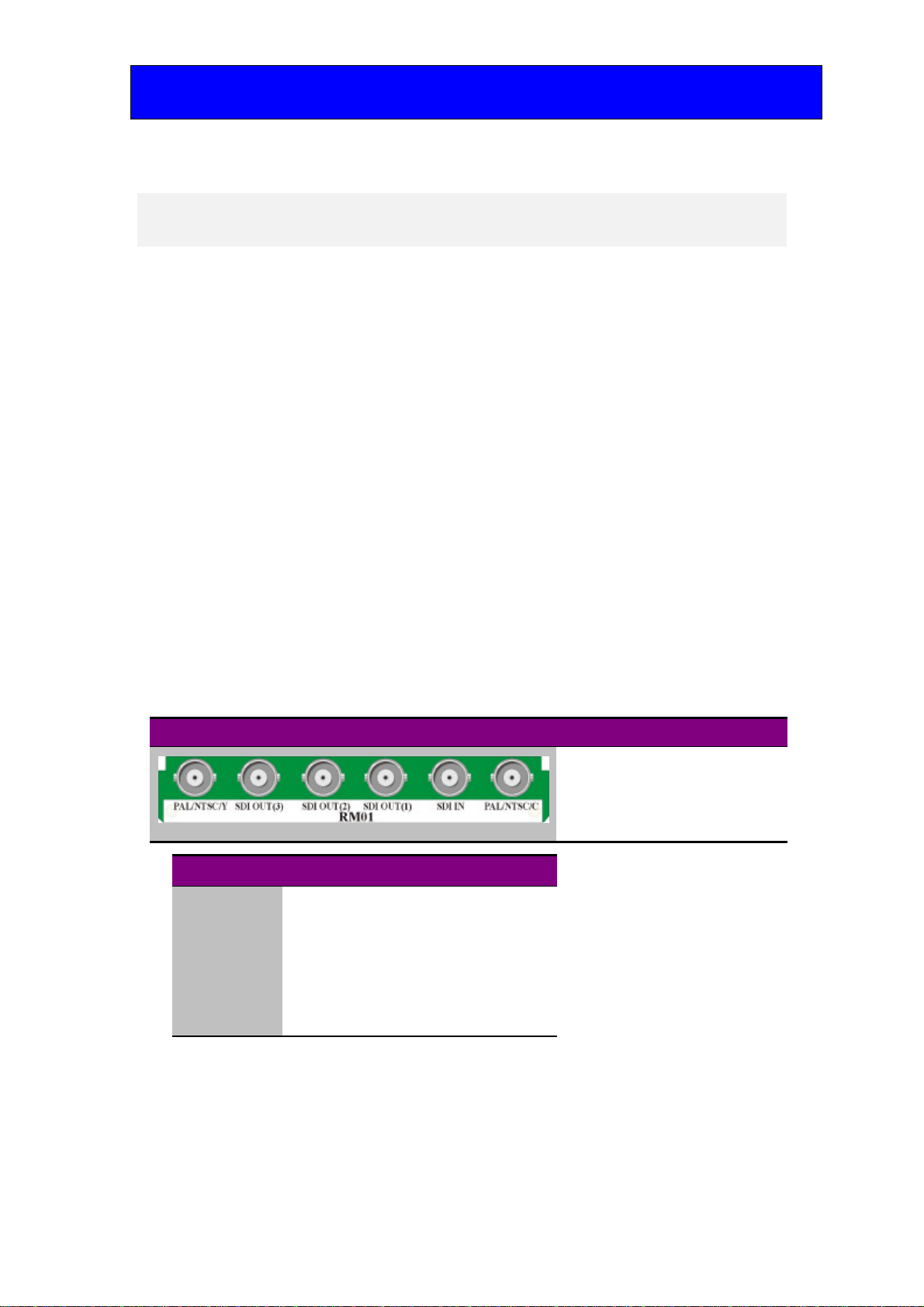

Rear module connections with RM01
RM01 fits in all frames Description
RM01
•24 modules in 4U,12
modules in 2U, 6 in 1U & 2
in a desk top box
•All frame slots can be used
BNC Connection
SDI IN Serial digital input
SDI OUT(1) Reclocked serial digital output
SDI OUT(2) Reclocked serial digital output
SDI OUT(3) Reclocked serial digital output
PAL/NTSC/Y Composite video or Y plus sync (set by PL5)
PAL/NTSC/C Composite video or C (set by PL4)
Crystal Vision Hardware installation
13/01/05 6DDAA132 User Manual R7.2

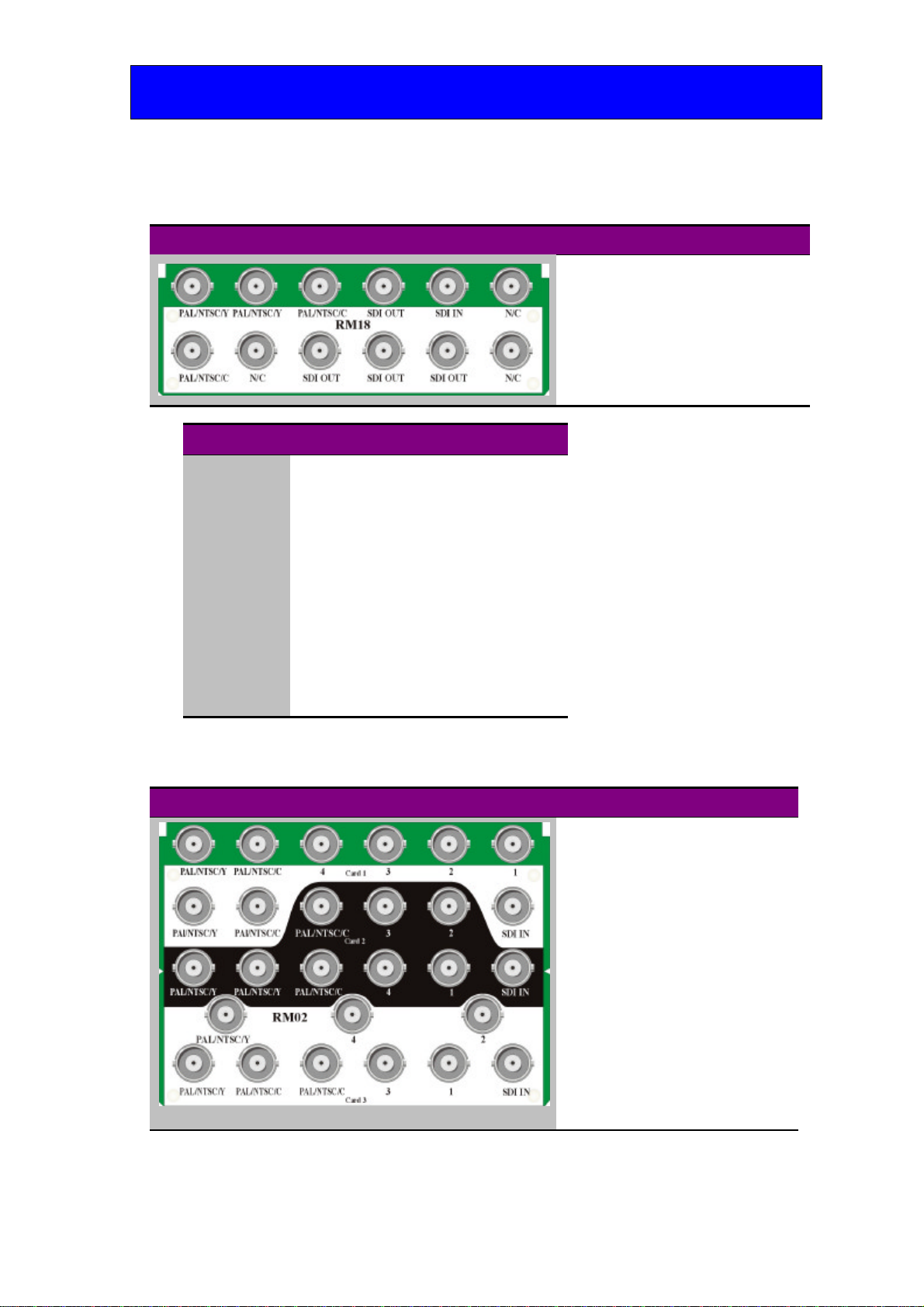

Rear module connections with RM18
RM18 fits in all frames Description
RM18
•12 modules in 4U, six modules
in 2U , three in 1U, one in a desk
top box
•One module per rear connector
•Nine connections available
•Card fits in upper slot
•No card fits in lower slot
BNC Connection
N/C No connection
SDI IN Serial digital input
SDI OUT Reclocked serial digital output
PAL/NTSC/C Composite video or C (set by PL2)
PAL/NTSC/Y Composite video or Y plus sync (set by PL5)
PAL/NTSC/Y Composite video or Y plus sync (set by PL3)
N/C No connection
SDI OUT Reclocked serial digital output
SDI OUT Reclocked serial digital output
SDI OUT Reclocked serial digital output
N/C No connection
PAL/NTSC/C Composite video or C (set by PL4)
Rear module connections with RM02
RM02 fits in 4U, 2U Indigo or FR2AV frame Description
RM02
•18 modules per 4U frame, nine
modules per 2U frame
•Three modules per rear
connector
•Nine connections available
•Card 1 fits in slots 1, 5 and 9
(1,5, 9, 13, 17 and 21 in 4U)
•Card 2 fits in slots 2, 6 and 10
(2, 6, 10, 14, 18 and 22 in 4U)
•Card 3 fits in slots 4, 8 and 12
(4, 8, 12, 16, 20 and 24 for 4U)
•No card fits in 3, 7 or 11 (3, 7,
11, 15, 19 and 23 for 4U)
Crystal Vision Hardware installation
13/01/05 7DDAA132 User Manual R7.2
BNC Single channel configuration
SDI IN Serial digital input
1Reclocked serial digital output
2Reclocked serial digital output
3Reclocked serial digital output
4Reclocked serial digital output
PAL/NTSC/Y Composite video or Y plus sync
PAL/NTSC/C Composite video or C
PAL/NTSC/Y Composite video or Y plus sync
PAL/NTSC/C Composite video or C
PL3 PL2
PL5 PL4 PL4
PL3 PL5 PL2
PL5
PL3 PL2 PL4

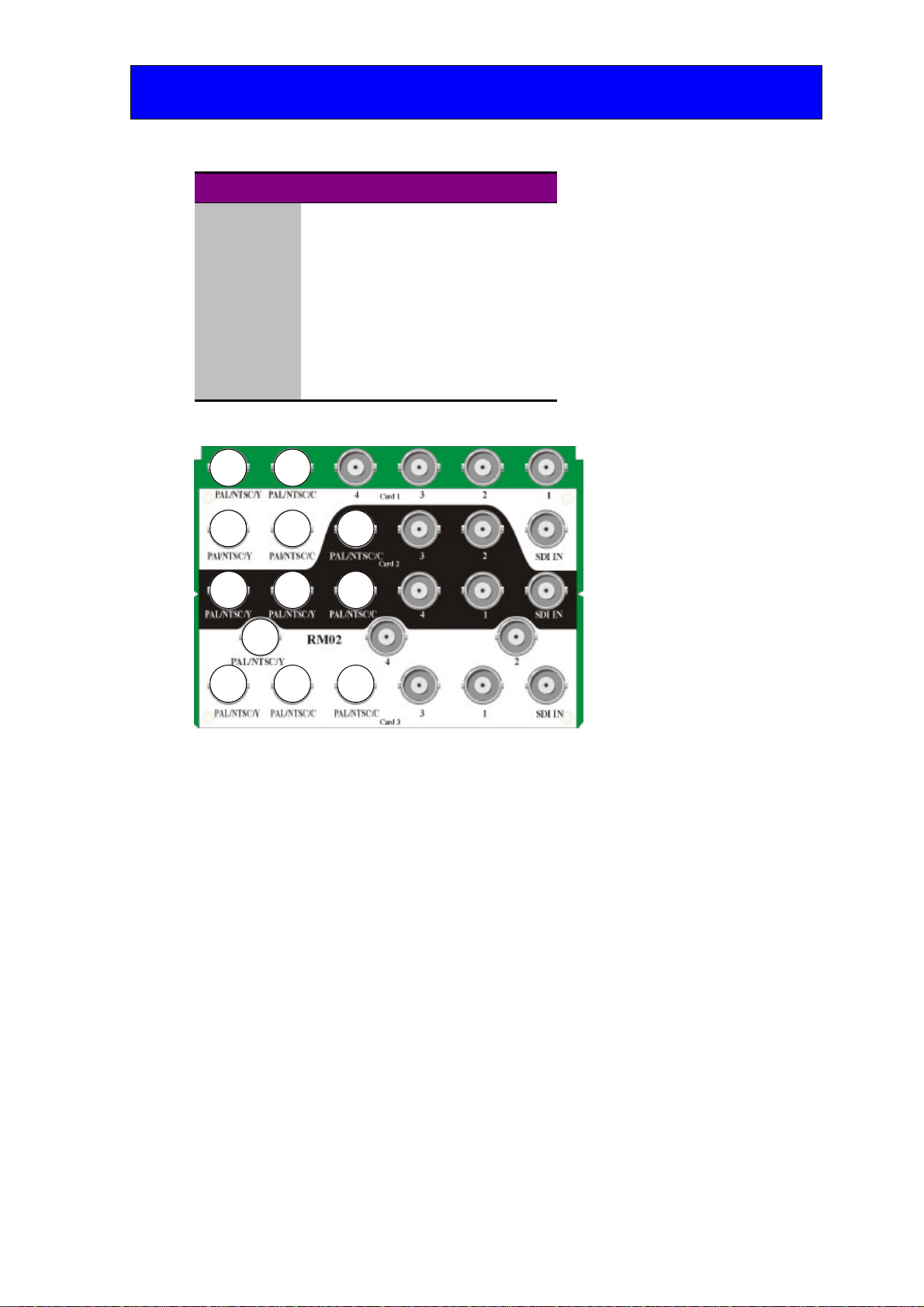

RM02 output configuration showing link settings.
For detailed link information see board configuration.
Crystal Vision Hardware installation
13/01/05 8DDAA132 User Manual R7.2
2.2 General Purpose Interface
The external GPI control lines 'a' to 'f' at the frame remote connectors may be used to
control the DDAA132 remotely with (say) remote switches emulating some of the front
panel switches. The GPI lines are normally pulled up on-board to +5V via 10kΩ and will
withstand up to +35V.
GPI connections
Open Connect to ground
‘a’ No setup Adds 7.5 IRE of setup to Y & reduces Y
gain as required. Only affects 525 line
output.
‘b’ 625 line if manual standard selected on
jumper PL8 525 line if manual standard selected on
jumper PL8
‘c’ Blank PAL lines 7 to 22 & 320 to 335,
NTSC lines 10 to 20 & 273 to 282. Unblank PAL lines 7 to 22 & 320 to 335,
NTSC lines 10 to 20 & 273 to 282.
‘d’ See table below See table below
‘e’ See table below See table below
‘f’ See table below See table below
GPI test pattern select
Composite output ‘d’ ‘e’ ‘f’
SDI input Open Open Open
SDI input Open Open Closed
SDI input Open Closed Open
SDI input Open Closed Closed
Closed Open Open
Closed Open Closed
Luma/chroma ramp Closed Closed Open
Closed Closed Closed
Crystal Vision Hardware installation
13/01/05 9DDAA132 User Manual R7.2
The following tables show the pinout for each frame.
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)
27 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)
38 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)
47 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)
55 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)
64 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)
75 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)
84 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)
93 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)
10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)
11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)
12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)
Table shows pin number (remote number)
Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female
sockets and frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is
pin 6 and +5V @500mA is pin 15 in each case.
UpperLower
