CSL xDSL Router
Quick Guide
CSL XDSL ROUTER QUICK GUIDE
CSL xDSL Router Quick Guide
Introduction
CSL xDSL Router Merlin
QUICK GUIDE & INSTRUCTION
MANUAL
QUICK GUIDE
This section provides basic information to enable you to install and commission a
CSL Router quickly. CSL Router is preconfigured with the SIMs already fitted in the
SIM slots.
CSL xDSL Router Quick Guide
Step 1. Installation Site
Find a suitable location with good 4G coverage1.
Keep away from sources of interference i.e. monitors, fridges, power supplies,2.
etc.
LEDs will show connection status3.
CSL xDSL Router Quick Guide
Step 2. Aerial xDSL and Power

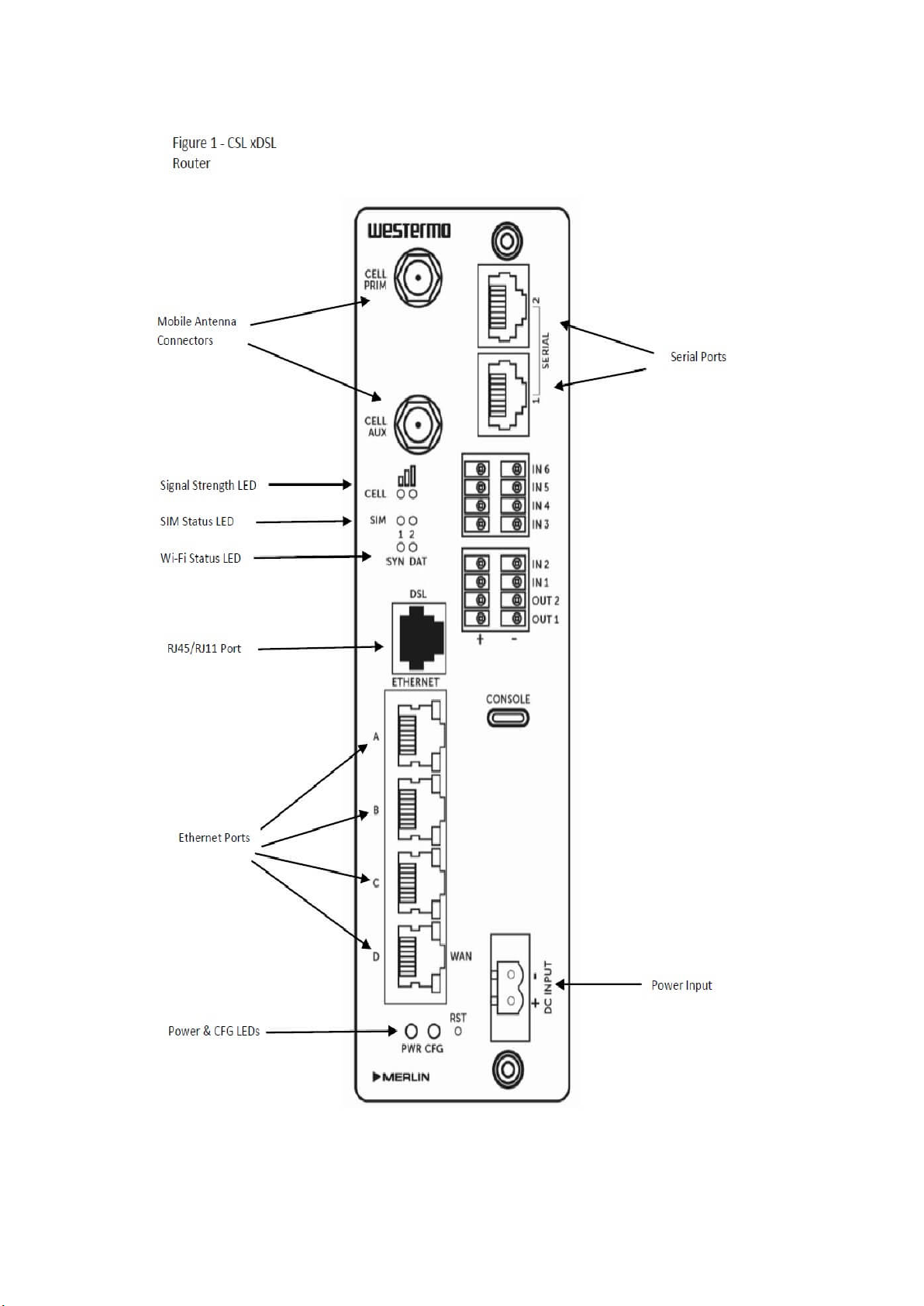

Fit the included Aerial to the front connection port marked CELL PRIM & CELL1.
AUX
Plug the PSTN line into the DSL port on the front of the router and plug the2.
other end into the BT socket.
Power up the Router using the supplied PSU3.
CSL xDSL Router Quick Guide
Step 3. xDSL Status
If the xDSL service provisioning has been confirmed the SYN LED should blink1.
(FLASHING) and then become solid.
Once the line synch is complete the LED DAT should flash indicating data2.
transfer.
CSL xDSL Router Quick Guide
Step 4. Signal Strength
For best results ensure that both green signal strength LEDs are ON to indicate1.
the Router has established good signal strength
OFF/ON LED status indicates a medium signal strength which is also2.
acceptable
CSL xDSL Router Quick Guide
Step 5. Connect Devices
IP devices can now be connected using the supplied ethernet cable or1.
wirelessly. Be aware Port Forwarded AnyConnect traffic is set by default to
forward to 192.168.100.2/24. Please see the sticker on the back page for your
specific 4G Router WAN SIM IP Address.
THE EXTERNAL WALL-MOUNTED CSL HIGH-GAIN AERIALS ARE AVAILABLE AS AN
OPTIONAL ACCESSORY. PLEASE CONTACT CSL M2M SUPPORT FOR MORE
INFORMATION
CSL M2M Support can be contacted via email at M2MSupportThames@csl-
group.com or by phone at +44 (0) 1895 546 214
CSL xDSL Router Quick Guide
Troubleshooting
ISSUE = THE SITE IS OFF-LINE AND THE ROUTER CAN NOT BE CONTACTED ON
EITHER PATH
Q: Is the router powered?
A: The Power Adaptor LED and router’s POWER LED should both be on.
If the Power LED is off when the Power Adaptor LED is off - the power source may be
faulty or if OK replace
the power adaptor or mains cable.
If the Power LED is off when the Power Adaptor LED is on - replace the router.
Q: Are all xDSL connections correct and are they working reliably?
A: If SYN & DAT indicators are off please check connectors are well seated. If
connections seem OK swap the filter, cables, or adaptors between the line socket
and router. Customer-provided telephone line extension leads or sockets faulty may
need to be checked and replaced.
Q: Is the xDSL path now OK?
A: The SYN indicator should be on and stable and the DAT indicator should be on but
flashing to show data is passing through the router.
If the SYN is on & DAT indicators are on but not flashing then contact CSL Technical
Support to confirm the router’s xDSL path has been restored.
If the SYN indicator is off - the router may have recently been powered up or
rebooted, wait a minute and recheck.
If the SYN indicator persistently drops out or begins flashing then the router may be
unable to sync or randomly re-syncing. If all checks have been made to remove any
connection problems then retest with a spare router, otherwise, contact the CSL
support who will arrange for an xDSL test.
Q: Is the router configured correctly?
A: The CONFIG LED should be on or off but not flashing. If the CONFIG LED is flashing
then contact the M2M Support Team who will arrange the download of the site-
specific configuration.
Q: Is the mobile radio path now OK?
A: Ideally, one or more signal-strength LEDs should be permanently on. If all Signal
Strength LEDs are off it indicates no signal is available. If the signal strength is
usually OK this could indicate there may be a local transmitter fault. Contact the CSL
Technical
Support if this is suspected.
ISSUE = THE SITE IS OFF-LINE BUT THE ROUTER CAN BE CONTACTED BY CSL
