MVP-8C(N)/MVP-16C/

MVP-32C

User manual

Contents

1、Operation guide ..........................................................................................................................3

1.1 Power source.......................................................................................................................3

1.2 Capacitive touch screen ......................................................................................................3

1.3 Signal switching...................................................................................................................4

1.4 EDID management ..............................................................................................................6

1.5 Internet network communication Settings .........................................................................8

1.6 RS232 setting.......................................................................................................................9

1.7 Version information query ..................................................................................................9

1.8 system reset....................................................................................................................10

2、RS232 and LAN control command.............................................................................................10

3、Web management.....................................................................................................................19

3.1 WEB management option .................................................................................................20

3.2 EDID options......................................................................................................................22

3.3 UART option ......................................................................................................................23

3.4 System option....................................................................................................................24

4、product technical parameter ....................................................................................................25

4.1 Matrix technical parameter...............................................................................................25

4.2 Cards technical parameter ................................................................................................27

5、card description ........................................................................................................................28

5.1 HDBaseT card ....................................................................................................................28

5.2 HDMI cards........................................................................................................................30

5.3 DVI card .............................................................................................................................32

5.4 Optic card ..........................................................................................................................34

5.5 SDI card .............................................................................................................................36

5.6 CVBS card ..........................................................................................................................37

5.7 YPBPR card ........................................................................................................................39

5.8 VGA card............................................................................................................................41

6、System diagram.........................................................................................................................43

1、Operation guide

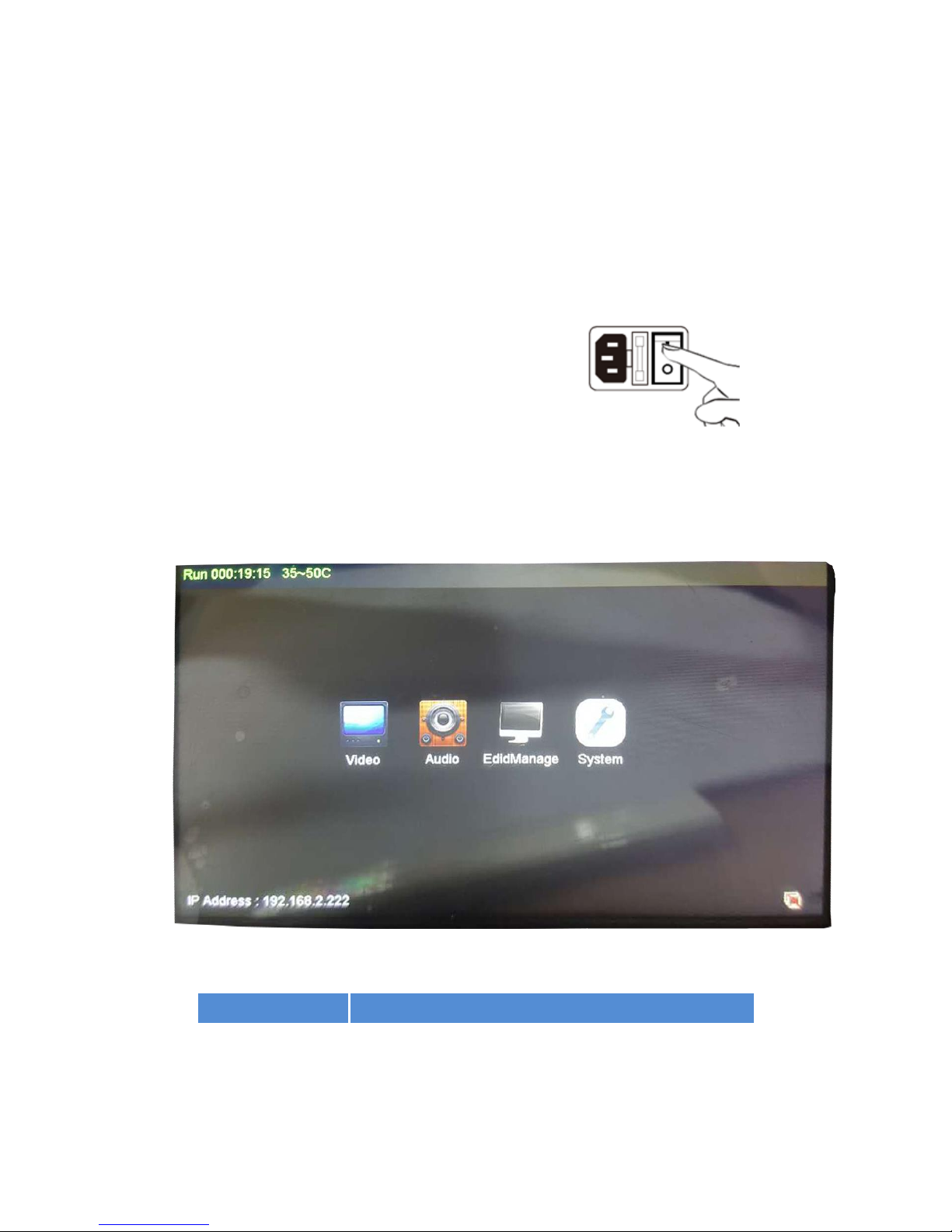

1.1 Power source

MVP-8C(N)/MVP-16C/MVP-32C signal management platform using 100-250v ac volt

age power supply. Power on when push the button < ▍>, Power off when push th

e button <○>.

1.2 Capacitive touch screen

MVP-8C(N)/MVP-16C/MVP-32C signal management platform uses a 5” capacitive to

uch screen, which have a resolution of 800x480, the layout of system is shown in

figure.

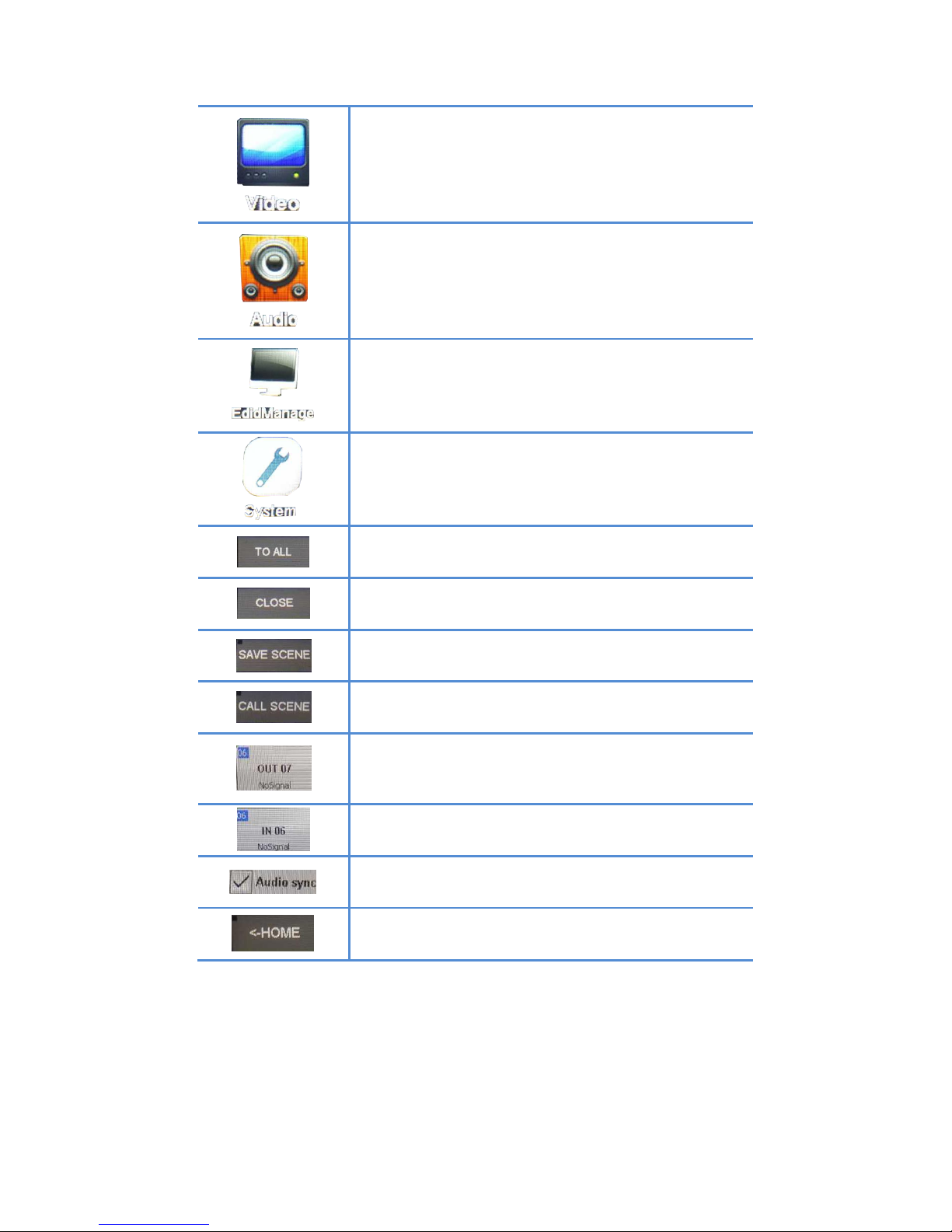

Each particular function button as shown in form

button

function

Video switch select

Audio switch select

EDIE management

System Settings

All switch to select

Close the output channel selection

Save selection key scene

Call select key scenes

Output channel

Input channel

Audio and video synchronization switching

Main interface

1.3 Signal switching

MVP-8C(N) signal management platform use hot plug input/output card slots; Slots

7 ~ 8 are fixed to output, slots 1 ~ 6 are configurable for input or output.

MVP-16C signal management platform use hot plug input/output card slots; Slots 1

3 ~ 16 are fixed to output, slots 1 ~ 12 are configurable for input or output.

MVP-32C signal management platform use hot plug input/output card slots; Slots 2

5 ~ 32 are fixed to output, slots 1 ~ 24 are configurable for input or output.

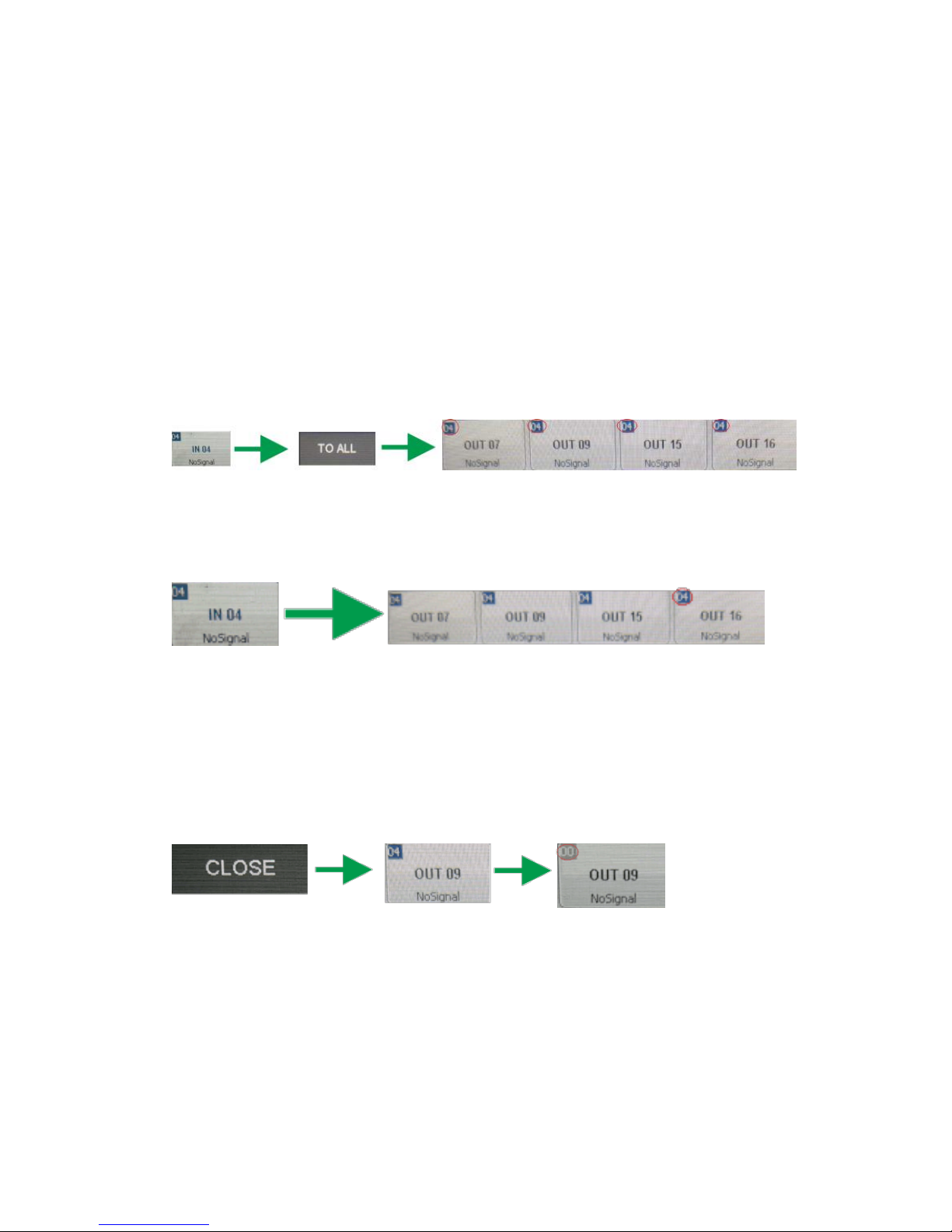

(1) Switch a input to all output channel

Simply choose the Video input and touch the screen interface: touch <Input channe

l number> + <TO All> button, input channel number will be displayed in the top lef

t corner angle of the output channel.

for example , <IN6> + <TO All> key，Switch successful, at the upper left of the ou

tput channel Angle IN4 will be shown.

(2) Switch any one input to any or all output channels

Select a input and switch to any output channel. For example , IN4 + OUT7 + OU

T9 + OUT15 + OUT16. Switch successful, IN4 will be shown at the upper left of t

he output channel angle.

(2) Close the output channel

MVP-8C(N)/MVP-16C/MVP-32C signal management platform provides a function of

closing a channel output or multiplex channels output, output channel which was cl

osed will have no signal output. If users need to close an output channel, just clic

k the close button on touch screen, choose the corresponding channel. When close

channel successfully, the output interface on touch screen will become gray, the u

pper left corner input channel number is 00. Such as the figure below.

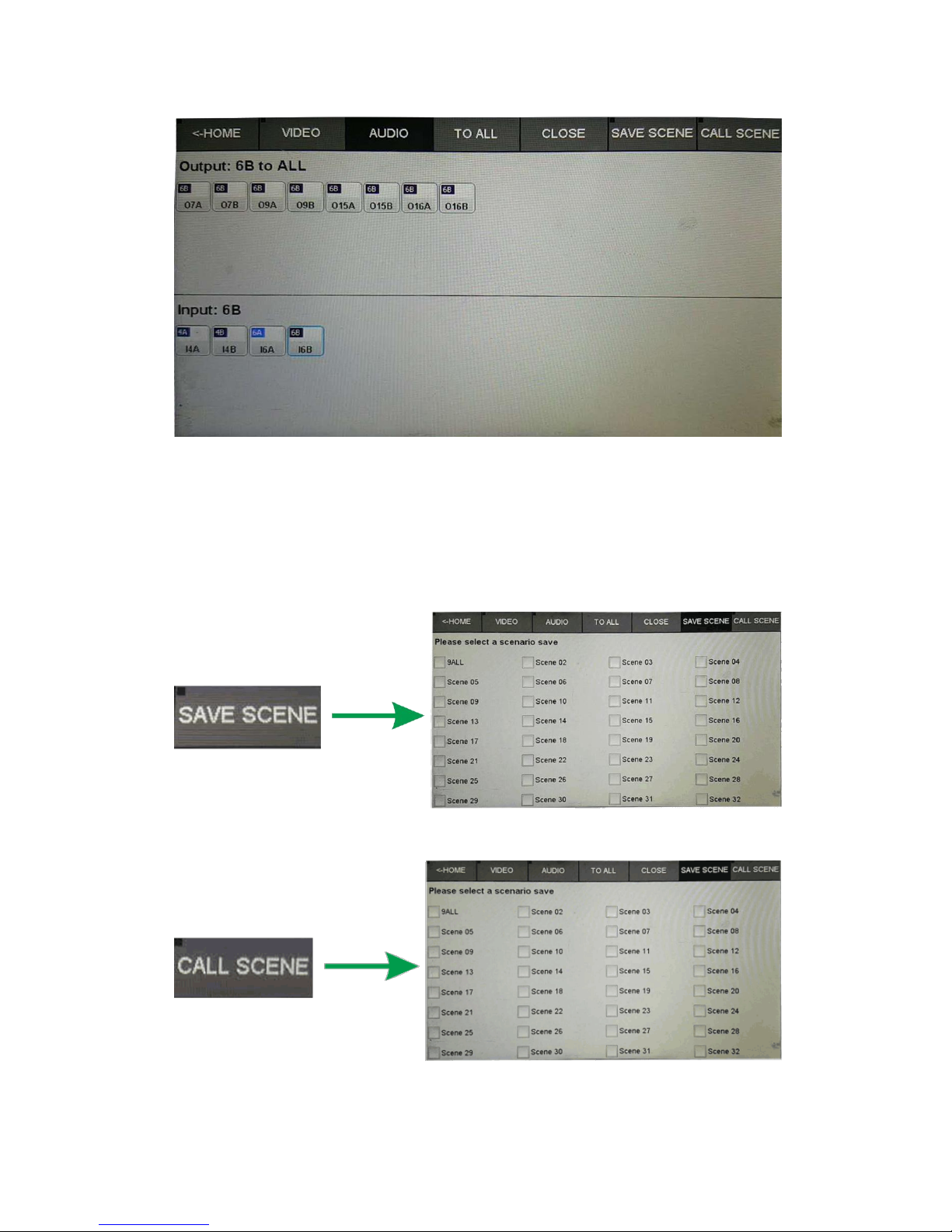

(3) Check the output channel state

MVP-8C(N)/MVP-16C/MVP-32C signal management platform provides a function of

checking all channels status. Can be View the output channel video switching status,

Audio switching status, EDID input channel switching status and output channel

identification EDID status, display equipment in Video interface and so on.

For example, audio switching state.

(4) Scene save and call

Save the current status of input and output channels are also called save the current

scene, MVP-8C(N)/MVP-16C/MVP-32C signal management platform supports up to 32

scenes. If the current status of corresponding video input and output is to be preserved.

The capacitive touch in Video Switcher to <Save scene>+<Storage unit number> . For

example, to save input and output corresponding state 02 unit, <SAVE SCENE> +

<Scene 02>.

To invoke the saved scene, <CALL SCENE> + < Storage unit number>, For example, to

invoke the saved in 02 storage unit

1.4 EDID management

MVP-8C(N)/MVP-16C/MVP-32C signal management platform provide EDID read, reset,

storage, and other functions, the latest generation of signal management platform in the

update EDID would be more convenient and quick operation.

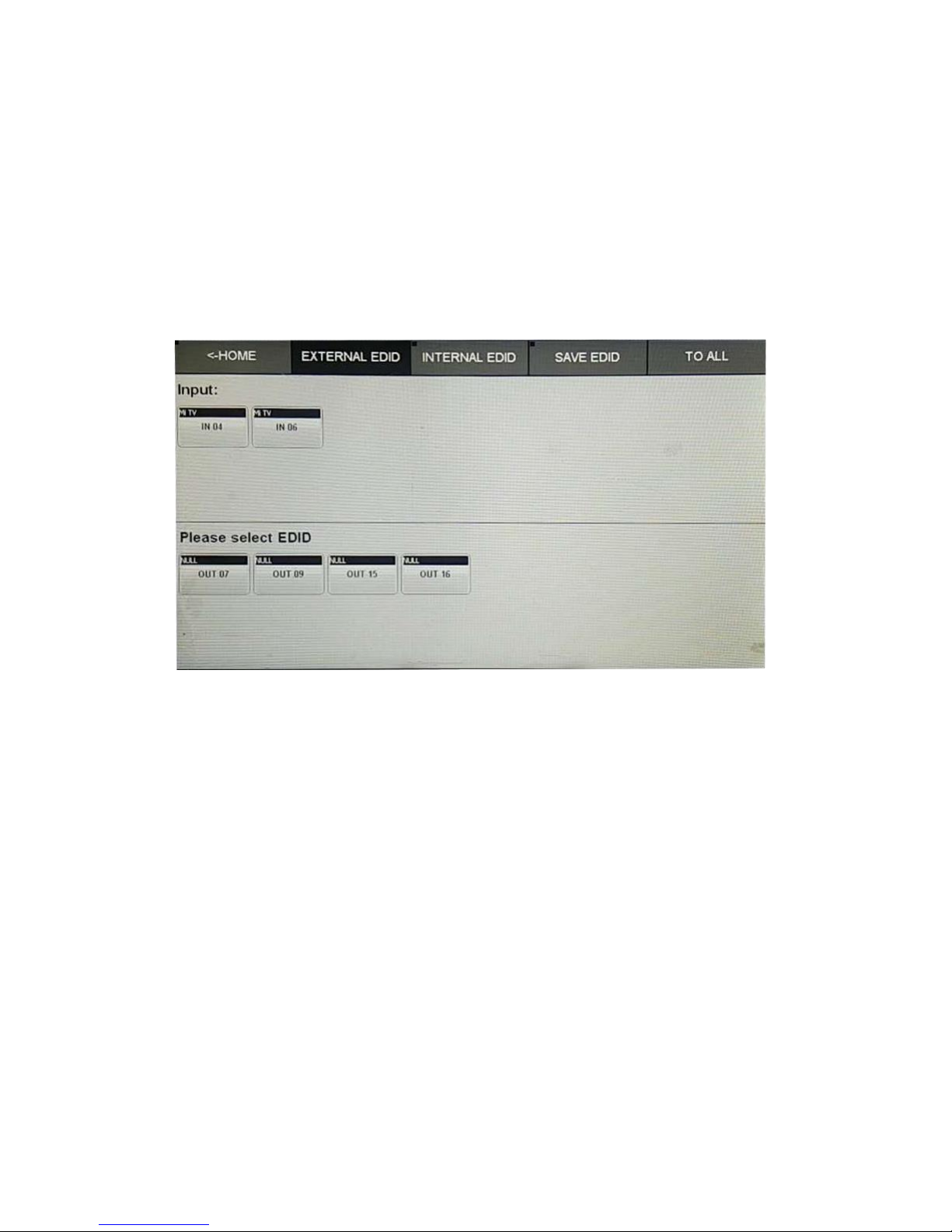

Each output channel will automatically identify the EDID of display devices, and will

feedback the EDID information to the touch screen output channel. Update EDID to input

port, also displays the same input EDID information. To updates the input port EDID from

output port. Select EDID switcher, click on the output channel and click need update EDID

input channel. Input channel EDID information same as the output channel identification

EDID. For example, Output channel 1 EDID information update to the input channel 1, 2, 3.

Select EXTERNAL EDID and then <OUT1> + <IN1> + <IN2> + <IN3>.

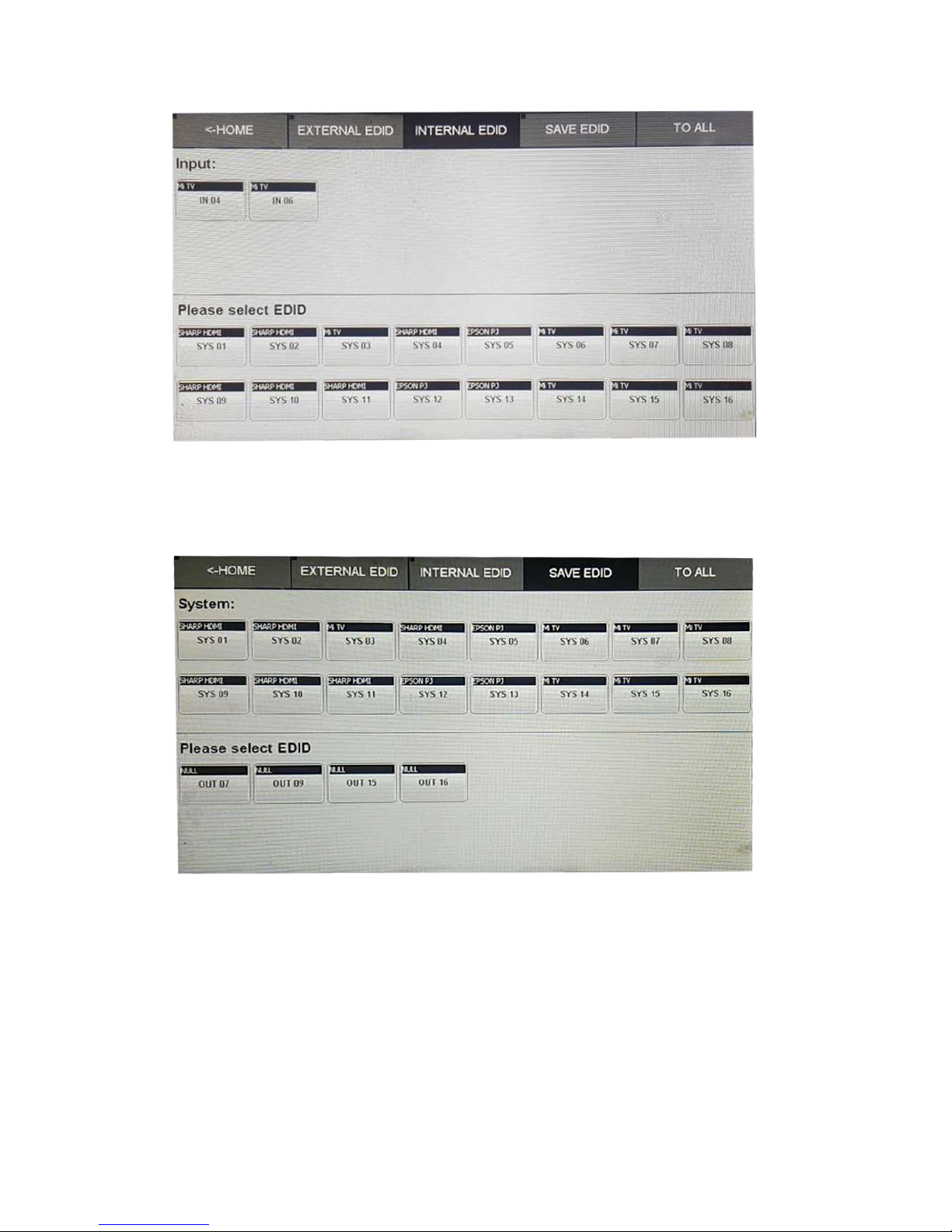

MVP-8C(N)/MVP-16C/MVP-32C support store 16 group EDID, Save EDID may achieve

at any time. To update the data to input channel .In an INTERNALEDID state, select save

EDID, then click on the corresponding input channel

If you need to have one output channel EDID information stored. In the SAVE EDID state,

select output and click save the location of the EDID.

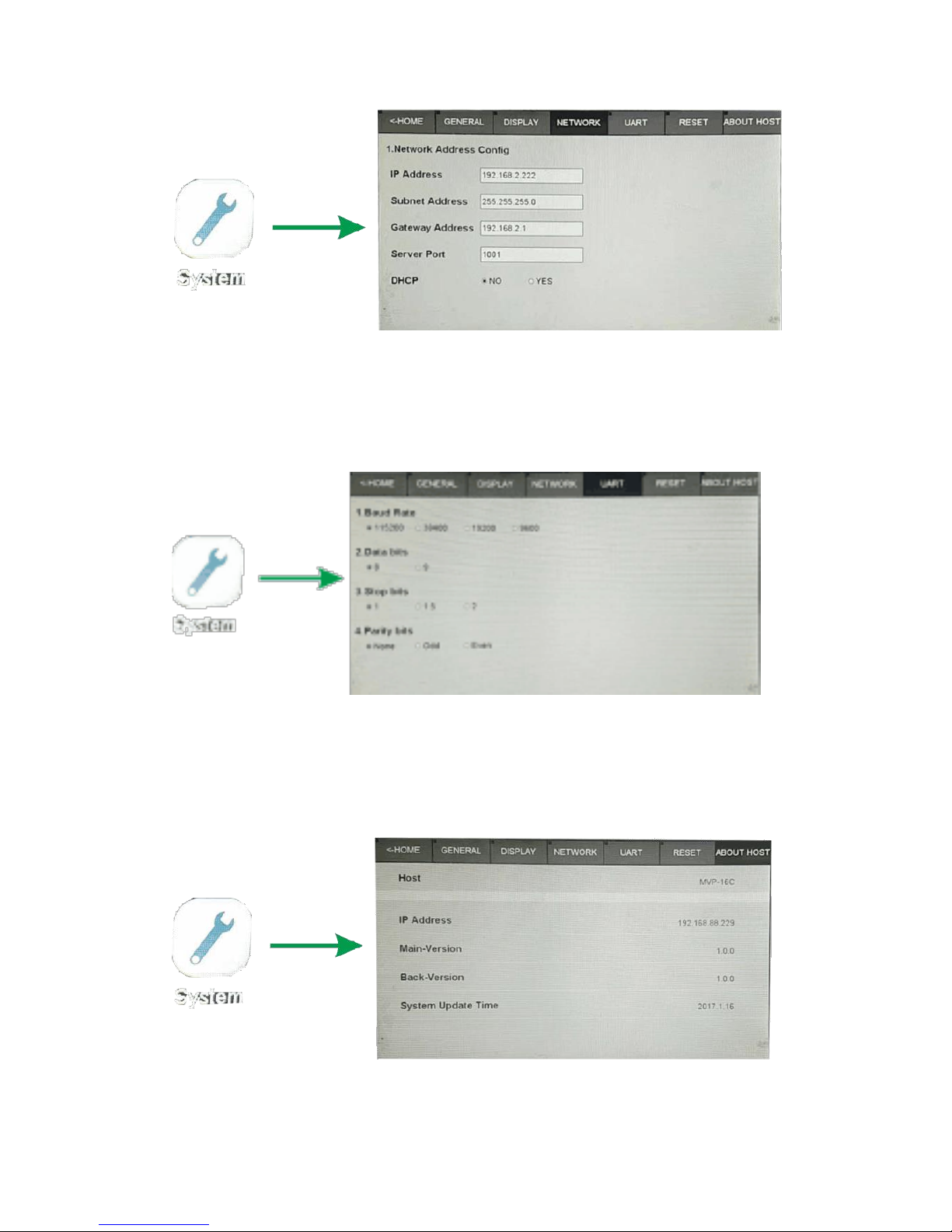

1.5 Internet network communication Settings

Enter to the system Settings menu, select NETWORK menu options. Into the next sub

menu view or change the IP address, protocol, port, network setting is shown in the figure.

1.6 RS232 setting

RS232 communication parameters including Baud Rate, Data Bits, Stop bit, Parity. If you

want to change these parameters can click on the System into the System Settings menu,

select UART to enter RS232 setting.

1.7 Version information query

In the system Settings of the optionsABOUT HOST users can see the Main control board

(Main - Version), and the exchange board (Back - Version), and the Version information

etc.

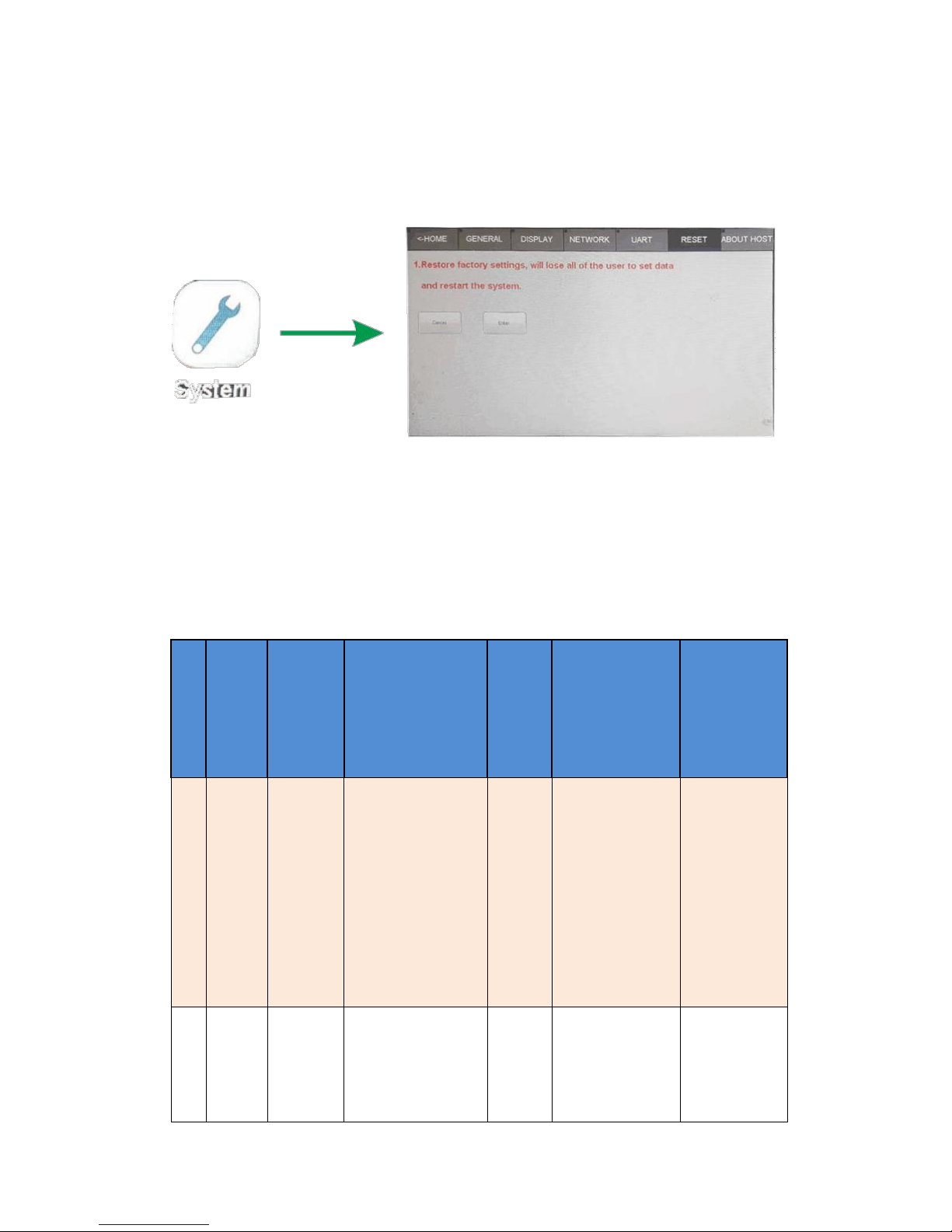

1.8 system reset

MVP-8C(N)/MVP-16C/MVP-32C signal management platform support system restore

factory settings, and setup system. Click RESET interface, click on ENTER to reset the

product with factory settings.

2、RS232 and LAN control command

When MVP-8C(N)/MVP-16C/MVP-32C signal management platform can be controlled by the

external control devices/system cotroller through RS232 connection, TCP/IP telnet. RS232

default settings are: Baud 115200bps, 8 data bits, 1 stop bit, no parity.

序

号

Actio

执行

Basic

ASCII

String

基本的

ASCII 字

符串

Variables

变量

Exampl

Settin

示例设

置

Example String

字符串示例

Example

Response

示例响应

Video

switch

input

into

multip

le or

single

channe

output

>Catob,c

<CR>

a = input(1 ~

matrix max)

b c = output(1 ~

matrix max or ALL)

Switch

input 1

output

2,3

>C1to2,3<CR>

<C1to2,3<CR>

Video

switch

corres

pondin

>CRa:b,c

:d<CR>

a c = output(1 ~

matrix max)

b d = input(1 ~

matrix max)

Switch

input 1

output

>CR1:3,2:4<CR>

<CR1:3,2:4<C
