1 CYB-KLED CyberSuite Installation Manual

INTRODUCTION

This document details the wiring configuration of the CyberSuite

condominium control keypad and installer programming functions.

Hardware Compatibility

This manual is written for hardware verison 208-4125-020 or

higher and covers firmware application 1.00. This firmware

communicates with a CyberSuite enabled Protégé System

Controller firmware version 1.06 or above.

CYB-KLED CyberSuite Installation Manual

WIRING CONFIGURATION

Introduction

The wiring structure of the CyberSuite keypad uses an encrypted

RS485 communication interface. Connections should be made in a

daisy chain configuration, avoiding star and stub connections.

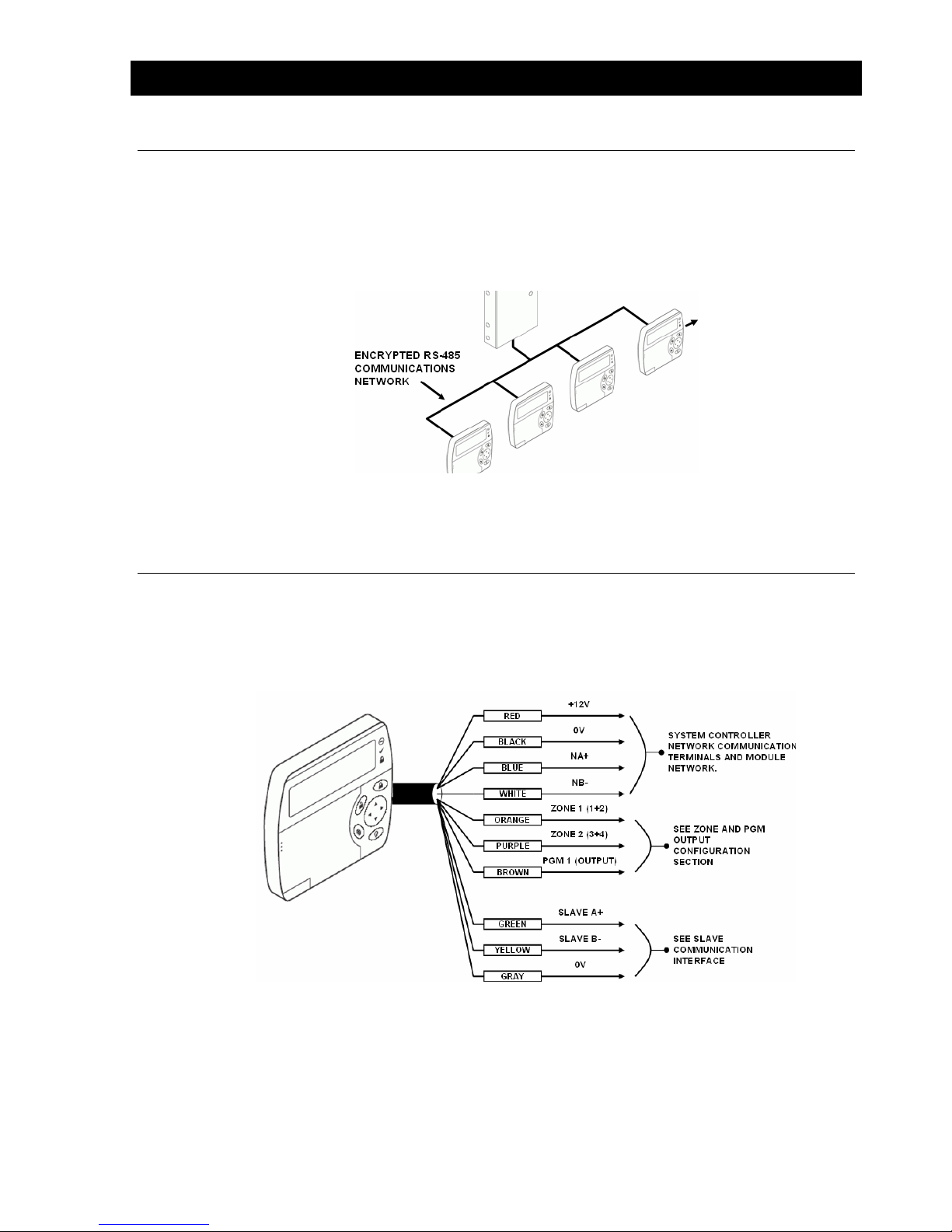

Figure 1 - Condominium Keypad Communication

Keypad Wire Loom Colour Coding

The condominium keypads are supplied with a wire loom attachment

and are connected using a keyed 10 position snap lock connector.

The 10 way wiring loom connection uses the following colour coding.

Figure 2 - Wire Loom Colour Coding and Function

3 CYB-KLED CyberSuite Installation Manual

Communication Connection

Support for up to 250 keypads per condominium controller is

provided, connection to the system controller uses the network

communication RS-485 interface. This interface is an isolated

interface and requires power to be supplied to the N+ and N-

terminals.

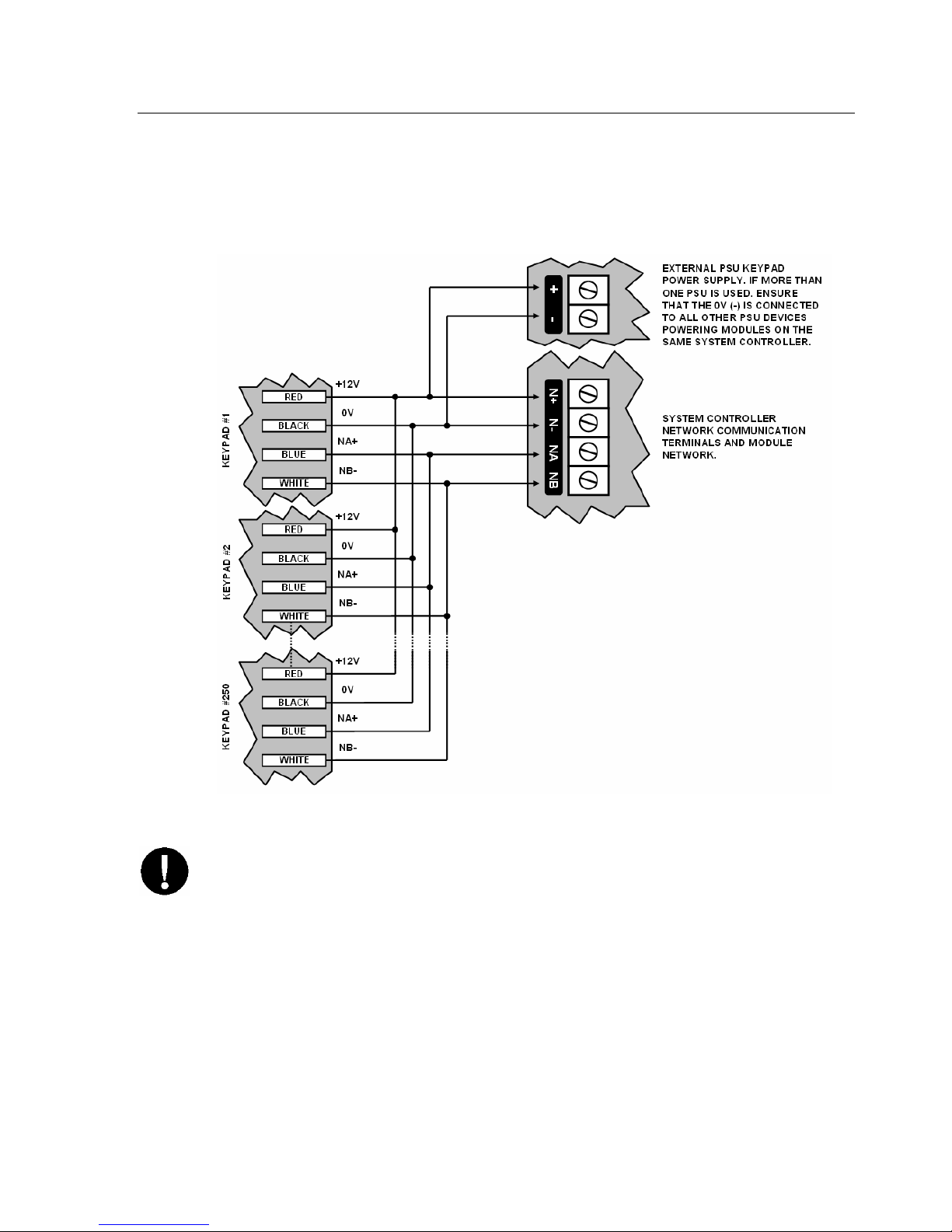

Figure 3 - Wire Loom Colour Coding and Function

When using more than one PSU to supply multiple wiring runs

of condominium keypads only connect the +12 output of ONE

power supply unit to the N+ and N- terminals of the

controller. Each PSU unit should have the common (0V or -)

connected together to ensure a common 0V.

CYB-KLED CyberSuite Installation Manual

Zone Input Wiring

The CyberSuite LED Keypad is capable of connecting to 4 zone

inputs, each zone input can then be programmed to perform the

required function in the system.

The following diagrams show each of the zone wiring configuration

settings that are possible. The programmed zone configuration for

the CyberSuite LED Keypad is made in the option settings. Refer to

the General Options Section on Page 17 for the programming of the

zone configuration.

When using a tamper input on a device the tamper contacts

must be normally closed and wired in series.

All resistors required to wire the zone configurations are

provided with the CyberSuite LED Keypad in the accessory

bag.

Figure 4 - 2 Zone Input (No Resistors)

Figure 5 - 2 Zone Input (1K and 1K)

5 CYB-KLED CyberSuite Installation Manual

Figure 6 - 4 Zone Input Duplex Mode (1K and 2K4)

Fire Zone Input Wiring

When wiring a zone to be a fire zone input the current programmed

zone options will determine what resistors and configuration is

required, refer to the General Options Section on Page 17 and the

zone configuration diagrams in the Zone Input Wiring Configuration

on Page 4.

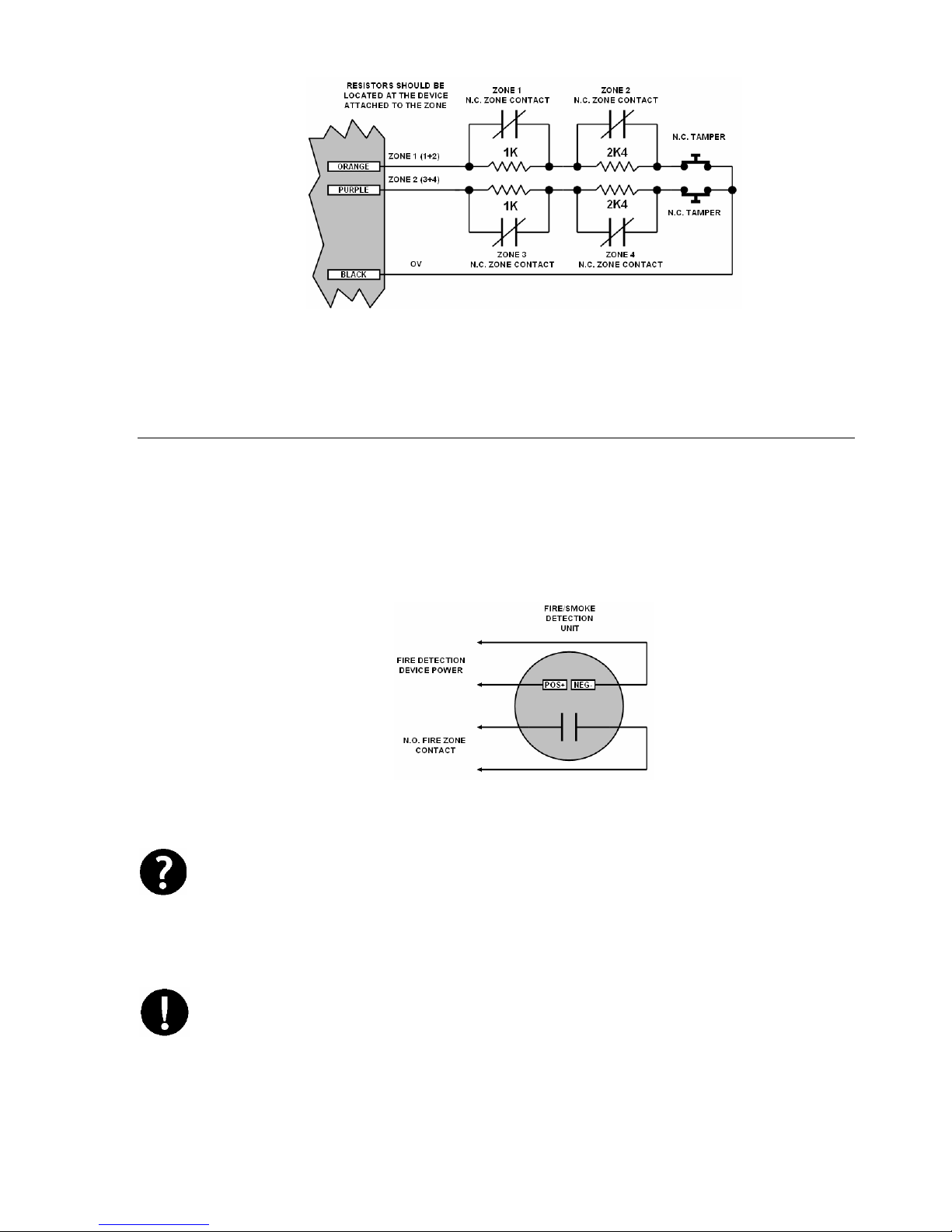

Figure 7 - Fire/Smoke Detection Input

When a fire zone is connected to a zone input that is used in

the duplex zone configuration a fire zone fault will NOT BE

shown when the fire zone has a shorted condition as this is

shown as all zones closed. A Fire Loop trouble will be shown

when the zone is tampered.

Fire zones that are installed in duplex mode operation are not

recommended. Fire zones should ALWAYS be connected using

the EOL resistor method (2R) as this provides both open and

short circuit monitoring.

CYB-KLED CyberSuite Installation Manual

Slave Keypad Zone Wiring

With one or more slave keypads connected, extra zones beyond the

normal 4 are available on the suite system.

There are 2 options for wiring the zones:

-Duplex mode enabled, 8 zones in total available. This setup

is shown in Error! Reference source not found..

-Standard wiring mode, 6 zones in total available. This setup

is shown in Figure 9.

The choice between the two wiring options will be dependent on the

physical configuration of the sensors and wiring in each installation.

See General Options on page 17 for enabling duplex zones.

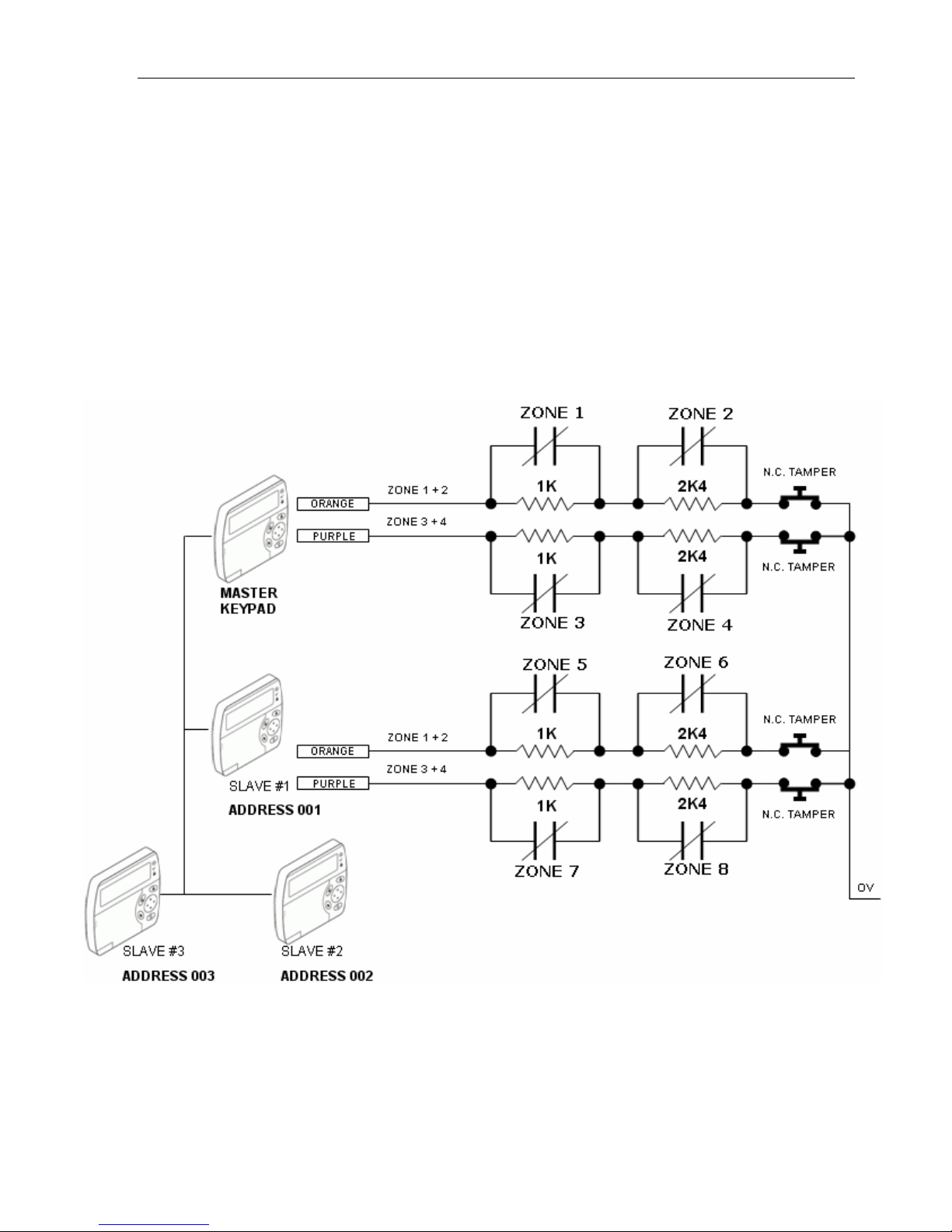

Figure 8 - Slave Keypad Duplex Zone Wiring

7 CYB-KLED CyberSuite Installation Manual

Figure 9 - Slave Keypad Standard Zone Wiring

PGM (Programmable Output)

The CyberSuite LED Keypad uses a programmable output (PGM) that

will activate during an alarm condition. This output can be

programmed to either:

-Follow the status of the alarm siren time or the fire alarm setting

-Follow the armed / disarmed status of the keypad.

Connect a relay or other interface device to this open collector output

for activation of ancillary devices. The behaviour of this output can

also be inverted in the programming, see the General Options section

0 for details on PGM programming.

Figure 10 - LED Indicator Output
