CyberData Singlewire Paging Adapter Gebrauchsanweisung

+-+

The IP Endpoint Company

930889B

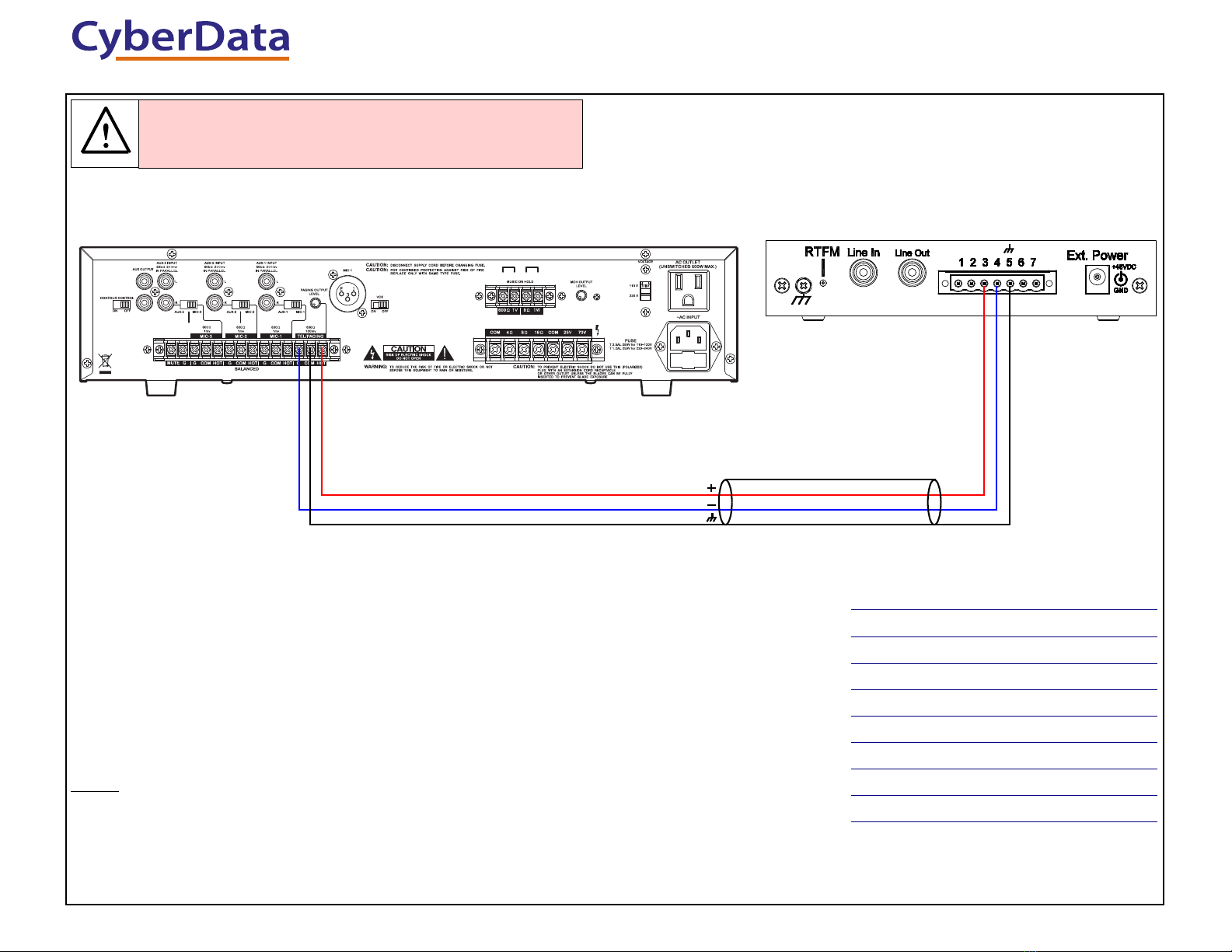

Pyle Home PCM30A Amplifier to Singlewire Paging Adapter Connections

Pyle Home PCM30A Amplifier

Notes

1. Power off the amplifier and reduce the volume by turning the Paging Output Level counter-

clockwise before connecting the CyberData device and powering the amp back on.

2. Ensure that the amplifier is powered off prior to connecting the CyberData device and turn

the dial for Paging Level Output fully counter-clockwise.

3. Connect the CyberData device, and then power the amplifier back on.

4. Slowly raise the Paging Level Output (clockwise) to adjust the volume during testing.

2 conductor, shielded speaker wire is recommended.

Singlewire Paging Adapter Connections

Keep as short as possible

Shield/Drain Wire Shield/Drain Wire

Balanced

GENERAL ALERT

Caution

Equipment Hazard: All equipment should be powered down prior

to making wiring connections and changing switch positions.

Page Port Connections

Pin Description

1 Fault Sense Input (Common).

2 Fault Sense Input (Sense).

3 Positive 600-Ohm Audio Outputa

a.The 600-Ohm audio output of the page port is

also suited for interfaces with lower input

impedances.

4 Negative 600-Ohm Audio Outputa

5 Audio Ground Reference.

6 Relay Contact - Commonb

b.1 Amp at 30 VDC for continuous loads.

7 Relay Contact - Normally Openb

+-+

The IP Endpoint Company

930889B

Pyle Home PCM60A Amplifier to Singlewire Paging Adapter Connections

Pyle Home PCM60A Amplifier

Notes

CyberData SIP Paging Adapter's 600 Ohm Page Port output connects to the Balanced

TEL/PAGING input terminals on the Pyle Home PCM60A Amplifier.

2 conductor, shielded speaker wire is recommended.

Singlewire Paging Adapter Connections

Keep as short as possible

Shield/Drain Wire Shield/Drain Wire

Balanced

GENERAL ALERT

Caution

Equipment Hazard: All equipment should be powered down prior

to making wiring connections and changing switch positions.

Page Port Connections

Pin Description

1 Fault Sense Input (Common).

2 Fault Sense Input (Sense).

3 Positive 600-Ohm Audio Outputa

a.The 600-Ohm audio output of the page port is

also suited for interfaces with lower input

impedances.

4 Negative 600-Ohm Audio Outputa

5 Audio Ground Reference.

6 Relay Contact - Commonb

b.1 Amp at 30 VDC for continuous loads.

7 Relay Contact - Normally Openb
