CyberData 011405 Handbuch
Quick Reference 931234E © 2018, CyberData Corporation, ALL RIGHTS RESERVED
© 2018, CyberData Corporation, ALL RIGHTS RESERVED 931234E Quick Reference
Mounting the Enclosure
Contacting CyberData
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: http://support.cyberdata.net/
RMA Department: (831) 373-2601 ext. 136
RMA Status: http://support.cyberdata.net/
Warranty Information: http://support.cyberdata.net/
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
http://www.cyberdata.net/
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
https://www.cyberdata.net/products/011405
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The SIP Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Parts
Parameter Factory Default Setting
IP Addressing DHCP
IP Addressa
a. Default if there is not a DHCP server present.
10.10.10.10
Web Access Username admin
Web Access Password admin
Subnet Maska255.0.0.0
Default Gatewaya10.0.0.1
(1) Assembly
(1) Wall Mounting Kit
(1) Enclosure
(4) #8 Plastic Anchors (4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
Installation Quick Reference
SIP Loudspeaker Amplifier
(PoE)
SIP Compliant
011405
The IP Endpoint Company
Quick Reference 931234E © 2018, CyberData Corporation, ALL RIGHTS RESERVED© 2018, CyberData Corporation, ALL RIGHTS RESERVED 931234E Quick Reference

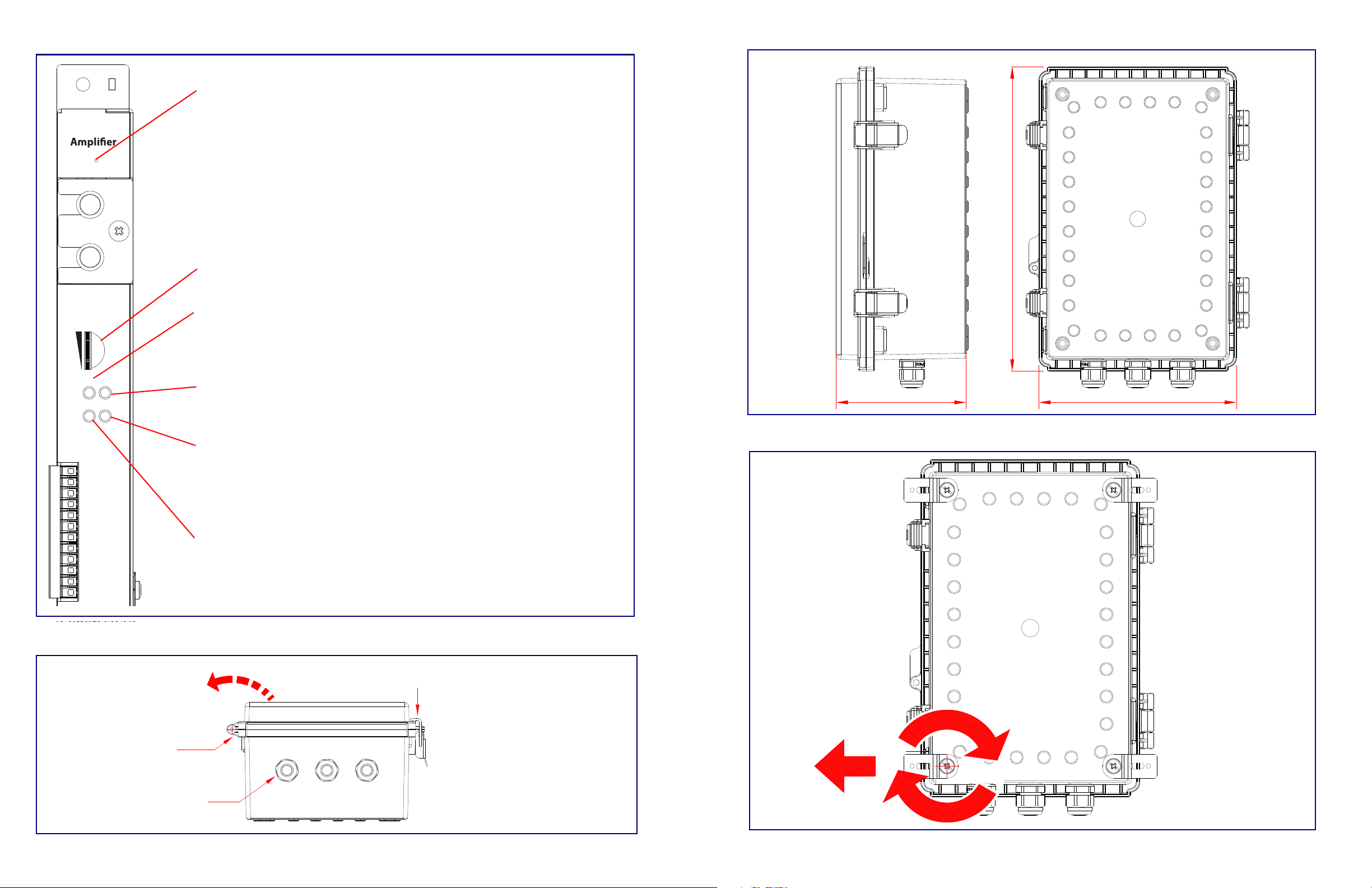

Features
Enclosure Features
SPD Link/Act.
PWR Status
Volume
RTFM
VoIP
Loudspeaker
Speaker Volume
Speed (SPD) LED (AMBER)
The Speed (SPD) LED illuminates AMBER for a 100Mb link
or is off for a 10MB link when the network link to the device is established.
Status LED (GREEN)
The GREEN Status LED illuminates after supplying power to the device.
Link/Activity (Link/Act.) LED (GREEN)
The GREEN Link/Activity (Link/Act.) LED blinks to indicate network traffic.
Power (PWR) LED (GREEN/BLUE)
The Power (PWR) LED is GREEN in low power mode (802.3af)
and BLUE during high power mode (802.3at).
RTFM Switch
To broadcast the device’s current IP address, press and hold the RTFM switch for a couple
of seconds and then release it.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch until you hear the device announce the words,
“restoring defaults” and “rebooting”.
2. Release the RTFM switch. The device will be restored to the factory default settings.
*See the Operations Guide for more information about the features in this section.
HINGES
LATCHES
COVER OPEN LEFT
THREE CABLE GLAND WITH
ONE HOLE PLUG
Dimensions
Mounting Bracket
5.12 [130] 7.87 [200]
11.81 [300]
Notes:
1. Dimensions
are in inches
[millimeters].
2. Projection:
Third Angle
Pull the mounting bracket
outward while tightening the
screw. Do the same to all
four mounting brackets.
Quick Reference 931234E © 2018, CyberData Corporation, ALL RIGHTS RESERVED© 2018, CyberData Corporation, ALL RIGHTS RESERVED 931234E Quick Reference
8.5 [216]
9.92 [252]
DIMENSIONS ARE IN INCHES [MILLIMETER]
In Order to Assure Size Accuracy,
Make Sure that PAGE SCALING is Select to NONE
Change this Settings by Selecting:
File, Print - PAGE HANDLING - Page Scaling to NONE.
After Printing, Verify that Size is Correct by
Checking Scale on Printed Page.
Prior to Printing this Mounting Template.
Click on "Properties" Tab
Change the Paper Size to 11" x 17" or
A3 (297mm x 420mm)
Mounting Hole (11/64”, 0.172” or 4.4mm)
t #8 Screw or 4mm Screw
Mounting Template
