CyberData VoIP Ceiling Speaker Bedienungsanleitung

VoIP Ceiling Speaker with

Allworx 6x Server Setup Guide

CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193

www.CyberData.net

Server Setup Guide 930249A CyberData Corporation

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single VoIP speaker configuration. In this configuration, the

ceiling speaker acts as a standalone SIP telephony device.

Figure 1-1. Setup Diagram

Allworx 9112 IP Phone

192.168.2.xx CyberData VoIP Ceiling Speaker

192.168.2.xx

Allworx 6x System

192.168.2.254 (default)

Linksys EtherFast 10/100 8-port Workgroup Hub

Server Setup Guide 930249A CyberData Corporation

2.0 Host PC Environment

3.0 Test Setup Equipment

Table 2-1. Host PC Environment Details

Description

Hardware Type Allworx 6x

Hardware Version Configuration 04

Software Type

Software Version 6.8.3.1

Table 3-1. Test Setup Equipment

Equipment Model Version

Allworx VoIP Phone 9112 1.8.2.1

Notes:

Allworx System 6x 6.8.3.1

Notes:

CyberData VoIP Ceiling Speaker 010844D 4.01

Notes:

Linksys EtherFast 10/100 8-port Workgroup Hub EFAH08W 2.0

Notes:

Server Setup Guide 930249A CyberData Corporation

4.0 Setup Procedure

To set up the Allworx 6x SIP Server for the CyberData VoIP Ceiling Speaker,

1. Go to the Login page. By default, the login can be found at the following web address:

192.168.2.254:8080

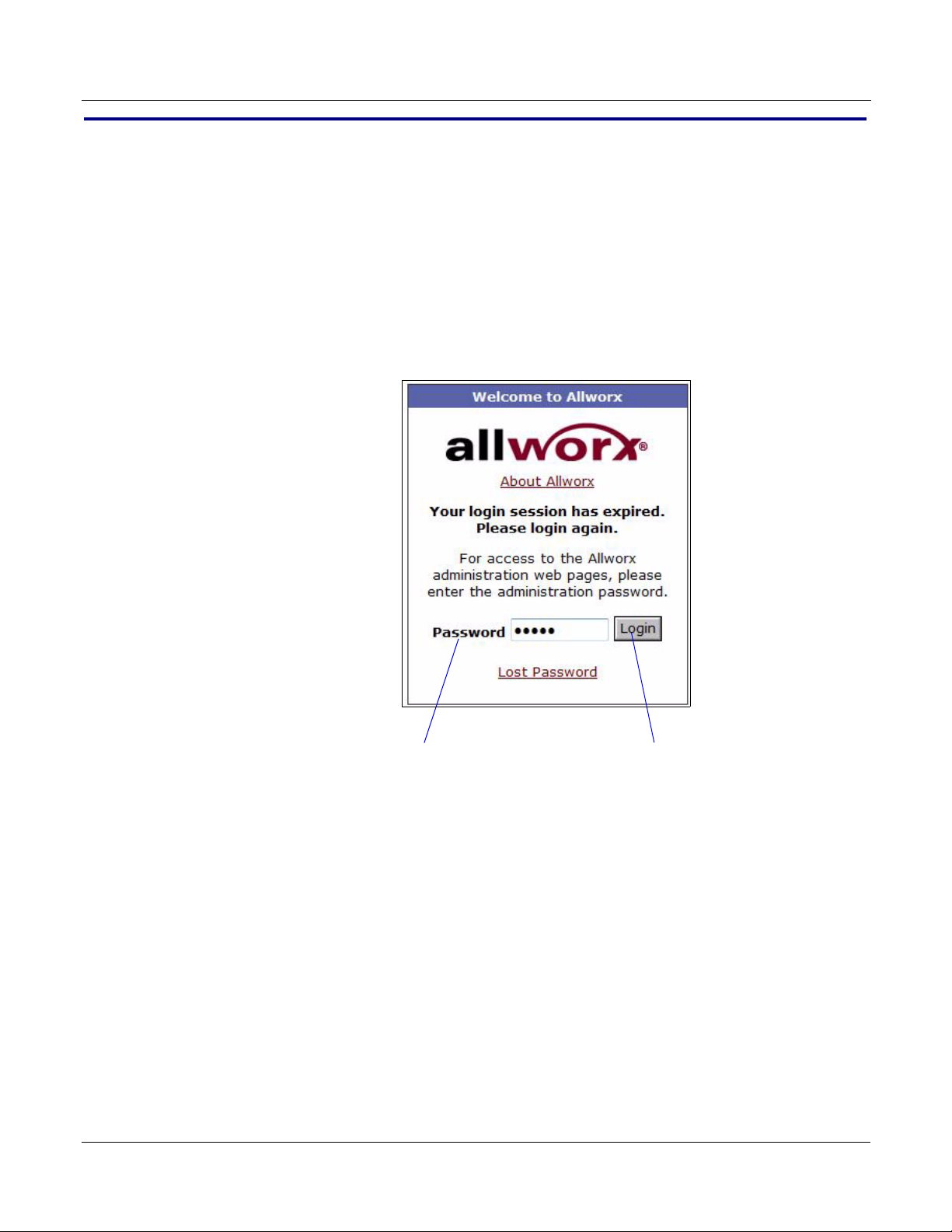

2. On the Login page, enter the password and click on Login to go to the Home page. The default

password is admin.

Figure 4-2. Login

Password Login

Server Setup Guide 930249A CyberData Corporation

3. On the Home page, go to the PHONE SYSTEM section and click on Handsets to go to the

Handsets page.

Figure 4-3. Home Page

Handsets

Server Setup Guide 930249A CyberData Corporation

4. On the Handsets page, go to the SIP Handsets section and click on Add new SIP Handsets to

go to the Add new SIP Handsets page.

Figure 4-4. Handset Page

add new SIP Handset

Server Setup Guide 930249A CyberData Corporation

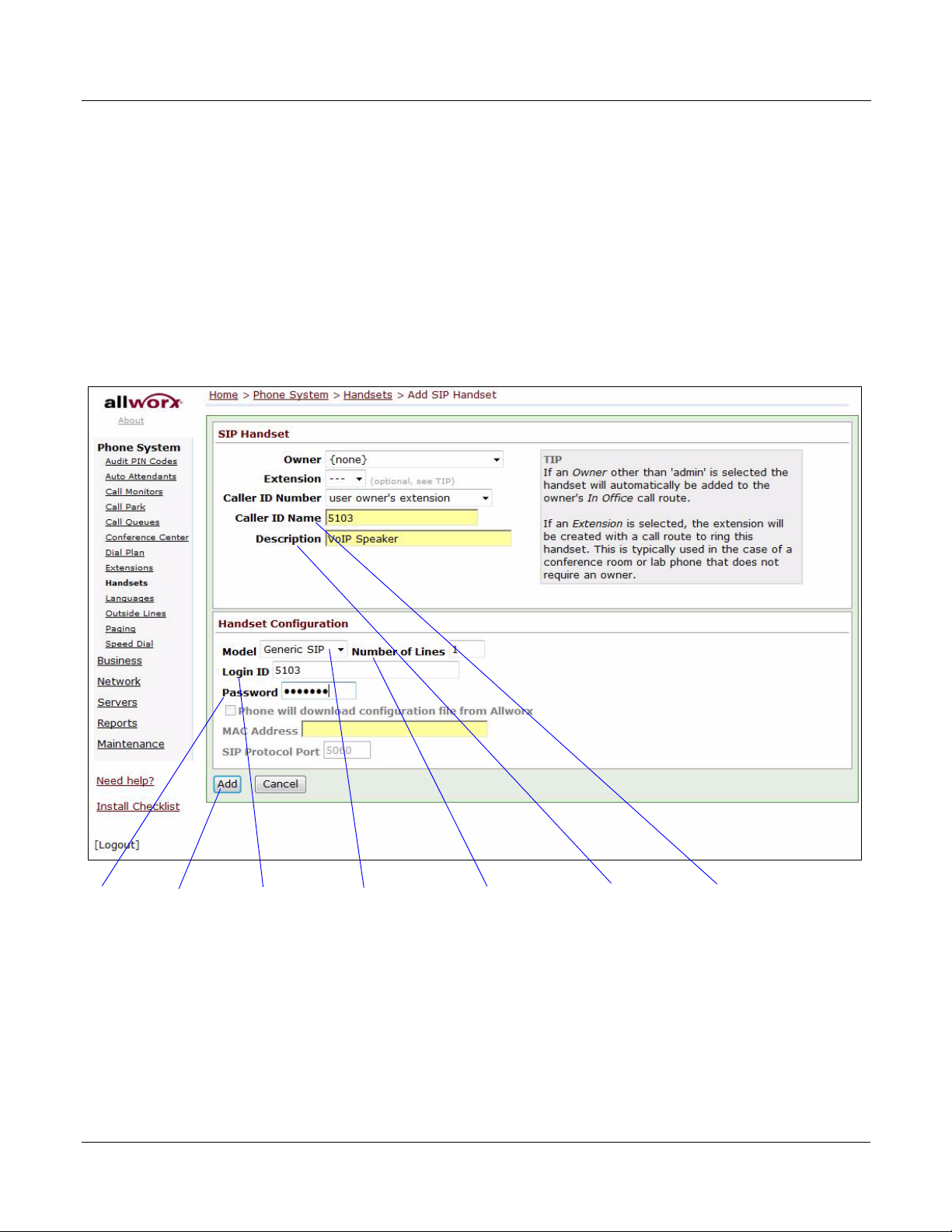

5. On the Add SIP Handsets page, enter the following information as shown in Figure 4-5:

•CallerIDName

•Description

•Model

• Number of Lines

•LoginID

• Password

Note The information that you enter must match the SIP information in the Ceiling Speaker.

In Figure 4-5, the speaker is set for extension 5103.

Figure 4-5. SIP Handset Add

Caller ID NameDescriptionModel Number of LinesLogin IDPassword Add

Server Setup Guide 930249A CyberData Corporation

Note Figure 4-6 is an example of a CyberData VoIP Ceiling Speaker that is configured to

extension 5103.

Figure 4-6. Ceiling Speaker Configured to Extension 5103

6. Click Add to go back to the SIP Handsets page.

Server Setup Guide 930249A CyberData Corporation

7. Upon returning to the SIP Handsets page, you will see (never registered) in the Identification

column of the Generic SIP section.

Figure 4-7. SIP Handset Never Registered

8. To register the speaker, you will need to reboot the speaker by logging into the CyberData

Configuration Home page.

(never registered) in the Identification column

Server Setup Guide 930249A CyberData Corporation

9. Log into the CyberData Configuration Home page (Figure 4-8) by pointing your browser to the

speaker’s IP address.

For the initial configuration of the speaker, refer to the VoIP Ceiling Speaker Operation Guide

which can be found at the following web address:

http://www.cyberdata.net/support/voip/ceilingspeaker.html

Note You may also download CyberData’s VoIP Discovery Utility program which allows you

to easily find and configure the default web address of the CyberData VoIP products.

CyberData’s VoIP Discovery Utility program is available at the following web address:

http://www.cyberdata.net/support/voip/discovery_utility.html

10. When prompted, enter the following Web Access Username and Web Access Password to

access the CyberData Configuration Home page (Figure 4-8):

Default Login:

Web Access Username: admin

Web Access Password: admin

Figure 4-8. CyberData Configuration Home Page

11. Click Upgrade Firmware to open the Firmware Upgrade page.

Upgrade Firmware

000000
