CyberView KD1 Series Bedienungsanleitung

User Manual

Rackmount Keyboard Drawers

KD1 Series

KD2 Series

- Shallow Depth

- Single Console Only

- Optional KVM

blank page

Chapter 1 Getting Started

1.1 Package Contents...............................................................1

1.2 Before Installation...............................................................2

1.3 Unpacking...........................................................................2

1.4 OptionalAccessories...........................................................2

1.5 Peripheral Products.............................................................3

1.6 Structure Diagram...............................................................3

1.7 Installation..........................................................................4

1.8 Connect to Server via USB Interface..................................5

1.9 Connect to KVM via USB Interface.....................................5

1.10 Connect to Server via PS/2 Interface..................................6

1.11 Connect to KVM via PS/2 Interface.....................................6

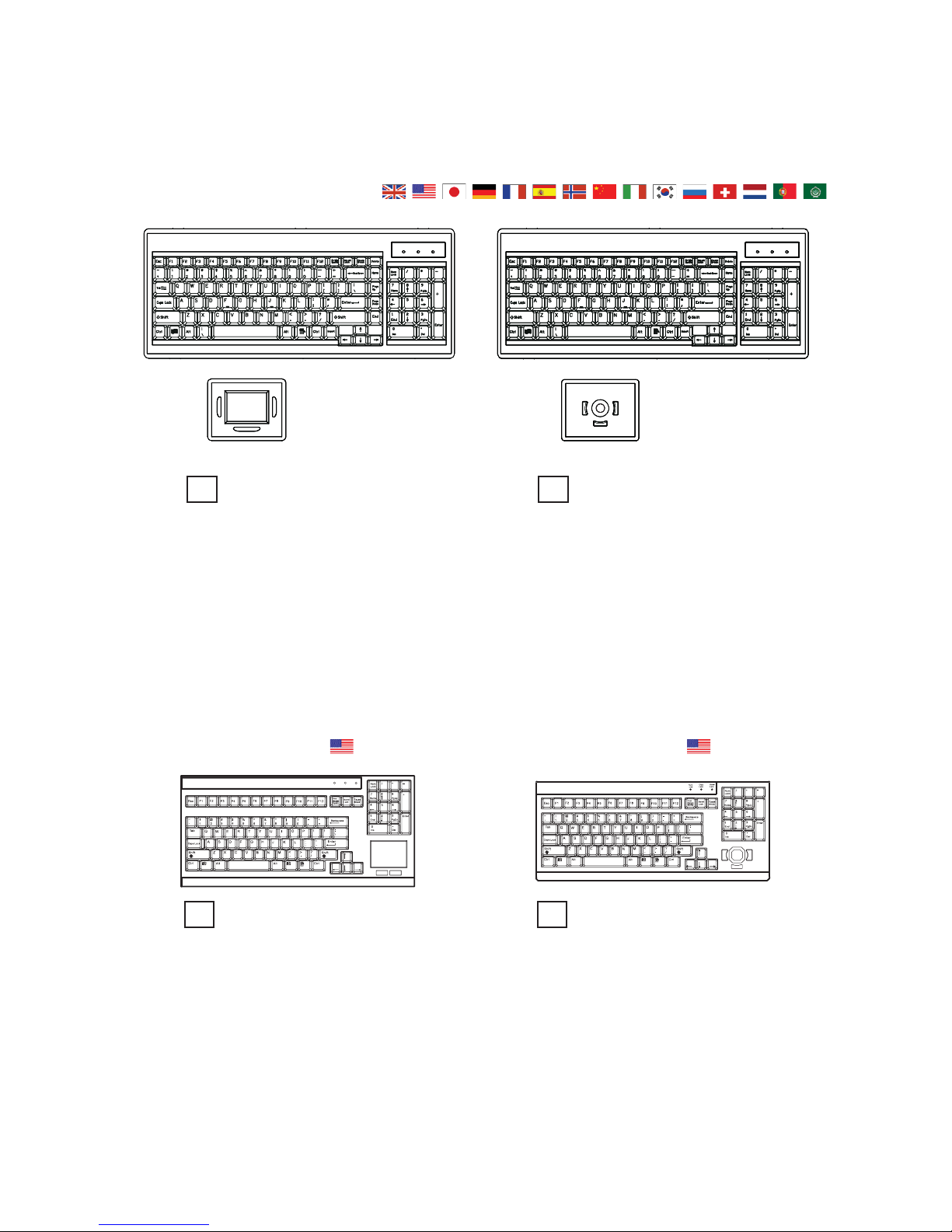

Chapter 2 Keyboard and Mouse................................................7

Chapter 3 Optional Specification

3.1 KVM Options for KD1 Series..............................................8

3.2 Environmental....................................................................8

Chapter 4 Dimensions........................................................................8

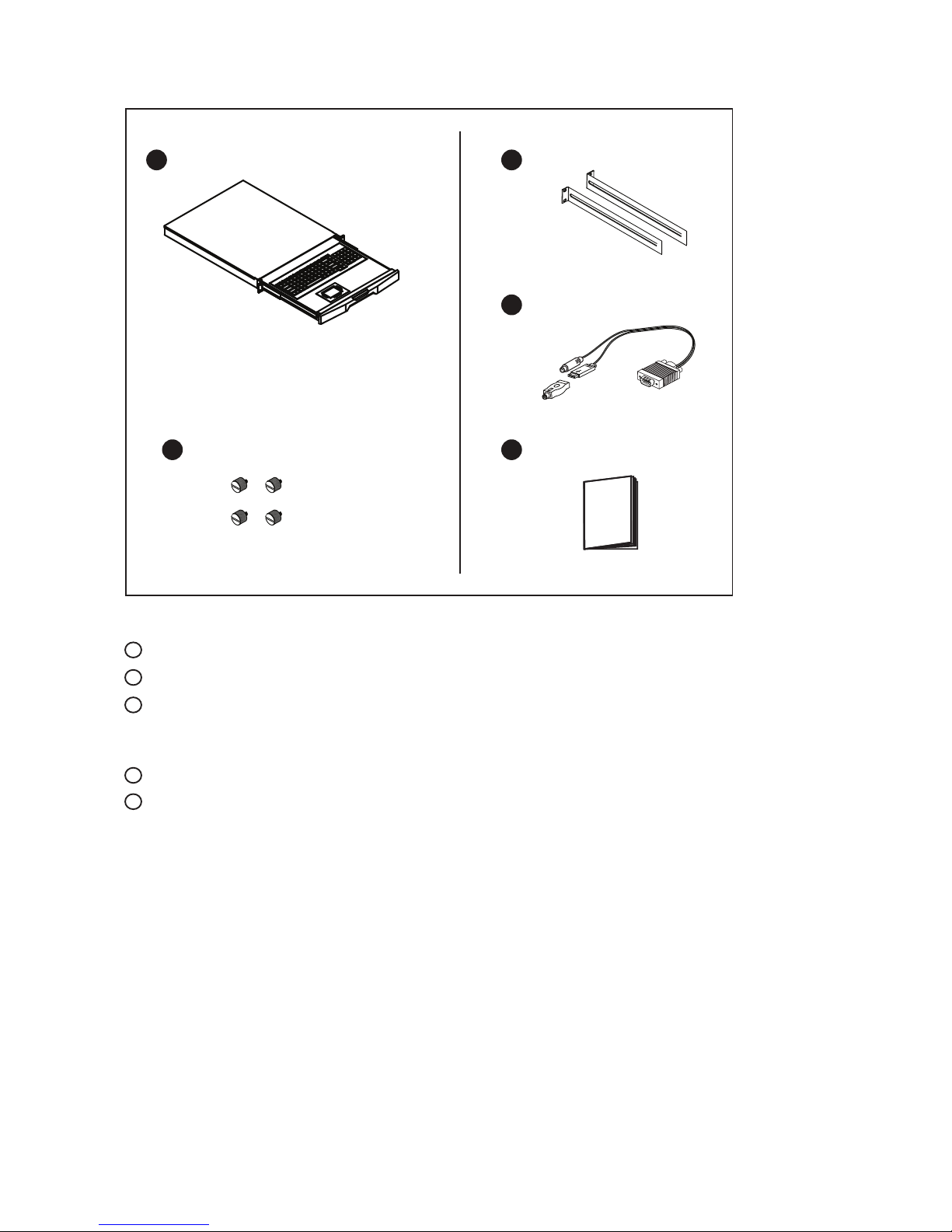

Contents

Keyboard drawer x 1 pc

Fasteners for rear L-bracket x 4 pcs

330mm rear mounting L-bracket x 1 pair

* RK-1 series mounting depth-adjustable from 210 to 800mm

* RK-2 series maximum mounting depth is 645mm

Combo keyboard cable x 1 pc

User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)

User

Manual

1.1 Package Contents Chapter 1

P.1

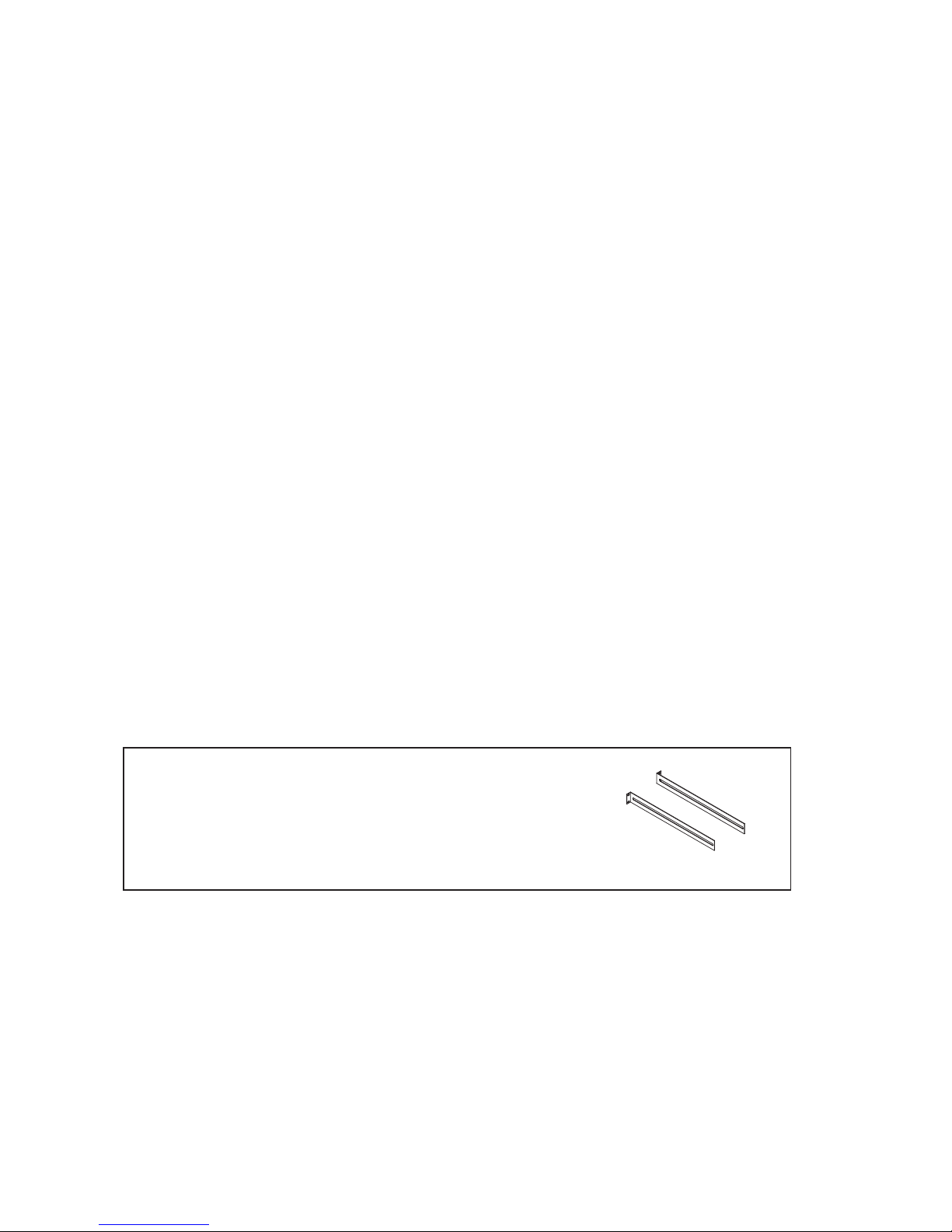

1. Extended rear mounting L-bracket

1.1 430mm (16.9") extended rear L-bracket for :

KD1 series up to 900mm (35.4")

KD2 series up to 745mm (29.3")

*Extended rear L-bracket can be tailor-made to length upon request

1.4 Optional Accessories

■It is very important to locate the Rackmount Keyboard Drawer in a suitable environment.

■The surface for placing and ﬁxing the Rackmount Keyboard Drawer should be stable and level or mounted into a

suitable cabinet.

■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■Convenience for connecting the Rackmount Keyboard Drawer to the related facilities should be well considers too.

The Rackmount Keyboard Drawer comes with the standard parts shown on the package contents. Check and make sure

they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.3 Unpacking

1.2 Before Installation Chapter 1

P. 2

1.5 Peripheral Products Chapter 1

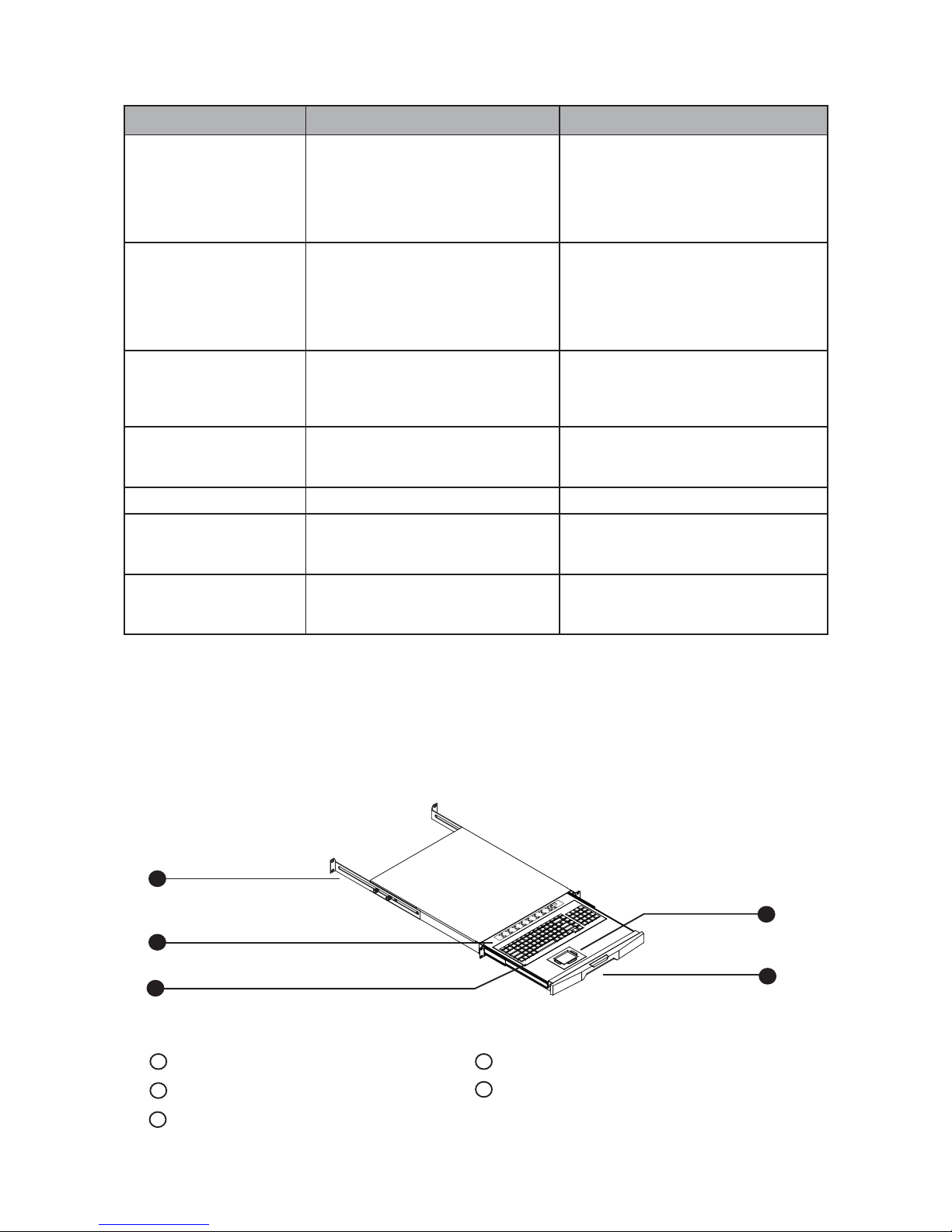

1.6 Structure Diagram

Adjustable rear mounting L-bracket

Membrane switch (for RK-1 with KVM option)

Keyboard interchangeable module kit

Mouse interchangeable module kit

Carry handle to release the 2-pt lock

P. 3

Item Model No. Description

Matrix Cat 6 KVM

16-Cat6-M2X / M3X / M4X

16-Cat6-M3X-IP / M4X-IP / M4X-2IP

32-Cat6-M2X / M3X / M4X

32-Cat6-M3X-IP / M4X-IP / M4X-2IP

Matrix Cat 6 16-Port KVM

Matrix IP Cat 6 16-Port KVM

Matrix Cat 6 32-Port KVM

Matrix IP Cat 6 32-Port KVM

Matrix DB-15 KVM

8-M2X / M3X / M4X

8-M3X-IP / M4X-IP / M4X-2IP

16-M2X / M3X / M4X

16-M3X-IP / M4X-IP / M4X-2IP

Matrix DB-15 8-Port KVM

Matrix IP DB-15 8-Port KVM

Matrix DB-15 16-Port KVM

Matrix IP DB-15 16-Port KVM

Combo Cat 6 KVM

8-Cat6 / 8-Cat6-2X / 8-Cat6-IP

16-Cat6 / 16-Cat6-2X / 16-Cat6-IP

32-Cat6 / 32-Cat6-2X / 32-Cat6-IP

Combo Cat 6 8-Port KVM

Combo Cat 6 16-Port KVM

Combo Cat 6 32-Port KVM

Combo DB-15 KVM 8-USB / 8-2X / 8-IP

16-USB / 16-2X / 16-IP

Combo DB-15 8-Port KVM

Combo DB-15 16-Port KVM

PS/2 DB-15 KVM 4 / 8 / 16 4 / 8 / 16-Port PS/2 DB-15 KVM

Rackmount LCD Drawer MD-15 / 17 / 19

MDW-19

1U 15" / 17" / 19" LCD Drawer

1U Widescreen 19” LCD Drawer

Rackmount LCD Panel MP-17 / 19 / 20

MPW-19 / 22

7U 17" / 8U 19" / 9U 20” LCD Panel

7U 19” / 8U 22” Widescreen LCD Panel

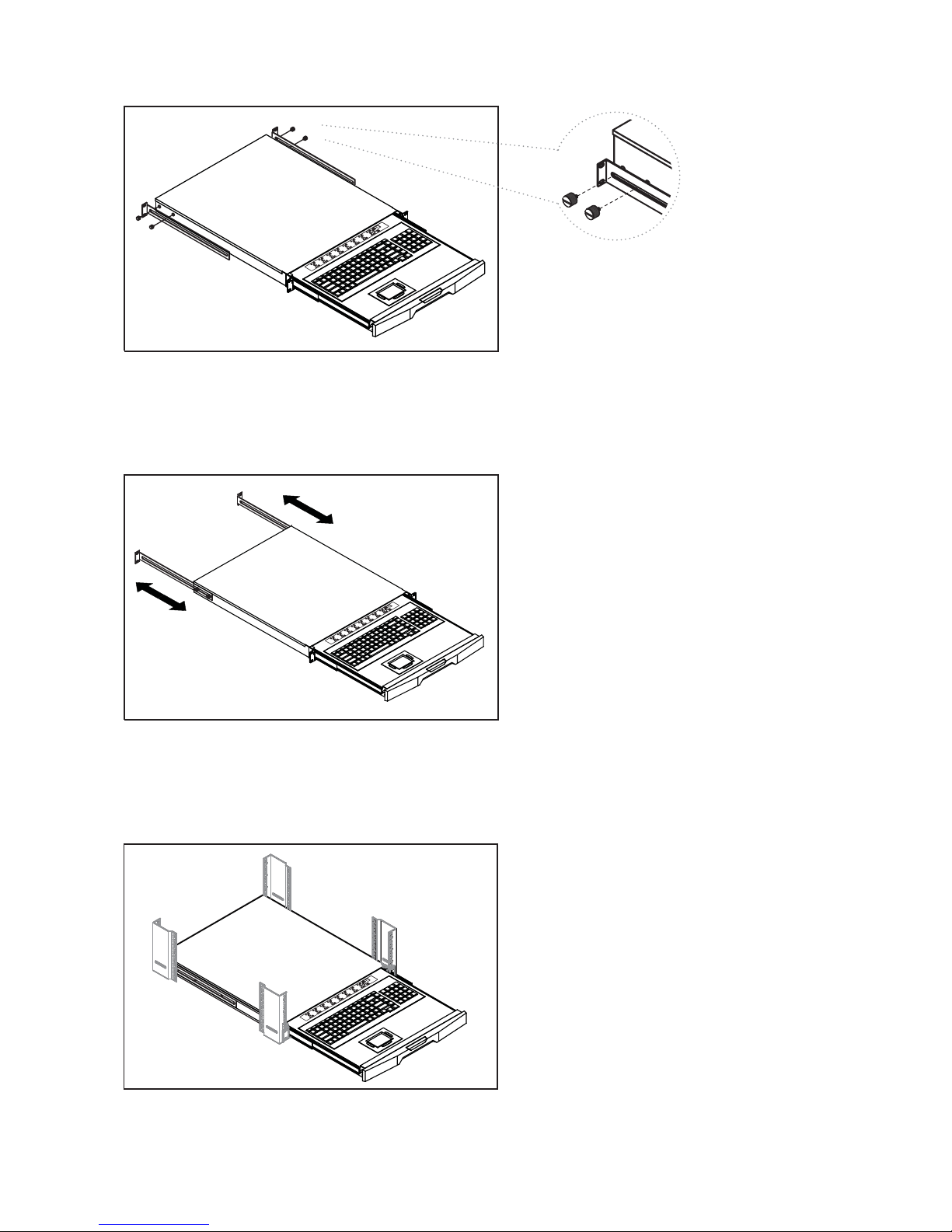

1.7 Installation Chapter 1

■Install each rear L-bracket using two fasteners

shown in Figure 1.

■Leavethe fasteners slightly loose

Figure 1. Install the rear L-bracket to the keyboard drawer.

■Measure the front and rear mounting depth of

the rack.

■Align each rear L-bracket to a suitable length

and tighten the fasteners shown in Figure 2.

Figure 2. Align the rear L-brackets to a suitable length for the rack.

■Fixed the keyboard drawer into the rack.

* Hardware (screws and cage nuts) for

fixing the mounting bracket to the rack is

not provided.

Figure 3. Fix the keyboard drawer into the rack.

P. 4

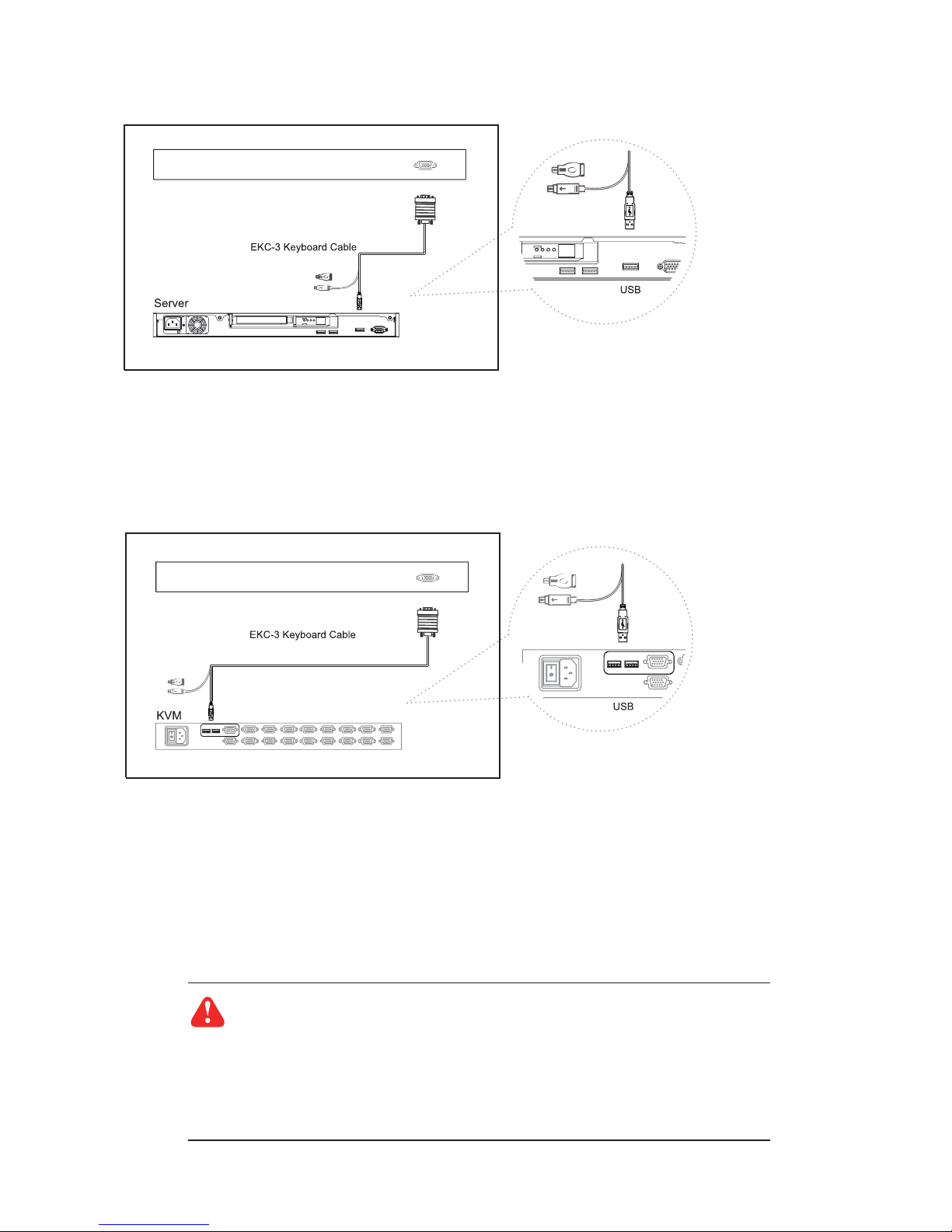

1.8 Connect to Server via USB Interface Chapter 1

P. 5

Please Note:

■The above diagrams pertain only to the single console LCD keyboard drawer

■For integrated KVM LCD keyboard drawers, please refer to the "All KVM" user manual

1.9 Connect to KVM via USB Interface

Caution : The keyboard drawer is hot-pluggable, but components of connected devices,

such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging

cables while servers and KVM are powered on may cause irreversible damage to the serv-

ers, KVM and keyboard drawer. Before attempting to connect anything to the keyboard

drawer, we suggest turning off the power to all devices before connecting them. Apply

power to connected devices again only after the keyboard is receiving power. The sup-

plier is not responsible for damage caused in this way.

Figure 4. Example of connecting EKC-3 keyboard cable to server via USB interface

Figure 5. Example of connecting EKC-3 keyboard cable to KVM via USB interface

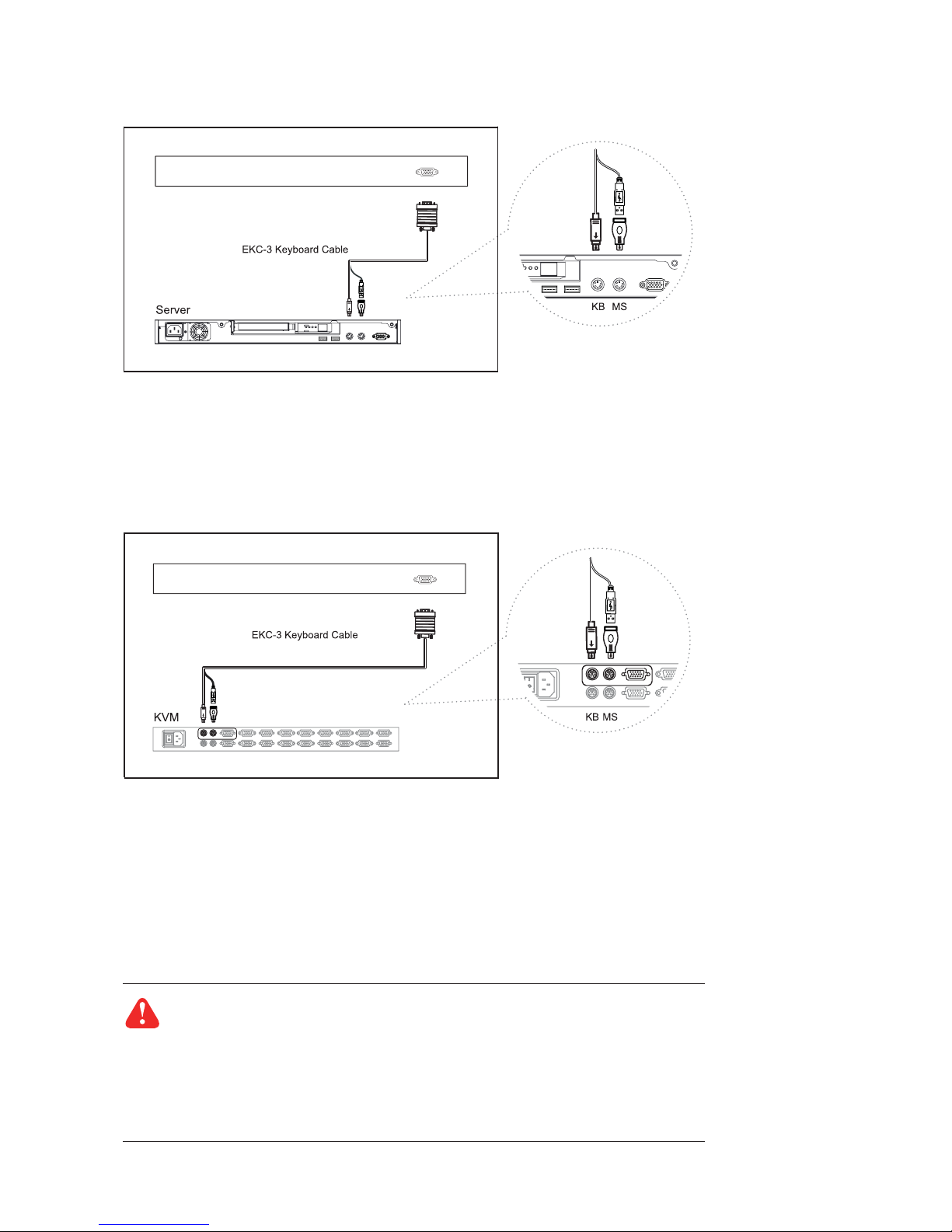

1.10 Connect to Server via PS/2 Interface Chapter 1

1.11 Connect to KVM via PS/2 Interface

P. 6
