CyberView N1417 Series Bedienungsanleitung

User Manual

N Series 1U LCD Keyboard Drawer

17", 19" screen size

Models

N117 / 119 Series

Models

N1417 / 1419 Series

- Short depth version

- Without KVM options

- With KVM options

Chapter 1 Getting Started

1.1 Important Safeguards..........................................................1

1.2 Regulatory Notice................................................................2

1.3 Package Contents...............................................................3

1.4 BeforeInstallation................................................................4

1.5 Unpacking...........................................................................4

1.6 OptionalAccessories...........................................................4

1.7 Peripheral Products.............................................................5

1.8 Structure Diagram...............................................................5

1.9 Installation...........................................................................6

1.10 How to Use "N" Series LCD Keyboard Drawer...................7

1.11 How to Use the Slides........................................................8

1.12 How to Use "One Man" Installation Slides ....................9-11

1.13 Connect to Server via USB Interface................................12

1.14 Connect to KVM via USB Interface...................................12

1.15 Connect to Server via PS/2 Interface................................13

1.16 Connect to KVM via PS/2 Interface...................................13

Chapter 2 Operation

2.1 On-screen Display Operation............................................14

2.2 On-screen Menu...............................................................15

Chapter 3 Standard Speciﬁcation

3.1 Speciﬁcations....................................................................16

3.2 Keyboard & Mouse...........................................................17

Chapter 4 Optional Speciﬁcation

4.1 KVM Options.....................................................................18

4.2 DVI-D Input Option............................................................18

4.3 S-Video + RCA Input Option..............................................18

4.4 S-Video + BNC Input Option.............................................19

4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input....20-21

4.6 DC power Options.............................................................22

Chapter 5 Troubleshooting...........................................................23

Chapter 6 Dimensions.......................................................................24

Contents

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁ-

cation, or failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

P. 2

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the

correctness of the contents. The information in this document is subject to change without notice. We are not

liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-

nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and

the power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equip-

ment and invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-

ence in a residential installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equip-

ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1.2 Regulatory Notice Chapter 1

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

Fasteners for rear L-bracket x 4 pcs

330mm rear mounting L-bracket x 1 pair

* N117 / 119 series mounting depth-adjustable from 315 to 880mm

* N1417 / 1419 series mounting depth-adjustable from 140 to 710mm

CB-6 2-in-1 USB KVM cable x 1 pc or CD-6 3-in-1 PS/2 KVM cable x 1 pc

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter ( for external power version) x 1pc

1.6 Optional Accessories

■It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■The surface for placing and ﬁxing the LCD Keyboard Drawer should be stable and level or mounted into a suitable

cabinet.

■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they

are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation Chapter 1

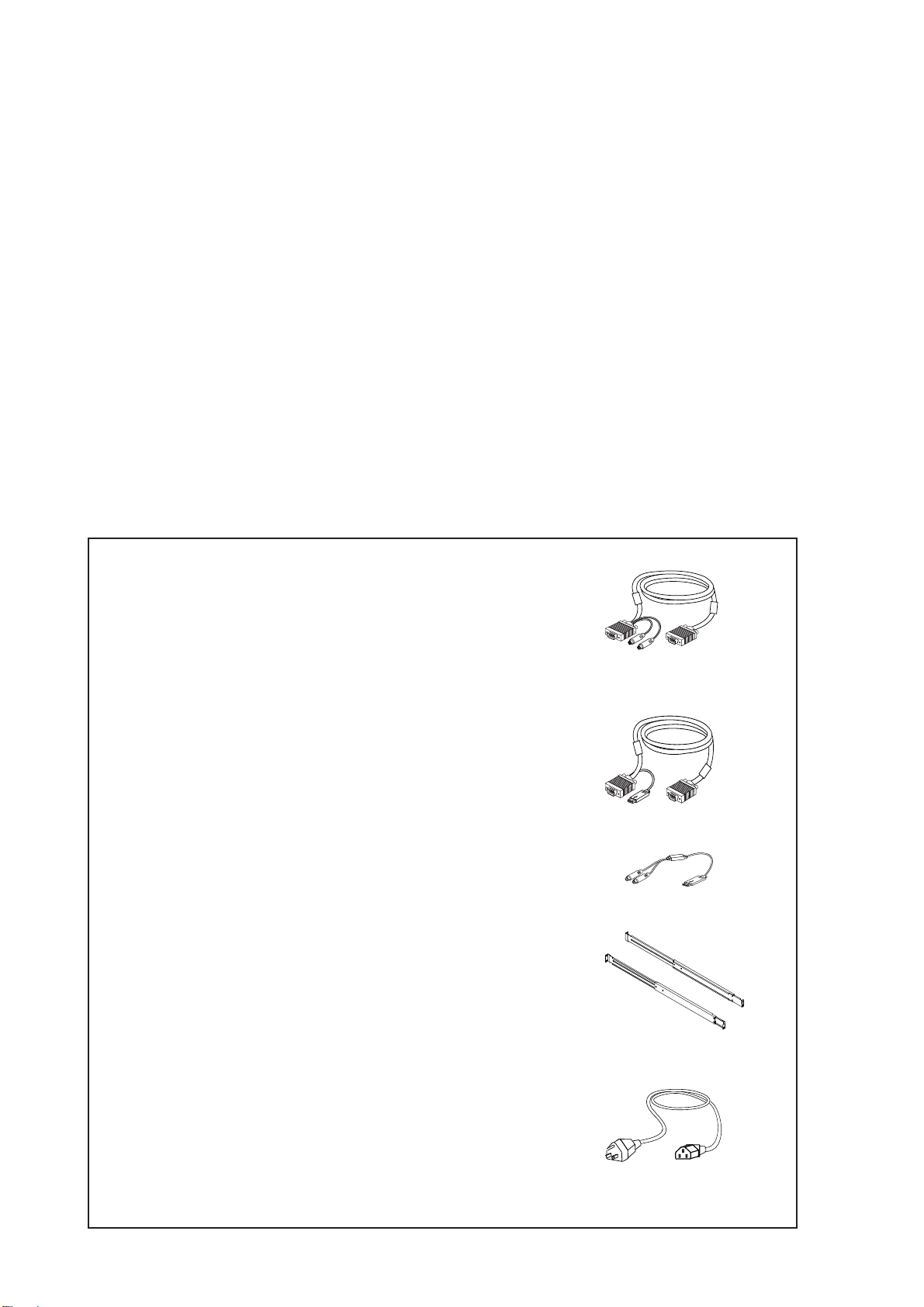

P. 4

1. PS/2 3-in-1 KVM cable

1.1 CD-6 6 feet

1.2 CD-10 10 feet

1.3 CD-15 15 feet

1.4 CD-33 33 feet

2. USB 2-in-1 KVM cable

2.1 CB-6 6 feet

2.2 CB-10 10 feet

2.3 CB-15 15 feet

3. SUN / iMAC USB to PS/2 adapter

3.1 SUN-31 kit

4. " One Man" installation slides

4.1 NBK-01 Single or "One Man " installation slides for N117 / 119 series

4.2 NBK-02 Single or "One Man " installation slides for N1417 / 1419 series

* Please refer to P.9 - 11 for Installation guidelines

5. Power Cord

5.1 IEC power cord

5.2 NEMA 5-15 power cord (US)

5.3 BS 1363 power cord (UK)

5.4 CEE 7/4 power cord (German)

5.5 AS 3112 power cord (Australia)

P. 5

1.7 Peripheral Products Chapter 1

Item Model No. Description

DB-15 KVM

IP-802 / IP-1602

CV-802 / CV-1602

CV-401 / CV-801 / CV-1601

CV-S801 / CV-S1601

8 / 16-port IP PS/2 KVM

8 / 16-port two console PS/2 KVM

4 / 8 / 16-port PS/2 KVM

8 / 16-port USB KVM

Cat5 KVM

UIP-1602 / UIP-3202

U-1602 / U-3202

U-1601 / U-3201

16 / 32-port IP Cat5 KVM

16 / 32-port two console Cat5 KVM

16 / 32-port high density Cat5 KVM

1.8 Structure Diagram

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

Adjustable rear mounting L-bracket

Micro switch for screen auto power off

Membrane switch (KVM option)

Keyboard interchangeable module kit

Mouse interchangeable module kit

P. 6

1.9 Installation Chapter 1

■Install each rear L-bracket using two fasteners shown

in Figure 1.

■Leaving the fasteners slightly loose.

■Measure the front and rear mounting depth of the

rack.

■Align each rear L-bracket to a suitable length and

tighten the fasteners shown in Figure 2.

■Fix the LCD keyboard drawer into the rack.

* Hardware (screws and cage nuts) for ﬁxing the

mounting bracket to the rack is not provided.

Figure 2. Aligning the rear L-brackets to a suitable length for the rack.

Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.

Figure 3. Fixing the LCD keyboard drawer into the rack.

P. 7

Chapter 1

1.10 How to Use "N" Series LCD Keyboard Drawer

■Gently pull the tab toward the front of the LCD shown

in Figure 4.

Figure 4. Pulling the tab toward the front of LCD.

■Operate the LCD keyboard drawer shown in Figure 6.

Figure 6. Operating the LCD keyboard drawer

Figure 5. Flipping up the LCD to a suitable angle.

■Flip up the LCD to a suitable angle shown in Figure 5.
