CYCMOTOR B Series Bedienungsanleitung

User Manual

CYC MOTOR

support@cycmotor.com +952 3690 8938


©2023 CYCMOTOR LTD

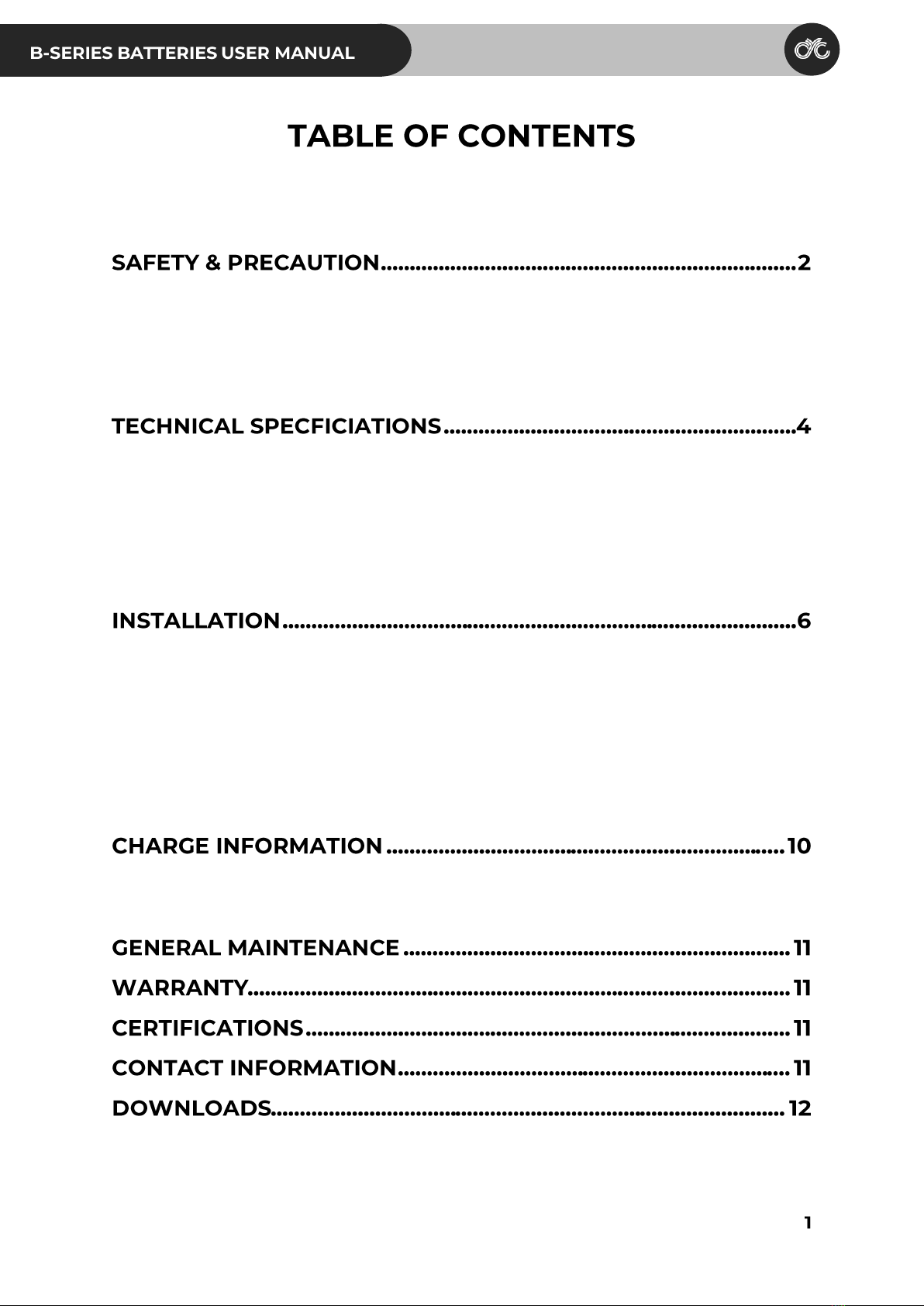

General Safety ....................................................................................................................................2
Before the Ride...................................................................................................................................2
Installation & Use ...............................................................................................................................3
Disclaimer...........................................................................................................................................3

Description .........................................................................................................................................4
General Specifications .......................................................................................................................4
Features..............................................................................................................................................5
Package Inclusions.............................................................................................................................5

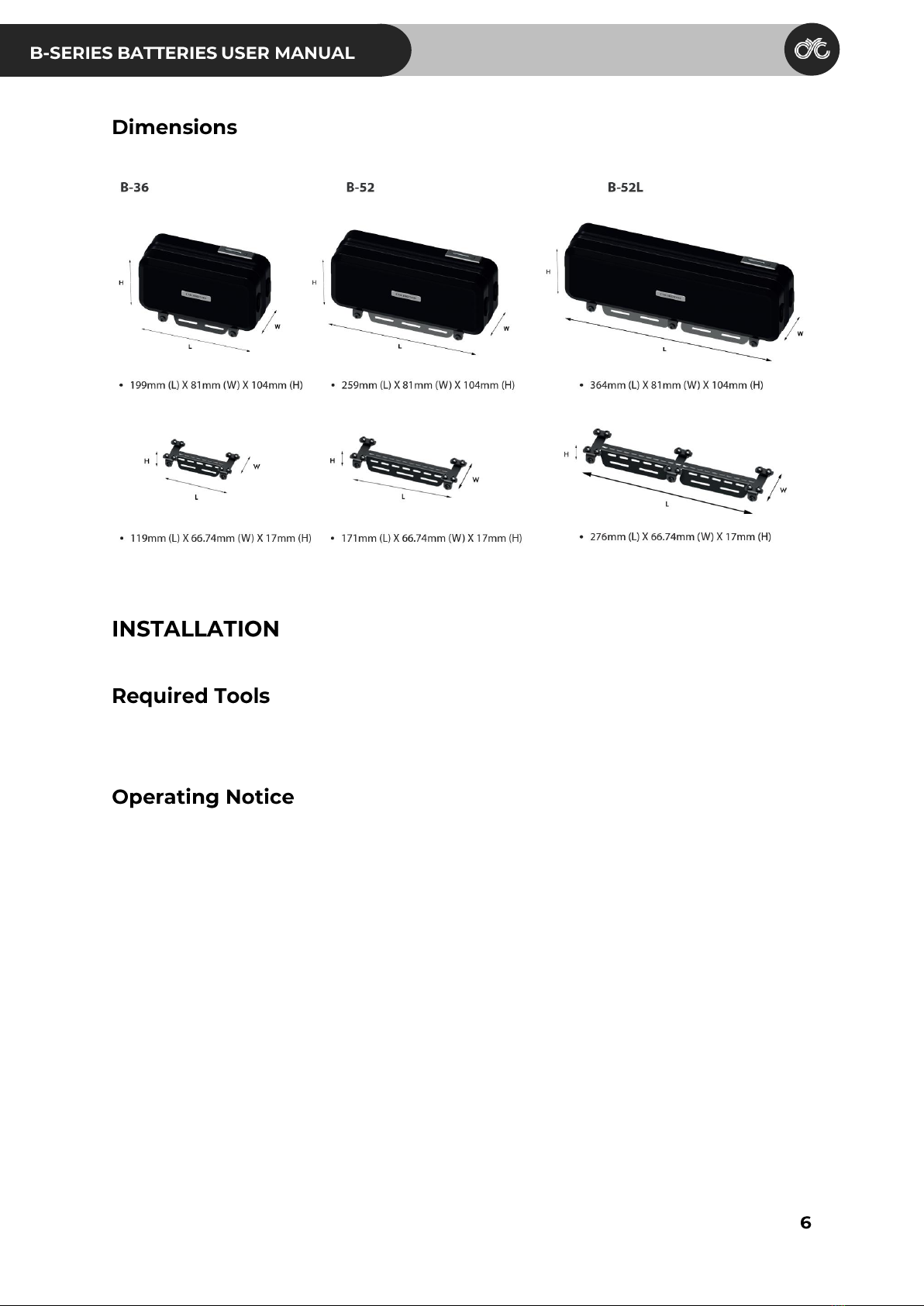

Dimensions.........................................................................................................................................6

Required Tools ...................................................................................................................................6
Operating Notice................................................................................................................................6
Strapping on battery pack.................................................................................................................7
Bolting battery pack on frame...........................................................................................................8
Bolting on through water bottle mounting.......................................................................................8
Wiring & Connection ..........................................................................................................................9

Charging Instructions.......................................................................................................................10
Warnings...........................................................................................................................................10







Kindly read through the entire user manual. This manual contains important information to

reduce user risk as well as instructions for this product’s proper use. Do not discard the manual

but keep it for reference.

Note that the user’s personal safety remains the user’s responsibility and that the user must

contact CYCMOTOR LTD or their official product dealer directly for any further guidelines or

assistance.

This product is an electrical system that is dangerous for children and must be handled by an

adult. Small components and accessories may also present a choking hazard. Keep this product

and its accessories out of reach from children.

Keep all electrical wires secured as exposed wires could lead to serious injury or product damage.

Also inspect the condition of the wires regularly for any damage.

Never interfere with the parts or attempt to disassemble the internal parts of the battery when the

battery is connected or switched on. This could result in serious injury or damage to the product.

All components and accessories may only be replaced with identical components directly supplied

by CYCMOTOR LTD cannot be held liable for any damages as a result of using unapproved parts.

Ensure that the battery mount is fastened securely to the frame and that the battery is secured to

the mount. Incorrect mounting could cause the system to move its position and result in injury

while riding. Inspect the mounting position regularly. Please ensure that all wiring is dry before

connecting it to the motor system.

When connecting the battery, make sure that it is properly connected. Faulty connection could

result in a short circuit and damage the motor system and/ or battery. Secure all wires properly.

Make sure that no loose wires are dangling from the bike that could be jammed into any moving

parts.

Inspect electrical wires and plugs regularly for any damage.

Follow the installation guidelines provided in this manual to fit your battery pack securely to your

bicycle frame. This product is manufactured to be used as an electric bicycle battery pack for

powering the CYCMOTOR LTD mid-drive motor product line. Using this battery for anything other

than its intended use, is not recommended and will not be supported by CYCMOTOR LTD.

The installation guidelines also provide you with clear instructions on usage and charging. Kindly

be mindful when using and charging this product.

The B-Series ebike battery packs are intended to be mounted on a standard bicycle frame using

the steel battery mount and the 3x straps provided. This user manual includes instructions for two

common and recommended mounting positions for your reference. Kindly note that mounting

positions where all 3x straps are not used, is up to the user’s own discretion and risk.

The battery unit will be activated and deactivated by switching on your kit’s display once all the

components are installed and connected accordingly. Do not attempt to alter this method.

Do not install anything other than the parts and accessories that came with the battery unit. Doing

so could damage the product.

Be sure to familiarize yourself with the product warnings provided in this user manual.

If you require any more information or have any questions about the user manual disclaimer or

the content provided, please feel free to contact us via email at [email protected] or call

+852-3690-8938.

All the information contained in this user manual is published in good faith and for general

informational purposes only. CYCMOTOR LTD does not make any warranties about the

completeness of this information and encourages further inquiries as stated above if needed.

CYCMOTOR LTD will not be held liable for any losses and/or damages in connection with the use of

this product. The use of this product is at the user’s own risk and discretion.

Keep this manual, along with other documents that were included with your battery, for future

reference. All content in this manual is subject to change without notice. Please be sure to visit

cycmotor.com/downloads to view and download the latest version.

This product is a lithium electric bicycle (ebike) battery pack designed to complement the CYC

product line. The B-Series eBike Battery is an efficient long-lasting energy source with fast

charging capabilities. It is equipped with a Battery Management System (BMS) that ensures safe

operating and reliable data. This is the ideal power solution for users of the CYC product line.

B-36

B-52

B-52L

Rated

Battery

Voltage

36V (2p10s)

52V (2p14s)

52V (3p14s)

Battery Cell

Original

Samsung 50e

21700

Original

Samsung 50e

21700

Original

Samsung 40T

21700

Original

Samsung 50e

21700

Original

Samsung 40T

21700

Battery

Capacity

10Ah (360Wh)

10Ah (520Wh)

8Ah (416Wh)

15Ah (780Wh)

12Ah (624Wh)

Maximum

Continuous

Discharge

Current

30A

70A

45A

70A

Maximum

Charge

Current

Weight of

Battery Pack

2.2 kg

2.9 kg

4.3 kg

Weight of

Battery

Mount

0.1 kg

0.2 kg

0.3 kg

***Compatible with all CYC motor systems

•High discharge BMS with short circuit protection

•Secure & versatile dual-mounting solution

•Original high-quality Samsung 21700 cells

•Stealthy & compact bag-like design

•Ice-blue battery level indicators

•Quick removal for portability

•Weather & impact resistant

•High impact polycarbonate battery case (with Samsung 40T/50E cell module, Battery

Management System [BMS], & line out with spark proof of XT90-S connection encased in

ABS+PC)

•Battery mount with padding pre-assembled to battery case with M5 bolts

•Lithium ebike battery charger

•Velcro mounting straps x 4pcs

oB-36, B-52, & B-52L includes 2x 20*250mm mounting straps & 2x 25*350mm

mounting straps)

•Bolts

oB-36:

▪4x M5*10

▪4x spacer

▪4x spring washer

oB-52:

▪4x M5*10

▪4x spacer

▪4x spring washer

oB-52L

▪6x M5*10

▪6x spacer

▪6x spring washer

•Zip ties

oB-36: 4 pcs

oB-52: 6 pcs

oB-52L: 8 pcs

•Instruction Card

All parts listed are included in the package with every purchase. Should you be missing a part,

kindly contact support@cycmotor.com along with your order number as reference.

Thank you.

•3mm Allen Key / Hex Key

RIGHT-HAND and LEFT-HAND sides are determined by the bike handle; Right-hand corresponds to

the right handle.

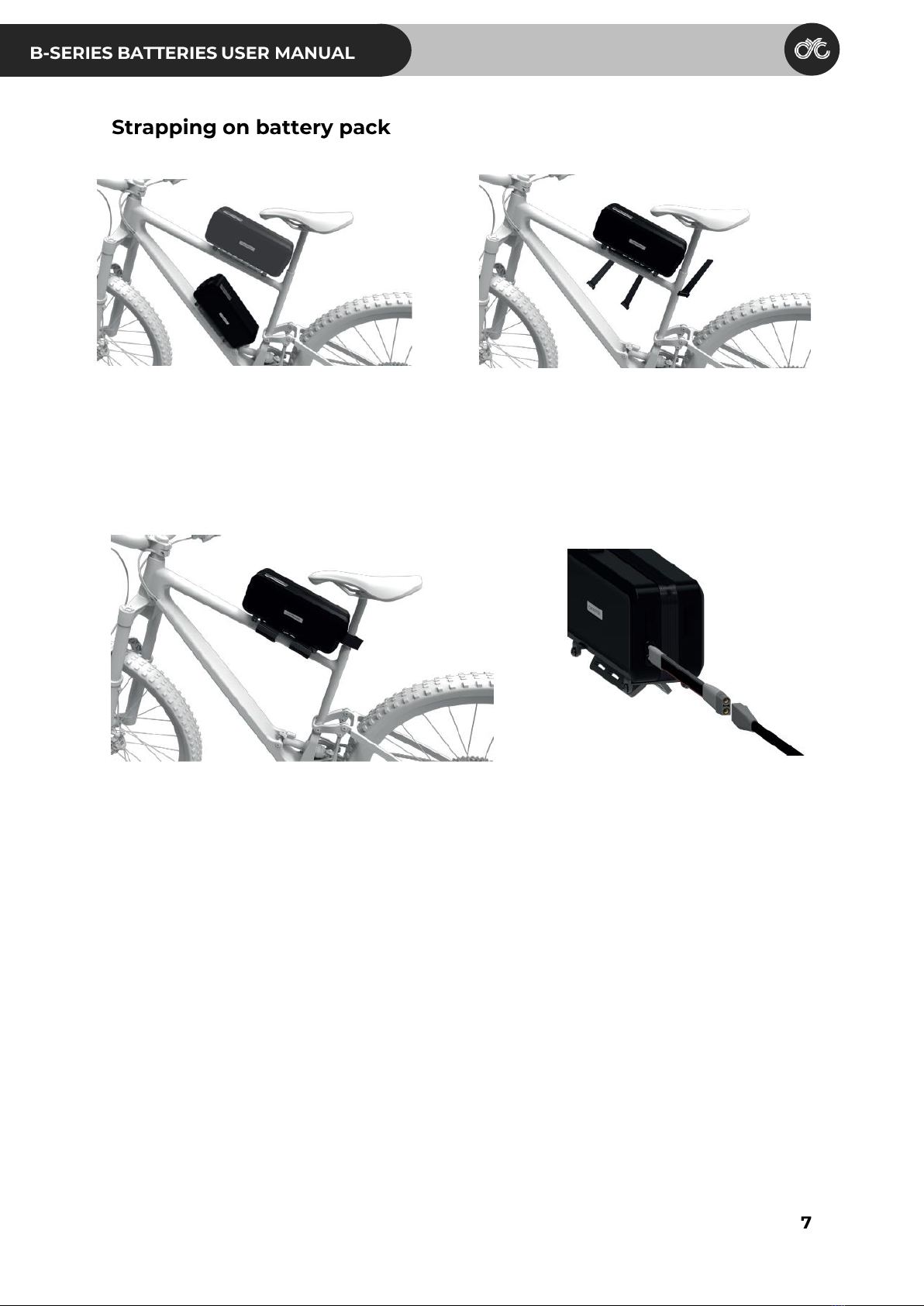

1. Select a mounting position on your bike frame that will provide 3-point support for the

straps.

2. Thread 2x 25*350mm straps through the mounting bracket & 1x 20*250mm through the

side bracket. Note that the above image is for reference only. Straps can be placed as

needed.

3. Wrap the straps around the frame and secure them tightly for stability. Zip ties can be

added for extra security.

4. Plug in the connector by the XT-90S port to the motor system’s battery port.

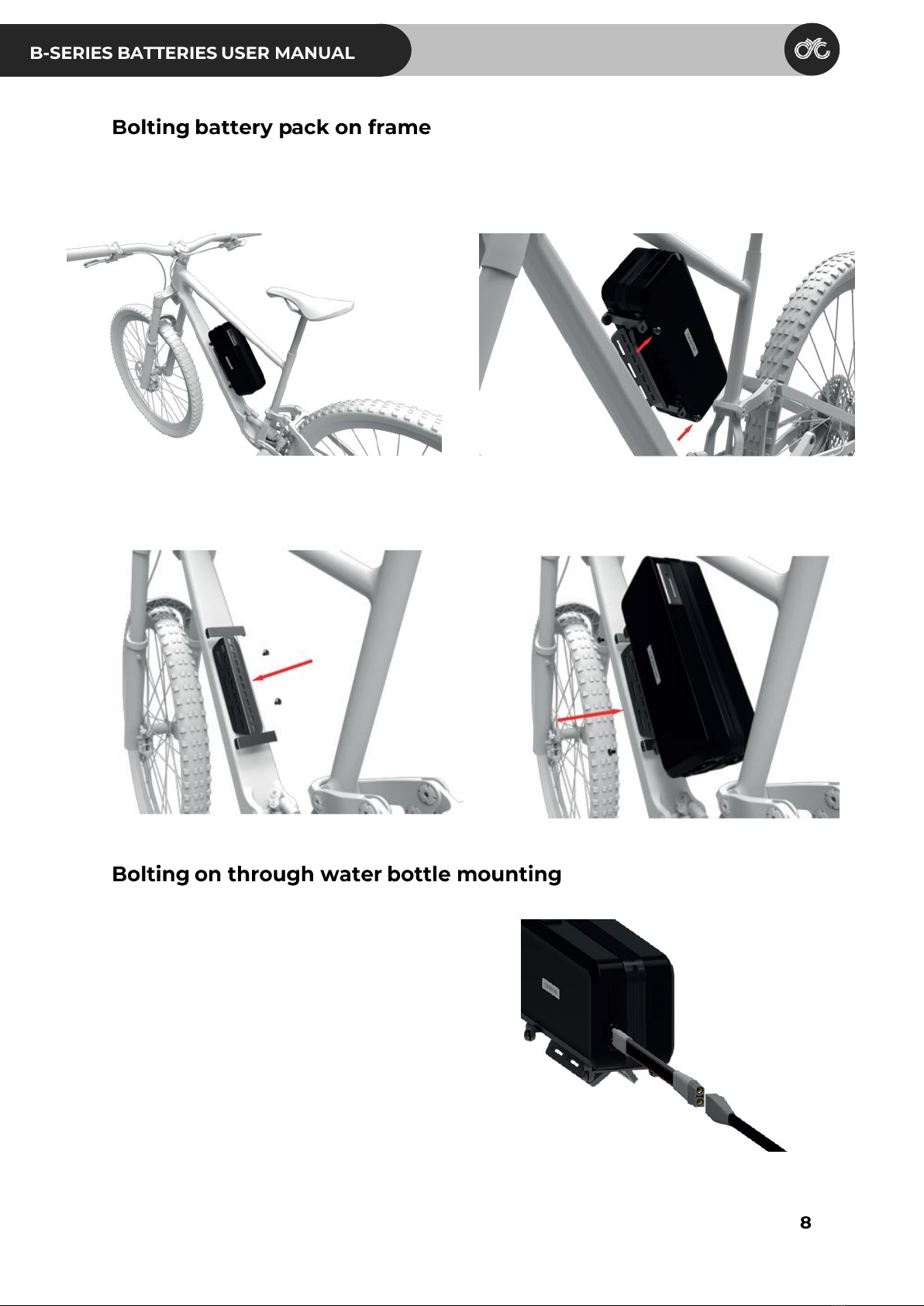

1. Select a mounting position on your bike frame that fits over the bottle cage mount inserts.

2. Unscrew the 4x M5 mounting bracket bolts with a 3mm Allen Key.

3. Secure the battery mount into position by fastening the bottle cage mount insert screws.

4. Secure the battery pack with the bolts in Step 2. Make sure to include a spacer and a spring

washer in between each bolts and metal hook for best securing. Add straps if needed.

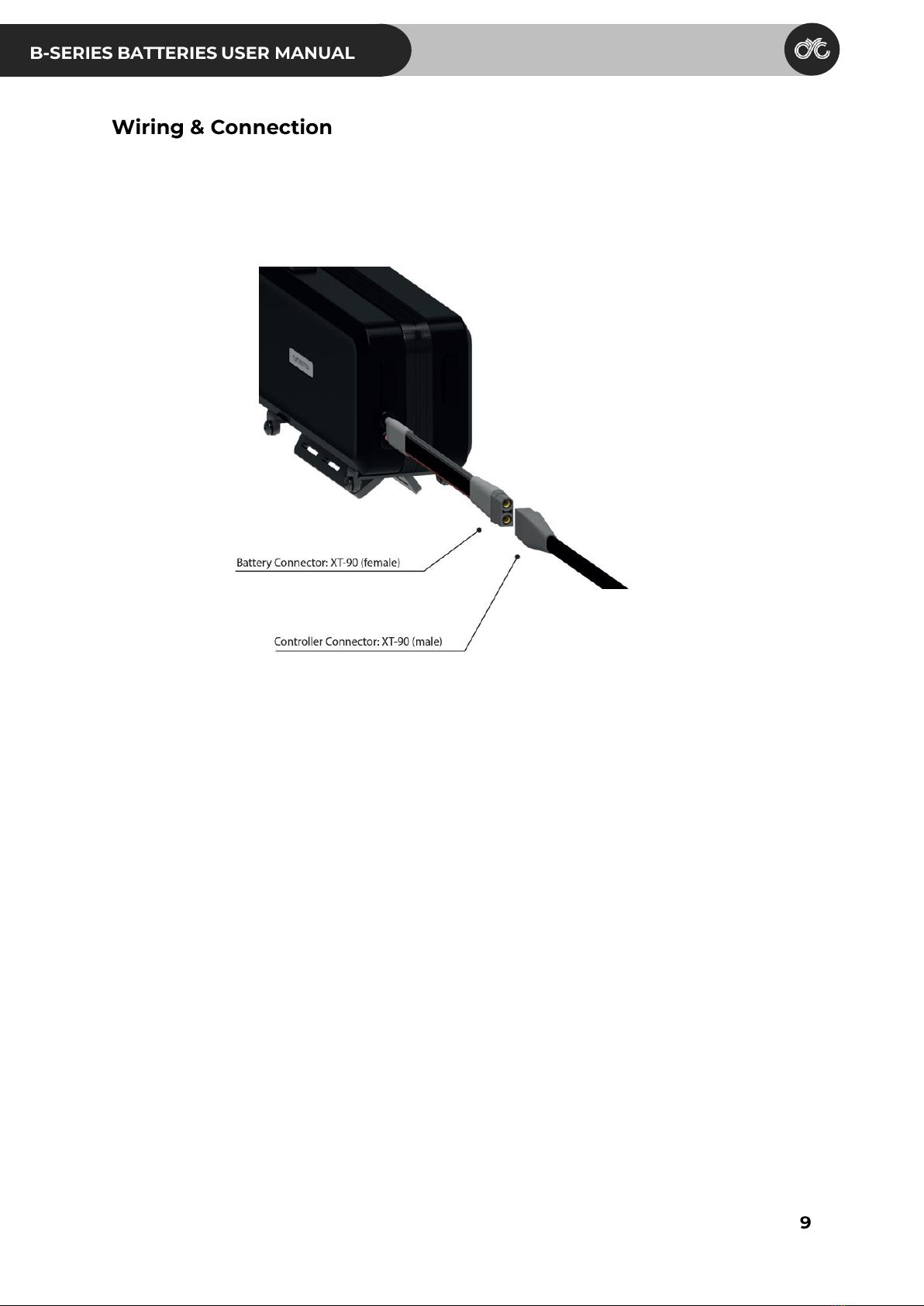

1. Plug in the connector by the XT90-S port to the

motor system’s battery port.

Battery Connector: XT-90 (female)

Wire: 10 AWG (red wire to positive pole & black wire to negative pole)
