CYP PRO-SDI2H Bedienungsanleitung

PRO-SDI2H

12G-SDI to HDMI Converter

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use

to avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2022/03/03 Preliminary release

RDV2 2022/04/27 Updated text in specication section

CONTENTS

1. Introduction..................................................1

2. Applications ..................................................1

3. Package Contents .........................................1

4. System Requirements ..................................1

5. Features.........................................................2

6. Operation Controls and Functions..............3

6.1 Front Panel.............................................................3

6.2 Rear Panel...............................................................4

7. Connection Diagram ....................................5

8. Specications................................................6

8.1 Technical Specications ....................................6

8.2 Video Specications............................................7

8.3 Audio Specications...........................................9

8.3.1 Digital Audio ..............................................9

8.3.2 Analogue Audio........................................9

8.4 Cable Specications ........................................ 10

9. Acronyms.....................................................11

1. INTRODUCTION

This 12G-SDI to HDMI Converter allows SDI signals up to 4K UHD+to

be converted for display on standard HDMI video displays. This makes

it easier for professionals to monitor or output professional SDI video

production sources on standard, relatively low-cost, HDMI displays while

allowing the original SDI signal to continue to be looped on to other SDI

equipment in their production environment. Additionally, the inclusion

of a 3.5mm analogue stereo output lets the user monitor the audio using

simple powered speakers or headphones. Basic control is available via

front panel buttons.

2. APPLICATIONS

Display 12G-SDI video signals on standard 4K HDMI displays

Broadcast SDI to consumer HDMI video signal conversion

12G-SDI signal extension via re-clocked loop output

3. PACKAGE CONTENTS

1× 12G-SDI to HDMI Converter

1× 5V/2.6A DC Power Adapter

1× Operation Manual

4. SYSTEM REQUIREMENTS

SDI source equipment such as editing/recording decks, professional

cameras, or video broadcast equipment.

HDMI receiving equipment such as HDTVs, monitors, or audio

ampliers.

5. FEATURES

HDMI 2.0 and DVI 1.0 compliant

1 SDI video input

3 mirrored outputs (2×HDMI, 1×12G-SDI) & 1 analogue stereo audio

output

Supports up to 4K UHD (12Gbps, 4K@50/60Hz 4:2:2, 8-bit) digital video

input

SDI input supports the following SMPTE standards: ST 292-1 Level A, ST

425-1, ST 2081-10, ST 2082-10

Looped SDI output is re-clocked

SDI signal extension distance varies based on signal type: 80 meters

(12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HD-

SDI)

4K sources can be optionally downscaled to 1080p when output over

the HDMI outputs to support lower cost local monitoring options

Supports pass-through of LPCM audio (up to 8 channels)

Controllable via front panel controls

6. OPERATION CONTROLS AND FUNCTIONS

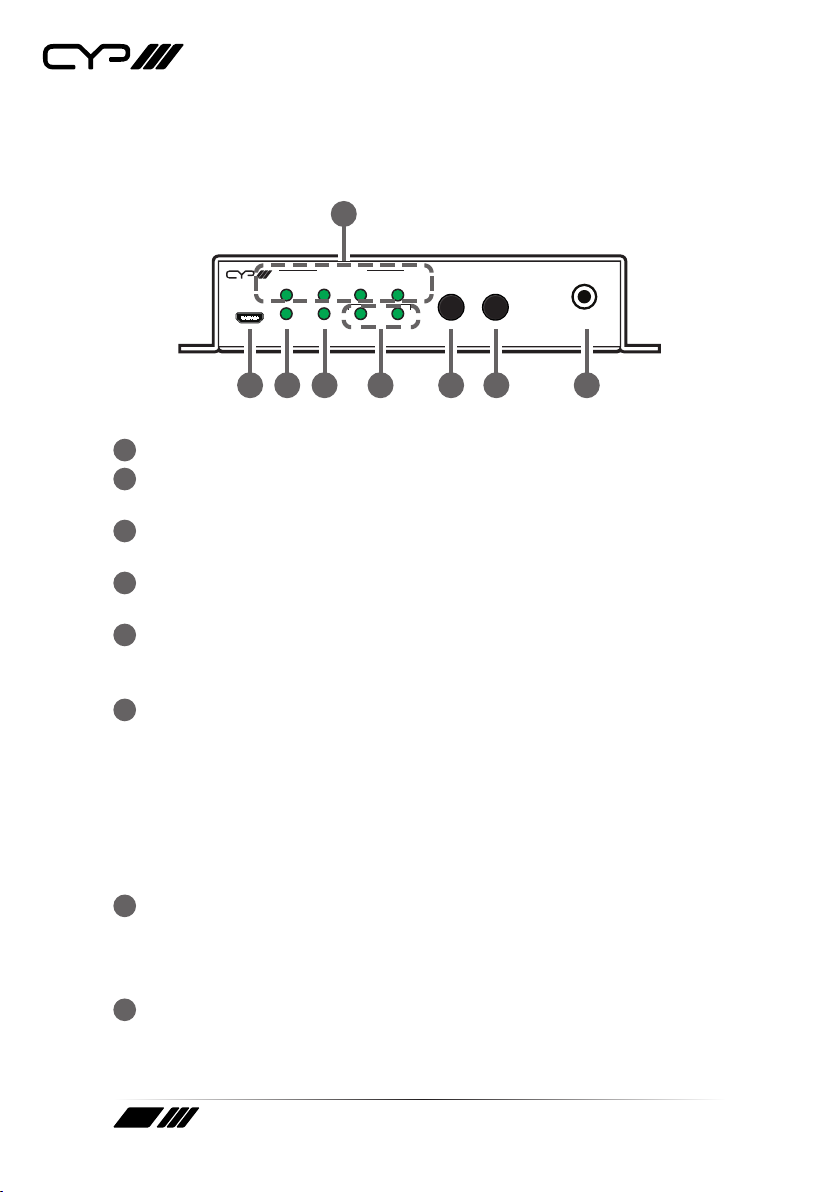

6.1 Front Panel

SCALESCALE

SERVICE

SDI IN

3G 6G 12GHD

PWR

SERVICE

HDMI

OUT

L/R

OUT

PRO-SDIH2

1 3 4 5 6 7 8

1SERVICE Port: This port is reserved for rmware update use only.

2SDI IN LEDs: These LEDs will illuminate to indicate the SDI format

currently in use on the SDI input.

3PWR LED: This LED will illuminate to indicate the unit is on and

receiving power.

4SCALE LED: This LED illuminate when the HDMI outputs are being

downscaled.

5HDMI OUT A~B LEDs: These LEDs will illuminate to indicate when a

valid sink has been detected on the associated output port. When no

sink is detected the LED will remain o.

6SERVICE Button: Press this button to put the unit into its rmware

update mode.

Firmware Update Process: To update rmware after pressing the

button, connect the unit to a PC/laptop via the Micro-USB Service

port and the unit will appear as an external drive. Drag an appropriate

rmware le onto this drive and the unit will automatically begin

the update process. After the update completes, the unit will

automatically reboot.

7SCALE Button: Press this button to enable or disable the HDMI

outputs’4K to 1080p downscaling function.

Note: 3840x2160 will be downscaled to 1920x1080. 4096x2160 will be

downscaled to 2048x1080.

8L/R OUT Port: Connect to powered speakers or an amplier for

analogue stereo audio output.

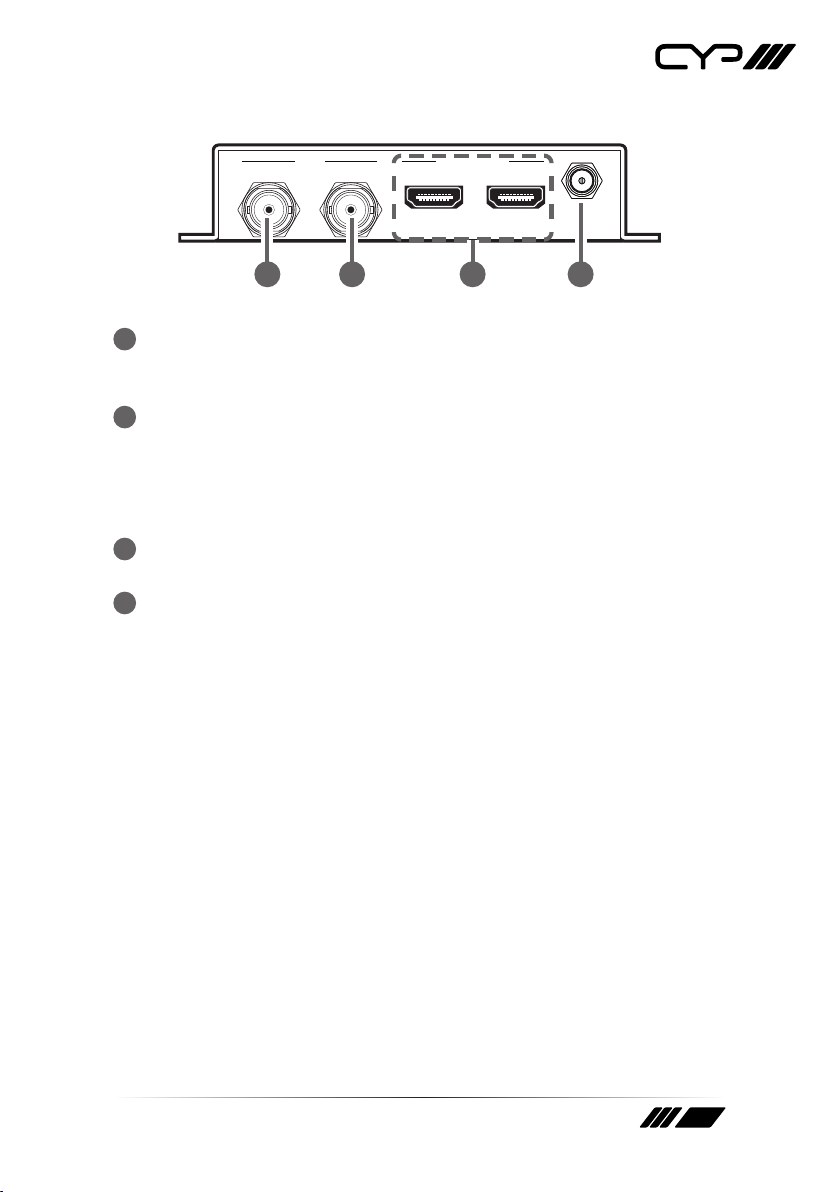

6.2 Rear Panel

DC 5V

IN OUT

SDI HDMI OUT

1 42 3

1SDI IN Port: Connect to SDI source equipment such as editing/

recording decks, professional cameras, or video broadcast equipment.

SDI signals up to 12G-SDI are supported.

2SDI OUT Port: Connect to SDI receiving equipment such as editing/

recording decks, professional studio monitors, or video broadcast

equipment.

Note: This output is re-clocked to support sequential daisy chain cable

extensions, without signal loss, if desired.

3HDMI OUT A~B Ports: Connect to HDMI TVs, monitors, or ampliers

for digital video and audio output.

4DC 5V Port: Plug the 5V DC power adapter into this port and connect

it to an AC wall outlet for power.

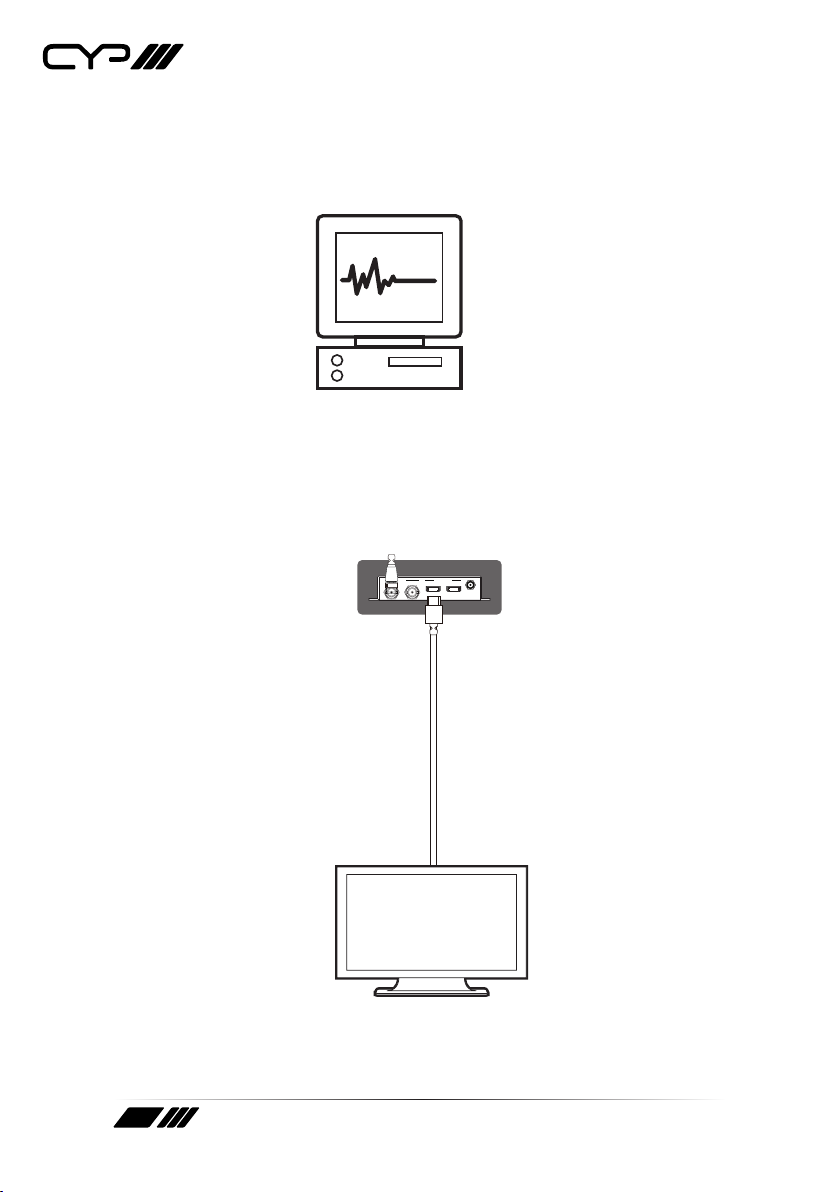

7. CONNECTION DIAGRAM

DC 5V

IN OUT

SDI HDMI OUT

Monitor

HDMI

Output

SDI

Input

Medical

Equipment
