CSC-6013
4K UHD+ HDMI to HDMI Scaler
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2016 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 16/12/16 Draft
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 4
6.3 OSD Menu.................................................. 5
6.4 EDID Management ................................... 7
7. Connection Diagram ......................................9
8. Specications ................................................10
8.1 Technical Specications ........................ 10
8.2 Video Supports Specication ................ 11
9. Acronyms .......................................................12
1
1. INTRODUCTION
This 4K UHD HDMI to HDMI Scaler is designed to convert and scale a
wide range of HDMI sources for output to an equally wide array of
HDMI resolutions. Input sources are supported at resolutions up to and
including 4K@60Hz (4:4:4, 8-bit). Supported output resolutions range
from SVGA to 3840x2160@60Hz (4:4:4, 8-bit). The friendly and simple
design ensures that the user can set the unit up and quickly get a high
quality picture on their display. Additionally, this unit provides analog
stereo breakout audio (LPCM 2.0 sources only) to support the easy
application of external powered speakers. A perfect tool for your HD
and UHD signal conversion needs. The unit can be controlled via front
panel buttons with an On-Screen Display (OSD).
2. APPLICATIONS
• Showing HD video on UHD displays
• Showing UHD video on HD displays
• Showing HDMI sources on DVI displays with analog audio breakout
to external speakers
• Video signal quality and level management
3. PACKAGE CONTENTS
• 1 x 4K UHD HDMI to HDMI Scaler
• 1 x 5V DC Power adaptor
• Operational Manual
2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as media players, video game
consoles or set-top boxes.
• HDMI receiving equipment such as HDTVs, monitors or audio
ampliers.
• The use of “Premium High Speed HDMI” cables is highly
recommended.
5. FEATURES
• HDMI input and output with 18Gbps (600MHz) 4K UHD support
• DVI 1.0 compliant with the use of an HDMI-DVI adaptor
• HDCP 1.4 and 2.2 compliant
• Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) &
4096x2160@60 Hz (YUV 4:4:4, 8-bit)
• Supports 48-bit Deep Color up to 1080p60
• Supports pass-through of LPCM 7.1, bitstream and HD bitstream
audio formats over HDMI
• Provides EDID management via EDID bypass, 6 built-in EDIDs and 1
user modiable EDID
• Supports up and down scaling of a wide variety of HDMI source
resolutions, from 480p to 4K@60Hz.
• Controllable via front-panel buttons with OSD
Note: 4K UHD sources or equivalently high-bandwidth signals require
an appropriate compatible display and HDMI cables in order
to achieve the best image quality. The use of “Premium High
Speed HDMI” cables is highly recommended.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
MENUPOWER–
+ENTER
+
1 2 3 4 5
1POWER LED: This LED will illuminate when the unit is receiving power.
When a valid HDMI source is detected the LED will be green, if
there is no valid HDMI source, the LED will be red.
2MENU: Press to enter the OSD menu, or to back out from menu
items.
Note: Press and hold the “MENU” button for 3 seconds while
connecting the power supply to reset all settings to the factory
defaults. Pressing “MENU” and “-” together will reset the output
resolution to 720p@60Hz. Pressing “MENU” and “+” together will
reset the output resolution to XGA (1024x768@60Hz).
3-/+: Press to move up and down or adjust selections within OSD
menus.
4ENTER: Press to conrm a selection within the OSD or to go deeper
into a menu item.
4

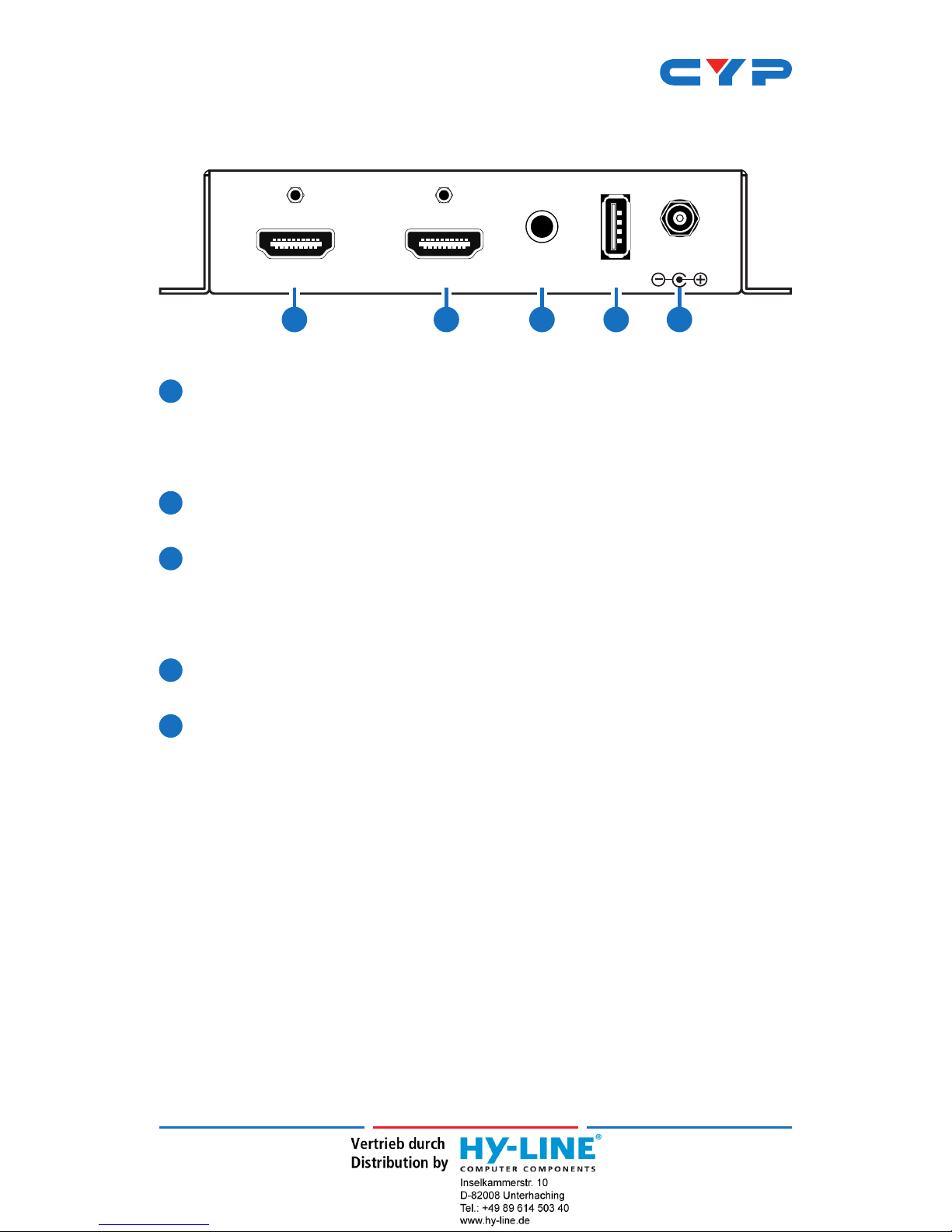

6.2 Rear Panel
HDMI IN SERVICE
AUDIO
OUTHDMI OUT DC 5V
1 2 3 4 5
1HDMI OUT: Connect to HDMI TVs, monitors or ampliers for digital
video and audio output.
Note: If no valid HDMI input source is detected the unit will output
blank video using the selected free run color.
2HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box.
3AUDIO OUT: Connect to powered speakers or an amplier for
stereo analog audio output.
Note: Supports LPCM 2.0 audio only. Bitstream formats will be
muted.
4USB: Connect a USB thumb drive to this slot to upload a user EDID
or to perform a rmware update.
5DC 5V: Plug the 5V DC power adapter into this port and connect it
to an AC wall outlet for power.
5
6.3 OSD Menu
1st layer 2nd layer 3rd layer
Output
Resolution
800x600@60Hz
1024x768@60Hz
1280x768@60Hz
1360x768@60Hz
1280x800@60Hz
1440x900@60Hz
1280x1024@60Hz
1400x1050@60Hz
1680x1050@60Hz
1600x1200@60Hz
1920x1200@60Hz(RB)
720x480P@60Hz
720x576P@50Hz
1280x720P@50Hz
1280x720P@60Hz
1920x1080i@50Hz
1920x1080P@50Hz
1920x1080i@60Hz
1920x1080P@60Hz
3840x2160@24Hz
3840x2160@25Hz
3840x2160@30Hz
3840x2160@50Hz(Y420)
3840x2160@60Hz(Y420)
3840x2160@50Hz
3840x2160@60Hz
Bypass
Yes/No
Output Col-
or Format
Format Auto/HDMI/DVI
Color Space
Auto/YUV444/YUV422/
YUV420 (YUV420 is only
available for 4K@50Hz &
60Hz)
Color Depth Auto/8/10/12/16-bit
