Cypress Semiconductor FM4-216-ETHERNET Bedienungsanleitung

SHOW TITLE MM/DD/YY 1

FM4-216-ETHERNET

Hardware V1.0 / Documentation V1.3

Document Number: 002-09877 Rev. *A

SHOW TITLE MM/DD/YY 2

Warranty and Disclaimer

Spansion LLC (“Cypress”).This document, including any software or firmware included or referenced in this document (“Software”), is owned by Cypress

under the intellectual property laws and treaties of the United States and other countries worldwide. Cypress reserves all rights under such laws and treaties

and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other intellectual property rights.

If the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the

Software, then Cypress hereby grants you a personal, non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in

the Software (a) for Software provided in source code form, to modify and reproduce the Software solely for use with Cypress hardware products, only

internally within your organization, and (b) to distribute the Software in binary code form externally to end users (either directly or indirectly through resellers

and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress’s patents that are infringed by the Software (as

provided by Cypress, unmodified) to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use,

reproduction, modification, translation, or compilation of the Software is prohibited.

TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO

THIS DOCUMENT OR ANY SOFTWARE OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent permitted by applicable law, Cypress reserves the right to make

changes to this document without further notice. Cypress does not assume any liability arising out of the application or use of any product or circuit described

in this document. Any information provided in this document, including any sample design information or programming code, is provided only for reference

purposes. It is the responsibility of the user of this document to properly design, program, and test the functionality and safety of any application made of this

information and any resulting product. Cypress products are not designed, intended, or authorized for use as critical components in systems designed or

intended for the operation of weapons, weapons systems, nuclear installations, life-support devices or systems, other medical devices or systems (including

resuscitation equipment and surgical implants), pollution control or hazardous substances management, or other uses where the failure of the device or

system could cause personal injury, death, or property damage (“Unintended Uses”).A critical component is any component of a device or system whose

failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in

whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of

Cypress products. You shall indemnify and hold Cypress harmless from and against all claims, costs, damages, and other liabilities, including claims for

personal injury or death, arising from or related to any Unintended Uses of Cypress products.

Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are

trademarks or registered trademarks of Cypress in the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com.

Other names and brands may be claimed as property of their respective owners.

SHOW TITLE MM/DD/YY 3

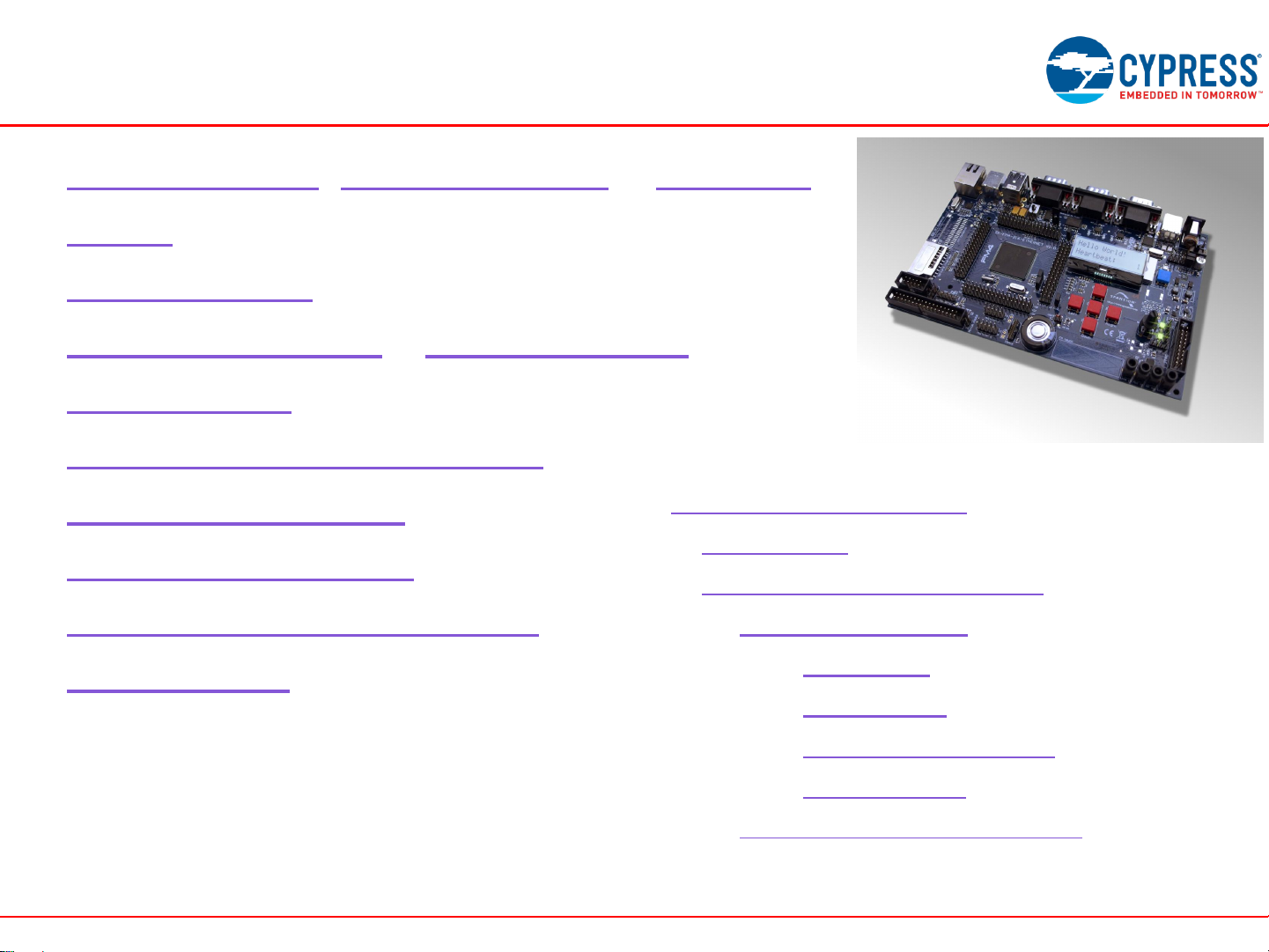

Overview

MCU Features, Board Features & Contents

Test it

The Hardware

The Jumper Table / Jumper Default

Board Power

Software Examples & Tools

Flash Programming

JTAG / CMSIS-DAP

IAR-Embedded Workbench

KEIL µVision

Additional documents

Schematics

Data sheet S6E2CC Series

Peripheral Manual

Timer part

Analog part

Communication part

Ethernet part

Flash programming manual

SHOW TITLE MM/DD/YY 4

Features of the S6E2CC Microcontroller

Package:

LQFP144, LQFP176 , BGA192 , LQFP 216,

ARM Cortex-M4 –CPU

200MHz (max)

2.7-5.5V

MPU, FPU

Ta= -40°C to +105°C

Main CLK: 4MHz

SUB CLK: 32kHz

MAIN RC CLK: 4MHz

SUB RC CLK: 100kHz

Subclock (option)

RC oscillator +/-2%

Clock Supervisor

Watch Counter

Low Voltage Detector 2ch

DMA

8ch

External IRQs

32ch + NMI

RTC

Y:M; h:m:s

S6E2CC9H/J/L

S6E2CC8H/J/L

12-bit ADC

ADT x 3ch FRTim x 3ch

OCU x 6ch ICU x 4ch

Waveform

Generator

Multi Function Timer

3ch

Dual Timer

12-bit ADC

QDU 4ch

S6E2CCAH/J/L

USB FS Host+Function 2ch

CAN (32 MSB) 2ch

CRC

Base Timer

16ch

Ethernet MAC 10/100MBit

PPG 9ch

SRAM

128K

FLASH

1MB

SRAM

192K

FLASH

1.5MB

SRAM

256K

FLASH

2MB

SWJ/TPIU/ETM Debug Ports

Resource

Pin Relocation

Quad SPI

CAN-FD 1ch

32ch

12-bit DAC

2ch

MFS(UART/SPI/I2C) 16ch

External Bus Interface

(SRAM, SDRAM, NAND, ..)

DSTC 256ch

Hardware Watchdog

I2S

SD Card I/F

SHOW TITLE MM/DD/YY 5

Features of the board

Features of the FM4-216-ETHERNET board:

•Microcontroller Cypress FM4 S6E2CCAL0A

•FM connect Ethernet: 1x IEEE802.3 Ethernet

•FM connect CAN: 2x CAN transceiver + 1x CAN-FD transceiver

•FM connect USB: 2x USB-Host (Type-A connector), 1x USB-Device (Type-B connector)

•FM touch: Slider using four ADC channels

•FM inverter: Motor-Control-Interface for e.g. POWER-3P-LV2-MC

•FM color: Cypress S/W TFT interface

•Cypress flash memory S25FL164K, connected via quad SPI interface

•I²S audio interface

•SD Card interface

•1x USB-to-serial converter (Type-B connector) using Cypress FM3 MB9AF312K

UART and on-board JTAG simultaneously (CMSIS DAP)

•Additional JTAG and Trace Interfaces each on a 20 pin-header

•2x Cypress Multicon flexible serial interface supporting I²C, SPI, UART, and LIN

•User interface

Backlit LCD module

5x pushbuttons (User buttons), potentiometer

1x Reset-button, Reset-LED

•All 216 pins routed to pin-header

•On-board 5V and 3V voltage regulators to supply MCU with separate Power-LEDs

•4x Power supply options: USB, USB-Device, JTAG or external 9V to 24V

SHOW TITLE MM/DD/YY 6

Contents FM4-216-ETHERNET

The FM4-216-ETHERNET box contains

•The FM4-216-ETHERNET evaluation board

•USB cable

•Ethernet cable

•CD: Documentation, software examples and development utilities

•1-page flyer

ESD foam ESD box FM4-216-ETHERNET USB, Ethernet cable

CD ROM Additional information

A B

RJ45 RJ45

SHOW TITLE MM/DD/YY 7

Test it

The microcontroller on the FM4-216-ETHERNET

is already preprogrammed with an example application (<drive:>\Examples\fm4-216-ethernet-tp_v12.srec).

Verify that jumpers JP75 and JP77 are set to 1-2 position and jumper JP76 is set to 3-4 position

Connect the FM4-216-ETHERNET via DEBUG USB port (X2) with the PC

Verify that switch S1 is set to RUN

Press the Reset-button

The FM4-216-ETHERNET‘s display will show a greeting message

Using the Up and Down pushbuttons will scroll through a menu on the LCD module

Connect X3 (static IP address 192.168.1.20) to a PC or local area network

Configure your PC to an untaken IP address within the same subnet (such as 192.168.1.42)

Point your webbrowser to board‘s IP address (192.168.1.20)

Install the USB Driver first <drive:>\drivers\driverinstaller.exe

Check the availibility for virtual COM port e.g. with Windows Device Manager

Open a serial terminal tool

e.g. Cypress Serial Port Viewer

<drive:>\tools\serialportviewer\setup.exe

Settings 115200 baud, 8N1

More board tests are available via serial console

SHOW TITLE MM/DD/YY 8

Test it

You finished successfully the first tests

Now you will get more details about the

FM4-216-ETHERNET

You will learn more about

•The on-board features

•How to program the Flash

•How to start with IAR-Embedded-Workbench and KEIL µVision

SHOW TITLE MM/DD/YY 9

Hardware

SHOW TITLE MM/DD/YY 10

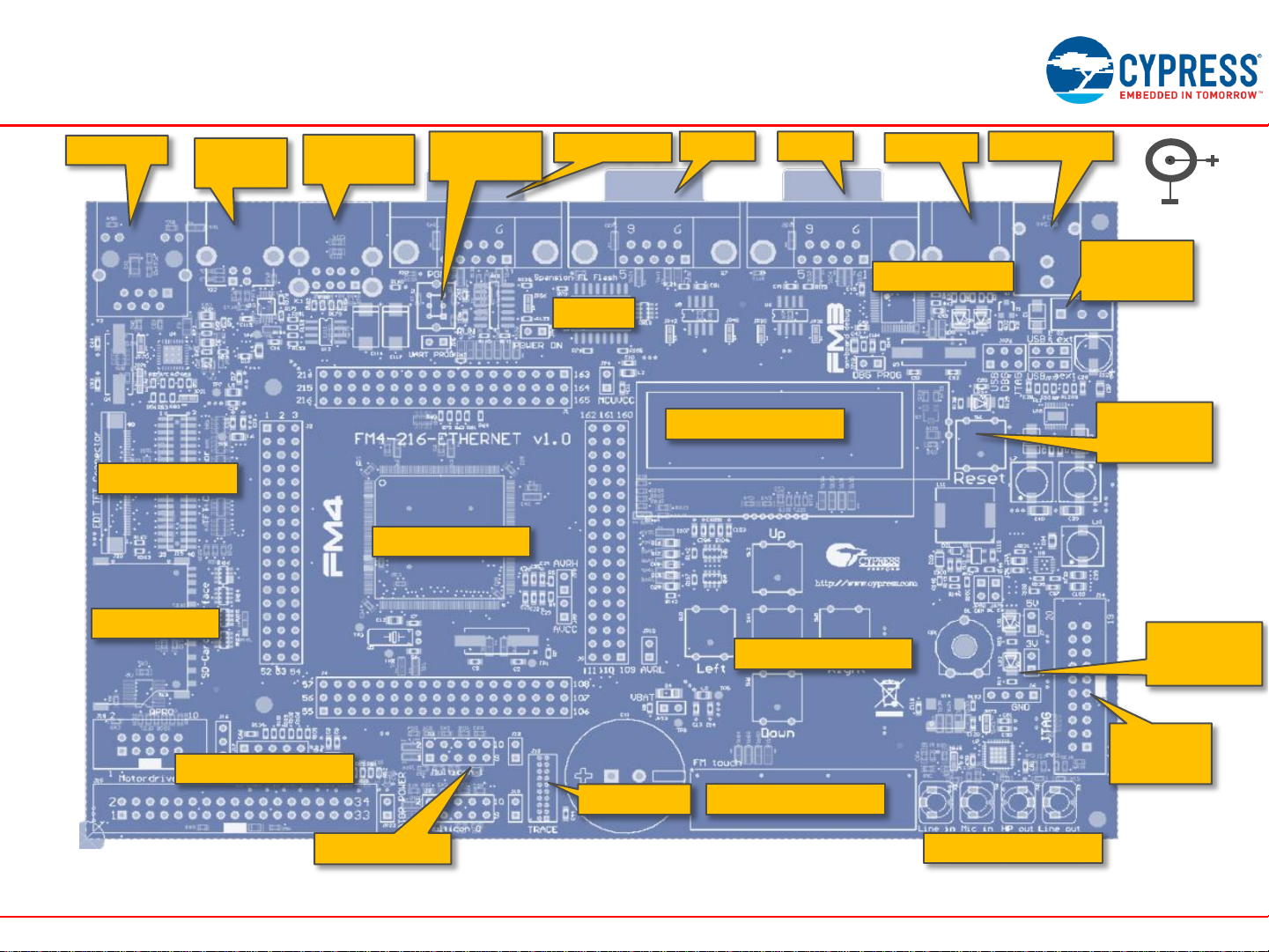

The Hardware (Top Side) –Function Overview

Vin: 9..24V

DEBUG

CAN2 (FD) CAN1

USB Host

0/1

USB

Device

Ethernet

S6E2CCAL0A

Flash

Run/Prog

switch S1

Trace

JTAG

Reset

button

MultiCon 0/1

Variable

Resistor

Power

switch S2

CAN0

2x16 LCD Module

Five user buttons

FM touch

Audio Interface

MB9AF312K

Motion Control I/F

SD Card I/F

TFT Interface
