CY8CKIT-031

PSoC®CapSense®

Expansion Board Kit Guide

Doc. # 001-66474 Rev. *A

Cypress Semiconductor

198 Champion Court

San Jose, CA 95134-1709

Phone (USA): 800.858.1810

Phone (Intnl): 408.943.2600

http://www.cypress.com

2 CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A

Copyrights

Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress

product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor

intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express

written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-

support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The

inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use

and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by

and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty

provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create

derivative works of, and compile the Cypress Source Code and derivative works for the sole purpose of creating custom soft-

ware and or firmware in support of licensee product to be used only in conjunction with a Cypress integrated circuit as speci-

fied in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source

Code except as specified above is prohibited without the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATE-

RIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described

herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein.

Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure

may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support sys-

tems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all

charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

PSoC®and CapSense® are registered trademarks and PSoC Creator™ is a trademark of Cypress Semiconductor Corp. All

other trademarks or registered trademarks referenced herein are property of the respective corporations.

Flash Code Protection

Cypress products meet the specifications contained in their particular Cypress PSoC Data Sheets. Cypress believes that its

family of PSoC products is one of the most secure families of its kind on the market today, regardless of how they are used.

There may be methods, unknown to Cypress, that can breach the code protection features. Any of these methods, to our

knowledge, would be dishonest and possibly illegal. Neither Cypress nor any other semiconductor manufacturer can guaran-

tee the security of their code. Code protection does not mean that we are guaranteeing the product as ‘unbreakable’.

Cypress is willing to work with the customer who is concerned about the integrity of their code. Code protection is constantly

evolving. We at Cypress are committed to continuously improving the code protection features of our products.

CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A 1

Contents

1. Introduction 3

1.1 Kit Contents .................................................................................................................3

1.2 PSoC Creator ..............................................................................................................3

1.3 Getting Started.............................................................................................................4

1.4 Additional Learning Resources....................................................................................4

1.5 Document History ........................................................................................................4

1.6 Documentation Conventions .......................................................................................4

2. Installation 5

2.1 CD Installation .............................................................................................................5

2.2 Hardware .....................................................................................................................6

2.3 Software.......................................................................................................................6

3. Kit Operation 7

4. Example Projects 9

4.1 Example Project 1: BMM_USB....................................................................................9

4.1.1 Project Description ...........................................................................................9

4.1.2 Hardware Connections..................................................................................10

4.1.3 Verify Output ..................................................................................................11

4.2 Example Project 2: SLM_USB...................................................................................11

4.2.1 Project Description .........................................................................................11

4.2.2 Hardware Connections...................................................................................12

4.2.3 Verify Output ..................................................................................................12

4.3 Example Project 3: BMM_I2C...................................................................................13

4.3.1 Project Description .........................................................................................13

4.3.2 Hardware Connections...................................................................................13

4.3.3 Verify Output ..................................................................................................14

4.4 Example Project 4: SLM_I2C.....................................................................................18

4.4.1 Project Description .........................................................................................18

4.4.2 Hardware Connections...................................................................................18

4.4.3 Verify Output ..................................................................................................19

A. Appendix 21

A.1 Schematic ..................................................................................................................21

A.2 Board Layout .............................................................................................................22

A.2.1 PDC-09801 Top .............................................................................................22

A.2.2 PDC-09801 Bottom ........................................................................................22

A.3 BOM ..........................................................................................................................23

A.4 Board Files.................................................................................................................23

2 CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A

Contents

CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A 3

1. Introduction

Thank you for your interest in the CY8CKIT-031 PSoC®CapSense®Expansion Board Kit. The

PSoC CapSense Expansion Board Kit interfaces any of the CY3280 Universal CapSense Module

boards with CY8CKIT-001 PSoC Development kit or CY8CKIT-030 PSoC 3 Development Kit. This

kit enables you to develop CapSense solutions with the CY8C3280 Universal CapSense Module

boards. The CapSense component in PSoC Creator™ allows to develop CapSense solutions with

great ease. The example projects provided along with this kit give sample solutions.

The PSoC CapSense Expansion Board is based on the PSoC 3 and PSoC 5 family of devices.

PSoC 3 and PSoC 5 are based on Programmable System-on-Chip™ platform for 8-, 16-, and 32-bit

applications. It combines precision analog and digital logic with a high-performance 8051 single

cycle per instruction pipelined processor achieving ten times the performance of previous 8051

processors. With this PSoC, you can create the exact combination of peripherals and integrated

proprietary IP to meet the needs of your applications. You are no longer constrained by what you find

in a catalog.

1.1 Kit Contents

The CY8CKIT-031 PSoC CapSense Expansion Board Kit includes:

■CY8CKIT-031 PSoC CapSense Expansion Board

■CY3280-BMM Universal CapSense Matrix Button Module Kit

■CY3280-SLM Universal CapSense Linear Slider Module Kit

■Two 1.5 mm overlay and one 3 mm overlay

■Quick Start Guide

■Resource CD

1.2 PSoC Creator

Cypress's PSoC Creator software is a state-of-the-art, easy-to-use integrated development

environment (IDE) that introduces a game-changing, hardware and software design environment

based on classic schematic entry and revolutionary embedded design methodology.

With PSoC Creator, you can:

■Automatically place and route select components and integrate simple glue logic normally

located in discrete muxes.

■Trade-off hardware and software design considerations allowing you to focus on what matters

and getting to market faster.

PSoC Creator also enables you to tap into an entire tools ecosystem with integrated compiler tool

chains, RTOS solutions, and production programmers to support both PSoC 3 and PSoC 5.

4 CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A

Introduction

1.3 Getting Started

To get started, go to Kit Operation chapter on page 7 for a description of the kit operation. This

chapter explains how CapSense expansion board kit connects to develepement kit and CY8C3280

module boards. The Example Projects chapter on page 9 explains example projects provided with

the kit. The Appendix chapter on page 21 provides the schematics and BOM associated with the

CapSense Expansion Board Kit.

1.4 Additional Learning Resources

Visit www.cypress.com/go/training for additional learning resources in the form of data sheets,

technical reference manual, and application notes.

1.5 Document History

1.6 Documentation Conventions

Revision PDF Creation

Date

Origin of

Change Description of Change

** 03/09/11 PVKV Initial version of kit guide

*A 03/30/11 PVKV Added notes in Example Projects chapter on page 9

Table 1-1. Document Conventions for Guides

Convention Usage

Courier New Displays file locations, user entered text, and source code:

C:\ ...cd\icc\

Italics Displays file names and reference documentation:

Read about the sourcefile.hex file in the PSoC Designer User Guide.

[Bracketed, Bold]Displays keyboard commands in procedures:

[Enter] or [Ctrl] [C]

File > Open Represents menu paths:

File > Open > New Project

Bold Displays commands, menu paths, and icon names in procedures:

Click the File icon and then click Open.

Times New Roman Displays an equation:

2 + 2 = 4

Text in gray boxes Describes cautions or unique functionality of the product.

CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A 5

2. Installation

2.1 CD Installation

To install the CY8CKIT-031 PSoC CapSense Expansion Board Kit software, insert the kit CD into the

CD drive of your computer. The CD is designed to auto-run and PSoC CapSense Expansion Board

Kit menu appears.

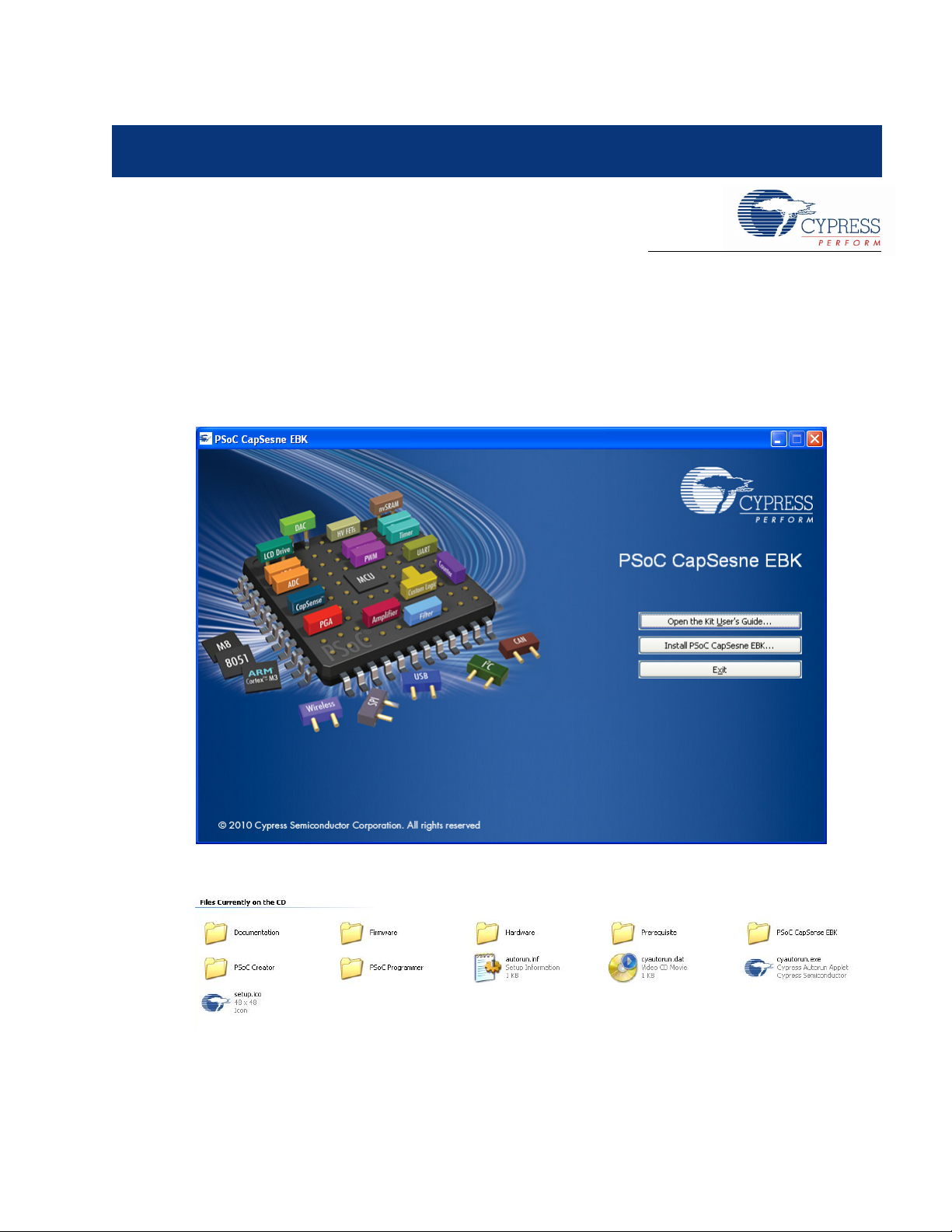

Figure 2-1. Kit Menu

Note If auto-run does not execute, double-click AutoRun on the root directory of the CD.

After the installation is complete, the kit contents are found at the following location:

C:\Program Files\Cypress\PSoC CapSense EBK\1.0\

6 CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A

Installation

The set up installs following software:

■PSoC Creator

■PSoC Programmer

■Kit Documentation

❐Quick Start Guide

❐Kit Guide

❐Known Problems and Solutions

❐Release Notes

■Firmware

❐Example Projects

■Hardware

❐Schematic

❐Layout

❐BOM

2.2 Hardware

WARNING: Static discharges from the human body can easily reach 20,000 volts. This can damage

the PSoC 3 device on the development kit. Ensure that any static is discharged before touching the

hardware.

■Ensure the development kit is powered off before making any connections

■Connect the PSoC CapSense Expansion Board Kit to the development kit being used

■Connect the CY3280-Universal CapSense Module Board to PSoC CapSense Expansion Board

Kit

■Power the development kit

2.3 Software

When installing the PSoC CapSense Expansion Board Kit, the installer checks if prerequisites,

PSoC Creator, PSoC Programmer, Windows Installer, .NET, Acrobat Reader, and KEIL Complier,

are installed in your PC. If these applications are not installed, then the installer prompts you to

download and install them.

CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A 7

3. Kit Operation

The following figure shows the CY8CKIT-031 PSoC CapSense Expansion Board Kit.

Figure 3-1. CY8CKIT-031 PSoC CapSense Expansion Board Kit

The following figure shows CY3280 CapSense Matrix Button Module.

Figure 3-2. CapSense Matrix Button Module

The following figure shows CY3280 CapSense Linear Slider Module.

Figure 3-3. CapSense Linear Slider Module

The PSoC CapSense Expansion Board Kit connects to the development kit using a 2×20-pin con-

nector. It connects to the CY3280 Universal CapSense Module Boards using 2×22-pin connector.

2x20-Pin

Connector for

DVK Interface

2x22 Pin

Connector for

CapSense

Interface

1x5 Pin Connector for I2C Interface

8 CY8CKIT-031 PSoC CapSense Expansion Board Kit Guide, Doc. # 001-66474 Rev. *A

Kit Operation

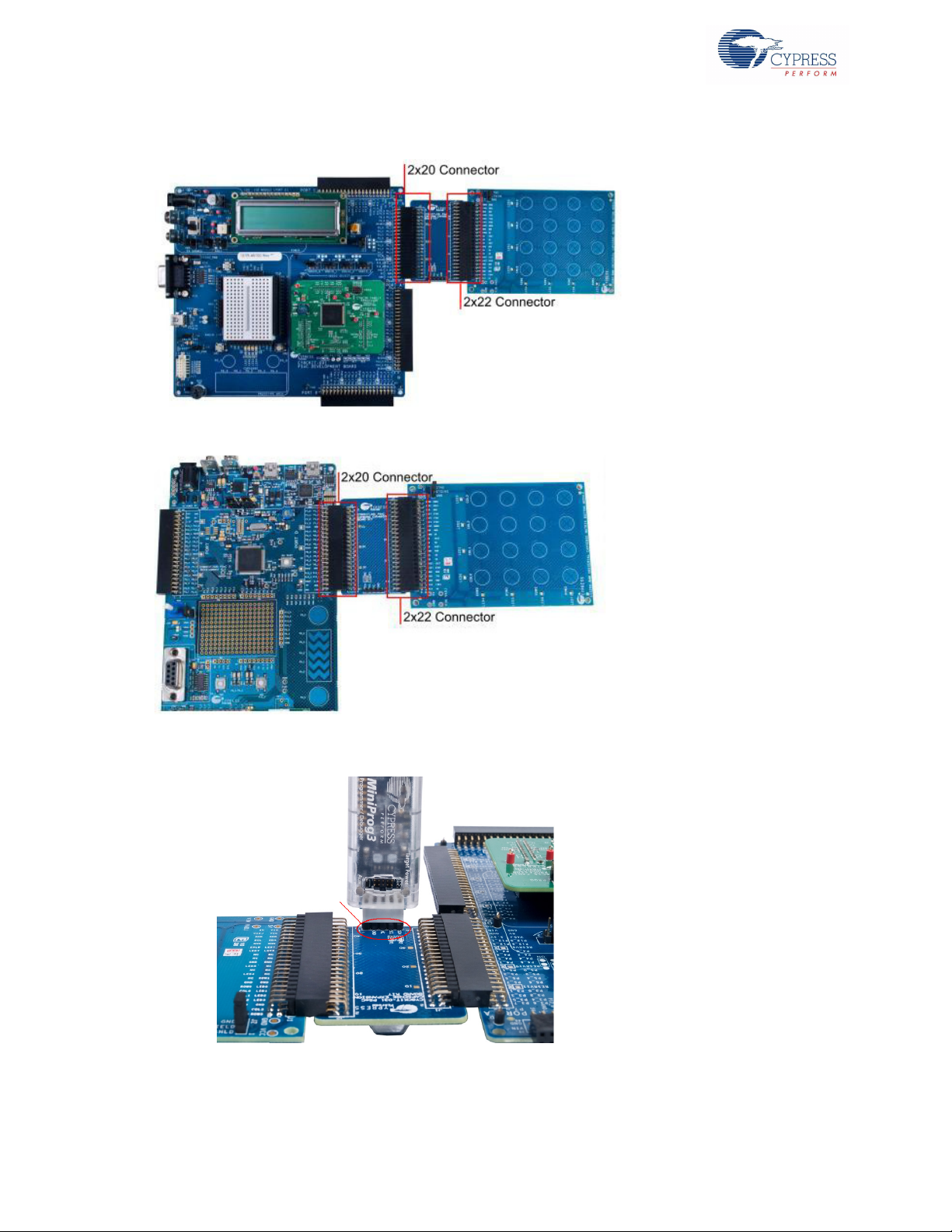

Figure 3-4. PSoC CapSense Expansion Board Kit Interface with PSoC Development Kit and

Universal CapSense Matrix Button Module Kit

Figure 3-5. PSoC CapSense Expansion Board Kit Interface with PSoC 3 Development Kit and

Universal CapSense Matrix Button Module Kit

The 5-pin connector provides the I2C interface.

Figure 3-6. I2C Connector

Note: The PSoC CapSense Expansion Board Kit can use only Port A of CY8CKIT-001 PSoC Devel-

opment Kit. Other ports Port A' , Port B, and Port C of PSoC Developement Kit cannot be used with

the PSoC CapSense Expansion Board Kit.

Miniprog3 connection to

I2C header for

communication with GUI

Inhaltsverzeichnis

Andere Cypress Semiconductor Computerhardware Handbücher

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1354C Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1354CV25 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1316CV18 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1365C Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1223H Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1392CV18 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY8C24094 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C68033 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor HOTLink II CYV15G0104TRB Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1471V33 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1543V18 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1303BV25 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1546V18 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor Rambus XDR CY24271 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C1386DV25 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY7C291A Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor MoBL CY62148BN Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor STK11C68 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY62147DV30 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1460AV25 Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor Perform CY62146E MoBL Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor FLEx36 CYD01S36V Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor Quad HOTLink II CYV15G0404RB Bedienungsanleitung

Cypress Semiconductor

Cypress Semiconductor CY8CTMA120 Handbuch

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
