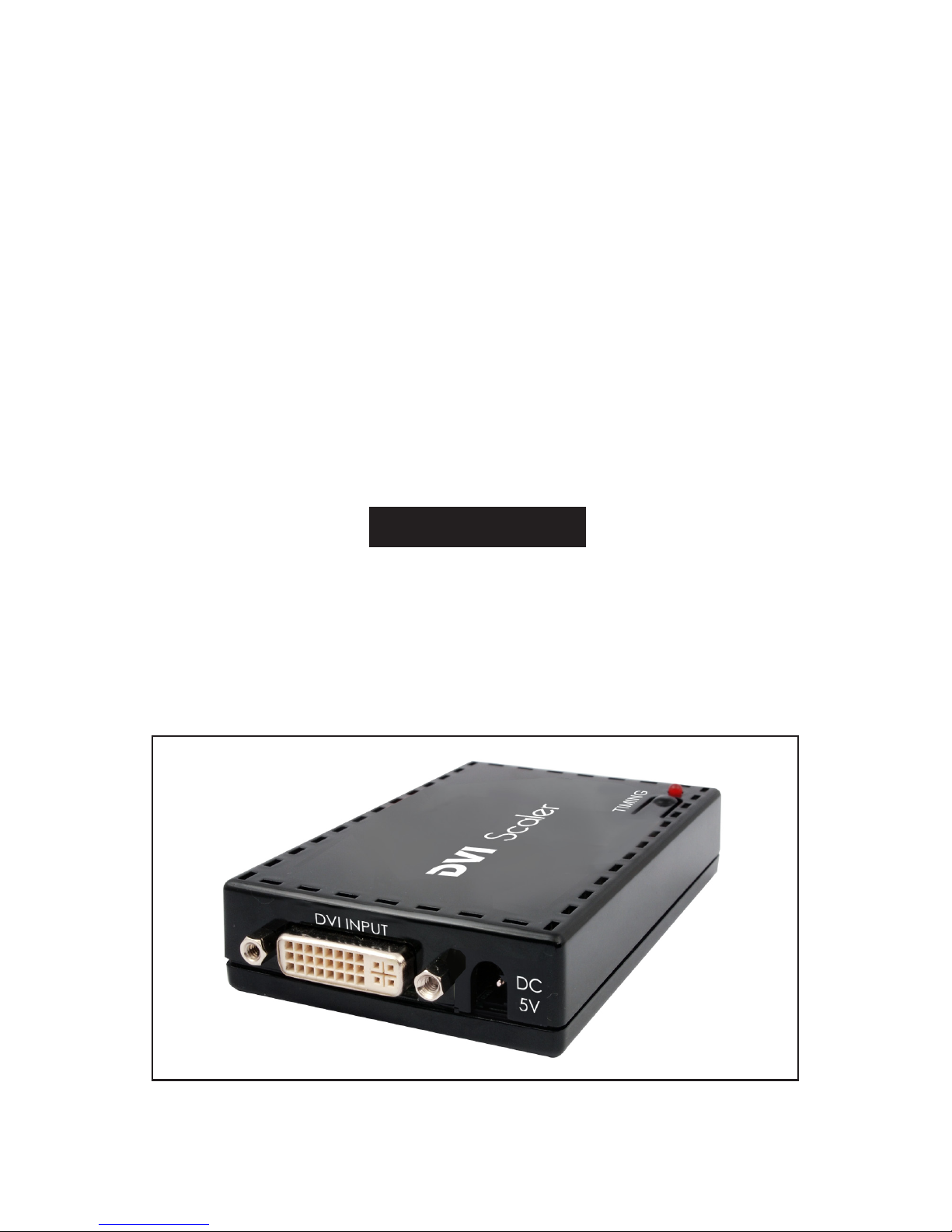

Cypress CP-298D Bedienungsanleitung
CP-298D
DVI to DVI
Scaler Box
Operation Manual
CP-298D
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 January 2010
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20100213 Preliminary Release
Table of Contents
1
1
1
1
1
2
3
3
3
4
5
6
1. Introduction…………………………………………………........……….
2. Applications……………………..…………………………................….
3. Package Contents…………………………......…………….............…
4. System Requirements……...…………………..….…………........…….
5. Features…………………………………………….......……........………
6. Specications..………………………………………...........………...….
7. Hardware Description………………...……........….....................……
7.1 Front Panel ...............................................................................
7.2 Rear Panel …………………………………………..........…….…
7.2 Top Panel ………………………….………………..........…….…
8. Connection and Installation..................…………..........…..…..…...
9. Acronyms …….………...................…………..........…..…...........…...
1. Introduction
This Scaler Box is design to display your DVI images on the HDTV with better
viewing image. It can upscale DVI input sources to DVI output for wide-range
of HD resolutions; the resolution support XGA/UXGA/720p/1080p/
1366 x 768/1440 x 900/1400 x 1050. This unit allows user to with a variety of
output resolutions and adjust for the best picture quality. Move over, with
built-in hot-key OSD function and display it helps user to view and select the
desire resolution instantly.
2. Applications
Convert HD timing into PC timing
Convert PC timing into HD timing
3. Package Contents
DVI to DVI scaler box
5V DC power adaptor
Operation Manual
4. System Requirements
Input source equipment and output HD display with DVI connection cables.
5. Features
Output supports HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
HDCP compliant
Input supports HDMI v1.3 8/10/12-bit deep color mode
Support HD resolution input: VGA~WSXGA, WUXGA (Reduce Blanking)/
1366x768/1440x900/1400x1050/480p@60, 720p@60, 1080p@60
Fast switch hot key from 720p to 1080p/1280x800/1366x768/1920x1200(RB)
Auto –Detection and Hot plug
Interlaced to progressive conversion with various picture display supplement
1
6. Specications
TMDS Clock Frequency 225MHz
Input port 1 x DVI
Output port 1 x DVI
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 114 (W) x 65 (D) x 26 (H)
Weight(g) 88
Chassis Material Plastic
Silkscreen Color Black
Power Consumption 2.7W
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Relative Humidity 20~90% RH (non-condensing)
2
7. Hardware Description
The following sections describe the hardware components of the unit.
7.1 Front Panel
1 2
DVI INPUT
DC
5V
①DVI INPUT: This slot is where you plug your input source equipment with
DVI cable for source signal sending.
②DC 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC wall outlet.
7.2 Rear panel
1
DVI OUTPUT
①DVI OUTPUT: This slot is where you connect to HDTV display with DVI cable
for source signal display.
3

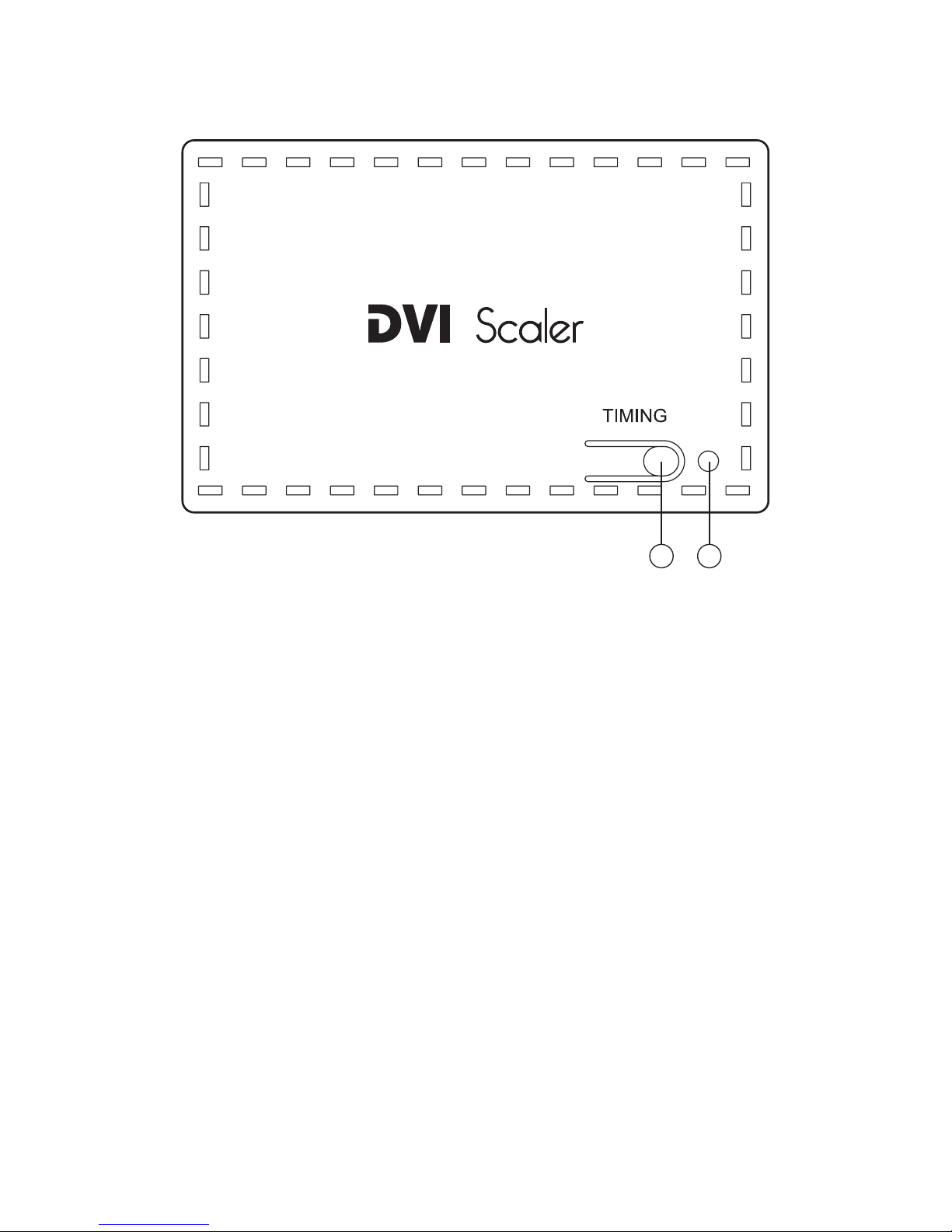

7.3 Top Panel
1 2
①Timing button: Press this button once to show both input and output
display resolution and while OSD is still on press it again to select output
resolution from 720p to 1080p/1280x800/1366x768/1920x1200(RB).
②Power LED: This LED will illuminate when power is connected.
4

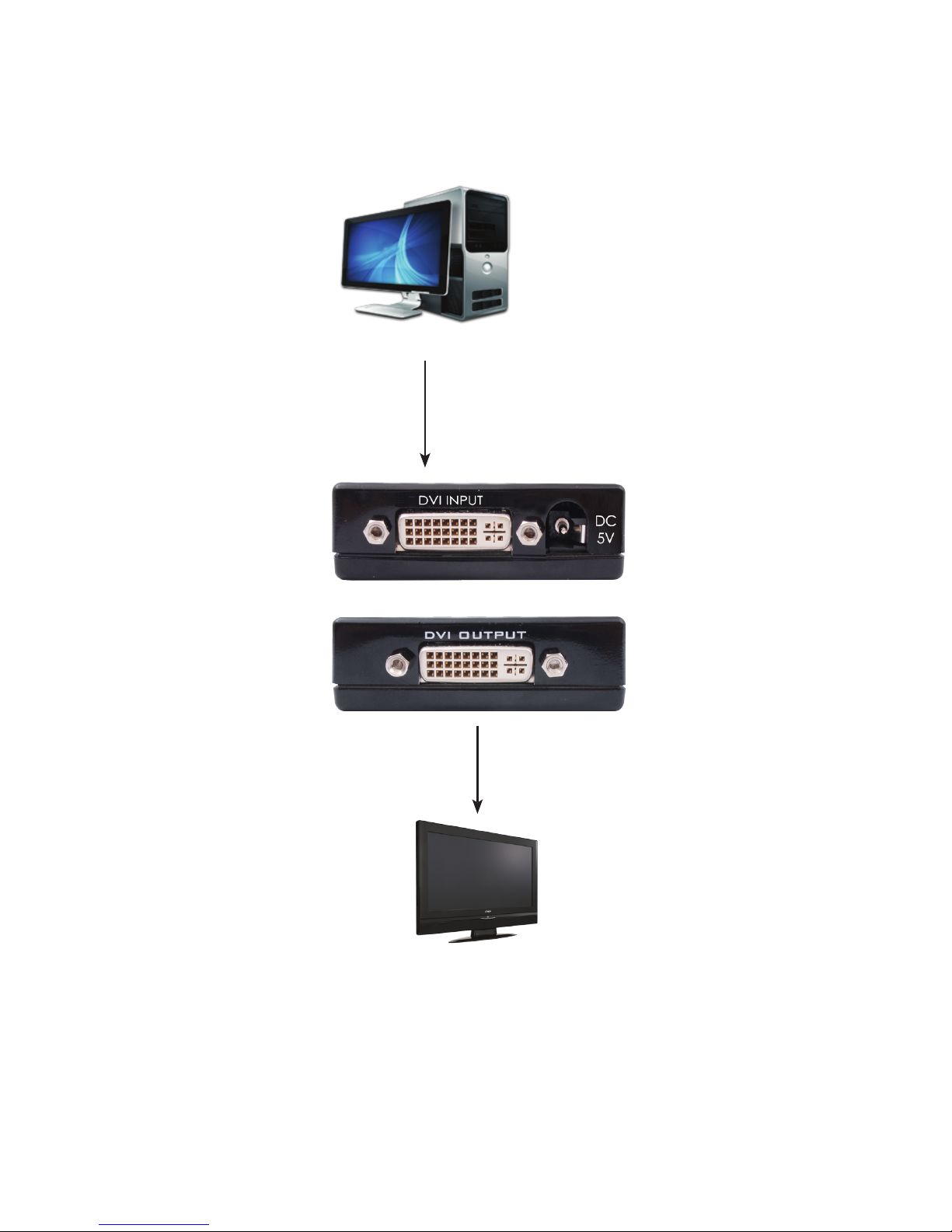

8. Connection and Installation
HDTV / LCD Monitor
5
Acronyms A
Acronym Complete Term
HDCP High-bandwidth Digital content protection
HDMI High-Definition Multimedia Interface
VGA Video Graphics Array
WUXGA Wide Ultra Extended Graphics Array
6
