CV-401D
DVI-D to Video Scan
Converter
Operation Manual
CV-401D
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved.
Version 1.0 April 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
VR0 20110425 Preliminary Release
Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. PackageContents......................................................................1
4. SystemRequirements..................................................................1
5. Features........................................................................................ 1
6. Specifications..............................................................................2
6.1 Support Input Timing ........................................................ 2
7. OperationControlsandFunctions............................................. 3
7.1 Top Panel ...................................................................... 3
7.2 Left Panel ...................................................................... 3
7.3 Right Panel .................................................................... 4
8. OSDMenu....................................................................................4
9. ConnectionandInstallation....................................................... 6
1
1. Introduction
The DVI to Video Scan Converter is designed to convert digital signal from
DVI-D source to analog CVBS signal of NTSC or PAL system The device is HDMI
1.2 & DVI 1.0 compliant and it features many great functions such like 3D noise
reduction, frame rate conversion, adaptive contrast enhancement… and etc.
Further, a simplify OSD function is available allowing user with easy viewing on
the displaying status.
2. Applications
• DVI signal display on TV monitor
• Graphic Card signal display on CRT display
• Displaying PC signal on the LCD display
3. Package Contents
• DVI-D to Video Scan Converter
• Power Adaptor
• Operation Manual
4. System Requirements
Input source equipment such as PC/NB signal with DVI cable and output to TV
with CVBS input jack and connection cable.
5. Features
• DVI 1.0 compliant
• Converts video signal from DVI-D source to NTSC or PAL signal
• Accepts a wide range of DVI-D input resolution from 480p to 1080p@60Hz
and PC from VGA to WUXGA@60HzRB
• 3D noise reduction in both temporal and spatial domain
• Frame rate conversion
• Adaptive contrast enhancement
• OSD Display
• Overscan and underscan adjustment
• Phase and Aspect adjustment
• No software installation require
• Compact and elegant design
Note: This product does not process HDCP input. When receiving content
that has HDCP encryption there will be no video output.
2
6. Specications
Input Port 1 x DVI-D
Output Ports 1 x CVBS
Output Video NTSC/PAL
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 6kV(contact discharge)
Power Supply 5V DC / 1A linear power adaptor (US/EU
standards, CE/FCC/UL certied)
Or 5V / 1.2A switching power adaptor (with
universal plug, CE/FCC/UL certied)
Dimensions (mm) 64 (W) x 104 (D) x 26 (H)
Weight (g) 120
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C ~60°C / -4°F~140°F
Power Consumption 3W
Relative Humidity 20 ~90%RH (non-condensing)
6.1SupportInputTiming
HD Timing
480p 60
576p 50
720p 50,60
1080i 50,60
1080p 50,60
PC Timing
640x480 60,72,75,85
720x400 70
800x600 56,60,72,75,85
1024x768 60,70,75,85
1152x864 70,75,85
1280x720 60
1280x768 60RB,60
1280x800 60RB,60
1280x960 60
1280x1024 60
1366x768 60RB,60
1400x1050 60RB,60
1440x900 60RB,60
1600x1200 60
1680x1050 60RB,60
1920x1200 60RB
Note: When the input timing is not supported, the OSD will display “IN Not Support”.
3
7. Operation Controls and Functions
7.1TopPanel
1 2
1. NTSC/PAL MENU (Hold): Press this button to bring up the OSD which
will display the input timing and output TV system information.
While the OSD is still displaying press the button again to switch output TV
system from NTSC to PAL or from PAL to NTSC.
Press this button for 3 seconds the OSD will bring up the selection menu.
Press it sequentially to select the desire setting.
2. Power LED: This LED will illuminate in RED when the power is connected
with the power supply.
7.2LeftPanel
1
1. DVI-D IN: This slot is to connect with source equipment such as PC or
laptop for input DVI signal with DVI cable.
4
7.3RightPanel
1 2
1. CV OUT: This slot is to connect with display TV or monitor with RCA cable
for output image display.
2. DV5V: Plug the 5V DC power supply included in the package into the
unit and connect the adaptor to AC wall outlet.
8. OSD Menu
IN 1280 x 960 @60 (Input Timing) Press the Menu button once to
bring out the OSD which display
the IN & OUT information.
OUT NTSC (Output TV System)
NTSC Press the Menu button for 3 seconds to bring
out the OSD then press it sequentially to move
the OSD cursor for the desire selection. Once
the selection is made, leave it as the OSD
display on the screen, after few seconds the
OSD will disappear and the display will output
the selection result.
PAL
Underscan 1
Underscan 2
Overscan
Aspect Adj
Full Screen
Letterbox
Pan & Scan
Auto TV 4:3
Auto TV 16:9
Below is the example of the scan selection result.
5
Aspect Adjustment: There are total of 5 different adjustments under Aspect
and they are Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & 16:9.
Full Screen: To allow the image to ll out the screen of the TV.
Letterbox: To t the output image closer to the input source, compressed the
upper and lower image for 16:9's content to 4:3's TV.
Pan & Scan: To t the output image closer to the input source, compressed
the right and left image for 4:3's content to 16:9's TV.
Auto TV 4:3: Allowing the device to auto detect input source signal of 4:3 or
16:9 and make the auto adjustment to 4:3.
Auto TV 16:9: Allowing the device to auto detect input source signal of 16:9
or 4:3 and make the auto adjustment to 16:9.
Blow is the sample chart of the selection result:
Aspect Adj
Source TV
Full Screen Letterbox Pan&Scan Auto TV 4:3 Auto TV
16:9
X X X
X X
X X
XXX
6

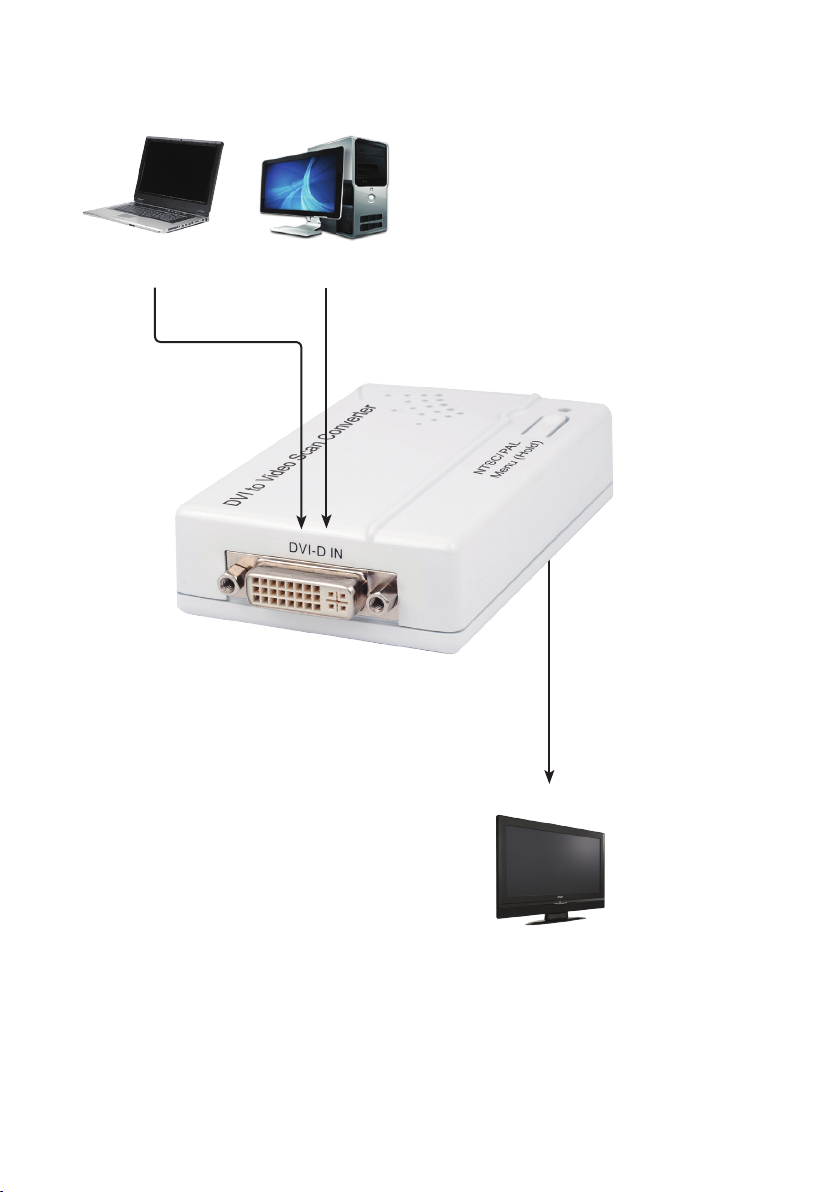

9. Connection and Installation
PC
TV
NB
