Cypress CY3642 Bedienungsanleitung

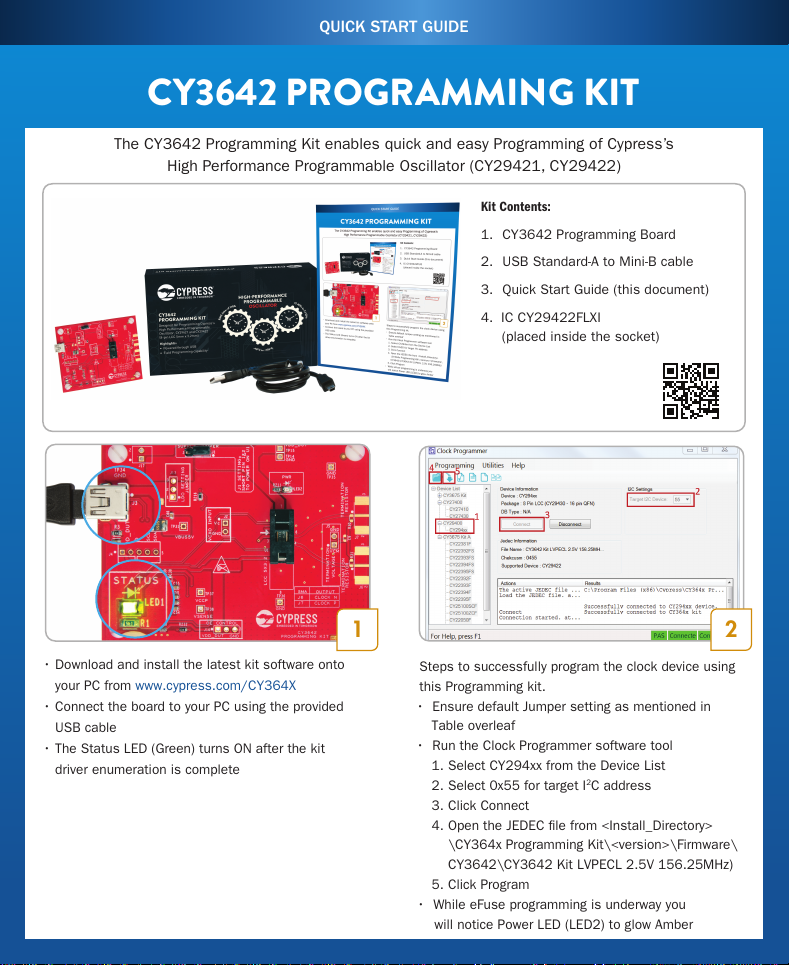

QUICK START GUIDE

CY3642 PROGRAMMING KIT

Kit Contents:

1. CY3642 Programming Board

2. USB Standard-A to Mini-B cable

3. Quick Start Guide (this document)

4. IC CY29422FLXI

(placed inside the socket)

The CY3642 Programming Kit enables quick and easy Programming of Cypress’s

High Performance Programmable Oscillator (CY29421, CY29422)

• Download and install the latest kit software onto

your PC from www.cypress.com/CY364X

• Connect the board to your PC using the provided

USB cable

• The Status LED (Green) turns ON after the kit

driver enumeration is complete

Steps to successfully program the clock device using

this Programming kit.

• Ensure default Jumper setting as mentioned in

Table overleaf

• Run the Clock Programmer software tool

1. Select CY294xx from the Device List

2. Select 0x55 for target I2C address

3. Click Connect

4. Open the JEDEC le from <Install_Directory>

\CY364x Programming Kit\<version>\Firmware\

CY3642\CY3642 Kit LVPECL 2.5V 156.25MHz)

5. Click Program

• While eFuse programming is underway you

will notice Power LED (LED2) to glow Amber

All manuals and user guides at all-guides.com

QUICK START GUIDE

CY3642 PROGRAMMING KIT

All trademarks or registered trademarks referenced herein are the property of their respective owners.

002-18657 Rev.*A

CY3642 Board Details

Kit Contents:

1. CY3642 Programming Board

2. USB Standard-A to Mini-B cable

3. Quick Start Guide (this document)

4. IC CY29422FLXI

(placed inside the socket)

Table: Jumper Default Position

Purpose

Power on CY29422

Jumper

Default

Position

1 - 2

Main Power Supply Jumper (J1)

Power LED

* Component is on the bottom-side of the Programming Board

USB Mini-B

Connector

Status LED

PSoC 5LP

(CY8C5868LTI-LP039)*

Pin-1

Socket for 8-pin LCC 5mm x 3.2mm
