THIS SPEC IS OBSOLETE

Spec No: 002-04464

Spec Title: AN204464 - SK_FM4_U_Peripheral 32-Bit Microcontroller

FM4 Family User Manual

Replaced by: None

www.cypress.com Document No. 002-04464 Rev. *B 1

AN204464

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

This application notes describes how to use the demo board of SK_FM4_U_Peripheral.

Contents

1Introduction...............................................................1

1.1 About Document..............................................1

1.2 About Peripheral Board ...................................1

1.3 About MB9B560 SERIAL MCU........................1

1.4 About FM4 peripheral Demo Project................2

2System Overview......................................................3

3Modules Description.................................................4

3.1 Power...............................................................4

3.2 Keys.................................................................4

3.3 TF card ............................................................4

3.4 USB .................................................................5

3.5 EEPROM.........................................................5

3.6 LIN...................................................................5

3.7 SPI...................................................................6

3.8 CAN.................................................................6

3.9 UART...............................................................7

3.10 DAC.................................................................7

4Sample Project.........................................................7

4.1 IIC....................................................................7

4.2 LIN...................................................................8

4.3 SPI...................................................................8

4.4 CAN.................................................................9

5Reference Documents..............................................9

6Document History...................................................10

1 Introduction

1.1 About Document

This application notes describes how to use the demo board of SK_FM4_U_Peripheral.

1.2 About Peripheral Board

The peripheral board is a demo board used on FM4 MCU (such as MB9B560 serial MCUs), including 11 modules

(Power, LCD, JTAG, TF, USB slave, EEPROM, LIN, SPI, CAN, UART and AUDIO). The peripheral board is demo

board that must be connected with a MCU board (such as SK_FM4_U120_9B560).

Note:

For more information please refer to www.cypress.com/documentation/development-kitsboards/sk-fm4-u-peripheral.

1.3 About MB9B560 SERIAL MCU

MB9B560 series MCU is 32-bit general purpose MCU of FM4 family that features the industry's leading-edge ARM

Cortex-M4F CPU and integrates Cypress’s highly reliable and high-speed secure embedded flash technology. This

MCU can operate at up to 160MHz CPU frequency and work at a wide voltage range (2.7-5.5V), which can be both

compatible with 3.3V and 5V system.

It includes a host of robust peripheral features, including motor control timers (MFT), base timer , ADCs, on-chip

memory (up to 1024K main Flash and 32K work Flash, up to 128K RAM) and a wide range of communication

interfaces (USB, I2C, SIO, LIN, CAN).

The size of on-chip memory can be configured according to different part number and the package is available in

LQFP and BGA, shown in Table 1.

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 2

Table 1. MB9BF560 Product List

Product

Main Flash

Work Flash

SRAM

Package

MB9BF564K/L

256Kb

32kB

L: LQFP: FPT-64P/QFN: LCC-64P

K: LQFP: FPT-48P/ QFN: LCC-48P

MB9BF565K/L

384kB

32kB

48kB

L: LQFP: FPT-64P/QFN: LCC-64P

K: LQFP: FPT-48P/ QFN: LCC-48P

MB9BF566K/L

512kB

32kB

64kB

L: LQFP: FPT-64P/QFN: LCC-64P

K: LQFP: FPT-48P/ QFN: LCC-48P

MB9BF566M/N/R

512kB

32kB

64kB

M: LQFP: FPT-80P

N: QFP: FPT-100P/ BGA: BGA-112P

R: LQFP: FPT-120P/ BGA: BGA-144P

MB9BF567M/N/R

768kB

32kB

96kB

M: LQFP: FPT-80P

N: QFP: FPT-100P/ BGA: BGA-112P

R: LQFP: FPT-120P/ BGA: BGA-144P

MB9BF568M/N/R

1024kB

32kB

128kB

M: LQFP: FPT-80P

N: QFP: FPT-100P/ BGA: BGA-112P

R: LQFP: FPT-120P/ BGA: BGA-144P

1.4 About FM4 peripheral Demo Project

This is a sample project to demonstrate how to use FM4 peripheral board. It is developed in IAR EWARM Workbench

V6.60, and works on SK_FM4_U120_9B560

Note:

1. If the later version of IAR EWARM Workbench V6.21 is used to open this example project, MCU type information

in project setting may lose, please check it.

2. If user select the “Use CMSIS” option (in Library Configuration table of General Options) with IAR EWARM

Workbench V6.20 later, please erase the head files with prefix “core_” in common folder (path: ..¥..¥common).

3. If the former version of IAR EWARM Workbench V6.21 is used to open this example project, MCU type, pre-

included files (in preprocess table of C/C++ compiler), icf file (in link table of debug option), flash loader file (down

table of debugger option) may lose, please check these settings.

4. if the former version of Keil μVision V4.20 is used to open this example project, MCU type, pre-included files (in

C/C++ table of project option), debug setting (in debug table of project setting) may lose, please check these

information.

5. If user uses former version of IAR EWARM Workbench V6.20, it is a MUST to copy two files (core_cmFunc.h and

core_cmInstr.h in cmsis_low_ver folder in current project directory) to common folder (path: ..¥..¥common).

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 3

2 System Overview

The peripheral board includes LCD, CAN, AUDIO, TF, USB, LIN, SPI, KEY, EEPROM and UART.

Figure 1. Main Board

The peripheral board does not solder with a MCU, so if user want to use it, a MCU is need

Figure 2. MCU Board

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 4

3 Modules Description

3.1 Power

3.2 Keys

There is an ADC key on the peripheral board, which contains 5 functions: left, right, up, down and enter

There are three Keys on the MCU board: reset, SW2 (module switch) and SW3 (module confirm)

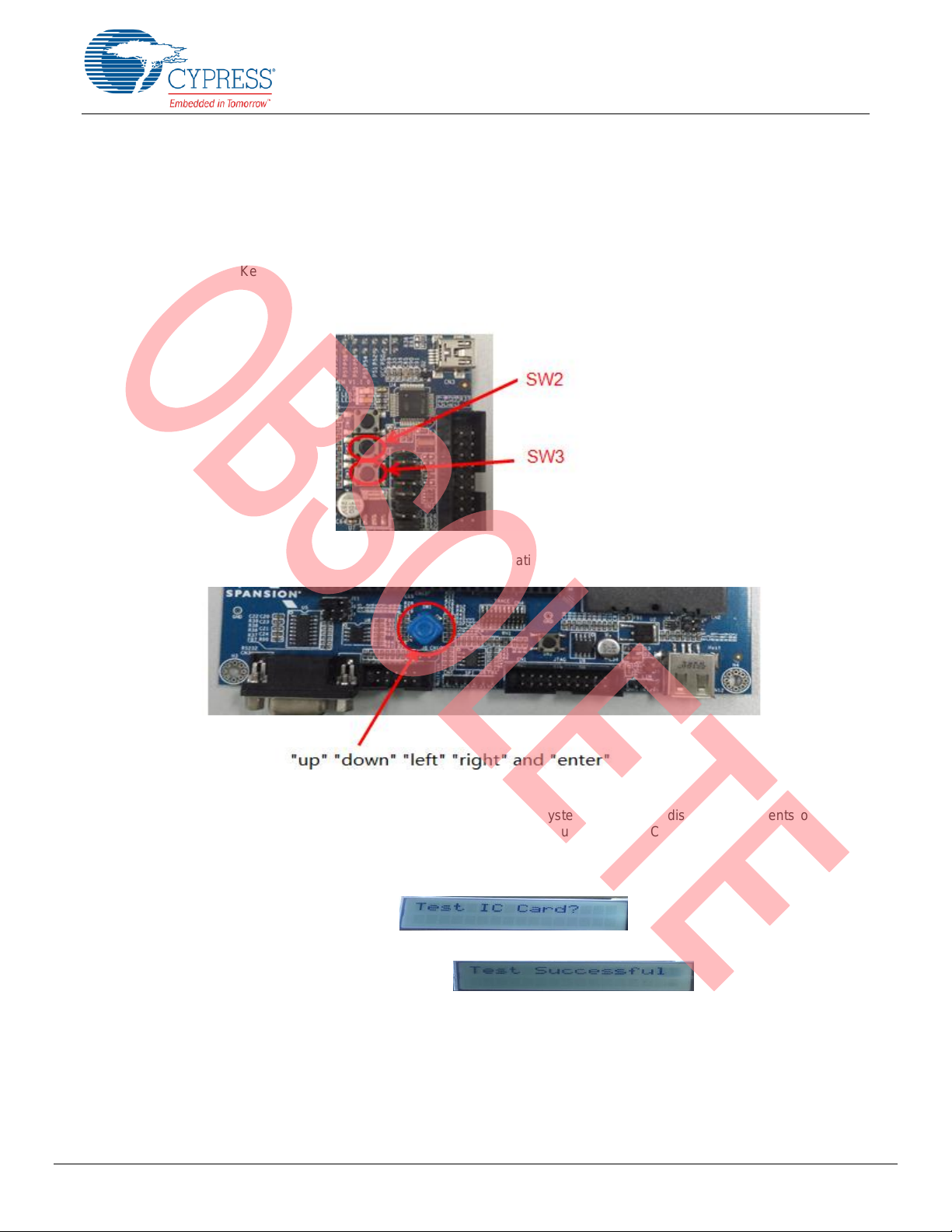

Figure 3. Module Switch Keys

Figure 4. Operation Keys

3.3 TF card

There is a TF card socket, user can insert a card and modify system firmware to display the contents of card. In

sample code the firmware just can detect the card and show a test successful on LCD.

Operation steps:

6. SW2 to switch the module to TF and SW3 to enter TF

7. Press enter key to start TF operation

8. Press right key and enter key, system will detect card

9. After system detected a card, LCD will display

Note:

When using CSK of smart card, the jumper J12 pin1 and pin2 are need to be connected,

When using lever shift DIR control, the jumper J12 pin2 and pin3 are need to be connected

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 5

3.4 USB

The peripheral board can detect USB device and read USB content. In sample project the firmware will read folder

name in USB and display the last one on LCD.

Operation steps:

1. Press SW2 to switch module to USB and press SW3 to enter USB

2. If there is a USB in USB port, the folder name will display on LCD

Note:

If the USB host is used, the jumper J3 and J4 need to be closed,

If the USB slave is used, the jumper J3 and J4 need to be open.

3.5 EEPROM

There is a 2K EEPROM soldered on peripheral, user can save 2K data in it.

Operation steps:

1. Press SW2 to switch module to EEPROM and press SW3 to enter

2. The right and left key can move cursor

3. The up and down key can change the address, data and read/write mode

4. The enter key used to enter the write/read operation

3.6 LIN

The LIN module can connect with another LIN board and communication with it.

The sample code of peripheral board execute receiving mode, when data transfer the LCD will display “test OK”.

Operation steps:

1. Connect “12V VCC”, “GND” and “LIN” to LIN board

2. Press SW2 to switch module to LIN and press SW3 to enter

3. If there is a LIN data send into peripheral board,

4. The LCD will display

Note:

If the mode is master the jumper J5 need to be connected.

If the mode is slave, the jumper J5 is open

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 6

3.7 SPI

There is a Cypress MCU MB85RS64V in board. The MB85RS64V is a FRAM (Ferroelectric Random Access

Memory) chip in a configuration of 8,192 words x 8 bits.

User can save data from 0x0000 to 0x1000 in FRAM.

Operation steps:

1. Press SW2 to switch the module to SPI, and press SW3 to enter

2. The right and left key can move cursor

3. The up and down key can change the address, data and read/write mode

4. The ahead six data is the address of FRAM

5. The seventh to tenth data is the data that read from/write to FRAM

6. When “R” is display, press enter key the data can be read from FRAM

7. When “W” is display, press enter key the data will be wrote to FRAM

8. When operation is successful, the OK will display

3.8 CAN

The CAN module can do send and receive when connected with another can board.

Operation steps:

1. The CAN-H connects to CAN-H, and CAN-L connects to CAN-L.

2. Press SW2 to switch the module to CAN, press SW3 to enter

3. Press enter key to enter can operation

4. Press down key to “RX” and press enter to “receiving” module

5. If there is a CAN data in, the LCD will display “successful”

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 7

3.9 UART

The UART module includes RS232 and can communication with other UART module. If the UART tool is installed in

pc, user can send/receive data to/from PC.

The UART baud rate is 115200 without odd-even check, data is 8bit with one bit stop.

Operation step:

1. Connect “1” and “2” in “J6” and “J7”

2. Press SW2 to switch module to UART, press SW3 to enter

3. Connect with another UART module

4. If the another module send a data to peripheral board, the LCD will display the data

Note:

Connect jumper J11 pin1 and pin2, when UART CTS.

Connect jumper J11 pin2 and pin3, when using LCD background.

3.10 DAC

There is a Phonejack on the board. User can send different pulse from DAC to generate different audio.

In sample project there is a sine wave tones will play from Phonejack.

Operation step:

1. Connect jumper J10 pin2 and pin3

2. Press SW2 to switch module to AUDIO, press SW3 to enter

3. Sine wave tones will play.

4 Sample Project

There are many communication modules in the sample project, such as IIC, LIN, SPI and CAN.

In following chapter, these communication samples will be described.

4.1 IIC

4.1.1 mi2c.c

Mi2c.c is the driver of IIC, the read/write and initial functions are in it, if user uses IIC, this file is need.

Table 2. mi2c functions list

Functions

Description

Remark

void InitI2c(void)

Initial IIC module

en_result_t WriteEepByte(uint8_t Addr, uint8_t WrDate)

Write one byte data to appointed address

en_result_t ReadEepByte(uint8_t Addr, uint8_t *pReadBuffer)

Read one byte data from appointed

address

If mi2c.c is used, the mfs_hl.c is need too.

4.1.2 mfs_hl.c

The functions in mfs_hl.c configurates registers of serial module include IIC.

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 8

4.1.3 EepromApp.c

The functions in EepromApp.c call IIC apps in mi2c.c to execute EEPROM operation according to user need.

Table 3. EepromApp functions list

Functions

Description

Remark

static void DisplayOperationRemind(uint8_t *pbuffer)

realize the EEPROM app write function

static void EepromAppElemW(void)

realize the EEPROM app write function

static void EepromAppElemR(void)

realize the EEPROM app read function

void InitEeprom(void)

Initialize EEPROM global parameter

static void EepromAppServce(void)

EEPROM app button&key function

static void UpdateLcdBuffer(void)

update the LCD buffer content

static void UpdataLcdContent(void)

LCD display

void EepromApp(void)

realize the EEPROM app

4.2 LIN

4.2.1 LIN_Slave.c

The LIN used functions in mfs_hl.c to realize all functions about LIN.

Table 4. LIN_Slave functions list

Functions

Description

Remark

void LIN_Init(void)

LIN Interface Initilazation as Slave

static void SampleMfsLin(void)

Realize LIN operation

void Lcd_LinSlave(void)

LIN Interface transmit data display on LCD

4.3 SPI

4.3.1 mfs.c

The file includes MFS module drivers, which set module register and finish basic function. That is similar with file

mfs_hl.c

4.3.2 Spi.c

Functions in spi.c realized all SPI functions, which call the derivers in mfs.c

SK_FM4_U_Peripheral32-Bit Microcontroller FM4 Family User Manual

www.cypress.com Document No. 002-04464 Rev. *B 9

Table 5. SPI functions List

Functions

Description

Remark

en_result_t MfsCsioWrite16(uint16_t pu8TxBuf, uint8_t*

pu8RxBuf, uint16_t u16TransferSize, boolean_t

bCsHolding,uint8_t Dat)

Write 16bits data

en_result_t MfsCsioRead16(uint16_t pu8TxBuf, uint8_t*

pu8RxBuf, uint16_t u16TransferSize, boolean_t bCsHolding)

Read 16bites data from FRAM

en_result_t Spi_WrOne(uint8_t WDat, boolean_t bCsHolding)

Write one byte to FRAM without ACK

void Fram_EnLatch(void)

Enable FRAM write

void Fram_ResetLatch(void)

Reset FRAM latch

void Fram_Write(uint16_t Addr,uint8_t Dat)

void Fram_Init(void)

Initialize FRAM

uint8_t CalculatVal(uint8_t Dat, uint8_t Rang,uint8_t Stat)

void Key_Spi(void)

Key value calculate and status value define

void Fram_Operation(void)

Do save and read operation

void TaskcreateSpi(void)

Realize SPI and display status

4.4 CAN

4.4.1 can.c

Drivers of CAN function, which detailed descripts available of CAN module.

4.4.2 Mcan.c

Use drivers in can.c to realize CAN send and CAN receive.

Functions

Description

Remark

static void CanConfigGPIO()

Setting GPIO of CAN

static void CanConfigParameter()

Setting parameter of CAN

boolean_t CanInitParameter()

Initialize CAN parameter

void CanTransmitSample(void)

Do CAN send operation

void CanReceiveSample(void)

Do CAN receive operation

void CanKeyLCDApp(void)

CAN operation and status display

5 Reference Documents

1. (SCH)SK-FM4-U120-9B560-v1.2.0.pdf

2. (SCH)SK-FM4-U-PERIPHERAL-V2.0.0.pdf

3. MB9B560R-DS709-00001.pdf

4. ReadMe_SK-FM4-U120-9B560_v11.pdf

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Cypress Mikrocontroller Handbücher

Cypress

Cypress CY8CKIT-042-BLE Bedienungsanleitung

Cypress

Cypress PSoC CY8CKIT-062-WiFi-BT Bedienungsanleitung

Cypress

Cypress FR MB91460 Series Betriebsanleitung

Cypress

Cypress MB966B0 Series Bedienungsanleitung

Cypress

Cypress CY8CKIT-042 Bedienungsanleitung

Cypress

Cypress CY8CKIT-001 Bedienungsanleitung

Cypress

Cypress CY8CKIT-044 Bedienungsanleitung

Cypress

Cypress S6J3200 Series Betriebsanleitung

Cypress

Cypress FR Series Bedienungsanleitung

Cypress

Cypress PSoC 5 FIRSTTOUCH CY8CKIT-014 Bedienungsanleitung

Cypress

Cypress CY3274 Beilage

Cypress

Cypress Perform PSOC 5LP PROTOTYPING KIT Bedienungsanleitung

Cypress

Cypress CY8CKIT-030 Bedienungsanleitung

Cypress

Cypress PSOC CY8CKIT-146 Bedienungsanleitung

Cypress

Cypress SPANSION FM4 MB9BF568 Series Bedienungsanleitung

Cypress

Cypress PSoC 4000 Series Gebrauchs- und Pflegehandbuch

Cypress

Cypress CY8CKIT-040 PSoC 4000 Pioneer Kit Bedienungsanleitung

Cypress

Cypress PSoC 3 Bedienungsanleitung

Cypress

Cypress EZ-PD CY4502 Bedienungsanleitung

Cypress

Cypress PSoC 4 M Series Bedienungsanleitung

Cypress

Cypress CY3280-CPM1 Bedienungsanleitung

Cypress

Cypress CY8C28623-24LTXI Bedienungsanleitung

Cypress

Cypress CY8CKIT-147 Handbuch

Cypress

Cypress CY3652 Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon CC2420DK Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories C8051F800 Bedienungsanleitung
