D Devices D SCADLER U Bedienungsanleitung
EN_ User manual
ES_ Manual de instrucciones
D_SCADLER U
1. The installation and components of equipment 3
2. Tnstallation and adjustment 7
3. Maintenance 9
4. Cleaning, Disinfection and Sterilization 12
5. Precaution 19
6. After service 21
7. Symbol instruction 21
8. Environmental protection 22
9. Manufacturer’s right 22
10. European authorized representative 22
11. EMC - Declaration of conformity 22
12. Statement 25
Content

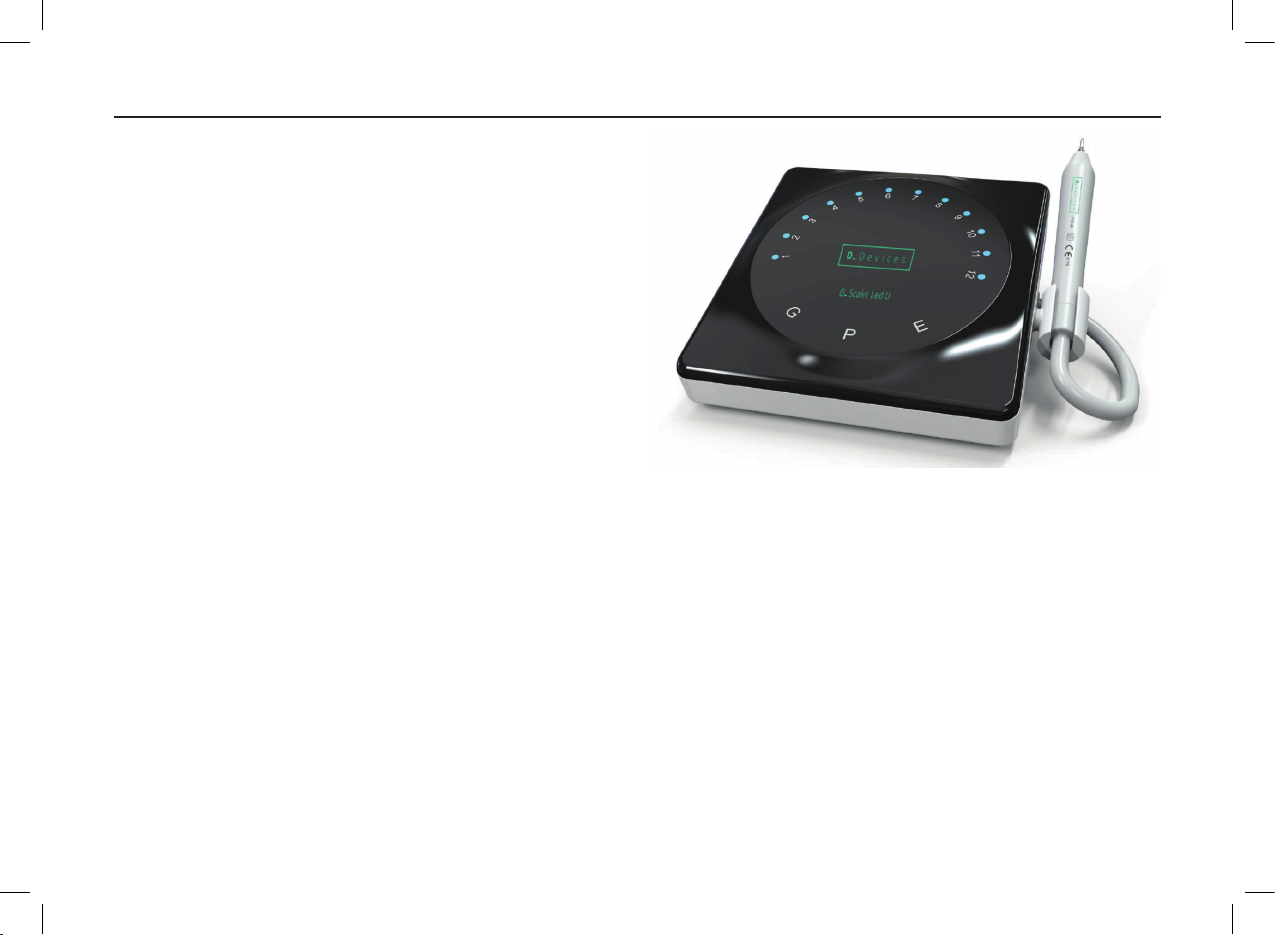

Ultrasonic Scaler
User manual
Model: D_Scaler LED U
EN_
ENGLISH
3
1. The installation and components of equipment
1.1 Instruction
Guilin Woodpecker Medical Tnstrument Co., Ltd. is a professional manufacturer researching, developing and
producing ultrasonic scalers. The product is mainly used for teeth cleaning and also an indisensable equipment for
teeth disease prevention and treatment.
The device has scaling, perio functions with the following features:
1.1.1 The handpiece can be autoclaved under high temperature 134ºC and high pressure 0.22Mpa.
1.1.2 Automatic frequency tracking ensures that the machine always works on the best frequency and more
steadily.
1.1.3 Digital control, easy operation and more efcient for scalin
1.2 Components
1.2.1 The components of machine are listed in the packing list.
1.2.2 Product performance and structural composition
The device is composed of electrocircuit, water way and ultrasonic transducer.
1.2.3 Scope of applicationThe device is used for the dental calculus elimination and root canal treatment.
1.3 The main technical specication
Technical description is included in the instructions for use.
1.3.1 Power supply input: 220-240V- 50Hz/60Hz 150mA
1.3.2 Main unit input: 24V- 50Hz/60Hz 1.3A
1.3.3 Output primary tip vibration excursion: <90µm
1.3.4 Output half-excursion force: :<2N
1.3.5 Output tip vibration frequency: 28kHz±3kHz
1.3.6 Output power: 3W to 20W
1.3.7 Main unit fuse: T1.6AL 250V
1.3.8 Power supply fuse: T0.5AL 250V
4
1.3.9 Water pressure: 0.01MPa to 0.5MPa
1.3.10 Weight of main unit: 628g
1.3.11 Operating mode: Continuous operation
1.3.12 Type of protection against electric shock: class II equipment
1.3.13 Degree of protection against electric shock: Type B applied part
1.3.14 Applied part of the equipment: handpiece and tip
1.3.15 Degree of protection against harmful ingress of water: Ordinary equipment, the foot switch is drip-proof
equipment (IPX1)
1.3.16 Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air, Oxygen or Nitrous
Oxide: Equipment is not suitable for being used in the presence of a ammable anesthetic mixture with ai , oxygen or
nitrous oxide.
1.3.17 Toe main unit use a power adapter to connet network power supply, isolation mode from network power su-
pply is transformer isolation and solid insulation of the enclosure.
1.4 Instruction ofthe main components
Instruction and component sketch map

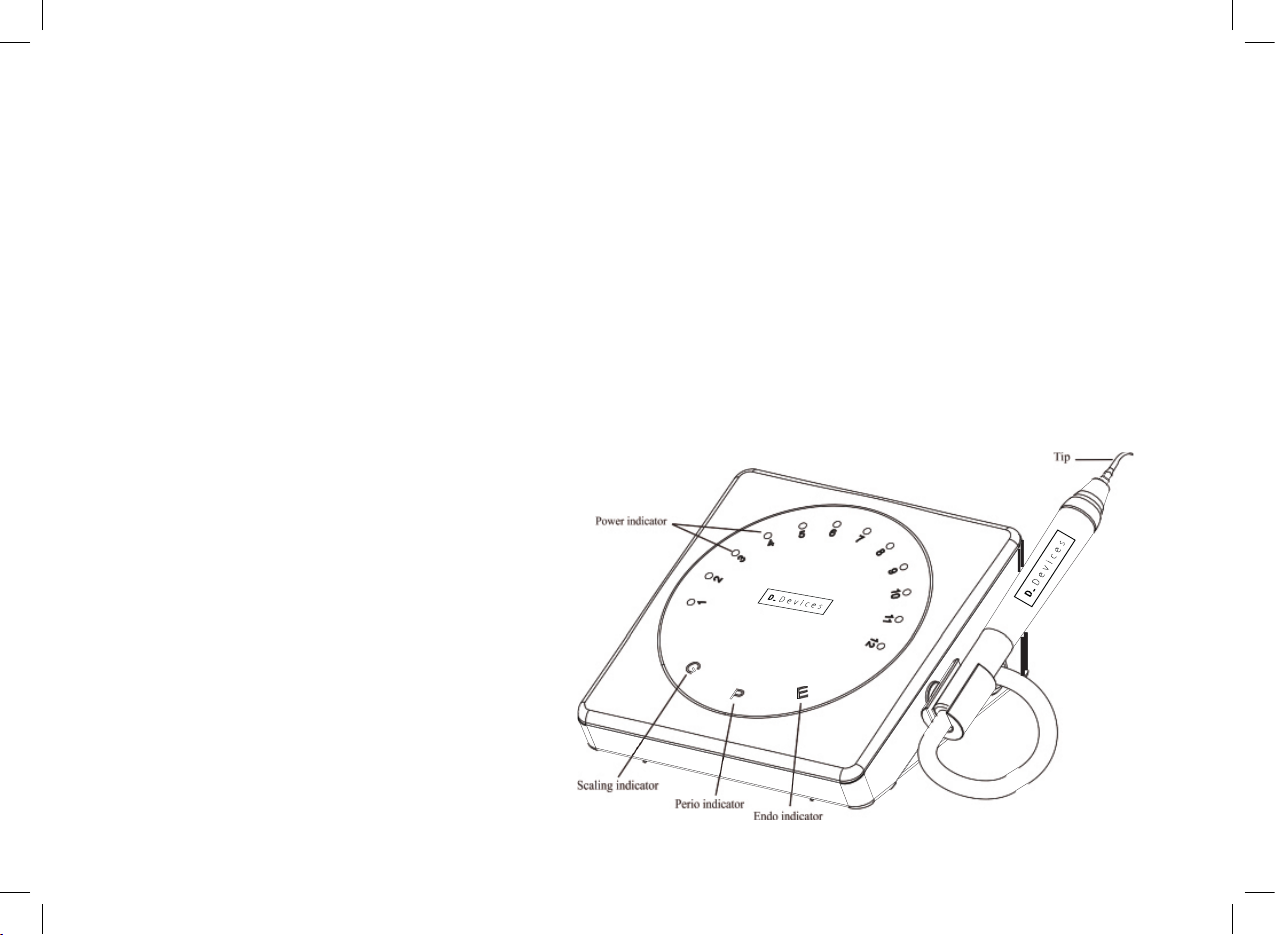

1.4.1 Front of the main unit sketch map
picture 1
D_Scaler Led U
ENGLISH
5

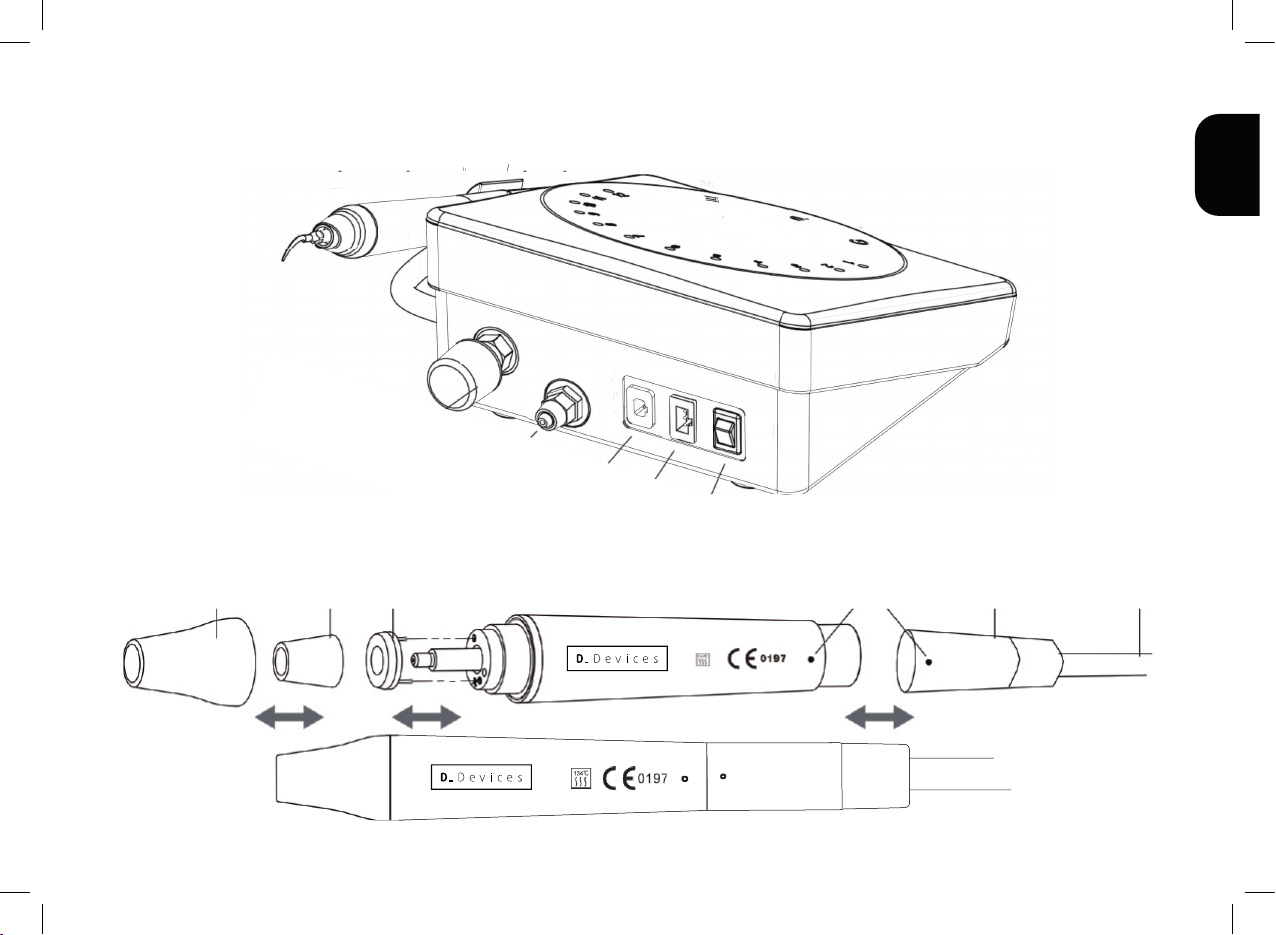

1.4.2 Back of the main unit sketch map

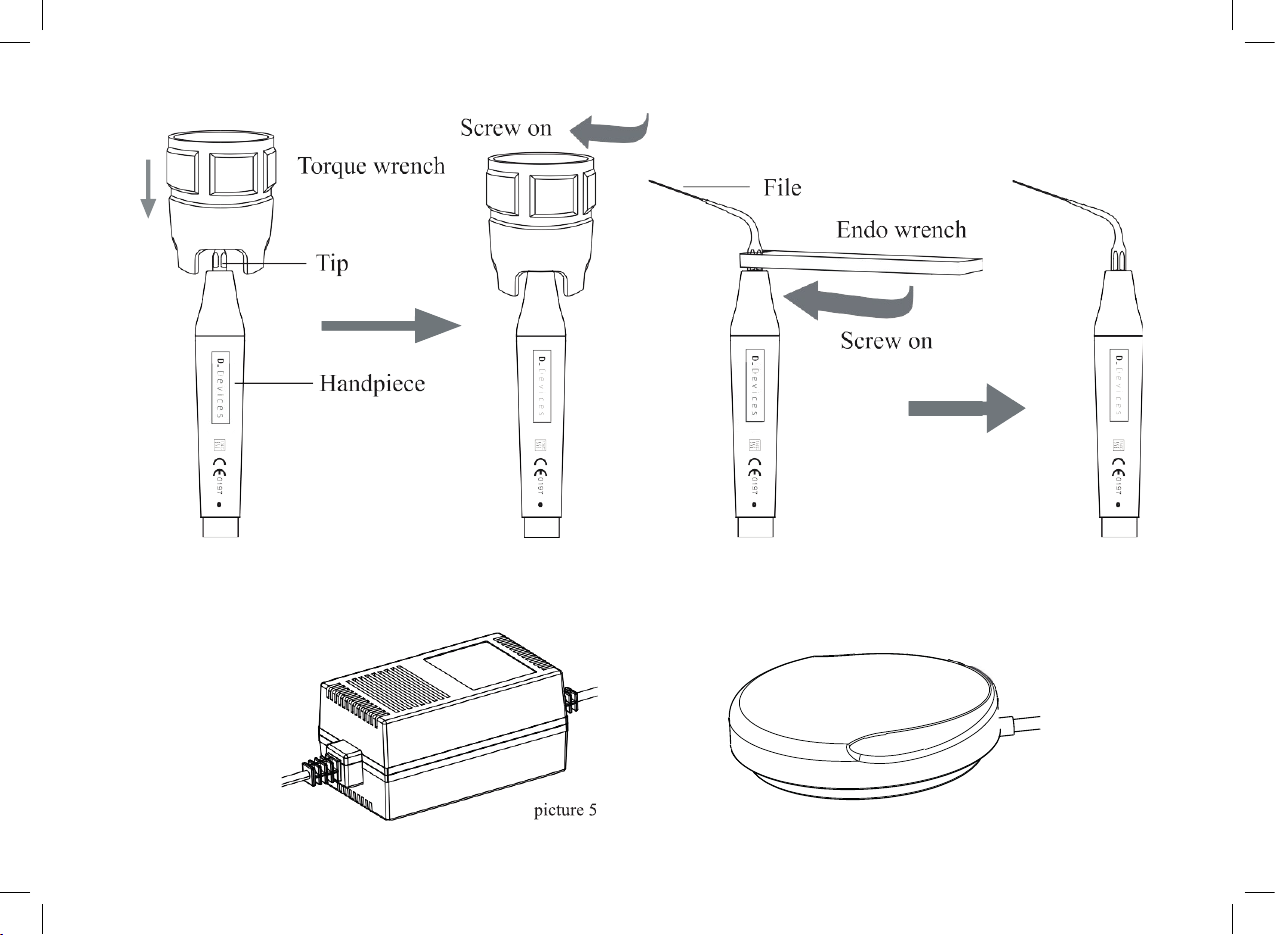

1.4.3 Instruction of using wrench
Nipple Light pipe LED lamp Index point Cable
The connector
of cable
picture 2
picture 3
picture 2
Picture 2
6

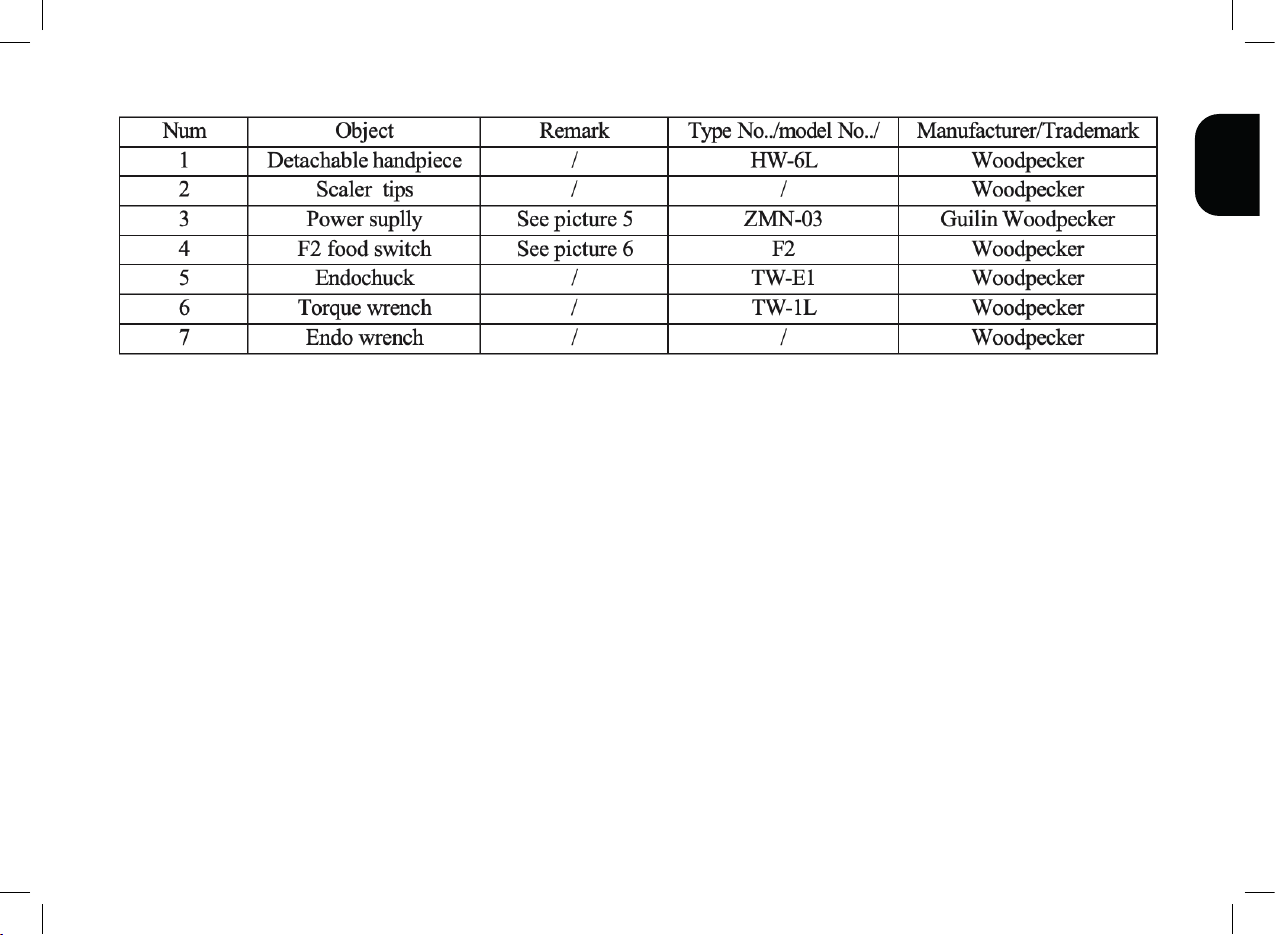

1.4.4 List of removable parts
picture 4
picture 5 picture 6
picture 5
ENGLISH
7
2. Installation and adjustment
2.1 Operation
2.1.1 Open the packing box, make sure that all the parts and accessories are complete according to the packing list,
take the main unit out of the box, and put it on the the stable plane facing to the operator.In addtion,install the device
to an operator-friendly position.
2.1.2 Turn the water control knob to the max according to the picture 1 direction, Do not screw it over tight in case of
damage. [ note 1]
2.1.3 Insert the plug of the foot switch to its socket. (see picture 2)
2.1.4 Connect one end of the water pipe to the water entrance, and the other end to the clean water sourse. (see
picture 2)
2.1.5 Before treatment, make sure scaling tip, wrench and handpiece have been sterilized. Choose the scaling tip
according to the requirement, and x the scaling tip with the wrench. ( see picture 4)
2.1.6 Turn on the power switch, the power indicator lighted and the machine is ready for work. Touch panel is applied
to this machine, power can be adjusted by directly touching the power indicator on the touch panel.
2.1.7 Under normal working condition, the frequency of the tips is very high, light touch and a certain to-and-fro motion
8
will eliminate the tartar without obvious heating, overexetion and overatay are forbidden.
2.1.8 Vibrating intensity: Adjust the vibrating intensity according to your need, usually adjust to the middle grade,
and adjust the vibrating during the clinical treatment according to the patient’s sensitivity and the rigidity of the tartar.
2.1.9 Step on the foot switch, the tip begins to vibrate, and the LED lamp on the top of the handpiece shines. Relea-
se the foot switch, the LED lamp keep shining for 10 seconds.
2.1.10 Water volume adjustment: Step on the foot switch, and the tip begins to vibrate, then turn the water control
switch to ne spray to cool down the handpiece and clean the teeth.
2.1.11 The handpiece can be handled in the same gesture as a pen in hand.
2.1.12 Be sure not to make the end of the tip touch the teeth vertically, and not use too much pressure when the tip
touch the surface of the teeth, in order not to hurt the teeth and the tip.
2.1.13 After nishing operation, keep the machine working for 30 seconds with the water supply to clean the han-
dpiece and the tip.
2.1.14 Unscrew the scaling tip and sterilize it.
2.1.15 After operating, turn off the power switch to cut off the power, then pull off the plug of power adapter.
ENGLISH
9
Note: Don’t screw the scaling tips when stepping on the foot switch, and the machine is working.
3. Maintenance

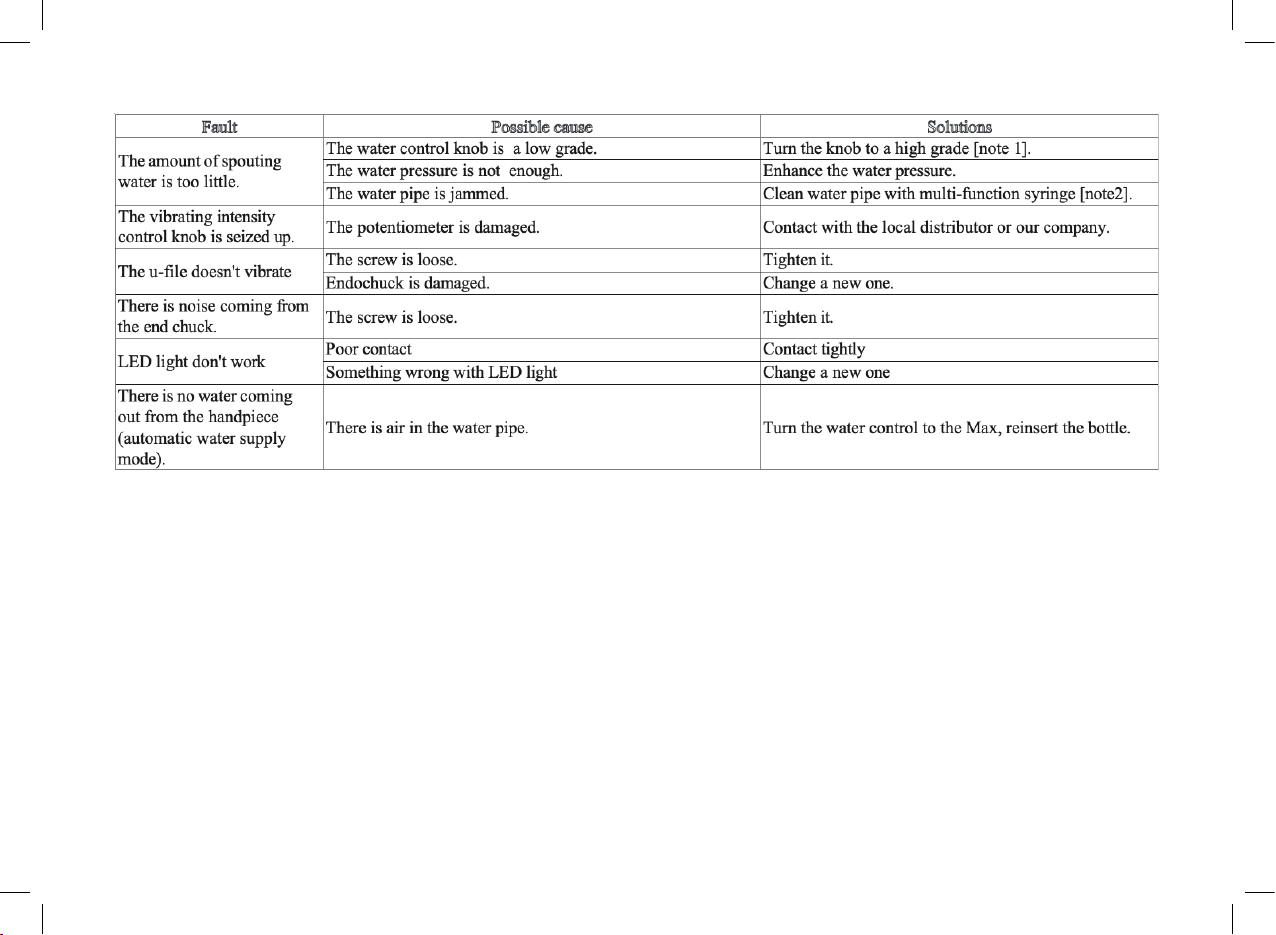

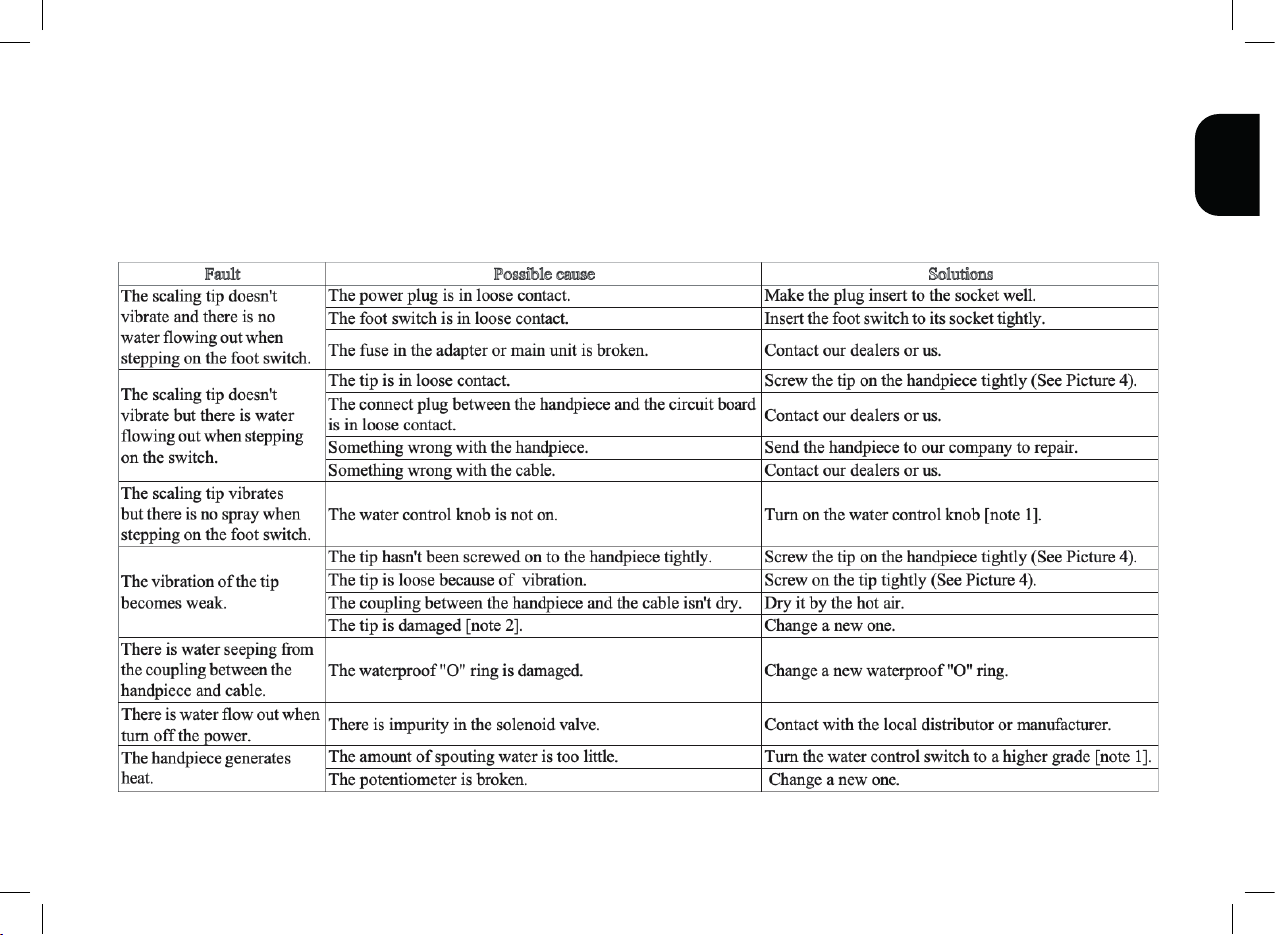

3.1 Troubleshooting
10
If the problem still can’t be solved, please contact with local dealer or manufacturer.
Manufacturer will provide circuit diagrams, component part lists, descriptions, calibration instructions to assist to servi-
ce personnel in parts repair.
3.2 Notice
[Note 1] The water control knob can adjust the water volume according to the symbol.
[Note 2] To clean the water pipe with the multi-function syringe of the dental unit ( see picture 7):
