D-Link AirPlus Xtreme G DWL-G650 Bedienungsanleitung

AirPlus Xtreme G 2.4GHz

Wireless Cardbus Adapter

DWL-G650

speciﬁcations subject to change without notice.

If any of the above items are missing, please contact your reseller.

CD-ROM (containing Drivers, Manual and Warranty)

This product works with the following operating

system software: Windows XP, Windows

2000, Windows Me, Windows 98SE

Before You Begin

DWL-G650 AirPlus Xtreme G 2.4GHz Wireless

Cardbus Adapter

Check Your Package Contents

These are the items included with your DWL-G650 purchase:

Turn on the computer and Insert the D-Link

AirPlus Xtreme DWL-G650 Driver CD in the

CD-ROM drive.

The step-by-step instructions that follow are shown in

Windows XP. The steps and screens are similar for

the other Windows operating systems

Insert the D-Link CD-ROM Into Your

Computer

Do NOT install

the DWL-G650

Cardbus Adapter into

your computer before

installing the driver

software from the

D-Link CD!

You must have at least the following:

• A laptop computer with an available 32-bit Cardbus slot

• At least a 300 MHz processor and 32MB of memory

• Cardbus Controller properly installed and working in the laptop computer

• An 802.11g or 802.11b Access Point (for Infrastructure Mode) or another 802.11g

or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)

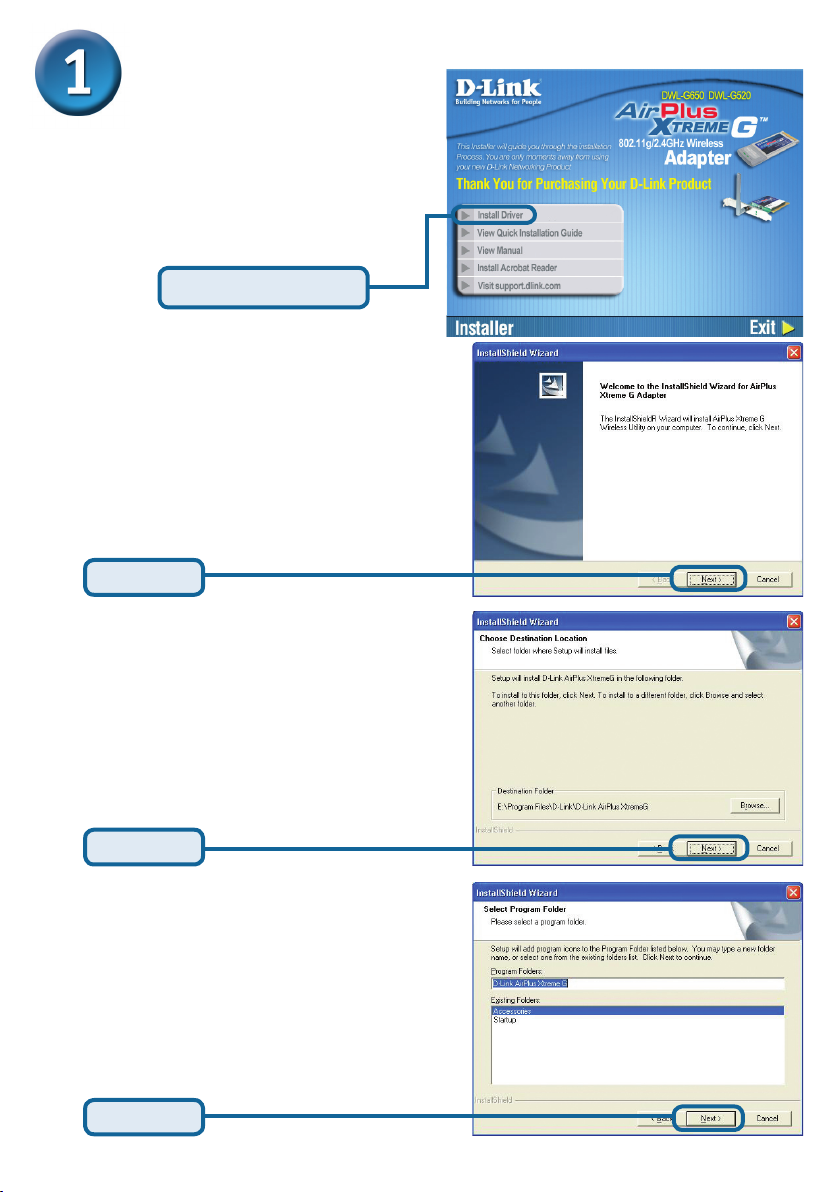

Click Next

Click Install Driver

Continued...

If the CD Autorun function does not

automatically start on your computer ,

type “D:\Drivers\setup.exe.” If it does

start, proceed to the next screen.

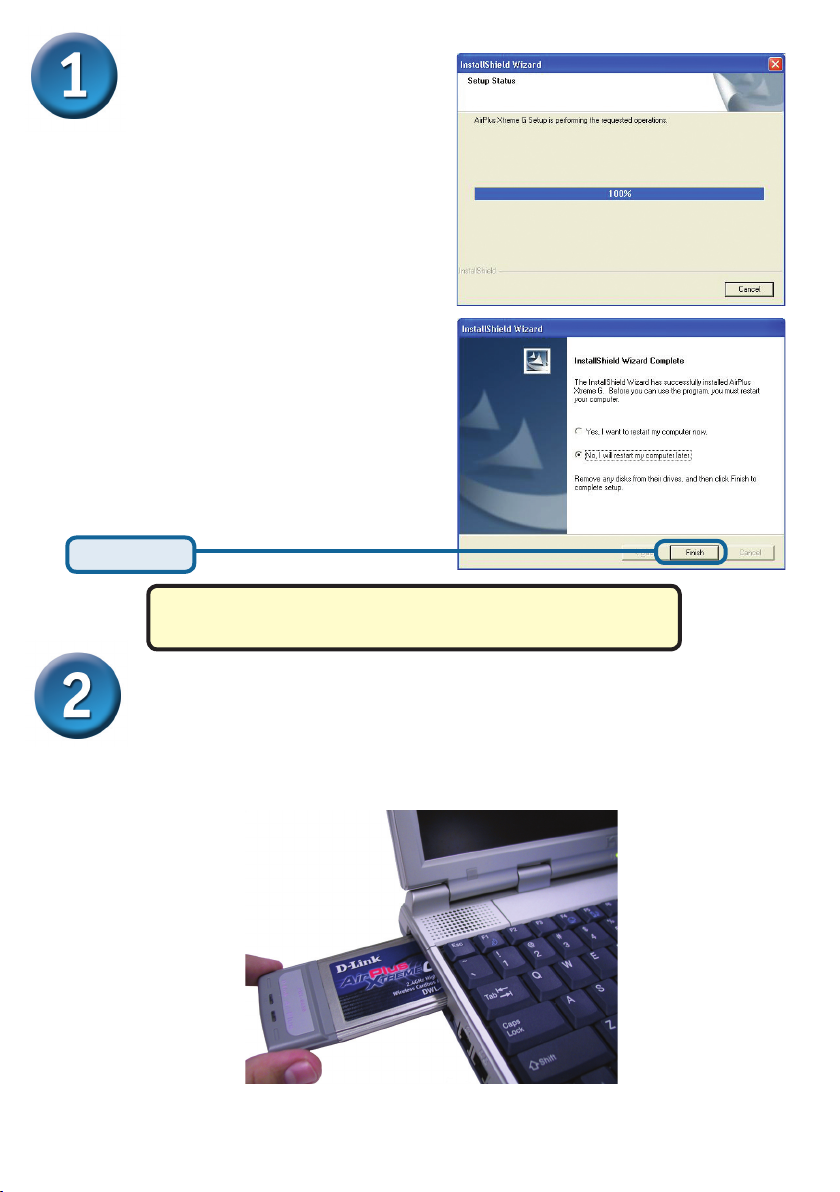

Shut down your computer

Click Finish

Continued...

Remember to leave the DWL-G650 Driver CD in the CD-ROM drive.

Installing the DWL-G650 Wireless

Cardbus Adapter in Your Computer

A. Make sure to turn off the laptop computer.

B. Locate the Cardbus slot on your laptop computer.

C. Gently insert the DWL-G650 into the Cardbus slot in your laptop

computer (as shown.)

Restart Your Computer

When you restart your computer

this Found New Hardware

Wizard (Windows XP) screen

may appear:

Click Next

Select Install the software

automatically (Recommended)

Click Finish to ﬁnalize

the installation.

Link/Activity LED

Indicates that the DWL-G650

is properly installed when the

computer is on and blinks when

data is being transmitted

Antenna

Used to wirelessly

connect to 802.11g

networks.

32-bit connector

This is the connector that ﬁts

into the Cardbus slot of your

laptop.

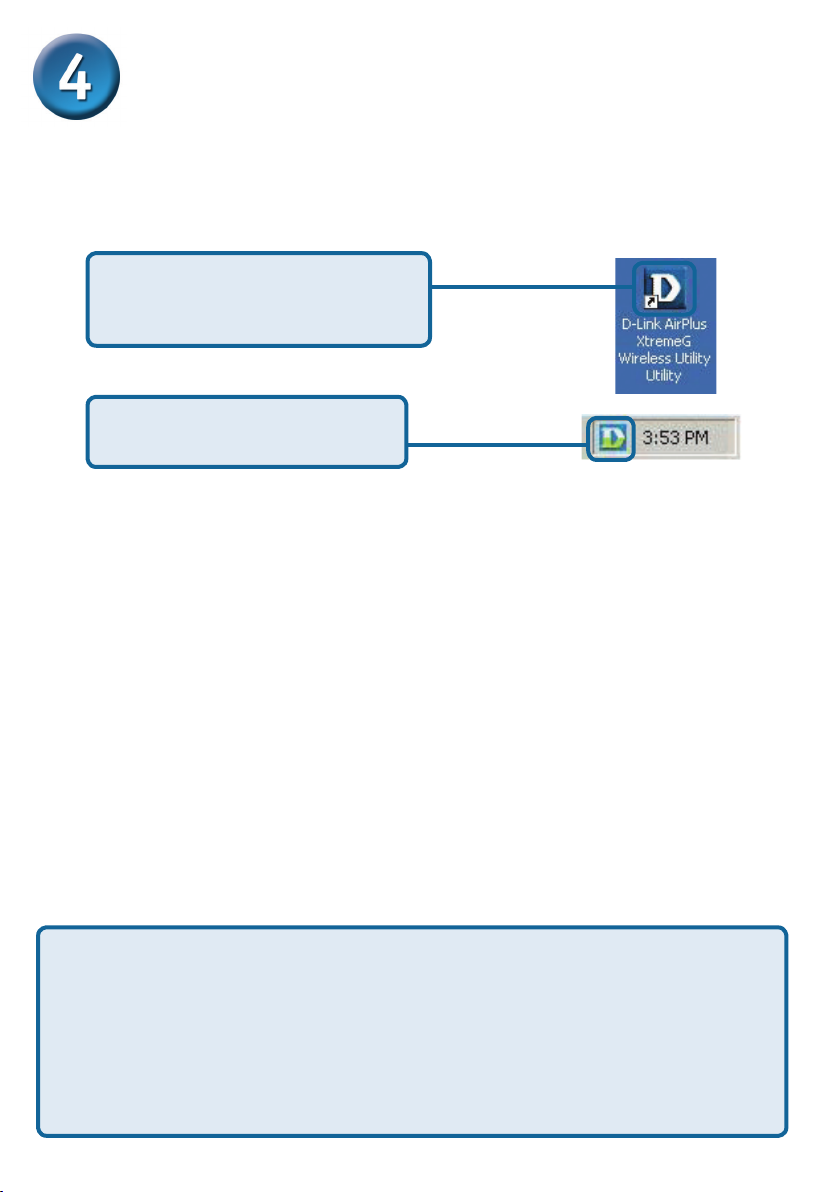

Your Installation is Complete!

After you’ve continued in Windows XP, 2000, Me, or 98SE, the D-Link AirPlus

Xtreme G DWL-G650 Conﬁguration Utility will automatically start and the utility

icon will appear in the bottom right hand corner of the desktop screen (systray).

If this icon appears GREEN, then you have successfully installed the DWL-

G650, are connected to a wireless network and are ready to communicate!

Double-click the utility icon to

use the conﬁguration utility.

If the utility icon does not appear,

double-click the shortcut icon that

has appeared on your desktop.

Appendix

Wi-Fi Protected Access (WPA), is a Wi-Fi standard that was designed to

improve upon the security features of WEP. The technology is designed to work

with existing Wi-Fi products that have been enabled with WEP (i.e., as a software

upgrade to exiting hardware), but the technology includes two improvements

over WEP:

1) Improved data encryption through Temporal Key Integrity Protocol (TKIP)

2) User authentication using Extensible Authentication Protocol (EAP) via a

RADIUS server.

Note that WPA is an interm standard that will be replaced with the IEEE’s 802.11i

standard upon its completion.

WPA - Wi-Fi Protected Access authorizes and authenticates users onto the

wireless network. WPA uses stronger security then WEP and is based on a key

that changes automatically at a regular interval. This mode requires a RADIUS

server in the network.

WPA-PSK - Pre-Shared Key mode means that the wireless client and the

router must have the same passphrase in order to establish the wireless

connection. A RADIUS server is not required with this mode.

Appendix (Cont.)

Click the XP Networking icon

to use the Zero Conﬁguration

Wireless Settings.

Click Advanced

Uncheck “Use Windows

to conﬁgure my wireless

network settings.

Click OK

For Windows XP, if you wish to use the AirPlus Xtreme G utility, please do the

following steps.

Appendix (Cont.)

Using the Conﬁguration Utility

A. Status: Displays

the MAC Address of

the Access Point that

is associated with the

DWL-G650.

B. SSID: The Service

Set Identiﬁer is the name

assigned to the wireless

network. The factory SSID

setting is set to default.

C. Frequency: Displays the

current frequency used by

the current connection to the

access point.

E. Encryption: Displays the current encryption status of the wireless connection.

D. Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for

peer-to-peer networking.

F. TxRate: The

default setting is

Auto; meaning,

TxRate settings

are automatically

determined by

the DWL-G650

depending on the

distance from the

access point.

G. Channel: Displays the

channel information. By default,

the channel is set to 6 and

selection is automatically

determined by the DWL-G650.

H. Signal Quality: Displays the Link Quality for the DWL-G650

wireless connection to the access point. The Signal Strength

represents the wireless signal between the access point and the

DWL-G650. The percentage coincides with the graphical bar.

I. Packet Count: Graphically

displays the statistics of data

transmitted and received.

J. SSID: The Service Set Identiﬁer is the name assigned to the wireless network. The

factory SSID setting is set to default. Make changes here to match the SSID on existing

Wireless Router or Access Point.

K. Wireless Mode: The factory setting

is set to Infrastructure. Ad-Hoc mode is

used for peer-to-peer networking.

L. Data Encryption: The default setting is

set to Disable. The adapter supports WEP

and AES when encryption is enabled.

N. Key Length: When encryption is enabled,

you will have the option to specify the level and

key format of the encryption used. Select the

appropriate Key Index: 1-4 and enter ACSII or

hexadecimal digits in the appropriate ﬁeld.

M. Authentication: You can

specify the authentication mode

for the wireless network. The

default setting is set to Open

Authentication.

O. IEEE 802.1X: When encryption is enabled, you will have the option to specify the level

and key format of the encryption used. Select the appropriate Key Index: 1-4 and enter

ACSII or hexadecimal digits in the appropriate ﬁeld.

Appendix (Cont.)

IP Address Conﬁguration

To connect to a network, make sure

the proper network settings are

conﬁgured for DWL-G650.

For Microsoft Windows XP:

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with the DWL-G650.

Input a static IP address in the same

range as the Wireless Router or

Access Point.

Static IP address setup

Click OK

IP address: 192.168.0.52

Subnet mask: 255.255.255.0

Click OK

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically (if the Wireless

Router or Access Point has DHCP

server enabled)

Select Obtain DNS server

address automatically

Dynamic IP address setup

Used when a DHCP server is available on

the local network. (i.e. Router)

Used when a DHCP server is not available

on the local network.

Select Use the following IP address

For Windows 2000 users:

Go to Start > Settings > Network and

Dial-up Connections > Double-click on

the Local Area Connection associated

with the DWL-G650 > select Properties

Used when a DHCP server is available on

the local network. (i.e. Router)

Static IP address setup

Input a static IP address in the same

range as the Wireless Router or

Access Point.

Click Properties

Click OK

Click Internet Protocol (TCP/IP)

Select Obtain an IP address

automatically (if the Wireless Router

or Access Point has DHCP server

enabled)

Select Obtain DNS server

address automatically

Select Use the following IP

address

Dynamic IP address setup

Used when a DHCP server is not available

on the local network.

IP address: 192.168.0.52

Subnet mask: 255.255.255.0
