D-Link DFE-530TX+ Bedienungsanleitung

First Edition (July 2005) P/N: 6F530TX+ML01

• DFE-530TX+ PCI Fast Ethernet Adapter

• Printed Quick Installation Guide

• CD with Manual and Drivers

If any of the above items are missing, please contact your reseller.

Install the DFE-530TX+ Adapter

Before you start, make sure to turn off your computer and unplug the power cord.

Note: To avoid damage caused by static electricity, make sure to properly ground

yourself by first touching a metal part of your computer to discharge any static

electricity before working with the DFE-530TX+ PCI Fast Ethernet Adapter.

• Remove the back cover of the computer.

• Install the DFE-530TX+ carefully and firmly into an available PCI slot

which is usually “white” or “cream” colored

• Secure the DFE-530TX+ with a screw.

• Replace the computer’s cover.

DFE-530TX+

PCI Fast Ethernet

dapte

For Windows XP,

Server 2003

Contents of Package

Install the DFE-530TX+ Driver

• Turn on the computer.

• Insert the driver CD, which is included with the DFE-530TX+, into the

CD-ROM drive.

The following window will open automatically:

Click the first item, Install Driver.

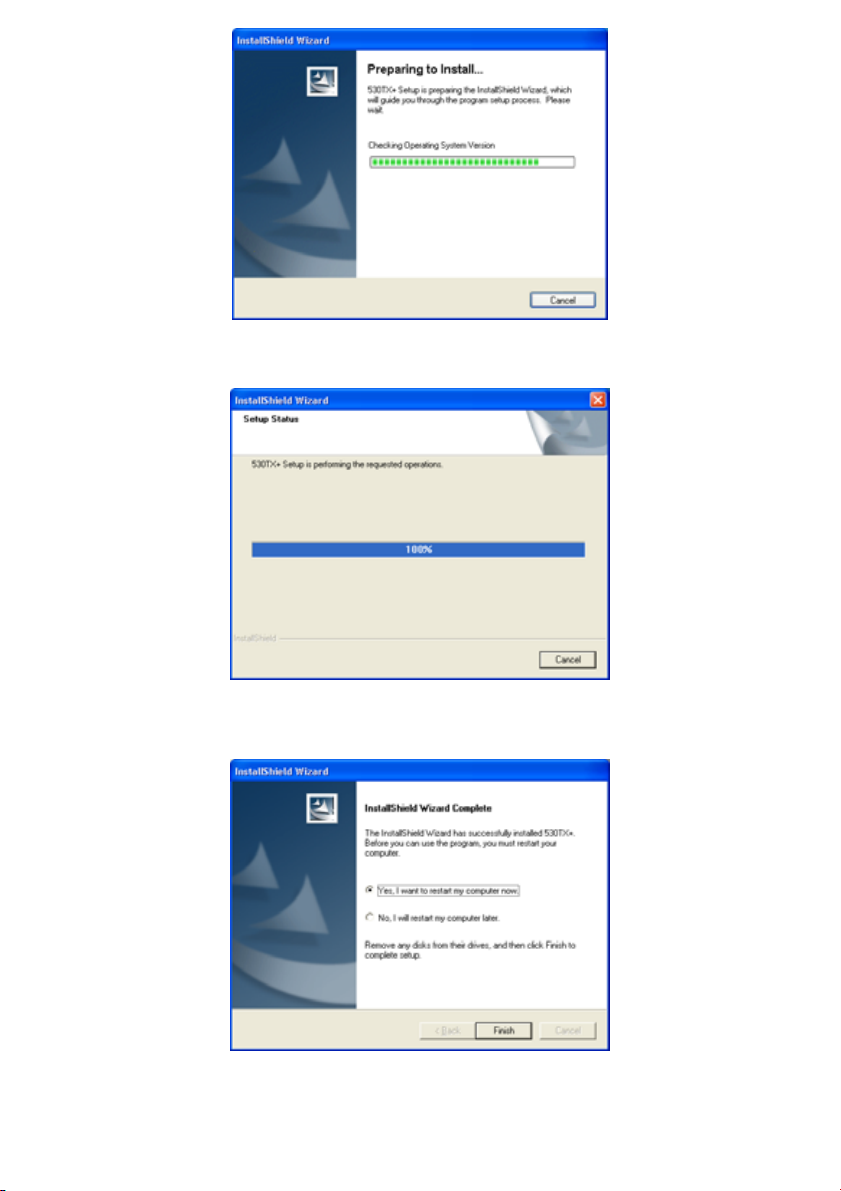

The following initial Install Shield Wizard window will open:

The following second Install Shield Wizard window will open:

The following final Install Shield Wizard window will open:

Click the first item, Install Driver. Click the first item, Install Driver.

Select the “Yes, I want to restart my computer now” radio button and then

click Finish.

• DFE-530TX+ PCI Fast Ethernet Adapter

• Printed Quick Installation Guide

• CD with Manual and Drivers

If any of the above items are missing, please contact your reseller.

Pre-installation Procedures:

If you have already installed the DFE-530TX+ into a PCI slot, advanced users may

utilize the “Add New Hardware Wizard” to manually specify the location of the driver

on the CD-ROM.

Otherwise, we strongly recommend canceling the “Add New Hardware Wizard”

and instead using the “Install Drivers” program in the CD-ROM.

Here is quick summary of the proper installation procedure:

• Run the driver installation from the DFE-530TX+ CD-ROM.

• Turn off the computer and install the DFE-530TX+ into the PCI slot.

• Restart the computer to complete the installation.

DFE-530TX+

PCI Fast Ethernet

dapte

For Windows 98,

ME, 2000

Contents of Package

DO NOT insert the DFE-530TX+ into the computer’s

PCI slot before installing the drivers.

Install the DFE-530TX+ Driver

• Turn on the computer.

• Insert the driver CD, which is included with the DFE-530TX+, into the

CD-ROM drive.

The following window will open:

Click the first item, Install Driver.

The following initial Install Shield Wizard window will open:

The following final Install Shield Wizard window will open:

Select the “Yes, I want to restart my computer now” radio button and then

click Finish.

Turn off PC and Unplug the Power

Note: To avoid static electric charges, please touch an unpainted

screw on the outside of the power supply before installing or working

with the DFE-530TX+.

• Turn off your computer and unplug the power cord.

• Remove the back cover of your computer. (Refer to your computer’s

manual if needed.)

• Locate an available PCI slot. PCI slots are usually white or cream colored.

• Remove the backplate (the small piece of metal that covers the opening

for the PCI card on the back cover that you just removed.)

• Insert the DFE-530TX+ carefully and firmly into the PCI slot.

• Secure the DFE-530TX+ with the screw from the backplate.

• Replace your computer’s cover.

• Turn on the computer.

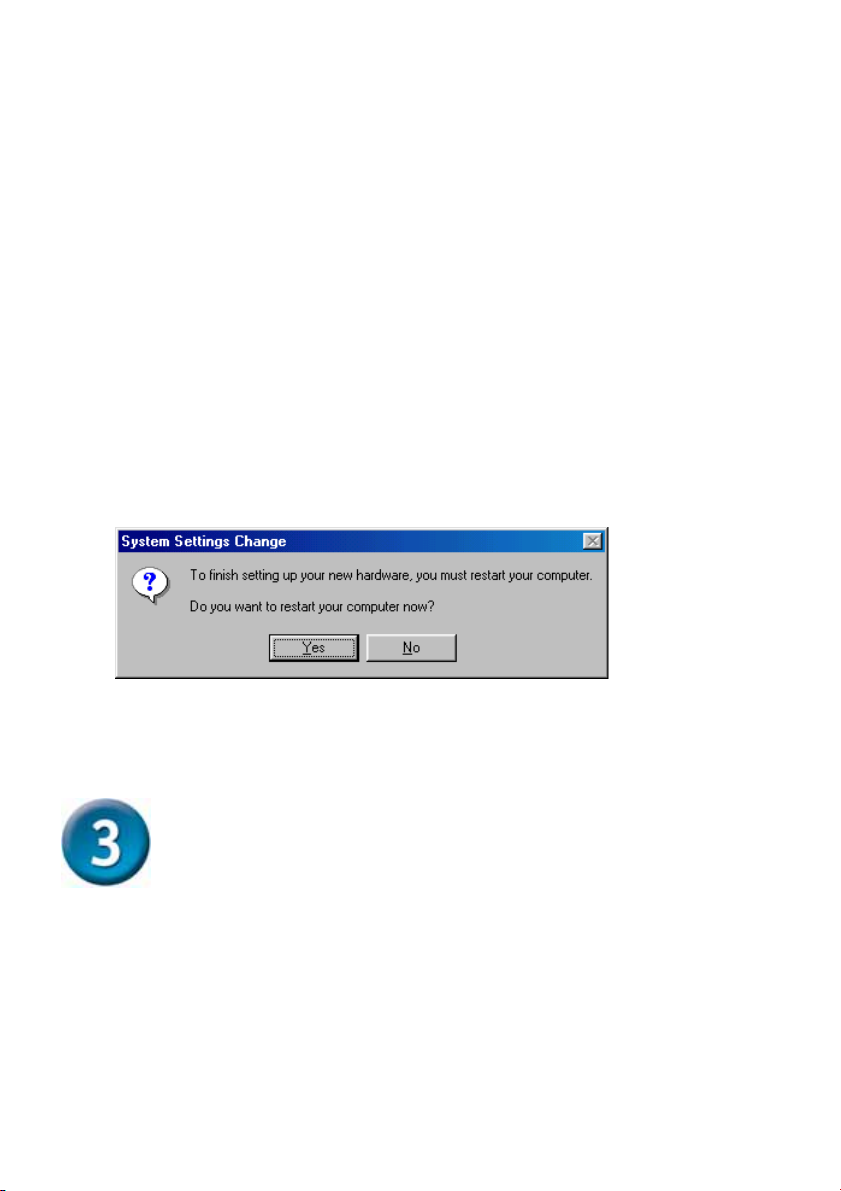

For Windows 2000/98/98SE and Windows ME users, the following dialog

box will appear.

Click Yes to restart the computer.

Double-Check Your Settings

• Go to Start>Run.

• Type “winipcfg.” (In Windows 2000, type “ipconfig/all.”) In some

cases it may be necessary to “Release and Renew” the IP

address. Make sure to select the DFE-530TX+ as the specified

adapter in the pull-down menu.

• If the IP address belongs to the same IP range and subnet

mask as the local network, then open the web browser and test

the Internet connection.

• DFE-530TX+ PCI Fast Ethernet Adapter

• Printed Quick Installation Guide

• CD with Manual and Drivers

If any of the above items are missing, please contact your reseller.

Requirements:

• PowerPC-based Macintosh with free PCI slot

• Operating System 8.0 or higher

Installation Procedure:

1. Install the DFE-530TX+ Adapter

2. Install the Driver

3. Configure Network Services

Install the DFE-530TX+ Adapter into

the Macintosh’s PCI Slot

• Turn off the Macintosh

• Insert the DFE-530TX+ into an available PCI slot

DFE-530TX+

PCI Fast Ethernet

dapte

For Macintosh 8.0

or higher

Contents of Package

Install the DFE-530TX+ Driver

• Turn on the Macintosh

• Insert the CD-ROM into the Macintosh’s CD-ROM drive

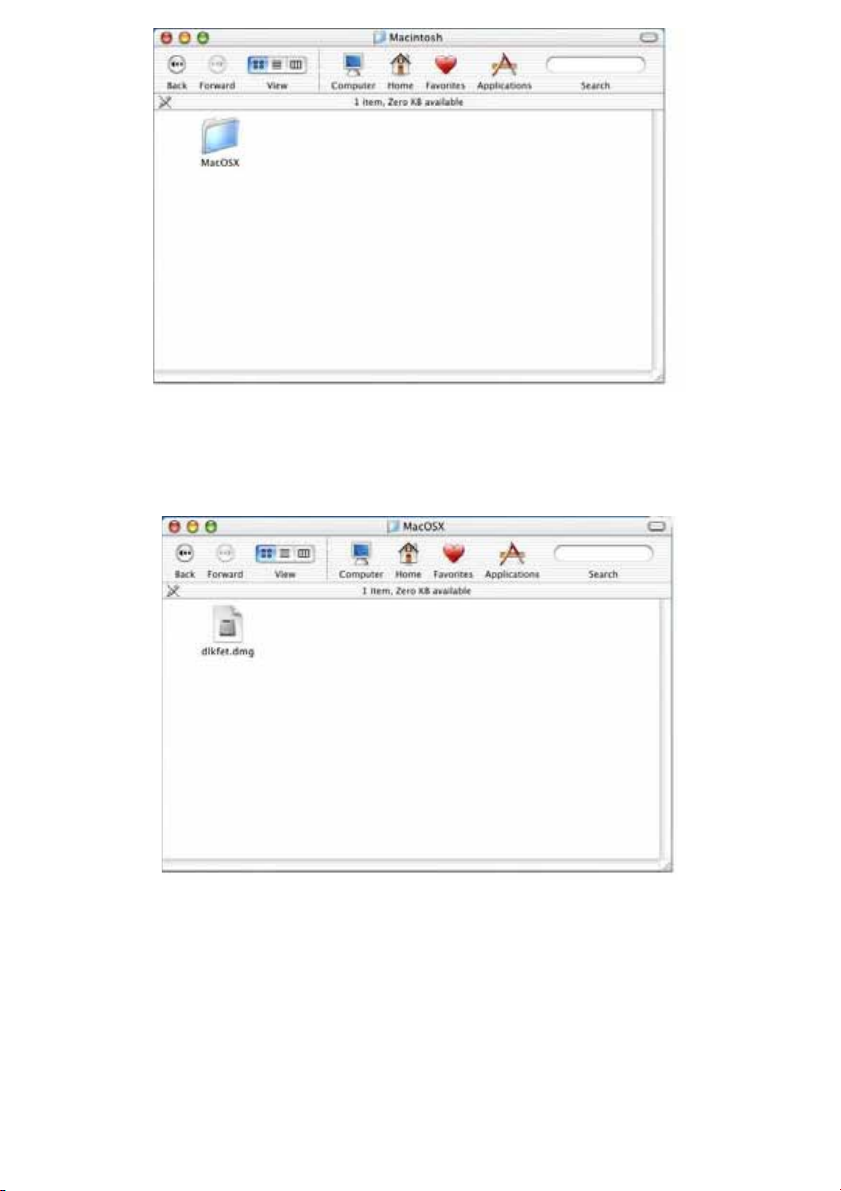

Double-click the DFE_530TX+LUS icon that appears on the desktop.

Double-click the Macintosh folder.

Double-click the MacOSX folder.

Double-click dlkfet.dmg to place a dlkfet icon on the desktop.
