D-Link DSB-650TX Bedienungsanleitung

-1-

Installation Guide Contents:

Section 1:Installing the DSB-650TX

Section 2:Windows XP Driver Installation

Section 3:Windows 2000 Driver Installation

Section 4:Windows Me Driver Installation

Section 5:Windows 98/98SEDriver Installation

Section 6:Tips & Technical Support

Review Package Contents:

Make sure that the package contains the following items. If any items are

missing, please contact your reseller.

§D-Link DSB-650TX

§Drivers on Floppy Disk

§This Installation Guide

Minimum System Requirements:

The following hardware must be available to use this product correctly…

§Pentium Class 166 MHz or Equivalent or Faster

§16 MB of RAM

§Floppy Disk Drive

§One Available USB Port

§Windows XP, Windows 2000, Windows Me, Windows 98SE/98

This

product can be installed on the

following Operating Systems:

Windows XP, 2000, Me, 98SE, 98.

DSB

650TX

D-

Link USB Fast

Ethernet Adapter

-2-

Installingthe DSB-650TX

§Plug the “A” connector of the

USB cable provided into an

available USB slot on your

computer. This is the narrow

end of the cable.

§Plug the “B” connector of the

USB cable into the

DSB-650TX. This is the larger

end of the cable.

§Connect one end of a

straight-through Ethernet cable

to the RJ-45 port of the

DSB-650TX.

§Connect the other end of the

Ethernet cable to a switch or

broadband modem.

§Windows will detect the

DSB-650TX and ask you for the

drivers. Refer to the following

sectionbelow that corresponds

to your operating system.

TypeA

Type B

RJ45

-3-

Windows XP Driver Installation

§Insert the DSB-650TX Driver Disk into your Floppy Drive.

§The “Found New Hardware”

window will appear.

§Select “Next”.

§Select “Next.”

§Select “Finish”

§The installation is complete.

-4-

Windows 2000 Driver Installation

§Insert the DSB-650TX Driver Disk into your Floppy Drive.

§The “FoundNew

Hardware Wizard” will

appear

§Select “Next”.

§Select “Search for a

suitable driver for my

device (recommended)”.

Insert the driver disk into

the floppy disk drive and

select “Next”.

§Select “Floppy disk drives”

and thenselect “Next”.

-5-

§Select “Next” to install the

driver.

§Select “Finish” to complete

the installation.

-6-

Windows Me Driver Installation

§Insert the DSB-650TX Driver Disk into your Floppy Drive.

§The “FoundNew

Hardware Wizard”

will appear.

§Insert the driver disk

into the floppy disk

drive. Select

“Automatic search for

a better driver

(Recommended)” and

then click “Next”.

§Make sure the first line

is selected and click

“OK”.

§Click “Finish”.

§The “System Setting

Change” window will appear.

Select “Yes” to restart your

computer and complete the

installation.

-7-

Windows 98/98SE Driver Installation

§Insert the DSB-650TX Driver Disk into your Floppy Drive.

§The “FoundNew

Hardware Wizard”will

appear.

§Select “Next”.

§Select “Floppy disk

drives”.

§Select “Next”.

-8-

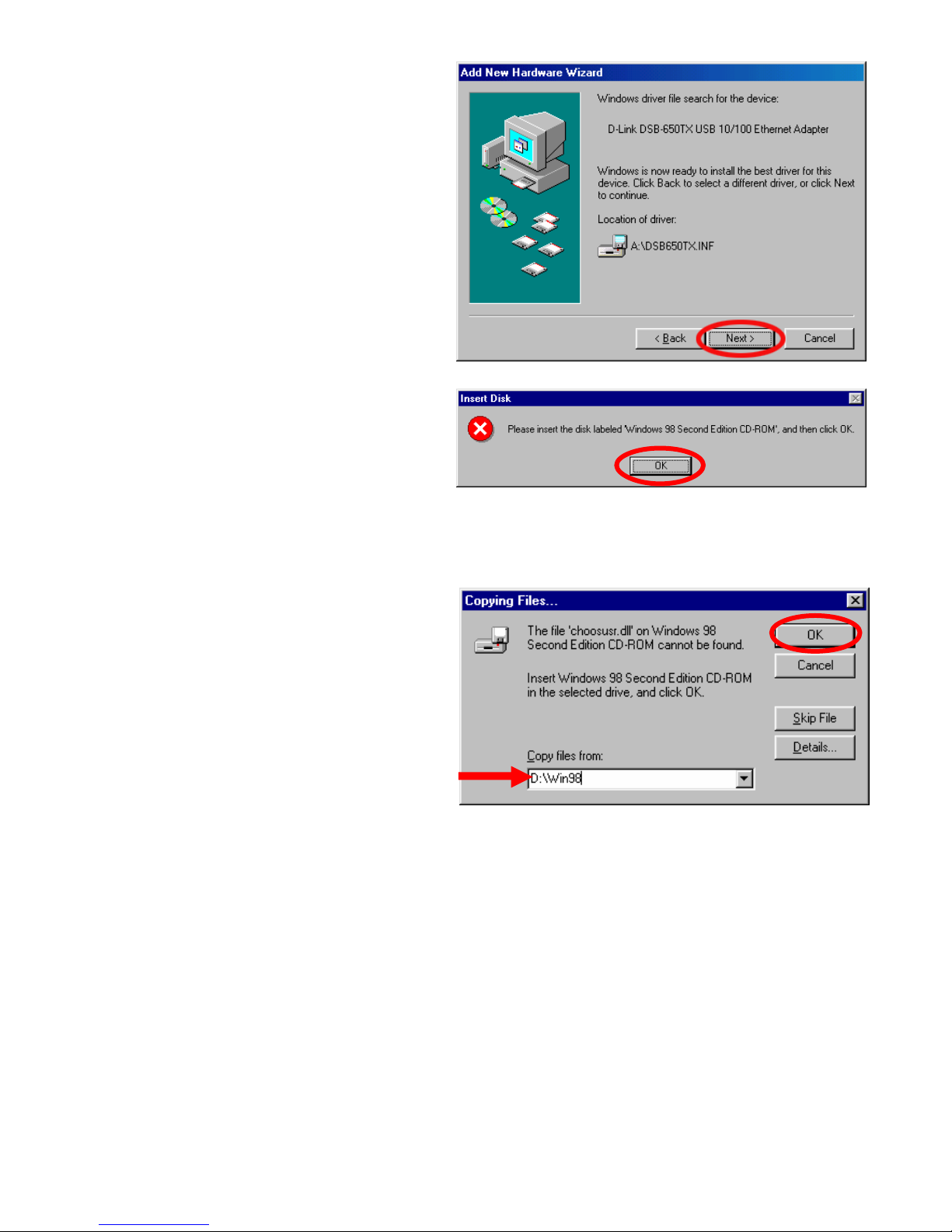

§Click “Next” to continue.

§If prompted for the

Windows 98 CD, insert the

Windows 98 CD into the

CD-ROM drive and click

“OK”.

§Specify the correct location

of the Windows 98 setup

files in the “Copy files

from:” box. If the CD-ROM

drive is the “D”drive, then

type “D:\Win98”in the box.

Note: Some computers will

have these files in the “C:\Windows\options\cabs\”directory.) After

typing in the location, click OK.Windows will copy the necessary files.

-9-

§Click “Finish”.

§Click “Yes” to restart your

computer and complete the

installation.

-10-

Tips & Technical Support

Tips

§When inserting the DSB-650TX into the USB port of your computer,

make sure that you insert it securely.

§For best performance, use certified CAT5 Fast Ethernet cable.

§Remember that you must connect a CAT5 Fast Ethernet cable from the

DSB-650TX to a switch or broadband gateway to connect to your

network.

§When setting IP addresses, make sure that you are on the same IP

address scheme as the other computers in the network. For example, if

the rest of your network uses an IP address of 192.168.0.XXX, then

you must set your IP address to the same scheme, such as 192.168.0.5.

If your network uses a DHCP server, then you don’t have to worry

about it as the server will assign the correct IP address automatically.

Also, make sure that you have the same workgroup name.

Technical Support

D-Link provides free technical support for customers within the United

States during the warranty period. U.S. customers can contact D-Link

Technical Support through our web site, e-mail or by phone.

D-Link Technical Support over Telephone:

§1-877-453-5465

§24 Hours a Day, 7 Days a Week

D-Link Technical Support over the Internet:

§support.dlink.com

§[email protected]
