DWL-P100

Power-Over-Ethernet Adapters

Manual

IntroductionIntroduction

About Power Over Ethernet (POE)

The DWL-P100 Power Over Ethernet (POE) Adapters are design to supply

operational power to a Wireless Access Point. These Power Over Ethernet

Adapters give users the ability to mount an Access Point virtually anywhere

in a building no matter where the power outlet is located such as ceilings,

attics, or roofs. It eliminates the need to use an AC-DC power supply at the

Access Point making the setup more convenient. D-Link’s DWL-P100 Power

Over Ethernet Adapters take advantage of the unused cable pairs within

Ethernet Cat 5 cabling. The Base Unit inserts DC voltage into the unused

wires therefore allowing the single Category 5 cable to carry both Ethernet

data and DC power to an Access Point. The POE Terminal Unit splits the data

and DC power apart, which is then supplied to the Access Point.

Contents of PackageContents of Package

(1) (2)

(6)

1. D-Link Power Over Ethernet / Base Unit

2. D-Link Power Over Ethernet / Terminal Unit

3. AC/DC power Adapter

4. Ethernet Cable

5. Quick Installation Guide

6. DC Power cable

The DThe D--Link DWLLink DWL--P100P100

The DWL-P100 includes two modules:

•Power Over Ethernet / Base Unit

•Power Over Ethernet / Terminal Unit

The Base Power Over Ethernet module plugs into the wall AC outlet and also

connects to the wired hub. This will supply both low-voltage DC power and

data over the existing Category 5 cabling. The Terminal Power Over

Ethernet module separates the DC power and data, and connects conveniently

to the Wireless Access Point.

FeaturesFeatures

§Provides DC power over existing Category 5 cabling to Access Points

§Transforms incoming AC power into low-voltage DC power

§Base and Terminal Power Over Ethernet modules powers any Wireless

Access Point requiring 5V/1A DC input

§Protects Access Point from possible damages due to power-surges

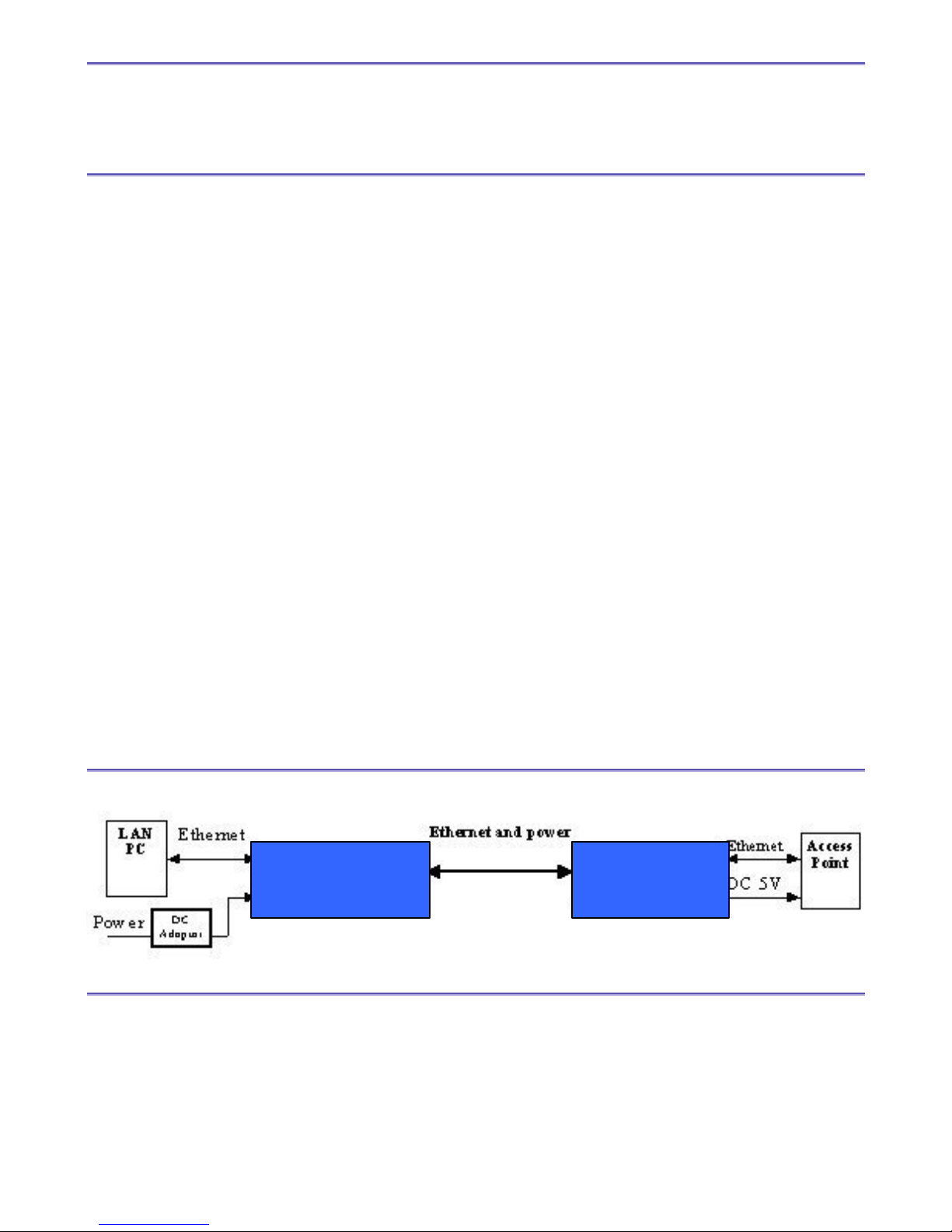

Connection ArchitectureConnection Architecture

SpecificationsSpecifications

§Category 5 pin power usages: 4/5 , 7/8

§Output Voltage 5VDC/1A (Terminal side)

§Ethernet Connector: RJ-45

§Ethernet Data Rate: 10/100 Mbps

§Number of AP’s it can power: 1

§Ethernet Data Cable: TIA/EIA-568, Category 5 Cable

§Device Weight (pair): 0.269 lbs

§Dimensions: 3.15in x 1.73in

Hardware InstallationHardware Installation

1. Connect the cable from the PC/Hub/Switch to the Base Unit “LAN IN”

2. Connect the Power Adapter to the Base Unit “DC 15V IN.” The green

PWR LED on the Base Unit should light up.

3. Connect the cable from the Base Unit “LAN OUT” to the “LAN IN” of

the Terminal Unit. (max cable length up to 328ft/100m, as defined by

IEEE 802.3)

4. Connect an Ethernet cable from the Terminal Unit “LAN OUT” to the

LAN port of the Wireless Access Point (AP).

5. Connect the “DC 5V OUT” from the Terminal Unit to the DC 5V input

port of the AP using the power cable provided. The green PWR LED of

the Terminal Unit should light up.

6. Operate the Wireless Access Point normally.

Contacting Technical SupportContacting Technical Support

You can find the most recent software and user documentation on the

D-Link website.

D-Link provides free technical support for customers within the United

States for the duration of the warranty period on this product.

U.S. customers can contact D-Link technical support through our web site,

e-mail, or by phone.

United States technical support is available Monday through Friday from

6:00 a.m. to 6:00 p.m. (PST.)

Web:http://www.support.dlink.com

Email:[email protected]

Phone:949-790-5290

If you are a customer residing outside of the United States, please refer to

the list of D-Link locations that is included in this manual.

DD--Link OfficesLink Offices

D-Link Australia

Unit 16, 390 Eastern Valley Way

Roseville, NSW 2069,

Australia

TEL: 61-2-94177100

FAX: 61-2-94171077

URL: www.dlink.com.au

D-Link Benelux

Fellenoord 1305611 ZB

EindhovenThe Netherlands

TEL: 31-40-2668713

FAX: 31-40-2668666

URL: www.dlink-benelux.nl/

D-Link Canada

#2180 Winston Park Drive

Oakville, Ontario, L6H 5W1

Canada

TEL: 1-905-8295033

FAX: 1-905-8295095

URL: www.dlink.ca

D-Link China

2/F., Sigma Building, 49 Zhichun Road,

Haidian District, 100080 Beijing,

China

TEL: 86-10-88097777

FAX: 86-10-88096789

D-Link South America

Isidora Goyeechea 2934 of 702,

Las Condes

Santiago ¡V Chile S.A.

TEL: 56-2-232-3185

FAX: 56-2-232-0923

URL: www.dlink.cl

D-Link Denmark

Naverland 2, DK-2600

Glostrup, Copenhagen,

Denmark

TEL: 45-43-969040

FAX: 45-43-424347

URL:www.dlink.dk

D-Link Middle East

7 Assem Ebn Sabet Street Heliopolis

Cairo

Egypt

TEL: 20-2-6356176

FAX: 20-2-6356192

URL: www.dlink-me.com

D-Link Finland

Thlli-ja Pakkahuone Katajanokanlaituri 5

FIN-00160 Helsinki

Finland

TEL: 358-9-622-91660

FAX: 358-9-622-91661

URL: www.dlink-fi.com

D-Link France

Le Florilege #.2, Allee de la Fresnerie

78330 Fontenay le Fleury

France

TEL: 33-1-30238688

FAX: 33-1-30238689

URL: www.dlink-france.fr

D-Link Germany

Schwalbacher Strasse 74

D-65760 Eschborn

Germany

TEL: 49-6196-77990

FAX: 49-6196-7799300

URL: www.dlink.de

D-Link India

Plot No.5, Kurla-Bandra Complex Rd.

Off Cst Rd. Santacruz (E), Bombay -400

098

India

TEL: 91-22-652-6696

FAX: 91-22-652-8914

URL: www.dlink-india.com

D-Link Italia

via Nino Bonnet n. 6/b

20154 ¡V Milano,

Italy

TEL: 39-02-2900-0676

FAX: 39-02-2900-1723

URL: www.dlink.it

D-Link Japan

10F, 8-8-15 Nishi-Gotanda

Shinagawa-ku, Tokyo 141,

Japan

TEL: 81-3-5434-9678

FAX: 81-3-5434-9868

URL: www.d-link.co.jp

D-Link Norway

Waldemar Thranesgt. 77,

0175 OsloNorway

TEL: 47-22-991890

FAX: 47-22-207039

D-Link Russia

Michurinski Prospekt 49,

117607 Moscow,

Russia

TEL: 7-095-737-3389, 7-095-737-3492

FAX: 7-095-737-3390

D-Link International (Singapore)

1 International Bussiness Park

#03-12 The Synergy

Singapore 609917

TEL: 65-774-6233

FAX: 65-774-6322

URL: www.dlink-intl.com

D-Link South Africa

102 -106 Witchhazel Avenue

Einstein Park 2

Block B

Highveld Technopark

Centurion, South Africa

TEL: 27(0)126652165

FAX: 27(0)126652186

D-Link Spain

Gran Via de Carlos III,

843¢X Edificio Trade08028 BARCELONA

TEL: 34 93 4965751

FAX: 34 93 4965701

URL: www.dlinkiberia.es

D-Link Sweden

P.O. Box 15036, S-167 15 Bromma

Sweden

TEL: 46-(0)8564-61900

FAX: 46-(0)8564-61901

URL: www.dlink.se

D-Link Taiwan

2F, No. 119 Pao-Chung Rd.

Hsin-Tien, Taipei

Taiwan

TEL: 886-2-2910-2626

FAX: 886-2-2910-1515

URL: www.dlinktw.com.tw

D-Link U.K.(Europe)

4th Floor, Merit House

Edgware Road, Colindale

London NW9 5AB

U.K.

TEL: 44-20-8731-5555

FAX: 44-20-8731-5511

BBS: 44-181-235-5511

URL: www.dlink.co.uk

D-Link U.S.A

53 Discovery Drive

Irvine, CA 92618

U.S.A.

TEL: 1-949-788-0805

FAX: 1-949-753-7033

URL: www.dlink.com

Building Networks for People

Rev. 1.0
