D-Link DWL-P200 Bedienungsanleitung

DWL-P200

Power Over

Ethernet Adapters

48V DC Power Adapter

specications subject to change without notice.

About Power Over Ethernet.

Check Your Package Contents

DWL-P200 Base Unit and Terminal Unit

Female-to-Female Power Connector

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

The DWL-P200 Power Over Ethernet (POE) Adapters are designed to supply

operational power to a Network Device. These adapters eliminate the need to use an

additional AC/DC power supply at the Network Device giving you the ability to mount an

Network Device virtually anywhere in a building where power outlets are not available,

( for example in, ceilings, attics). D-Link’s DWL-P200 Adapters take advantage of the

unused cable pairs within Ethernet Cat 5 cabling. The Base Unit inserts DC voltage into

the unused wires therefore allowing the single Category 5 cable to carry both Ethernet

data and DC power to an Network Device. The POE Terminal Unit splits the data and

DC power apart, which is then supplied to the Network Device.

Warning: Please follow the

instructions in this guide carefully.

Connecting these adapters

incorrectly may result in damage to

you network devices.

ENGLISH

Connecting The DWL-P200

Base Unit

Terminal Unit

P+DATA OUT:

provides the data and

power to the terminal

unit. Connect this port

to the P+DATA IN on

the Terminal unit.

LAN IN: connect an RJ-45

straight-through cable to

your computer or switch.

Power In: using the

supplied 48V power

supply, connect to a

wall power outlet.

P+DATA IN: connect

a CAT 5 RJ-45

straight-through

cable from the P +

Data Out port on the

Base Unit.

LAN OUT: connect a CAT

5 RJ-45 straight-through

cable to an Ethernet

enabled device.

Voltage Selector:

used to select DC

5V/2.5A or 12V/1A

DC Out: supplies 5V 2.5

or 12V 1 amps of power.

Using the included power

cable, connect to your

Ethernet enabled device’s

power.

ENGLISH

Connecting The DWL-P200

Insert one end of a Cat 5 Ethernet RJ-45 cable into the “LAN IN” port of the

Base Unit. Connect the other end of the cable to your network switch or PC.

Always pair a Base unit with a Terminal unit. DO NOT connect two

Base units together, or two Terminal units together.

Plug one end of the Power Adapter into the “DC 48V IN” Base Unit and

the other end into your electrical outlet. The green “PWR” LED on the

Base Unit should light up.

Do Not mistake the “LAN IN” port with the “P + DATA OUT” port.

Incorrectly plugging the wrong Ethernet cable into the wrong Ethernet port

may cause serious damage to your network devices. D-Link will not replace

or repair products or reimburse customers for devices that become damaged

due to incorrect installation, nor is liable for any loss of business resulting in

the incorrect installation of this product.

ENGLISH

Connect another Cat 5 Ethernet cable from the Base Unit “P+DATA OUT”

to the “P+DATA IN” of the Terminal Unit.

Connecting The DWL-P200

Insert one end of the DC Power Cable that is provided into the Terminal

Unit, and the other end into the DC of the Network Device. The Power

LED of the Terminal Unit should light up.

Only use a CAT 5 Ethernet straight-through cable.

Use Voltage Selector to set DC output to 5V/2.5A or 12V/1A as required

by the Network Device.

ENGLISH

Connecting The DWL-P200

At this point, your Network Device should have power and data, and

function normally.

Connect the provided Cat 5 Ethernet cable from the Terminal Unit “LAN

OUT” to the RJ-45 LAN port of the Network Device.

ENGLISH

Category 5 Pin Usage

. Data: 1, 2, 3, 6

. Power: 4, 5, 7, 8

Voltage

. Input: 48VDC, 500mA

. Output: 5VDC, 2.5A or 12VDC, 1A

Ethernet

. Connector: RJ-45

. Data Rate: 10/100Mbps

. Cable: TIA/EIA - 568, Category 5

Dimensions

. Base Unit: 8.09 x 5.2 x 2.8cm

. Terminal Unit: 8.09 x 5.2 x 2.8cm

Weight

. Base + Terminal Unit: 4.1oz

Temperature

. Operating: 0°C to 40°C (32°F to 104°F)

. Storage: -40°C to 70°C (-40°F to 158°F)

Operating Humidity

. 10% to 80%

Warranty

. 1 Year

Specications

Features

. Provides DC power over existing CAT 5 cabling to Access Points.

. Transforms incoming AC power into low-voltage DC power.

. Base and Terminal Power Over Ethernet modules powers any Network Device

requiring 5V or 12V DC input.

. Protects Access Points from possible damages due to power-surges.

. Output: 5VDC, 2.5A or 12VDC, 1A

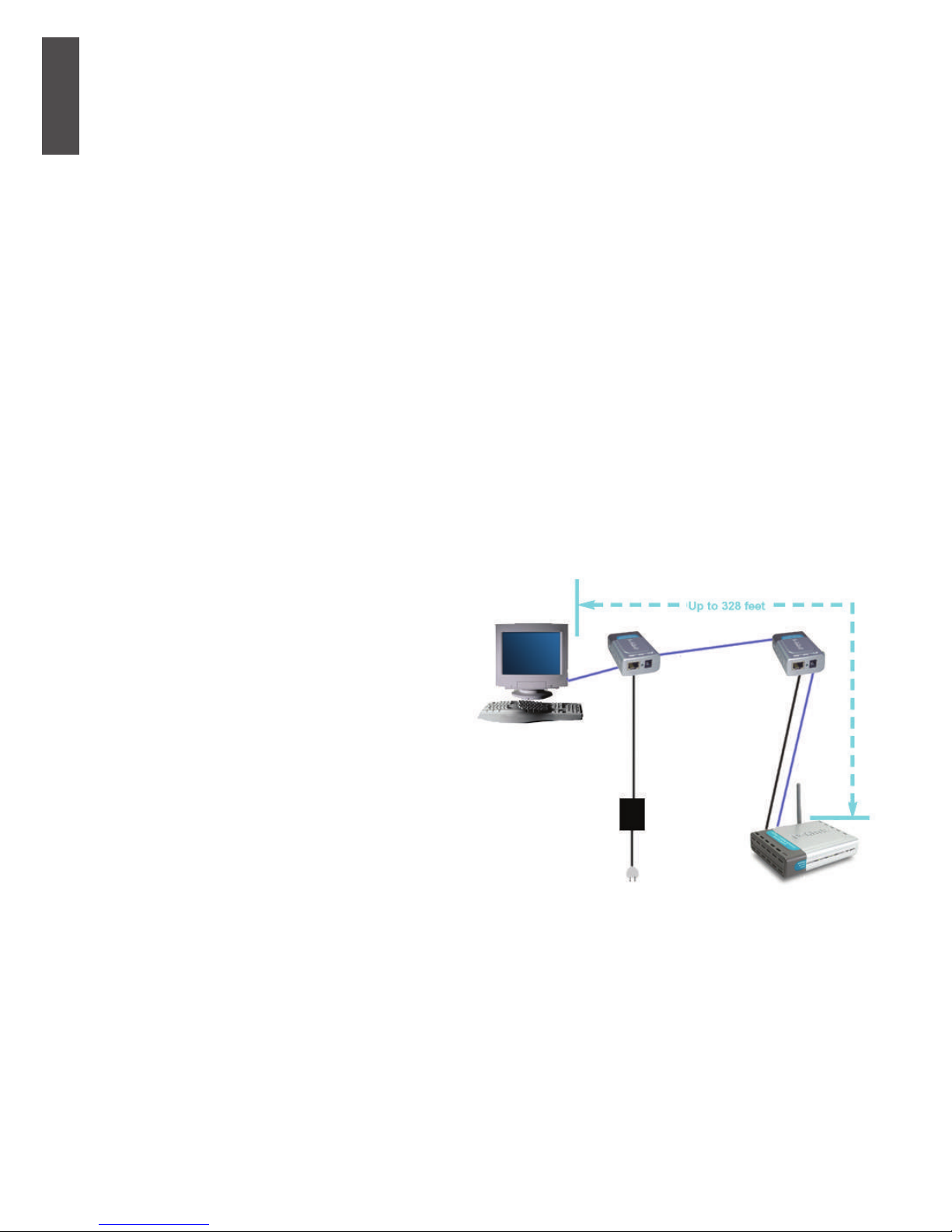

LAN Computer

D-Link Wireless

Access Point

DWL-P200

Power Over Ethernet

(Base Unit)

DWL-P200

Power Over Ethernet

(Terminal Unit)

Ethernet Cable

DC Power Cable

AC/DC Power Adapter

Ethernet Cable

ENGLISH
