DES-1210-08P Firmware Release Notes

These release notes include important information about D-Link switch firmware revisions. Please

verify that these release notes are correct for your switch:

-If you are installing a new switch, please check the hardware version on the device label;

make sure that your switch meets the system requirement of this firmware version. Please

refer to Revision History and System Requirement for detailed firmware and hardware

matrix.

-If the switch is powered on, you can check the hardware version by typing “show switch”

command via Telnet or by checking the device information page on the web graphic user

interface.

-If you plan to upgrade to the new firmware release, please refer to the Upgrade Instructions

for the correct firmware upgrade procedure.

For more detailed information regarding our switch products, please refer to Related

Documentation.

You can also download the switch firmware, D-View modules and technical documentation from

http://tsd.dlink.com.tw.

Content:

Revision History and System Requirement: ........................................................................2

Upgrade Instructions: .....................................................................................................2

Upgrade using CLI (via Telnet)................................................................................... 2

Upgrade using Web-UI.............................................................................................. 3

New Features:................................................................................................................3

Changes in MIB & D-View Modules: ..................................................................................7

Changes in Command Line Interface:..............................................................................10

Problem Fixed:.............................................................................................................11

Known Issues: ............................................................................................................. 12

Related Documentation: ................................................................................................ 13

Firmware Version:

2.03.B016

Boot Code Version:

1.00.005

MIB Version:

2.01.001

D-View Module Version:

2.0.1.0

Published:

Aug. 26, 2014

DES-1210-08P Firmware Release Notes

Revision History and System Requirement:

Firmware Version

Date

Model

Hardware Version

Runtime: v2.03.B016

Boot: 1.00.005

26-Aug.-14

DES-1210-08P

Runtime: v2.03.B015

Boot: 1.00.005

11-Feb.-14

DES-1210-08P

Runtime: v2.03.B014

Boot: 1.00.005

25-Oct.-13

DES-1210-08P

Runtime: v2.03.B013

Boot: 1.00.005

25-Oct.-13

DES-1210-08P

Runtime: v2.03.001

Boot: 1.00.005

21- Aug.-12

DES-1210-08P

Runtime: v2.02.002

Boot: 1.00.005

21- Aug.-12

DES-1210-08P

Runtime: v2.01.002

Boot: 1.00.004

22-Feb.-11

DES-1210-08P

Runtime: v2.00.011

Boot: 1.00.004

13-Sep.-10

DES-1210-08P

Upgrade Instructions:

D-Link Smart Switches support firmware upgrade via TFTP server. You can download the firmware

from D-Link web site http://tsd.dlink.com.tw, and copy the downloaded firmware to the TFTP

server folder. Please make sure that the TFTP server is accessible from the switch via networks.

Upgrade using CLI (via Telnet)

1. Make sure the network connection between the switch and PC is active.

2. Use software that supports telnet, for example, HyperTerminal or Telnet command in Microsoft

Windows, to connect to the switch. If you are using Telnet command, type the command followed

by the switch IP address, eg. telnet 10.90.90.90.

3. The logon prompt will appear.

The switch will prompt the user to enter his/her username and password. It should be noted that

upon the initial connection, both the default user name and password are admin.

To upgrade the switch firmware, execute the following command:

Command

Function

download{firmware_fromTFTP

tftp://ip-address/filename | cfg_fromTFTP

Download firmware file from the TFTP

server to the switch.

DES-1210-08P Firmware Release Notes

tftp://ip-address/filename}

When completing firmware upgrade, the following messages will pop up.

Device will reboot after firmware upgraded successfully

Image upgraded successfully

4. Execute the following command to check the firmware version and switch’s information.

Command

Function

show switch

Display the information of current

firmware and boot version.

Example:

1. DES-1210-08P:

Command: download firmware_fromTFTP tftp://10.90.90.91 DGS-1210-48 A1

1_00_011.hex

Device will reboot after firmware upgraded successfully

Image upgraded successfully

2. DES-1210-08P:

Command: show switch

DGS-1210-48> show switch

System name :

System Contact :

System Location :

System up time : 0 days, 1 hrs, 8 min, 36 secs

System Time : 01/01/2009 01:58:42

System hardware version : A1

System firmware version : 2.00.011

System boot version : 1.00.004

System Protocol version : 2.001.004

System serial number : LABDES1252008

MAC Address : 00-01-02-03-04-05

Upgrade using Web-UI

1. Connect a workstation installed with java SE runtime environment to any switch port of the

device.

2. Open the web browser from the workstation and enter the IP address of the switch. The

switch’s default IP address is 10.90.90.90.

3. Enter administrator’s password when prompted. The password is admin by default.

4. To update switch's firmware or configuration file, select Tools > Firmware Backup &

Upgrade from the banner.

DES-1210-08P Firmware Release Notes

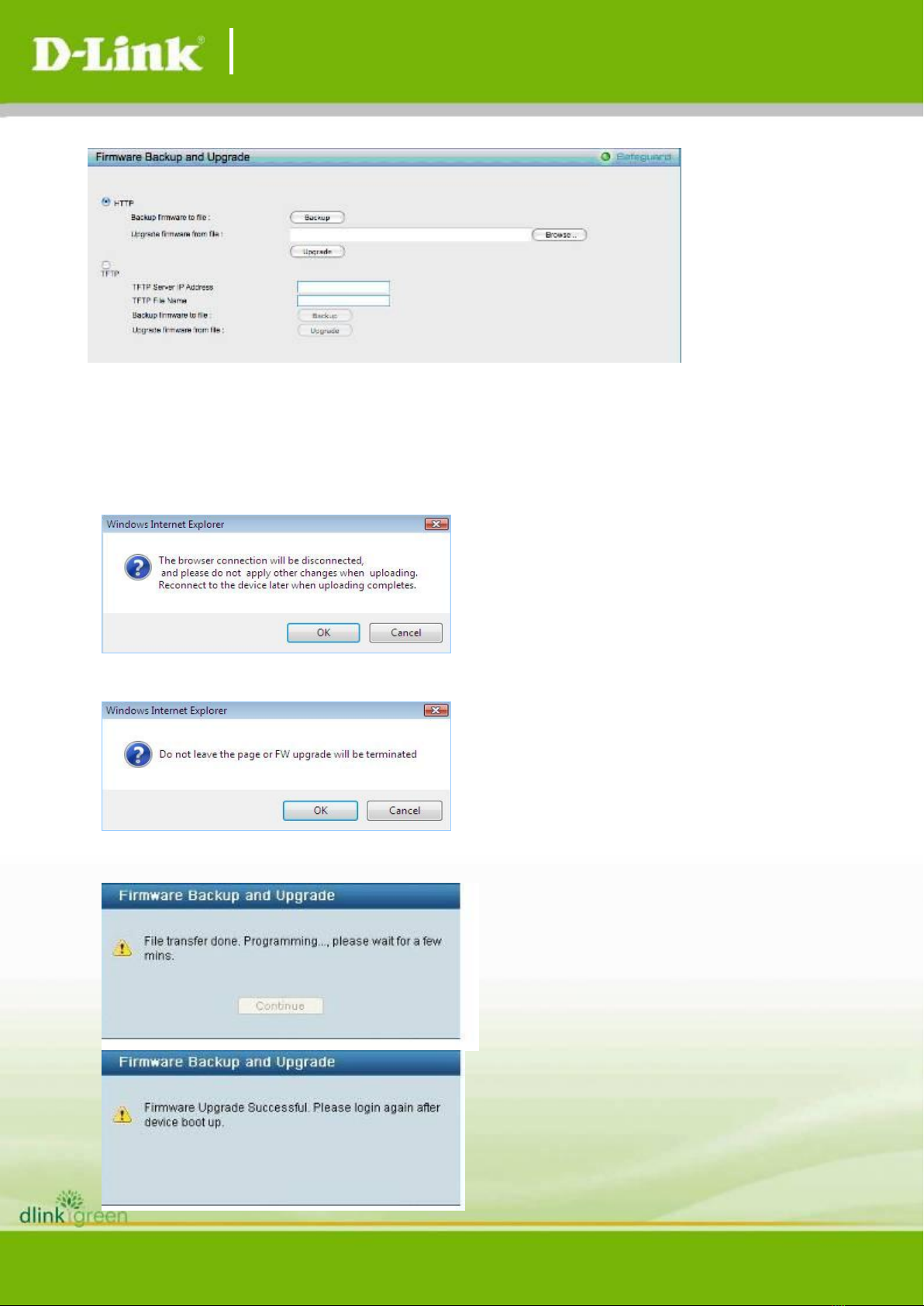

5. Two methods can be selected : HTTP or TFTP

6. Select HTTP to upgrade the firmware to or from your local drive of PC.

a. Click Browse to browse your inventories for a saved firmware file

b. Click Upgrade after selecting the firmware file you want to restore

c. Click OK to continue with firmware upgrade

d. Click OK to continue with firmware upgrade

e. Wait until the “Firmware Upgrade Successful”message pops up and login again after device

boots up.

DES-1210-08P Firmware Release Notes

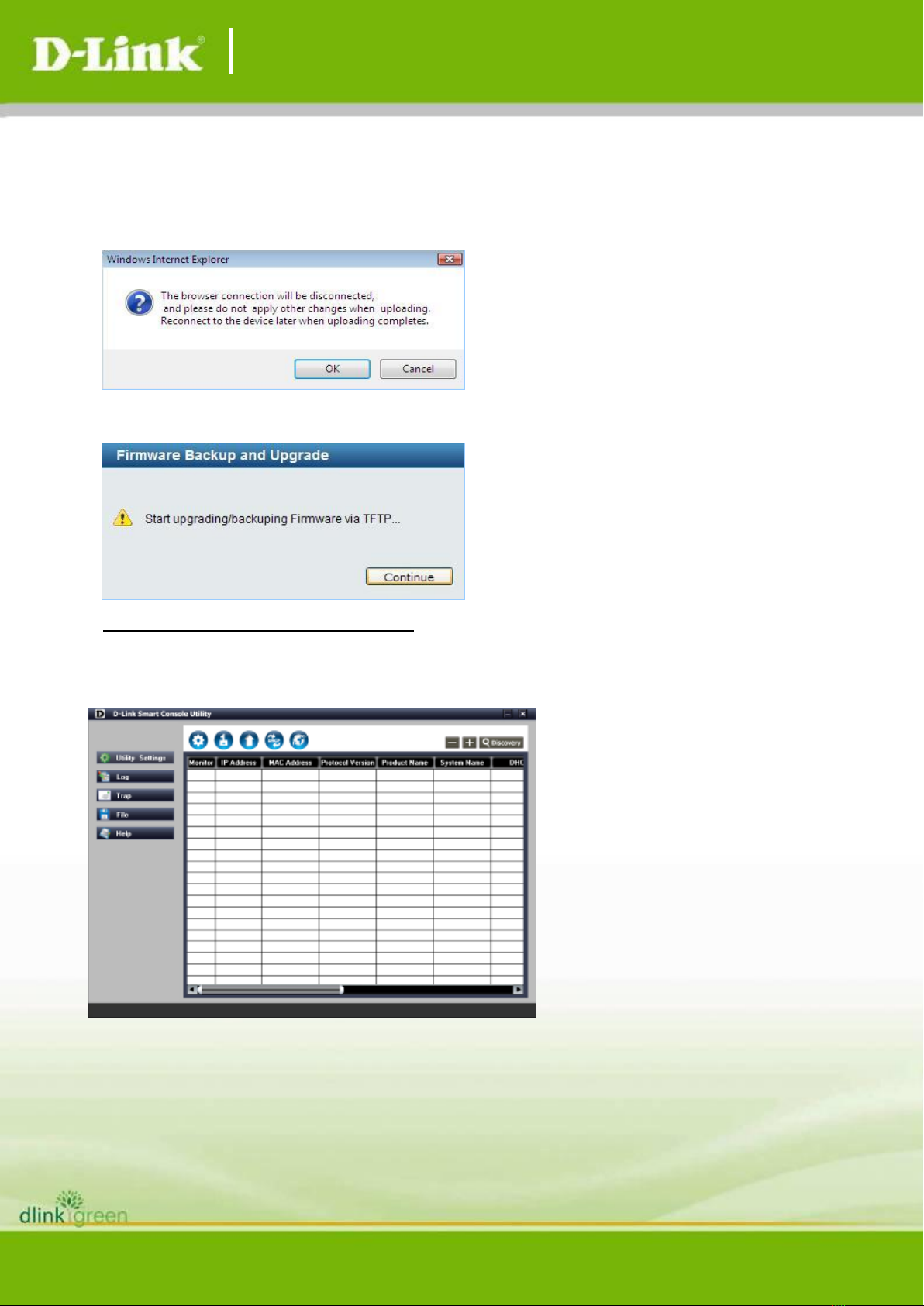

7. Select TFTP to upgrade the firmware to or from a remote TFTP server.

a. Enter the name of the firmware file located on the TFTP server

b. Click Upgrade after selecting the firmware file you want to restore

c. Click OK to continue with firmware upgrade

d. Wait until the firmware upgrade ends and login again after device boots up.

Upgrade using SmartConsole Utility

1. Connect a workstation installed with java SE runtime environment to any switch port of the

device

2. Execute SmartConsole Utility

DES-1210-08P Firmware Release Notes

3. Click Discovery button to search target switch

4. Single click the icon of Monitor column to choose the target switch

5. Click Firmware Upgrade button

DES-1210-08P Firmware Release Notes

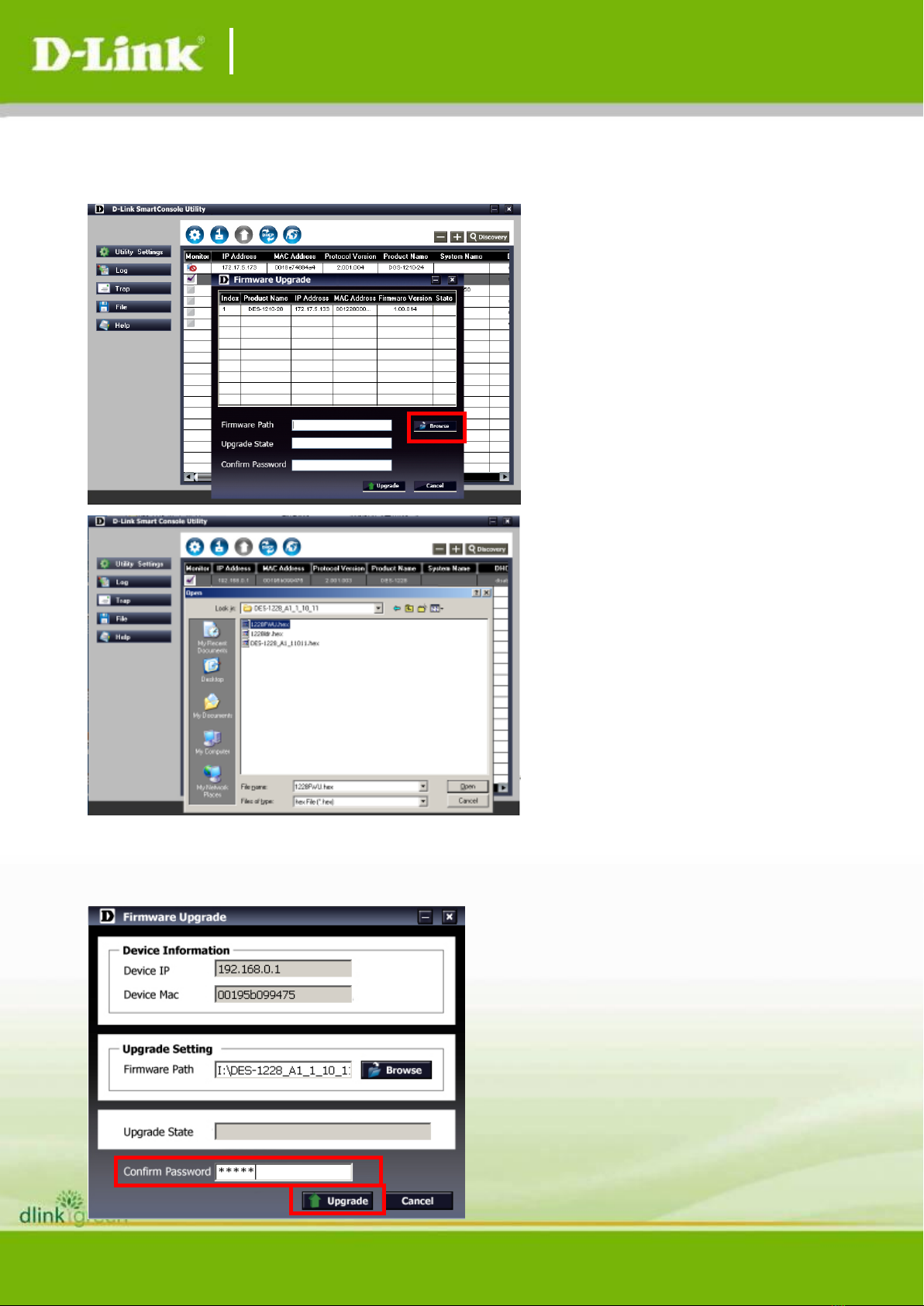

6. Click Browse button and select the firmware file (Model name_HW ver._FW ver. .hex) on your

local hard drive.

7. Enter password and click “Upgrade”button to start firmware upgrade. The default password is

“admin”.

DES-1210-08P Firmware Release Notes

8. Once the message popped up, click “OK”button to complete the firmware upgrade

New Features:

Firmware

Version

New Features

V2.03.B016

V2.03.B015

V2.03.B014

V2.03.B013

V2.03.001

Fix 802.1x server shared secret weak encryption issue and HTTP file system security issue (An

European customer feedbacks issue.

V2.02.002

Fix the ASV WEB display bug that default OUI: 28-10-7B cannot be displayed in summary table

while corresponding packet is sent.

V2.01.002

Enhanced Auto Surveillance VLAN

Add Portuguese to Multi-Language

V2.00.011

First Release

DES-1210-08P Firmware Release Notes

Changes of MIB & D-View Module:

The new features of MIB file are also included in the corresponding D-View module. Please

download the D-View module from http://tsd.dlink.com.tw. For detailed changes of MIB content,

please refer to the modification history in each MIB file.

Firmware

Version

MIB File

New Features

V2.03.B016

DES-1210-08P_AX_2_01_001.mib

V2.03.B015

DES-1210-08P_AX_2_01_001.mib

V2.03.B014

DES-1210-08P_AX_2_01_001.mib

V2.03.B013

DES-1210-08P_AX_2_01_001.mib

V2.03.001

DES-1210-08P_AX_2_01_001.mib

V2.02.002

DES-1210-08P_AX_2_01_001.mib

V2.01.002

DES-1210-08P_AX_2_01_001.mib

Enhanced Auto Surveillance VLAN to V1.2

V2.00.011

DES-1210-08P_AX_2_00_004.mib

First Release

Firmware

Version

D-View Module File

New Features

V2.03.B016

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

V2.03.B015

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

V2.03.B014

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

V2.03.001

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

DES-1210-08P Firmware Release Notes

V2.03.B013

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

V2.02.002

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

V2.01.002

DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe

Enhanced Auto Surveillance

VLAN to V1.2

V2.0.0.11

DV_DES-1210-08P_V2.0.0.11_FW_v2.00.011.exe

First Release

Changes of Command Line Interface:

The section below only shows command line changes that may bring backward compatibility

issues with configuration settings for previous version of firmware.

Any new feature commands that do not have backward compatibility issues are not included in the

below section.

Firmware

Version

Changes

V2.03.B016

V2.03.B015

V2.03.B014

V2.03.B013

V2.03.001

V2.02.002

V2.01.002

V2.00.011
