0 ABOUT THIS GUIDE
This manual describes the DP-300+ Ethernet/Fast Ethernet
Multiprotocol Print Server, including a description of the print
server’s features, as well as the print server installation
procedures and troubleshooting self-test results.
For information about software configuration of the DP-300+ to
allow it to be used with your network, consult the Print Server
Administration User’s Guide included with your DP-300+.
Introduction
1
1 INTRODUCTION
The DP-300+ Print Server is a compact print server which
connects to your Ethernet or Fast Ethernet network anywhere
you wish to locate printer services. It manages the flow of
print files from your workstations or file servers to its
connected printers, delivering print jobs to high-performance
printers much faster than a file server or a PC acting as a
print server can.
Figure 1 -1DP-300+ Print Server
DP-300+ Multiprotocol Fast Ethernet Print Server User’s Guide
Introduction
DP-300+ Print Server Features
DP-300+ print servers improve network printing services in
three ways:
♦The DP-300+ picks up the workload of managing print file
traffic to its connected printers. This provides workload
relief to your file servers, and allows the file servers' full
capacity to be used for file access or other direct services
to network users. On peer-to-peer networks,
workstations can print directly to the DP-300+ without
increasing the load of another workstation or server.
♦The DP-300+'s parallel printer ports are IEEE 1284
compliant high-speed bidirectional ports, which can
transmit to high-speed laser printers much faster than a
PC's parallel printer port. High-speed laser printers
connected to the DP-300+'s parallel ports can be operated
at full their capacity.
♦Because the DP-300+ is very portable and inexpensive
compared to a PC-based print server, and because the
DP-300+ connects to your file servers through the
network, printers can be deployed to locations of
maximum convenience to users.
The DP-300+ offers extraordinary flexibility, operating with all
major network operating systems and protocols:
♦TCP/IP
Introduction
Unix lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM
AIX)
Windows NT/2000/XP
LPR for Windows 95/98/Me
NetWare 5.x NDPS LPR remote printing
♦NetBEUI
Windows NT/2000, Windows 95/98/Me, Windows for
Workgroups, Microsoft LAN Manager, IBM LAN Server
♦AppleTalk
MacOS EtherTalk
Windows-based setup and administration software, PS Admin,
is supplied with the DP-300+, making configuration and
management quick and easy. The DP-300+ also supports
configuration and management via the telnet protocol for
networks without Windows-compatible machines.
External Features
This section describes the externally visible features of the
DP-300+ print server.
DP-300+ Multiprotocol Fast Ethernet Print Server User’s Guide
Introduction
Port Connectors
The DP-300+’s three printer ports are located on its rear panel.
Two identical parallel ports are labeled LPT1 and LPT2; the
single serial port is labeled COM. These printer ports are
independently configurable using the PS Admin program or the
print server’s telnet interface. (See the Print Server
Administration User’s Guide for information about configuring
the print server’s ports.)
The print server also supports web configuration permitting
users to configure settings through the web browser. DP-300+
default IP address as follows:
♦Default IP address –192.168.0.10
♦Subnet Mask –255.255.255.0
Note:-
The PC’s IP address must correspond with the print server’s IP
address in the same segment for the two devices to
communicate.

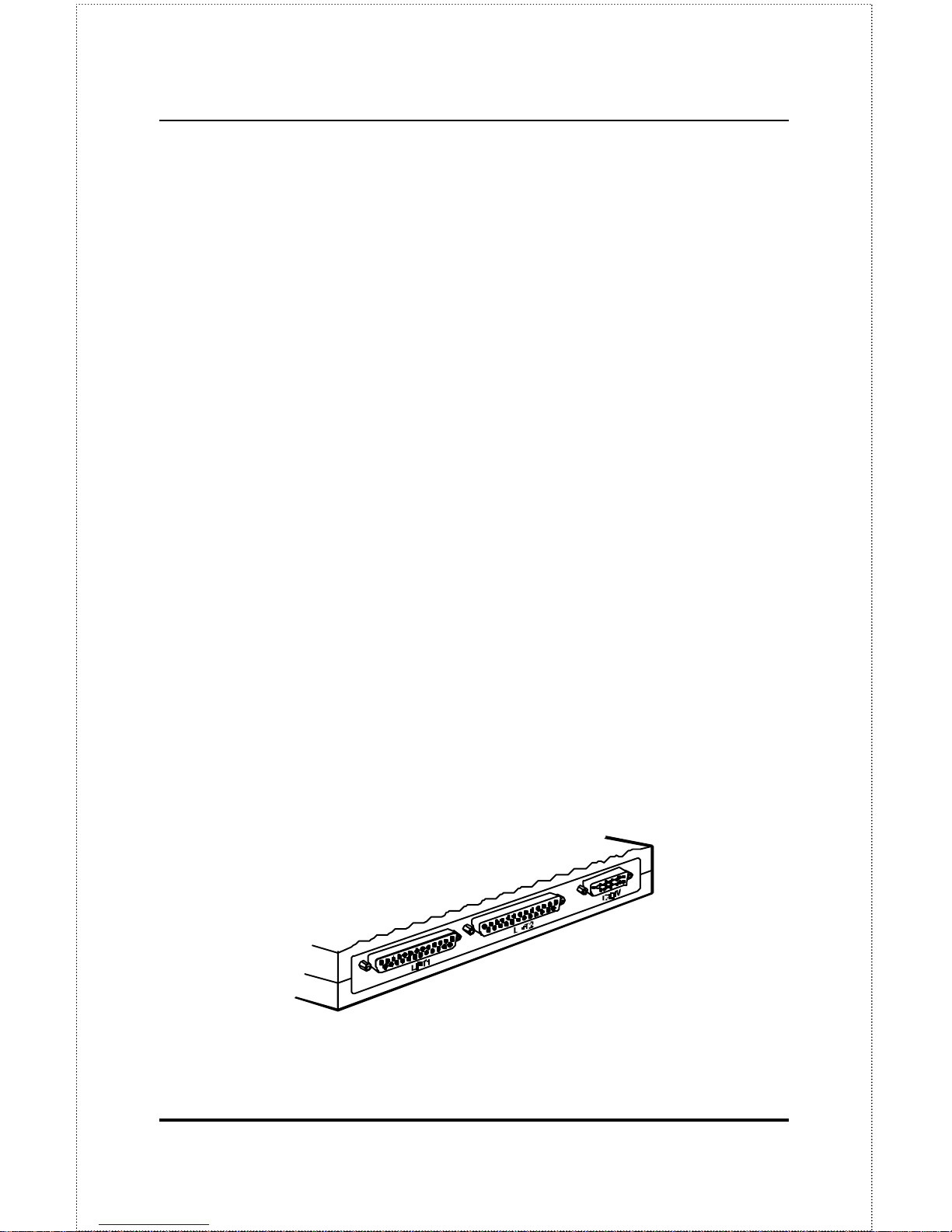

Figure 1 -2Port Connectors
Introduction
Network Cable Connector
The DP-300+’s right side panel features an RJ-45 connector for
connection to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling (which should be Category 5 twisted-pair
cable). The port supports the NWay protocol, allowing the print
server to automatically detect or negotiate the transmission
speed of the network.
DC Power Connector
The DC power input connector is located on the DP-300+’s
right side panel and is labeled DC 5V.
Figure 1 -3Print Server Right Side Panel
LED Indicators
The front panel of the DP-300+ features five LED indicators:
Figure 1 -4Front Panel LED Indicators
