Before You Begin

DP-300U Multi-Port Print Server

Check Your Package Contents

DP-300U

D-Link Fast Ethernet

Print Server

5V DC 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage this

product and void its

warranty.

This product can be setup using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 7.0

You will need an Ethernet-enabled device, such as a laptop or desktop computer

and a USB or parallel-port printer that will connect to the DP-300U.

Important: TURN OFF the power to the printer before installing

the DP-300U.

First, insert one end of a straight-through CAT5 Ethernet RJ-45 cable

into the “Network Port” (shown below.) Connect the other end of the

cable to the LAN port of the gateway or switch. Note: Do not connect

the power cord to the DP-300U until you are advised to do so

Next, make sure that the Printer is turned OFF.

Using the USB cable or printer cable, connect one end of the cable to

the USB or parallel port of the DP-300U (shown below) and the other

end to the USB or parallel port of the printer.

Turn ON the printer.

Then, plug one end of the power adapter into the DP-300U and the

other end into your electric outlet.

The DP-300U will turn on and begin a self-test.

Connecting The DP-300U To Your Network

Parrallel Port 1 Parrallel Port 2 USB Port Network Port

Power Plug

The USB Port is designed only for

direct connection to USB Printer. No

other USB devices will be recognized.

For Mac OS printing, please refer to users manual located on CD-ROM.

Setting up your DP-300U for network

printing in Windows XP

The factory default IP address of the DP-300U is 192.168.0.10. In order to

print to the printer(s) through the DP-300U, the DP-300U must have the

same IP network settings as your network. IP address can be assigned

manually or automatically by DHCP, BOOTP or RARP. To access the

print server’s web configuration, manually assign an IP address on one of

the PC’s on your network to the same subnet as the print server.

For additional Windows operating system setup or information

on the web-management interface, refer to the manual located

on the CD-ROM.

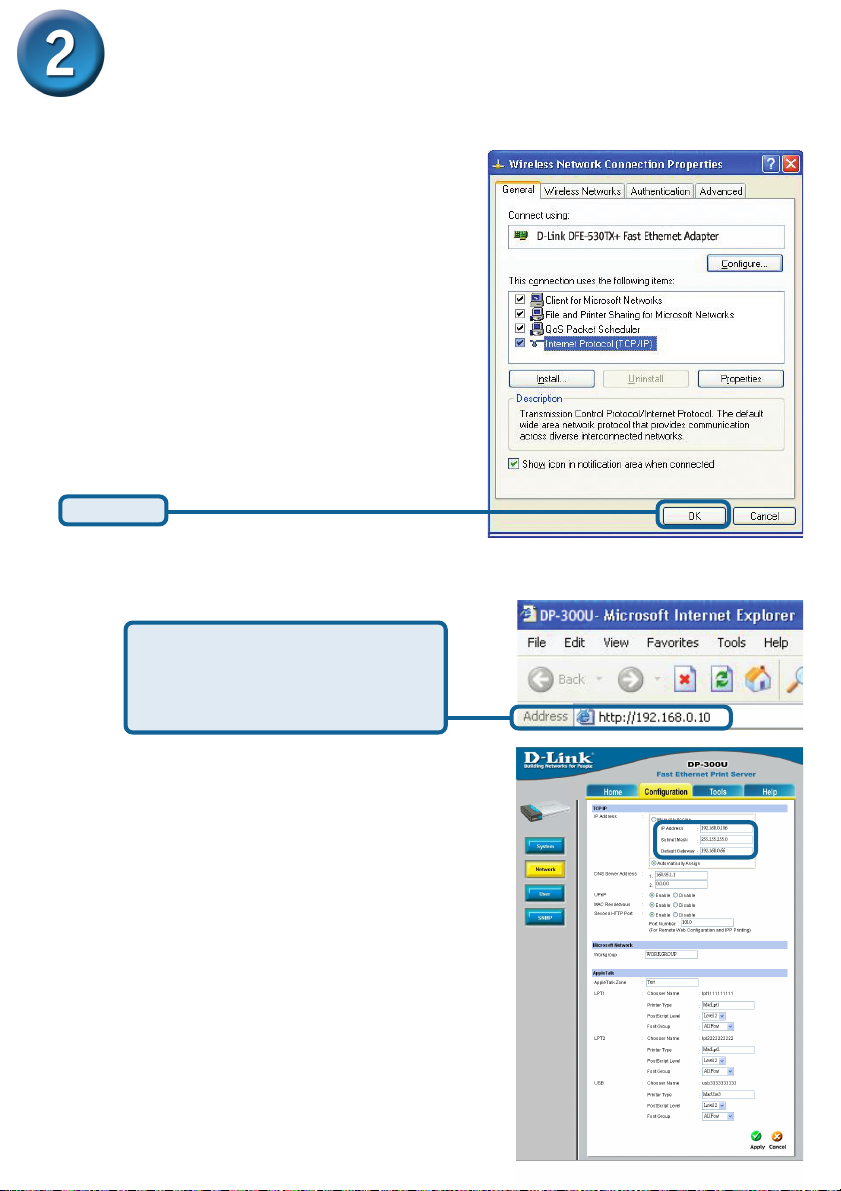

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with your Network Adapter.

Input a static IP address in the

same range as the print server.

Click OK

Click Internet Protocol (TCP/IP)

Click Properties

Select Use the following IP address

IP address: 192.168.0.52

Subnet mask: 255.255.255.0

Setting up your DP-300U for network

printing in Windows XP (continued)

Using your web browser enter

the IP address of the DP-300U.

By default the IP address is set

to 192.168.0.10

The IP address of the DP-300U can

be modified on the Network tab of

the web configuration menu.

The following instructions use the

print server’s default IP address as

an example. Make the appropriate

changes if you modify the DP-300Us

IP address.

Click OK

Click OK to apply IP address

settings.

Setting up your DP-300U for network

printing in Windows XP (continued)

Click Next

Write down on a piece of paper

the Port name that you wish to use.

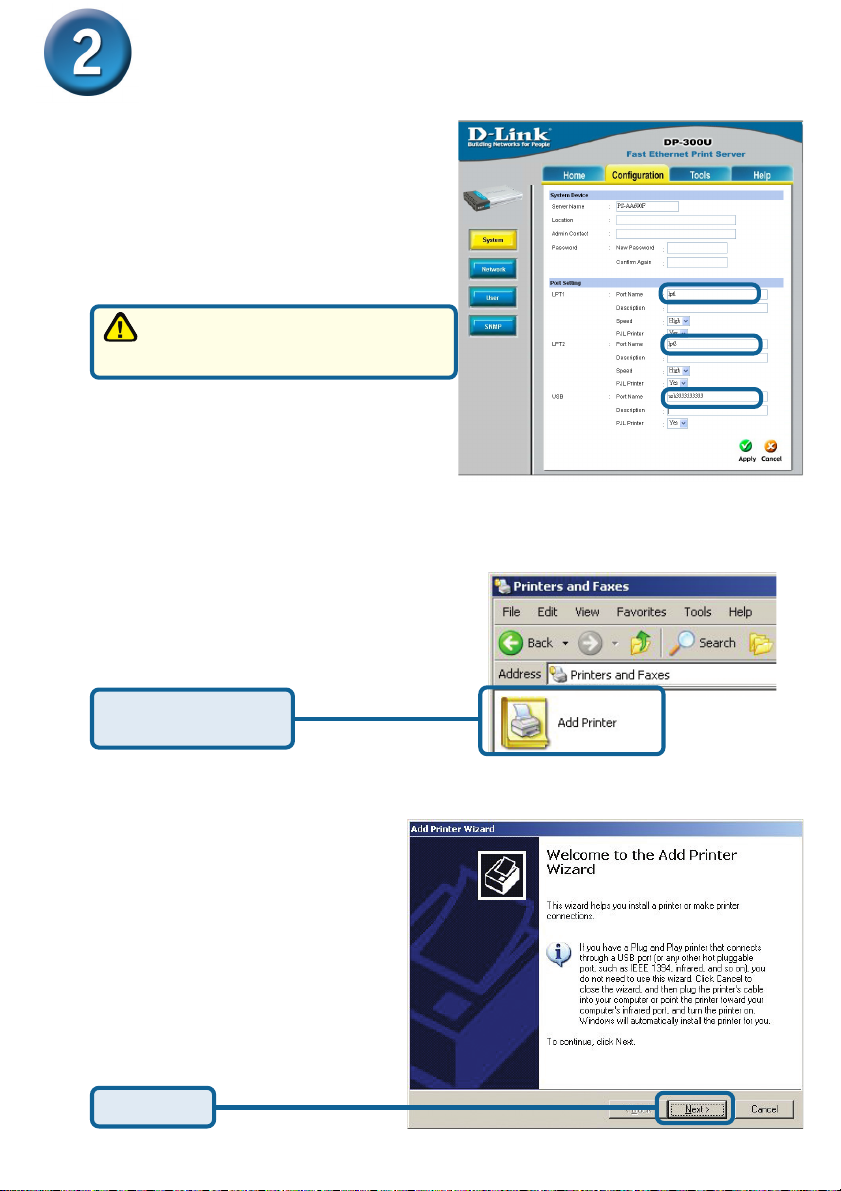

For Windows XP:

Go to Start>Printers and Faxes>Add

a Printer or Go to Start>Control

Panel> Printers and Faxes

Double-click on the

“Add Printer” icon

Click on the Configuration tab to

view the current Port Settings.

Setting up your DP-300U for net-

work printing in Windows XP

(continued)

Select “Create a new port.”

At the pull-down menu,

highlight “Standard TCP/IP

Port.”

Click Next

Select “Local Printer.”

Click Next

Please make sure to

deselect Automatically

detect and install my

Plug an Play printer.

Click Next

Setting up your DP-300U for network

printing in Windows XP (continued)

Click OK

Input the port name of

the port being used by

the printer

Select “LPR”

Type in the IP address of the

print server. (i.e. 192.168.0.10)

The port name will

automatically be filled in.

Select “Custom”

Then click on Settings.

Click Next

Click Settings

This may take a few seconds

Setting up your DP-300U for network

printing in Windows XP (continued)

In this window, scroll down to find

your printer. (If it is not listed, insert

the driver CD or diskette that came

with your printer.)

Click on “Have Disk.”

Then, scroll down and highlight the

printer.

Click Finish

Click Next

Your Setup is Complete!

The printer is now ready for printing

with Windows XP, on your network.

Click Finish

Select “Yes” to print a test page

At this screen, you can input a

name for this printer.

Click Next

Setting up your DP-300U for network

printing in Windows XP (continued)

Technical Support

You can ﬁnd software updates and user documentation on the

D-Link website.

Tech Support for customers within Australia:

D-Link Technical Support over the Telephone:

1300-766-868

Monday to Friday 8:00am to 8:00pm EST

Saturday 9:00am to 1:00pm EST

D-Link Technical Support over the Internet:

http://www.dlink.com.au

email:[email protected]

Tech Support for customers within New

Zealand:

D-Link Technical Support over the Telephone:

0800-900-900

Monday to Friday 8:30am to 8:30pm

Saturday 9:00am to 5:00pm

D-Link Technical Support over the Internet:

http://www.dlink.co.nz

email:[email protected]
