DWL-7700AP User’s Manual

D-Link Systems, Inc.

Table of Contents

Table of Contents ............................................................................. 2

Package Contents ............................................................................ 3

Introduction ..................................................................................... 4

Features and Beneﬁts ....................................................................... 5

Four Operational Modes ................................................................... 6

Using the Conﬁguration Menu ......................................................... 7

Using the AP Manager ................................................................... 44

Networking Basics ......................................................................... 76

Troubleshooting ............................................................................. 92

Technical Speciﬁcations ................................................................. 98

Contacting Technical Support ...................................................... 101

Warranty .................................................................................... 102

Registration ................................................................................. 106

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Package Contents

Minimum System Requirements

Note: Using a power supply with a different voltage than the one included with the

DWL-7700AP will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

 Computers with Windows, Macintosh, or Linux-based operating systems with

an installed Ethernet Adapter

 Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above

Package Contents

 D-Link AirPremierTM DWL-7700AP

11a/11g Dualband High Speed Outdoor Wireless AP/Bridge

 Eight screws & one rubber ring

 Two rubber dipole antennas

 Manual on CD

 Quick Installation Guide

 2 Mounting Kits

 PoE base unit

 Power adapter

 Power cord

 RF jumper cable

 Grounding wire

 Surge arrestor

 30m Ethernet cable

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Introduction

The DWL-7700AP covers a large operating distance, providing an 802.11a/g outdoor

WLAN which enables users to access the Internet or an organization’s network.

The D-Link AirPremierTM DWL-7700AP features a die-cast watertight housing and a built-

in lightning protector to protect the access point from harsh environmental conditions,

including extreme variance in temperature. It also includes Power over Ethernet (POE)

and a unique outdoor remote-mounted design for easy installation. With two mounting

kits, you have the option of either pole or wall mounting.

The DWL-7700AP is suitable for manufacturing plants, industrial sites, military bases,

universities, hotels, airports and golf courses.

Conﬁgurable in four different modes (access point, bridge, multi-point bridge, and

wireless client), the DWL-7700AP offers 152-bit encryption, WPA and 802.1X

authentication when used with a RADIUS server, MAC address access control, and

additional security features.

The DWL-7700AP is easy to manage with its Web-based user interface and Telnet

conﬁguration. For Enterprise networks, the DWL-7700AP supports SNMP v.3 network

administration and real-time network trafﬁc monitoring via D-Link’s D-View Network

Management software.

At up to ﬁve times the speed of previous wireless devices, you can work faster and

more efﬁciently, increasing productivity. With the DWL-7700AP, bandwidth-intensive

applications like graphics or multimedia will beneﬁt signiﬁcantly because large ﬁles are

able to move across the network quickly.

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Features and Beneﬁts

 Ideal for Internet Hotspots - Provides outdoor users with wireless Internet

access.



Features and Beneﬁts

Robust Outdoor Housing - Designed for harsh outdoor environments, with

die-cast, watertight housing, built-in heater and temperature sensor.

4 Different Operation modes with WDS (Wireless Distribution System) - Capable

of operating in one of four different operation modes to meet your wireless networking

requirements: access point (AP), Point-to-Point (PtP) bridge,

Point-to-multipoint (PtMP) bridge, or wireless client.

Embedded DHCP Server automatically assigns IP addresses to wireless clients.

Connect networks in different buildings when used in conjunction with

D-Link’s high-gain outdoor antennas.

Easy Installation with 802.3af PoE.



“Maximum wireless signal rate based on IEEE Standard 802.11a and 802.11g speciﬁcations. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trafﬁc, building materals and construction, and net-

work overhead lower actual data throughput rate.”

Better security with ACL,WPA, AES and 802.1X- The DWL-7700AP can securely

connect to wireless clients on the network using WPA (Wi-Fi Protected Access)

providing a much higher level of security for your data and communications than

has previously been available. In conjunction with a RADIUS server, 802.1X

authentication veriﬁes the identity of would-be clients.



Compatible with IEEE802.11a and IEEE802.11g standards to provide a wireless

data rate of up to 54Mbps.*



Backward compatible with the 802.11b standard to provide a wireless data rate

of up to 11Mbps with 802.11b devices - that means you can migrate your system

to the 802.11g standard on your own schedule without sacriﬁcing connectivity.



Supports up to 152-bit WEP encryption and AES (Advanced Encryption

Standard).



Convenient Network Management with the AP Manager - Manage devices on

the network with D-Link’s AP Manager.



Communicate between IEEE802.11a and IEEE802.11g bands - Optional

conﬁguration allows communication between bands.



Two mounting kits - Gives you the ﬂexibility of either wall or pole outdoor

mounting.



DWL-7700AP User’s Manual

D-Link Systems, Inc.

Four Operational Modes

AP Mode

Bridge Mode

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

To conﬁgure the DWL-7700AP, use a computer which is connected to the DWL-7700AP

with an Ethernet cable (see the Network Layout diagram).

First, disable the Access the Internet using a proxy server function. To disable this

function, go to Control Panel > Internet Options > Connections > LAN Settings

and uncheck the enable box.

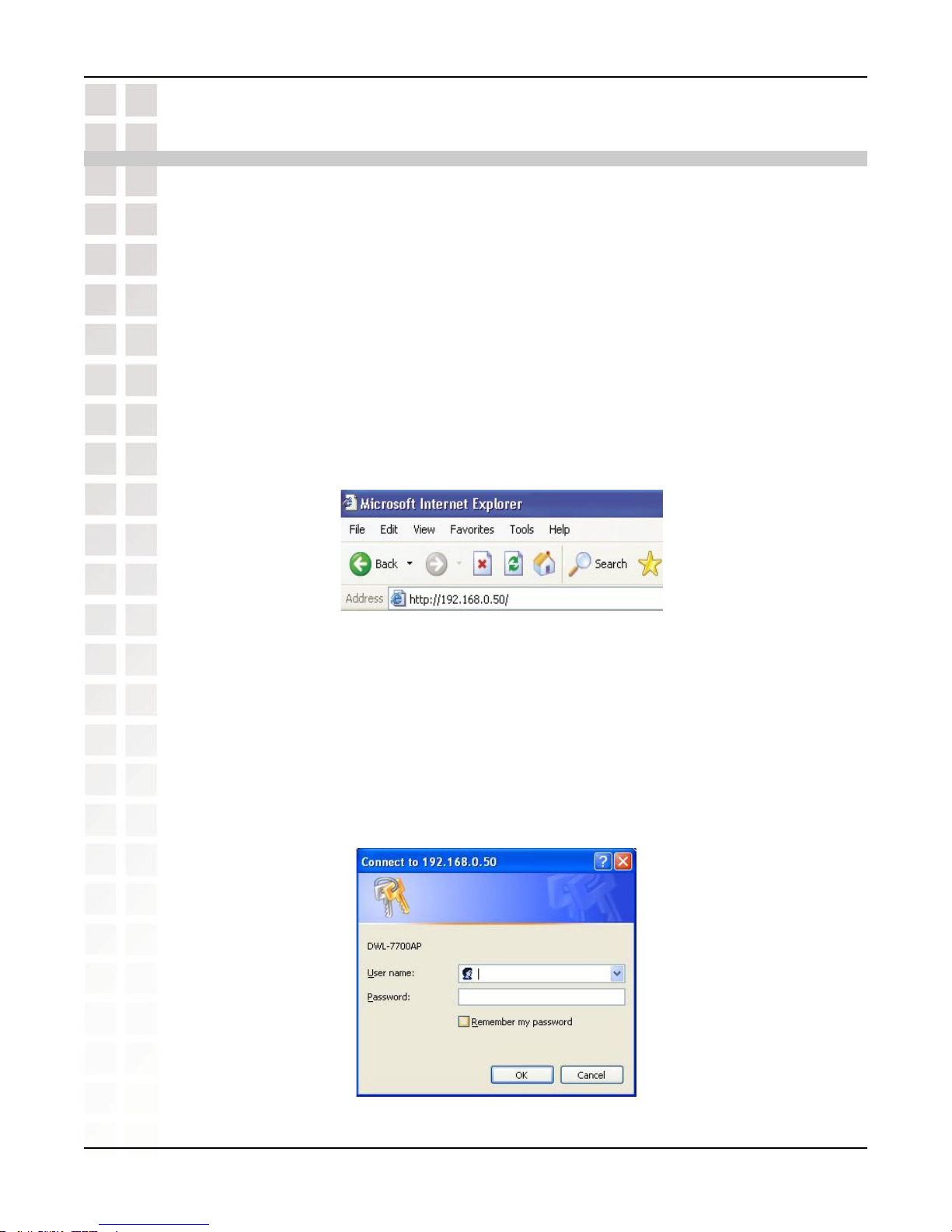

Start your web browser program (Internet Explorer, Netscape Navigator).

Type the IP address and http port of the DWL-7700AP in the address ﬁeld

(http://192.168.0.50) and press Enter. Make sure that the IP addresses of the

DWL-7700AP and your computer are in the same subnet.

After the connection is established, you will see the user identiﬁcation window as

shown.

Note: If you have changed the default IP address assigned to the DWL-7700AP, make sure to enter

the correct IP address.



Type admin in the User Name ﬁeld

Leave the Password ﬁeld blank

Click OK

Note: If you have changed the password, make sure to enter the correct password.

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

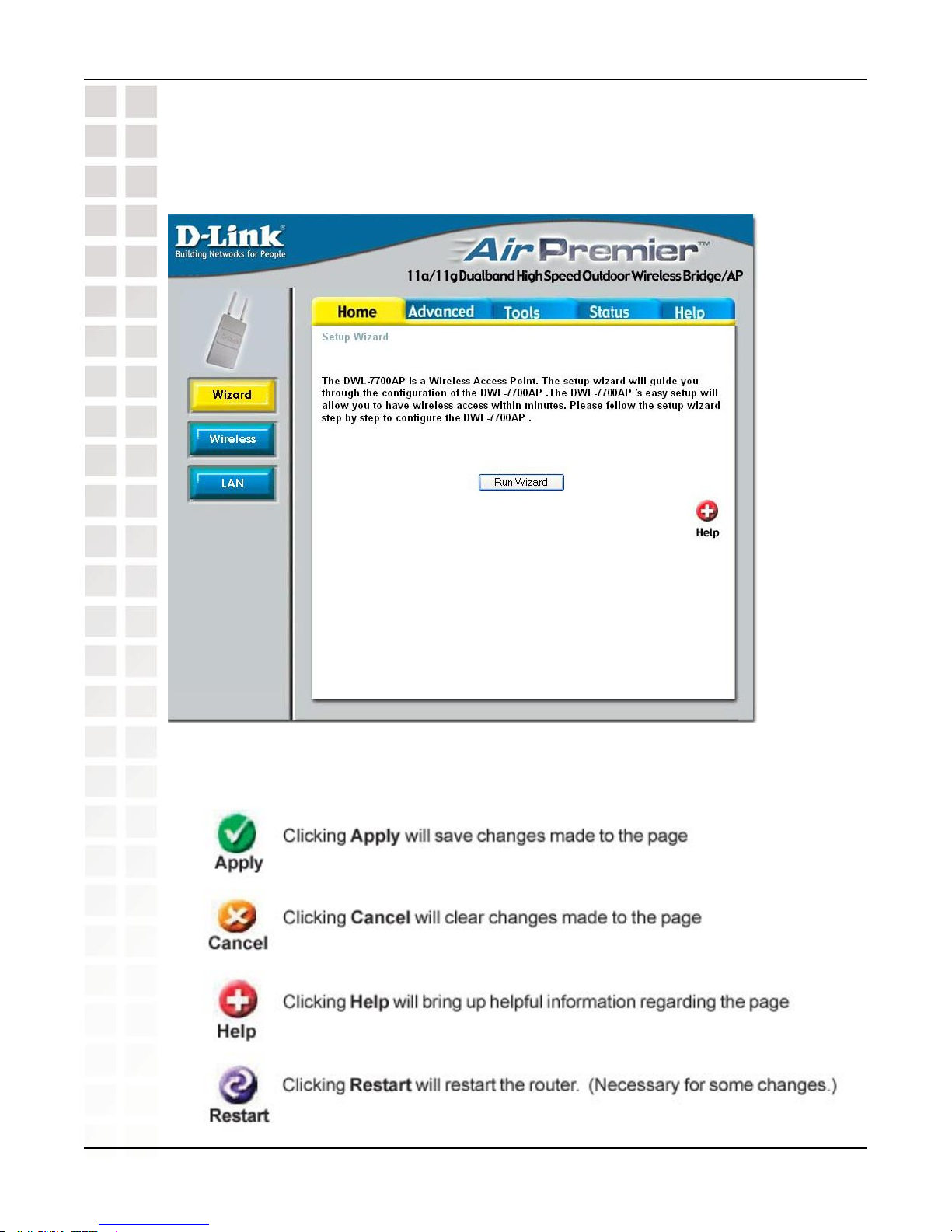

The Home>Wizard screen will appear. Please refer to the Quick Installation Guide for

more information regarding the Setup Wizard.

These buttons appear on most of the conﬁguration screens in this section. Please

click on the appropriate button at the bottom of each screen after you have made a

conﬁguration change.

Home > Wizard

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Home > Wireless > 802.11a

Service Set Identiﬁer (SSID) is the name designated for a speciﬁc

wireless local area network (WLAN). The SSID’s factory default

setting is default. The SSID can be easily changed to connect to an

existing wireless network or to establish a new wireless network.

Enable or Disable SSID broadcast. Enabling this feature broadcasts

the SSID across the network.

52 is the default channel. All devices on the network must share the

same channel. (Note: The wireless adapters will automatically scan

and match the wireless setting.)

The radio frequency will vary depending on the wireless channel

that is chosen. The frequency in channel 52 is 5.26GHz.

SSID:

SSID Broadcast:

Channel:

Radio Frequency:

Wireless Band: 802.11a is selected here.

Choose the wireless band from the pulldown menu.

5.26GHz

DWL-7700AP User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Home > Wireless > 802.11g

Service Set Identiﬁer (SSID) is the name designated for a speciﬁc

wireless local area network (WLAN). The SSID’s factory default

setting is default. The SSID can be easily changed to connect to an

existing wireless network or to establish a new wireless network.

Enable or Disable SSID broadcast. Enabling this feature broadcasts

the SSID across the network.

6 is the default channel. All devices on the network must share the

same channel. (Note: The wireless adapters will automatically scan

and match the wireless setting.)

The radio frequency will vary depending on the wireless channel

that is chosen. The frequency in channel 6 is 2.412GHz.

SSID:

SSID Broadcast:

Channel:

Radio Frequency:

Wireless Band: 802.11g is selected here.

Choose the wireless band from the pulldown menu.
