DAP-2330 Install Guide 1
DAP-2330 Quick Install Guide
This installation guide provides basic instructions for installing the DAP-2330 Wireless
Gigabit PoE Access Point on your network. For additional information about how to use the
Access Point, please see the User Manual which is available on the CD included in this
package or from the D-Link support website.
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• Router, switch, or computer with installed Ethernet adapter
• Internal Explore 11, Safari 7, Firefox 28, Google Chrome 33
1. Package Contents
DAP-2330 802.11n Gigabit PoE Access Point
Power Adapter
Mounting Brackets
Ethernet Cable
CD-ROM
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage than the one included with the DAP-2330
will cause damage and void the warranty for this product.
2DAP-2330 Install Guide

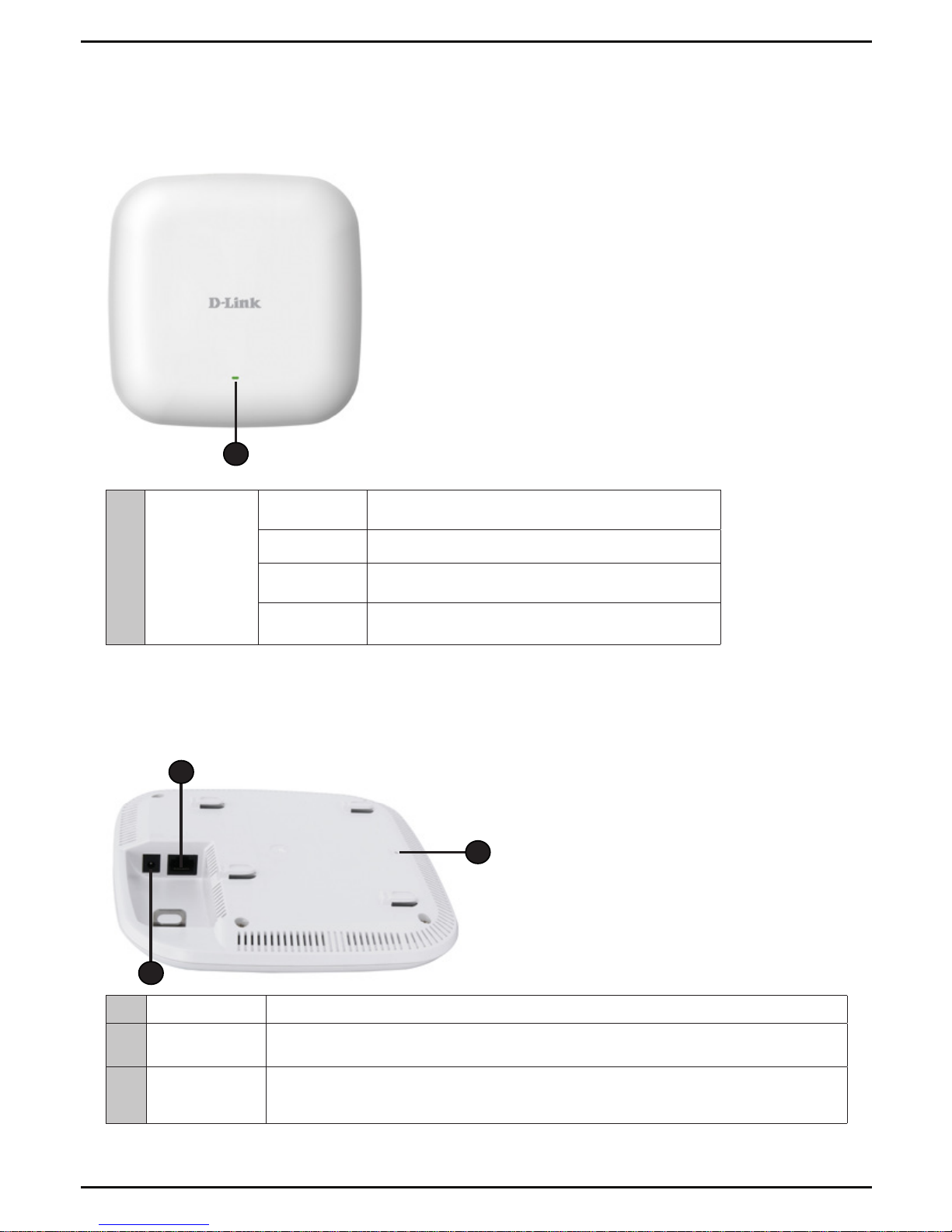

Hardware Overview
LEDs
1
Connections
1Power/Status
Solid Red Indicates the access point has malfunctioned.
Blinking Red This LED will blink during boot-up.
Solid Green Indicates that the DAP-2330 is working properly.
Blinking Green This light will blink green during data transmission.
2Power Receptor Connect the supplied power adapter.
3LAN (PoE) Port Connect to a Power over Ethernet (PoE) switch or router via an Ethernet cable.
4Reset Button Press and hold for ve seconds to reset the access point to the factory default settings. Press and
hold for one second to reboot the access point.
4
2
3
DAP-2330 Install Guide 3
Hardware Setup
To power the access point, you can use one of the following 3 methods:
Method 1 - Use if you have a PoE switch or router.
Method 2 - Use if you do not have a PoE switch or router and do not have a
power outlet near the location of the access point.
Method 3 - Use if you do not have a PoE switch or router and have a power
outlet near the location of the access point.
DAP-2330
PoE Switch or Router

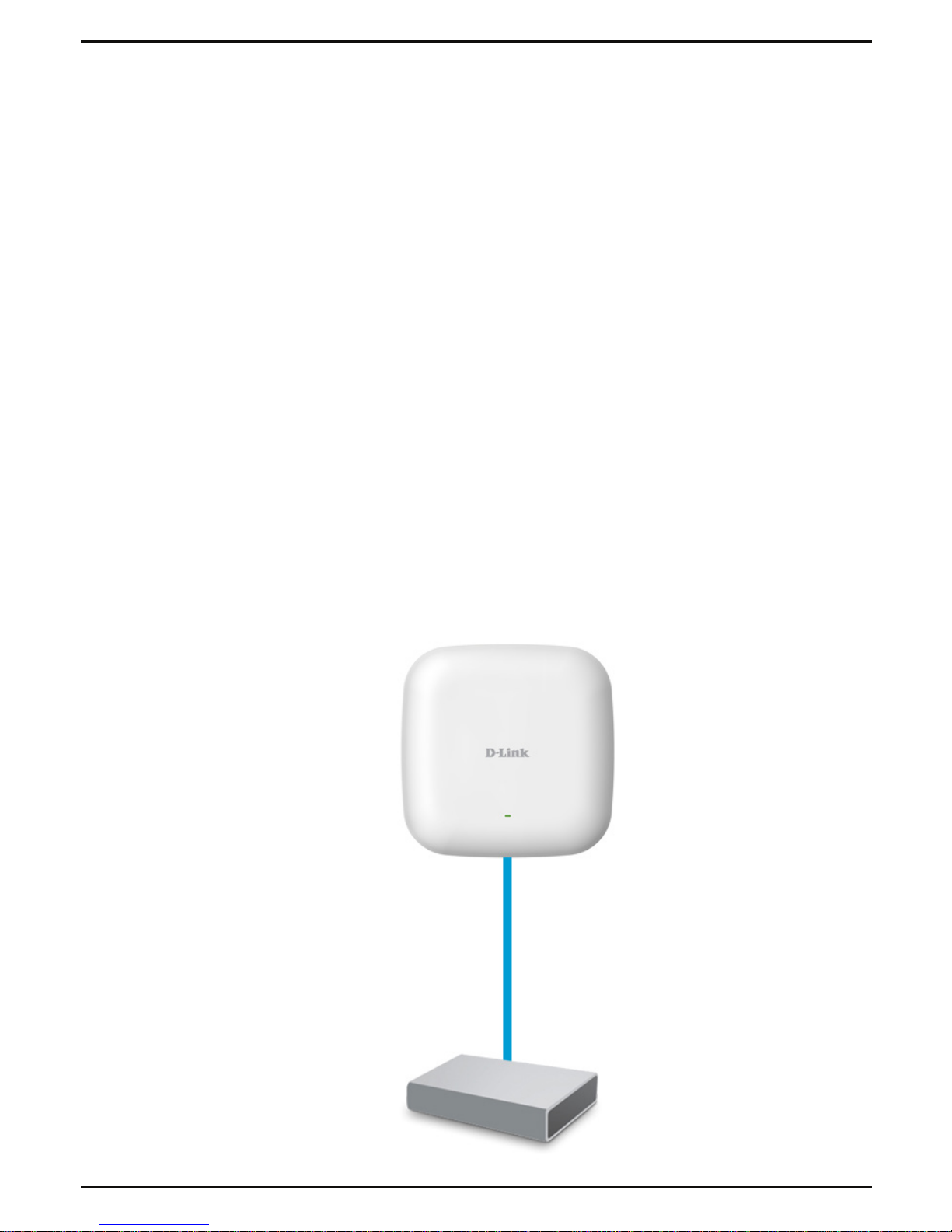

Method 1 - PoE with PoE Switch or Router
1. Connect one end of your Ethernet cable to the LAN (PoE) port on the access point.
2. Connect the other end into one port on a PoE switch or router.
Basic Installation
4DAP-2330 Install Guide
Method 2 - PoE without PoE Switch or Router
1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit and the
other end into one port on your switch, router, or computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and
the other end into the LAN (PoE) port on the Access Point.
3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on
the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end into a
power outlet.
DAP-2330
Power Adapter
PoE Base Unit
DAP-2330 Install Guide 5

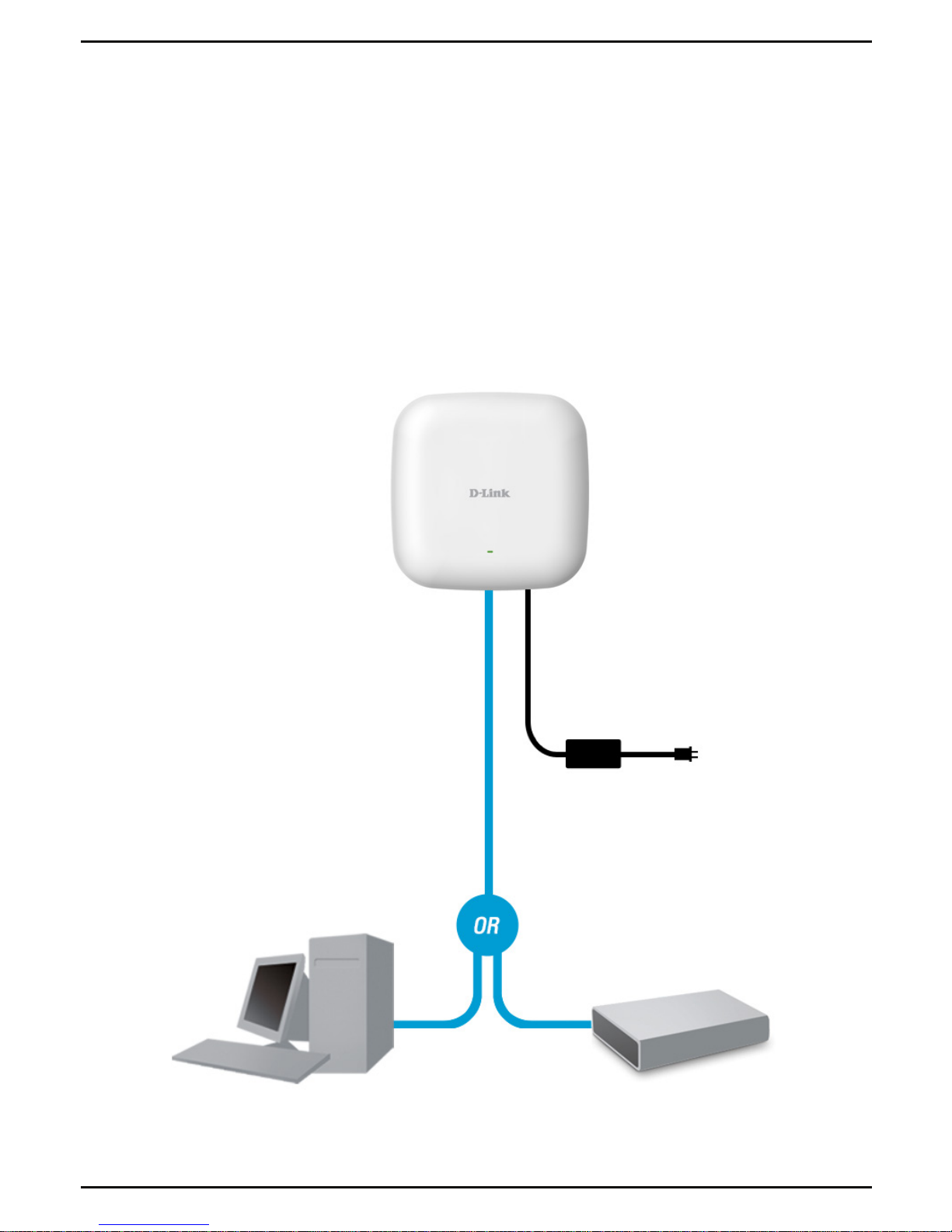

Method 3 - No PoE
1. Connect one end of your Ethernet cable into the LAN (PoE) port and then connect the
other end to a switch, router, or computer.
2. Use the supplied power adapter. Connect the power adapter to the Power receptor on the
Access Point.
3. Connect the power cable to the power adapter and then connect the other end into a
power outlet.
DAP-2330
Switch or Router
PC
Power Adapter
6DAP-2330 Install Guide
2. Connect the access point and your computer to the same switch. Manage the
access point from the computer.
Enter 192.168.0.50 in the address field of your browser, which is the default IP
address of the access point.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: (Leave the password field blank)
Power on the access point
To power on the DAP-2330, you can use ONE of the following methods:
1. Connect the supplied power adapter, OR
2. Plug one end of your Ethernet cable into the LAN port of the DAP-2330, and the
other end into a port on a PoE switch.
Congure the access point
To set up and manage the DAP-2330, use one of the following methods:
1. Connect the access point and your computer directly via a straight-through
Ethernet cable. Manage the access point from the computer.
Ensure your computer is congured with a static IP address in 192.168.0.0/24
subnet.
Launch a web browser, type the default IP address of the access point
(http://192.168.0.50) and then press Enter.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: (Leave the password eld blank)
ComputerDAP-2330
3. Installation
DAP-2330 Install Guide 7
Solid wall or ceiling

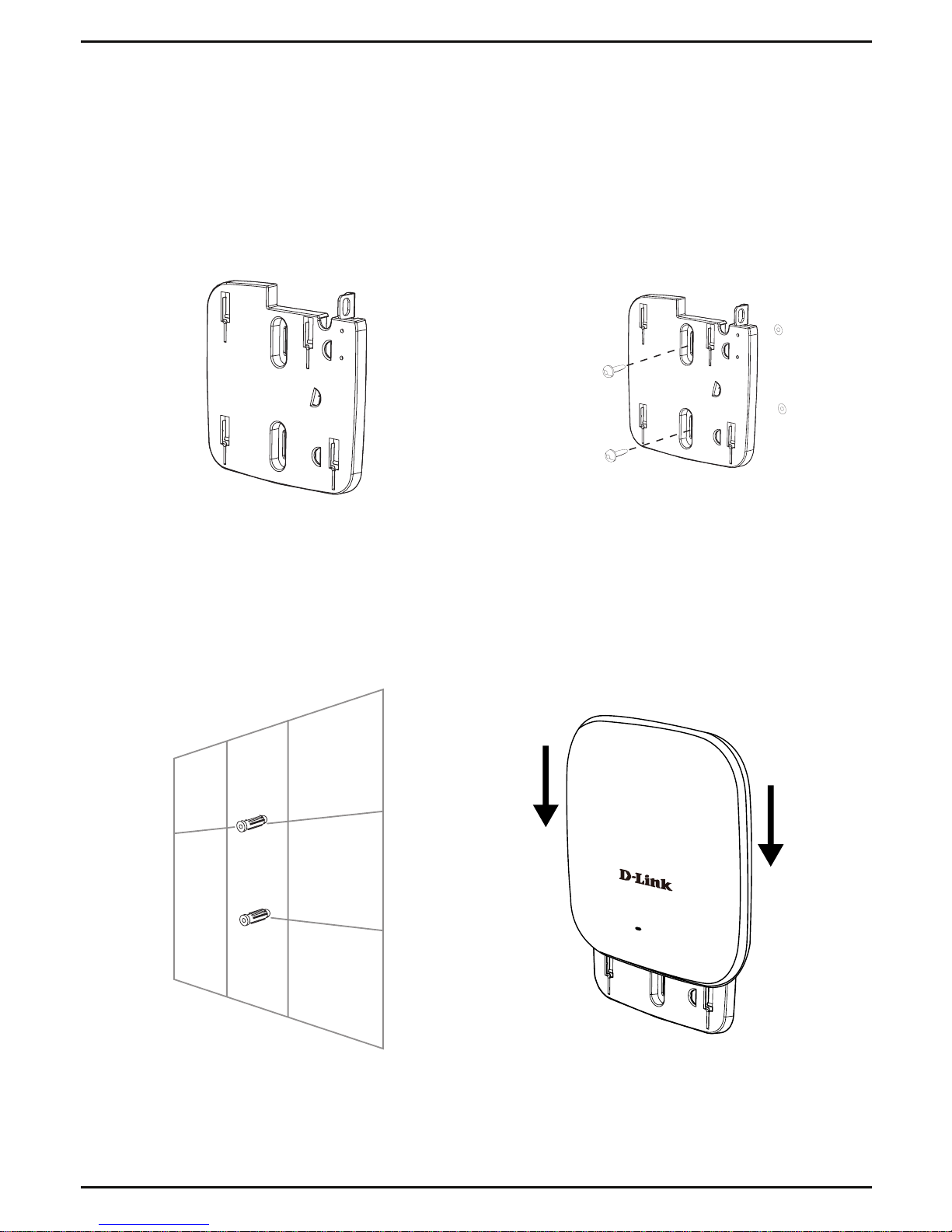

Installation
1. Place the mounting bracket on a wall or
ceiling.
5. Plug the Ethernet cable into the
Ethernet LAN port on the access point.
6. Attach the Access Point to the backet
and slide it down to lock into place.
2. Use a pencil to mark the holes.
3. Drill holes in the marked points and
insert the plastic wall anchors.
4. Use the supplied screws to attach the
mounting bracket to the wall.
8DAP-2330 Install Guide
1. Clip two ceiling brackets onto the ceiling
panels. Make sure both brackets are in
line with each other.
2. Use the provided screws to attach the
mounting bracket to the ceiling bracket.
3. Plug the Ethernet cable into the
Ethernet port on the access point.
4. Attach the Access Point to the bracket
and slide it into place.
Ceiling bracket
Ceiling crossbar
Mounting with a ceiling bracket
Installation
