This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

DWL-700AP

D-Link AirTM

Wireless Access Point

5V 2ADC Power Adapter

Before You Begin

Check Your Package Contents

DWL-700AP WirelessAccess Point

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for

configuringtheDWL-700AP.The default IPaddress for theDWL-700APis

192.168.0.50 with a Subnet Mask of 255.255.255.0. You will need to assign your

computer a Static IP address within the same range as the DWL-700AP’s IPaddress

for the purpose of configuring the DWL-700AP. See the Manual on the CD-ROM if you

need assistance in assigning a Static IP address for your network adapter.

specificationssubjecttochangewithoutnotice.DWL-700AP.06062003

Connecting The DWL-700AP Wireless Ac-

cess Point To Your Network

A. First, connect the power adapter to the receptor at the back panel of the

DWL-700AP and then plug the other end of the power adapter to a wall outlet

orpower strip. The Power LED will turnON toindicateproperoperation.

B. Using a Ethernet cable, insert one end of the cable to the LAN port on the

back panel of the DWL-700AP and the other end of the cable to a switch.

Note:You also have the option of connecting the DWL-700AP directly to the

computer that will be used for configuration. The Link LED light will illuminate

to indicate a proper Ethernet connection.

C. Computers with 802.11b wireless adapters such as the DWL-650 Air

Wireless CardbusAdapter and the DWL-520 Air Wireless PCIAdapter can

connect to the DWL-700AP. By default, the DWL-700AP SSID is set to

‘default’ with a Channel setting of ‘6’.

C.Antenna

Used to wirelessly

connectto802.11b

networks.

B.LAN Port

This is the connection for

Ethernet cables to your

Ethernet-enableddevice.

A.Receptorfor

Power Adapter

Reset Button

Using The Setup Wizard

Open your Web

browser and type

“http://192.168.0.50”

intotheURLaddress

box.Thenpressthe

Enter orReturn key.

Thelogonpop-up

screenwill appear.

Type “admin” for the

usernameand leavethe

passwordfieldblank.

ClickOK

http://192.168.0.50

admin

Onceyouhave

logged in, the Home

screenwill appear.

Click Run Wizard

Click Next

Step 1 - Set up your new

password.Youhave the

option to establish a

password.

Step 2 - Set Wireless LAN

Connection

BydefaulttheDWL-700AP

SSID is set to ‘default’ with

a Channel setting of ‘6’.

Click Next

Using The Setup Wizard (continued)

Youwillseethe

followingscreens.

Click Next

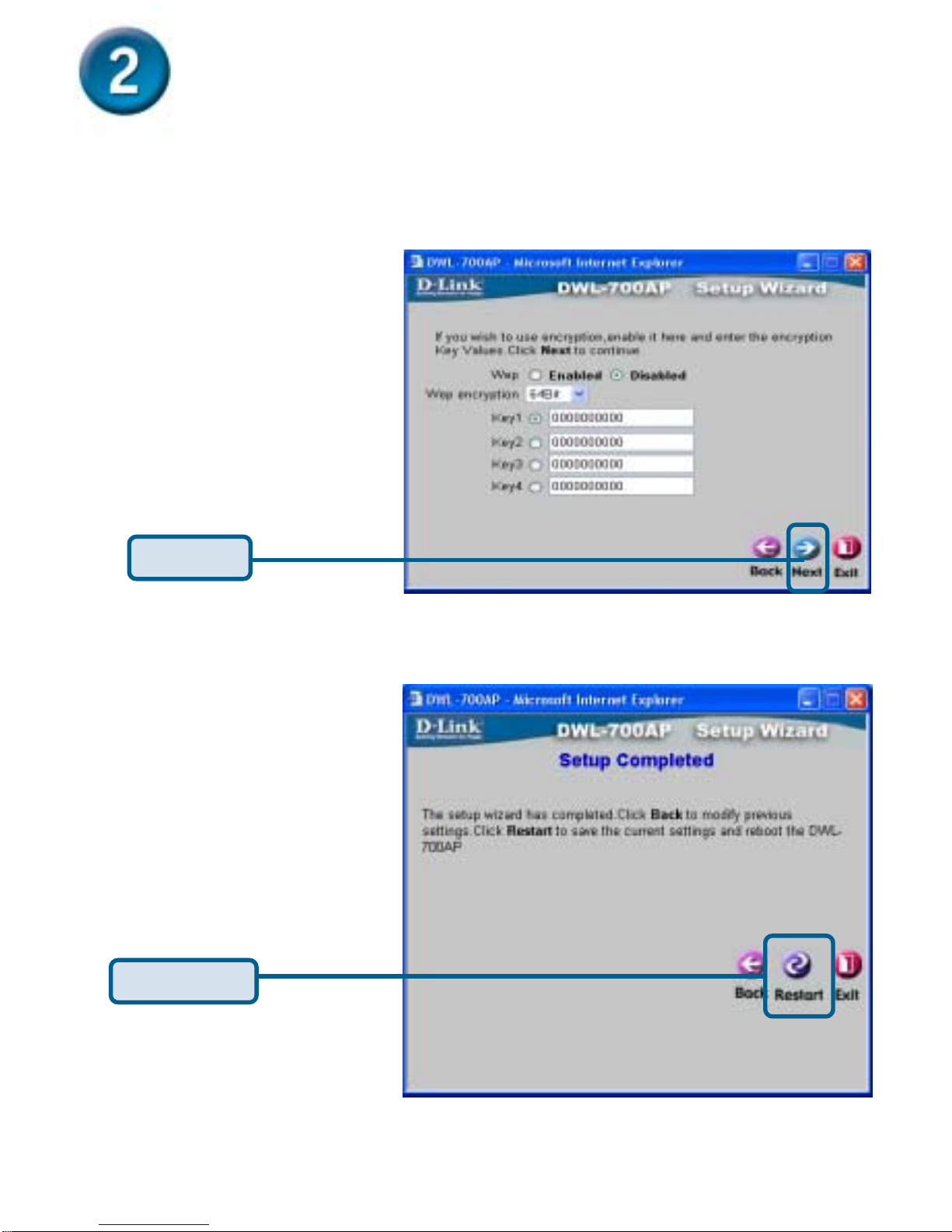

Step 3 - Encryption

TheDWL-700APis capable

oftwolevelsofwireless

encryption-64-bit,and128-

bit. By default encryption

is disabled. You can

changetheencryption

settingsformoresecure

wirelesscommunication.

Click Next

ClickRestart

Using The Setup Wizard (continued)

Your Setup is Complete!

ClickClose

You willbe returned tothe Home tab. Pleasecloseallinternet browser

windows.

Whenyouhavecompletedthe

steps in this Quick Installation

Guide,your connected network

should look similar to this:

Connecting to the DWL-700AP

Usingthe Air Wireless

Utillityincludedwiththe Air

Adapters,you canbrowse

andconnect tothe DWL-

700AP.

TheLinkInfopageof the

Airutilitywillshowthe

connectionstatusbetween

the DWL-700APand Air

wirelessadapter.

The MAC address of the

DWL-700AP is listed on

the product sticker on the

bottom of the unit.

Technical Support

You can find software updates and user documentation on the D-Link website.

D-LinkprovidesfreetechnicalsupportforcustomerswithintheUnitedStatesand

withinCanadaforthedurationof the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website,or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877)453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800)361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
