2DAP-2680 Install Guide
DAP-2680 Quick Install Guide
This installation guide provides basic instructions for installing the DAP-2680 Wireless Access Point
on your network. For additional information about how to use the Access Point, please see the
User’s Manual which is available on the CD included in this package or from the D-Link support
website.
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• an Ethernet port, or an installed Ethernet adapter
• Internal Explore 11, Safari 7, Firefox 28, Google Chrome 33 or later versions of these
browsers
Package Contents
DAP-2680 802.11ac Power over Ethernet (PoE) Access Point
Mounting Brackets
Ceiling Brackets
Ethernet Cable
CD-ROM
Quick Install Guide
If any of the above items are missing, please contact your reseller.
NOTE no PSU supplied. To power the units use an D-Link 802.3at PoE switch or the D-Link
DPE-301GI PoE injector.
DAP-2680 Install Guide 3

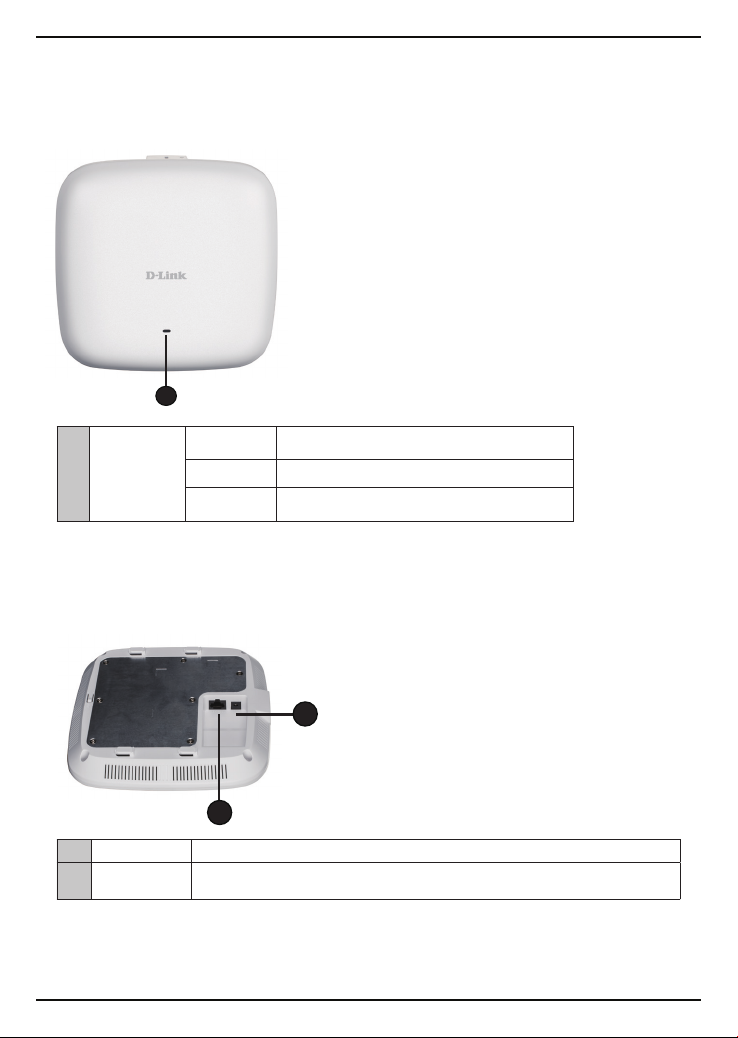

Hardware Overview
LEDs
1
Connections
1Power/Status
Solid Red Solid Red while boot up fail
Blinking Red Flash Red during booting up or malfunction
Solid Green Static Green while it’
2Power Receptor Connect the supplied power adapter.
3LAN (PoE) Port Connect to a Power over Ethernet (PoE) switch or router via an Ethernet cable.
2
3
4DAP-2680 Install Guide
Installation
Power on the access point
To power on the DAP-2680, you can use ONE of the following methods:
1. Plug one end of your Ethernet cable into the LAN port of the DAP-2680, and the
other end into a port on a 802.3at PoE Switch.
2. Purchase separately a DPE-301GI PoE injector if you need to connect the Access
Point without a 802.3at PoE Switch.
Congure the access point
To set up and manage the DAP-2680, use one of the following methods:
1. Connect the access point and your computer to the same switch. Manage the
access point from the computer.
Enter 192.168.0.50 in the address field of your browser, which is the default IP
address of the access point.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: (Leave the password field blank)
2. Connect the access point and your computer via DPE-301GI. Manage the access
point from the computer.
Ensure your computer is congured with a static IP address in 192.168.0.0/24 subnet.
Launch a web browser, type the default IP address of the access point
(http://192.168.0.50 or https://192.168.0.50) and then press Enter.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: (Leave the password eld blank)
OR
Computer
802.3at PoE Switch
DAP-2680
Computer
PoE Injector
Power
Adapter
DAP-2680 Install Guide 5
Solid wall or ceiling
Installation
1. Place the mounting bracket on a wall or
ceiling.
5. Plug the Ethernet cable into the
Ethernet LAN port on the access point.
6. Attach the Access Point to the backet
and slide it down to lock into place.
2. Use a pencil to mark the holes.
3. Drill holes in the marked points and
insert the plastic wall anchors.
4. Use the supplied screws to attach the
mounting bracket to the wall.
6DAP-2680 Install Guide
1. Clip two ceiling brackets onto the ceiling
panels. Make sure both brackets are in
line with each other.
2. Use the provided screws to attach the
mounting bracket to the ceiling bracket.
3. Plug the Ethernet cable into the
Ethernet port on the access point.
4. Attach the Access Point to the bracket
and slide it into place.
Ceiling bracket
Ceiling crossbar
Mounting with a ceiling bracket
Installation
7
ENGLISH
GPL Code Statement
This D-Link product includes software code developed by third parties, including
software code subject to the GNU General Public License (“GPL”) or GNU Lesser General
Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information
on obtaining access to the GPL code and LGPL code used in this product, are available
to view the full GPL Code Statement at:
https://tsd.dlink.com.tw/GPL
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY
and is subject to the copyrights of one or more authors. For details, see the GPL code and
the LGPL code for this product and the terms of the GPL and LGPL.
Written Oer for GPL and LGPL Source Code
Where such specic license terms entitle you to the source code of such software, D-Link
will provide upon written request via email and/or traditional paper mail the applicable
GPL and LGPLsource code les via CD-ROM for a nominal cost to cover shipping and
media charges as allowed under the GPL and LGPL.
Please direct all inquiries to:
Email:
Snail Mail:
Attn: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
8
FRANÇAIS
Déclaration relative au code GPL
Ce produit D-Link comprend des codes de logiciel développés par des tiers, y
compris des codes de logiciel soumis à la Licence Publique Générale GNU ( «GPL»)
ou à la Licence Publique Générale GNU Limitée («LGPL»). Le cas échéant,, les
conditions de la GPL et de la LGPL, ainsi que les informations permettant d’accéder
au code GPL et au code LGPL utilisés dans ce produit, sont disponibles pour
consulter la déclaration de code GPL complète au:
http://tsd.dlink.com.tw/GPL
Les codes GPL et LGPL utilisés dans le produit sont distribués SANS AUCUNE
GARANTIE et sont soumis aux droits d'auteur d'un ou de plusieurs auteurs.
Pour plus de détails, reportez-vous aux codes GPL et LGPL de ce produit et aux
conditions de la GPL et de la LGPL.
Ore écrite pour le code source GPL et LGPL
Si des conditions spéciques de la licence vous donnent droit au code source du
logiciel, D-Link fournira, sur demande écrite par courrier électronique et/ou courrier
papier traditionnel, les chiers de code source GPL et LGPL applicables via CD-ROM
à un coût nominal pour couvrir les frais d'expédition et de support comme autorisé
par la licence GPL et LGPL.
Veuillez adresser toutes les demandes à:
Courrier électronique:
Courrier ordinaire:
Attention: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
