PLANNING

GUIDE

ETT304-1, ETT365-2

Renaissance® 30” and 36” Wide,

Electric Cooktops

Document # PG03-002 Revised 10/03/12 Page 1/3

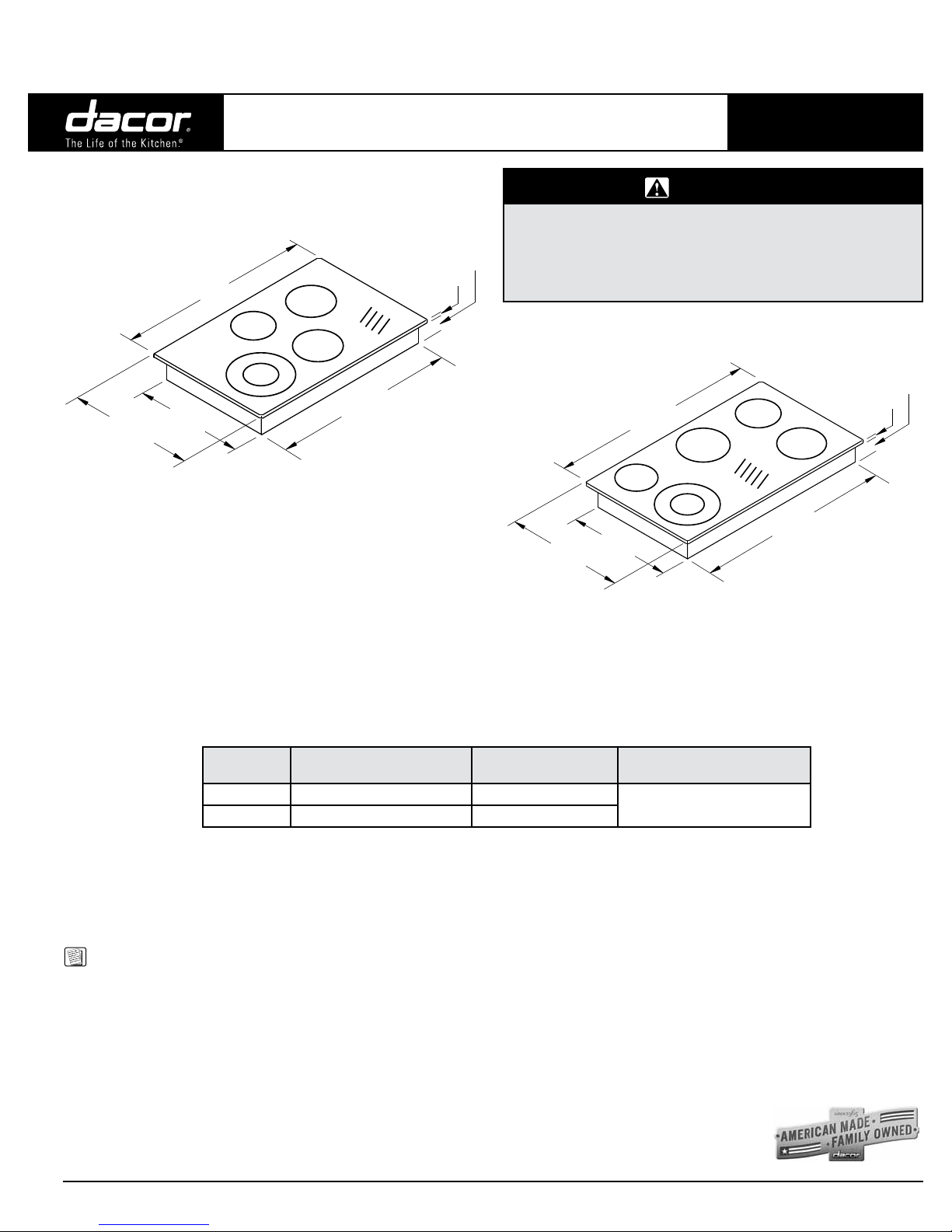

PRODUCT DIMENSIONS - ETT365-2

36 1/4" *

(92.1 cm)

34 3/8"

(87.3 cm)

19 3/8"

(49.5 cm)

21 1/4" *

(54.0 cm)

4” (10.2 cm)

chassis height

3/16” (4.8 mm)

30 1/4" *

(76.8 cm)

28 3/8"

(72.1 cm)

19 3/8"

(49.5 cm)

21 1/4" *

(54.0 cm)

4” (10.2 cm)

chassis height

3/16” (4.8 mm)

PRODUCT DIMENSIONS - ETT304-1

Product tolerances: ±1/16” (±1.6 mm) unless otherwise noted

NOTES:

1. The cooktop is supplied with a flexible, 48 inch long

power conduit consisting of two (2) insulated hot lead

conductors (L1 and L2) and one (1) insulated ground

conductor. There is no neutral connection. All leads are

copper. The conduit is connected to the right corner of

the cooktop. Do not connect the ground wire to neutral.

2. Tested in accordance with the latest edition of ANSI

Z21.1 and U.L. 858 Standard for household cooking

appliances.

3. These cooktops are not approved for recessed

installation.

Model No. Electrical Circuit Required Total Connected

Load*

Minimum Supply Wire Size

Line and Ground Connections

ETT304-1 240 Vac, 60 Hz, 40 Amps. 6.9 kW (29 Amps.) No. 8 AWG

ETT365-2 240 Vac, 60 Hz, 40 Amps. 9.1 kW (38 Amps.)

* For reference only, See the product data label on bottom of unit for exact specifications.

ELECTRICAL SUPPLY REQUIREMENTS

WARNING

• Observe all governing codes and ordinances during planning

and installation. Contact your local building department for

further information.

• This appliance must be installed in accordance with the

accompanying installation instructions.

* For units with stainless steel trim, other units may be up to 1/8" less.

All specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

PLANNING

GUIDE

ETT304-1, ETT365-2

Renaissance 30” and 36” Wide,

Electric Cooktops

Document # PG03-002 Revised 10/03/12 Page 2/3

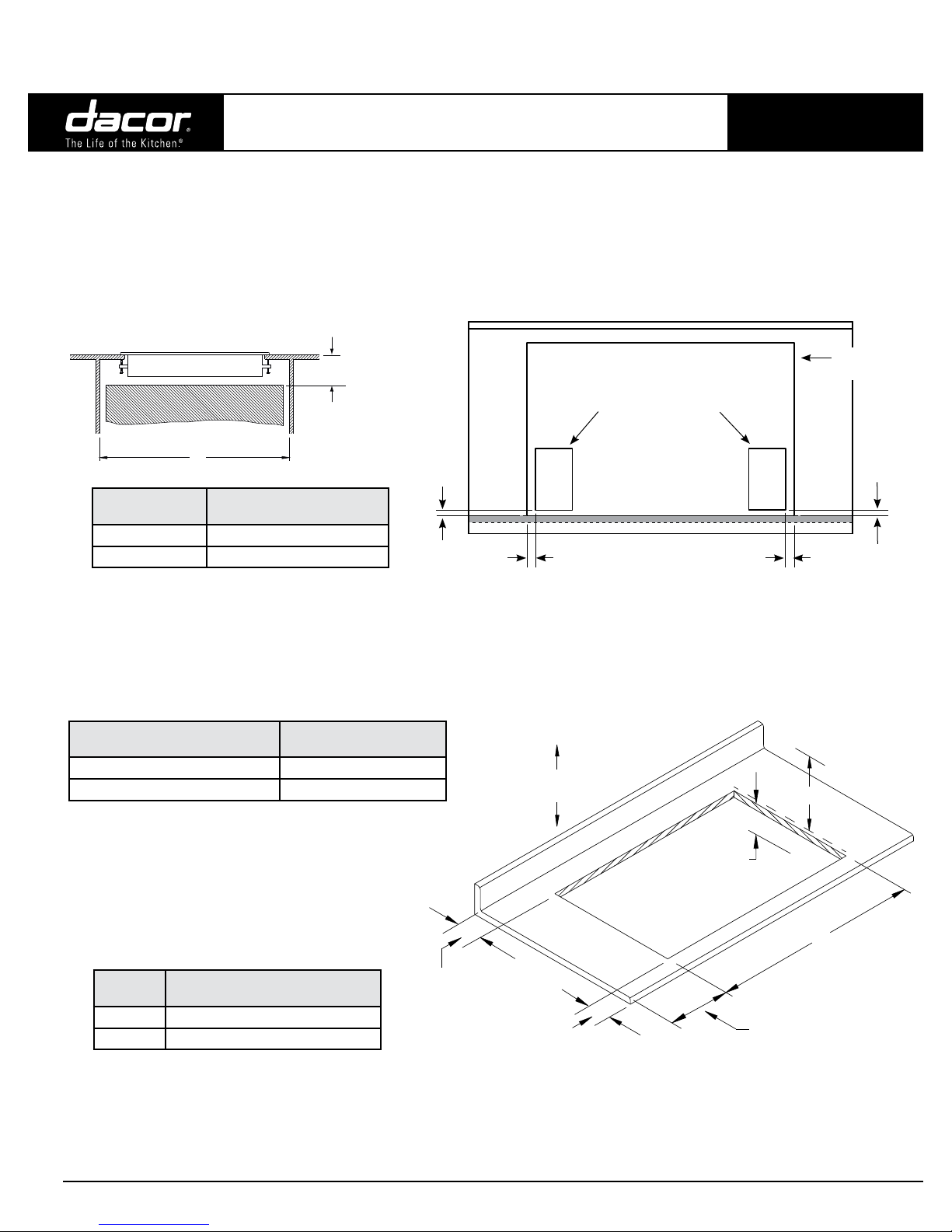

All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated

When installing model ETT365-2 and the bottom of the chassis is to be enclosed

wall to wall, you must install Dacor ventilation duct kit ATD323.

Allow a minimum of 6 inches (15.2 cm) clearance between

the top of the countertop and any combustible surface

below, including the upper edge of a drawer below the

cooktop. Proper under-cabinet clearance is also required

for the cooktop hold down brackets.

6” (15.2 cm)

min. clearance

to combustible

surfaces

UNDER COUNTER CLEARANCE

Model (A) Minimum Under Counter

Clearance (Width)

ETT304-1 30 1/2” (77.5 cm)

ETT365-2 36 1/2” (92.7 cm) 3/4”

7 3/4” X 4 3/8”ventilationcut-outsinenclosureoor

1 1/2”1 1/2”

3/4”

TOP VIEW VENTILATION CUTOUT

Cooktop cutout in

top of cabinet

6" (15.2 cm) min.

from mounting surface to

combustibles below

cooktop chassis

min. to combustible,

side wall, both sides

Rear

wall A

1” min.

19 3/4”

(50.2 cm)

6” (15.2 cm)

(2.5 cm)

2 1/4” min.

(5.7 cm)

Model (C) Cutout Width:

Installations without Raised Vent

ETT304-1 28 3/4” (73.0 cm)

ETT365-2 34 3/4” (88.3 cm)

Cabinets that are: (B) Overhead Clearances:

All Installations

Directly above cooking surface130” (76.2 cm)

To left or right of cooking surface1, 2 18” (45.7 cm)

COUNTERTOP CUTOUT (WITHOUT RAISED VENT)

All specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

PLANNING

GUIDE

ETT304-1, ETT365-2

Renaissance 30” and 36” Wide,

Electric Cooktops

Document # PG03-002 Revised 10/03/12 Page 3/3

Stiffener

Cabinet face

Countertop

Floor

3/8” min. (1.0 cm) space

behind raised vent

chassis to clear stiffener

3/8” min. (1.0 cm)

flat countertop overhang

required behind cutout

ERV or PRV series raised

vent: Check raised vent

dimensions/specifications

to determine proper fit

ETT or MET series cooktop

19 3/4"

(50.2 cm)

6" min.

(15.2 cm)

6" min.

(15.2 cm)

1" min.

(2.5 cm)

Cabinet

face

6" (15.2 cm) min.

from mounting surface to

combustibles below

cooktop chassis

Rear

wall A

Stiffener

Cabinet face

Countertop

Floor

5/8” min. (1.6 cm) space

behind raised vent

chassis to clear stiffener

4 5/8” (11.7 cm)

9 7/8” (25.1 cm) with

CABP3 blower installed

5/8” min. (1.6 cm)

flat countertop overhang

required behind cutout

RV series raised vent:

Check raised vent

dimensions/specifications

to determine proper fit

ETT or MET series cooktop

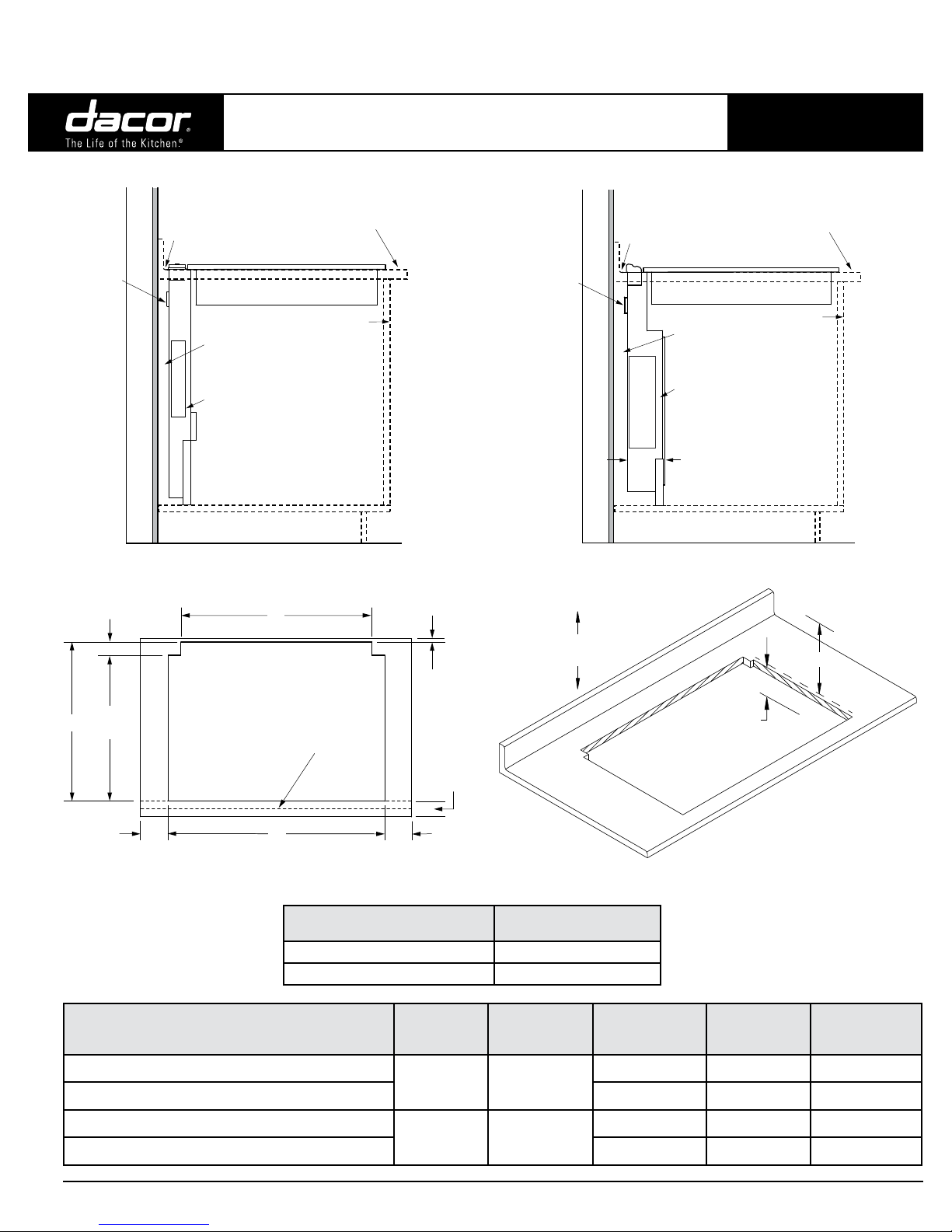

ERV AND PRV SERIES RAISED VENT INSTALLATION

SIDE VIEW

RV SERIES RAISED VENT INSTALLATION - SIDE VIEW

COUNTERTOP CUTOUT (WITH RAISED VENT) - TOP VIEW COUNTERTOP CUTOUT (WITH RAISED VENT) - ISO VIEW

All tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated.

Model/Configuration (B) Cooktop

Cutout Width

(D) Total Cutout

Depth

(E) Raised Vent

Cutout Depth

(F) Minimum

Rear Countertop

Overhang

ETT304-1 cooktop with ERV30[15] or PRV30 raised vent 28 3/4”

(73.0 cm)

27 3/4”

(70.5 cm)

22 1/2” (57.2 cm) 2 3/4” (7.0 cm) 3/8” (1.0 cm)

ETT304-1 cooktop with RV30 raised vent 22 1/4” (56.5 cm) 2 1/2” (6.4 cm) 5/8” (1.6 cm)

ETT365-2 cooktop with ERV36[15] or PRV36 raised vent 34 3/4”

(88.3 cm)

33 3/4”

(85.7 cm)

22 1/2” (57.2 cm) 2 3/4” (7.0 cm) 3/8” (1.0 cm)

ETT365-2 22 1/4” (56.5 cm) 2 1/2” (6.4 cm) 5/8” (1.6 cm)

Cabinets that are: (A) Overhead Clearances:

All Installations

Directly above cooking surface130” (76.2 cm)

To left or right of cooking surface1, 2 18” (45.7 cm)
