Dacor Renaissance RO130 Technisches Handbuch

PLANNING

GUIDE

1.13

Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

RO130, ROV130

30 Inch, Single,

Renaissance®Wall Oven

(A) Overall

Width

(B) Chassis

Width

Height

(D) Chassis

Height

(E) Control

Panel

Overlay

29 7/8”

(75.9 cm)

28 3/8”

(72.1 cm)

28 5/8”

(70.2 cm)

26 5/8”

(67.6 cm)

1”

(2.5 cm)

(F) Utility

Cutout Width

(G) Utility

Cutout Height

(H) Utility

Cutout Depth

(J) Control

Panel Depth

(K) Chassis

Depth

6 1/4”

(15.9 cm)

4 3/4”

(12.1 cm)

7 3/4”

(19.7 cm)

1 3/16”

(3.0 cm)

23 5/8”

(60.0 cm)

ELECTRICAL SPECIFICATIONS

Dedicated Circuit

Requirements Total Connected Load

240 Vac 60 Hz., 4-wire,*

30 Amp. 6.0 kW (25.0 Amp.)

* Two 120 Vac hot (L1 and L2), one neutral, one ground.

Fuse/circuit breaker on both L1 and L2.

The above specifications are for reference only. See the

product data plate for exact specifications.

Product tolerances: ±1/16” (±1.6 mm) unless otherwise stated

Document # PG01-009 Revised 10/01/11 Page 1/2

WARNING

• Observe all governing codes and ordinances during

planning and installation. Contact your local building

department for further information.

• This appliance must be installed in accordance with the

accompanying installation instructions.

Control panel

side view

Control panel

front Top of

chassis

Top of

chassis

Utility

cutout

Conduit:

60” (152 cm)

long

21 1/8”

3 1/2”

(8.9 cm)

3 3/16”

(8.1 cm)

1 1/8”

(2.9 cm)

1 1/8”

(2.9 cm)

HANDLE

DIMENSIONS

Epicure Millennia (Order kit #AMOH30))

PLANNING

GUIDE

1.14

Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

30 Inch, Single,

Renaissance Wall Oven

RO130, ROV130

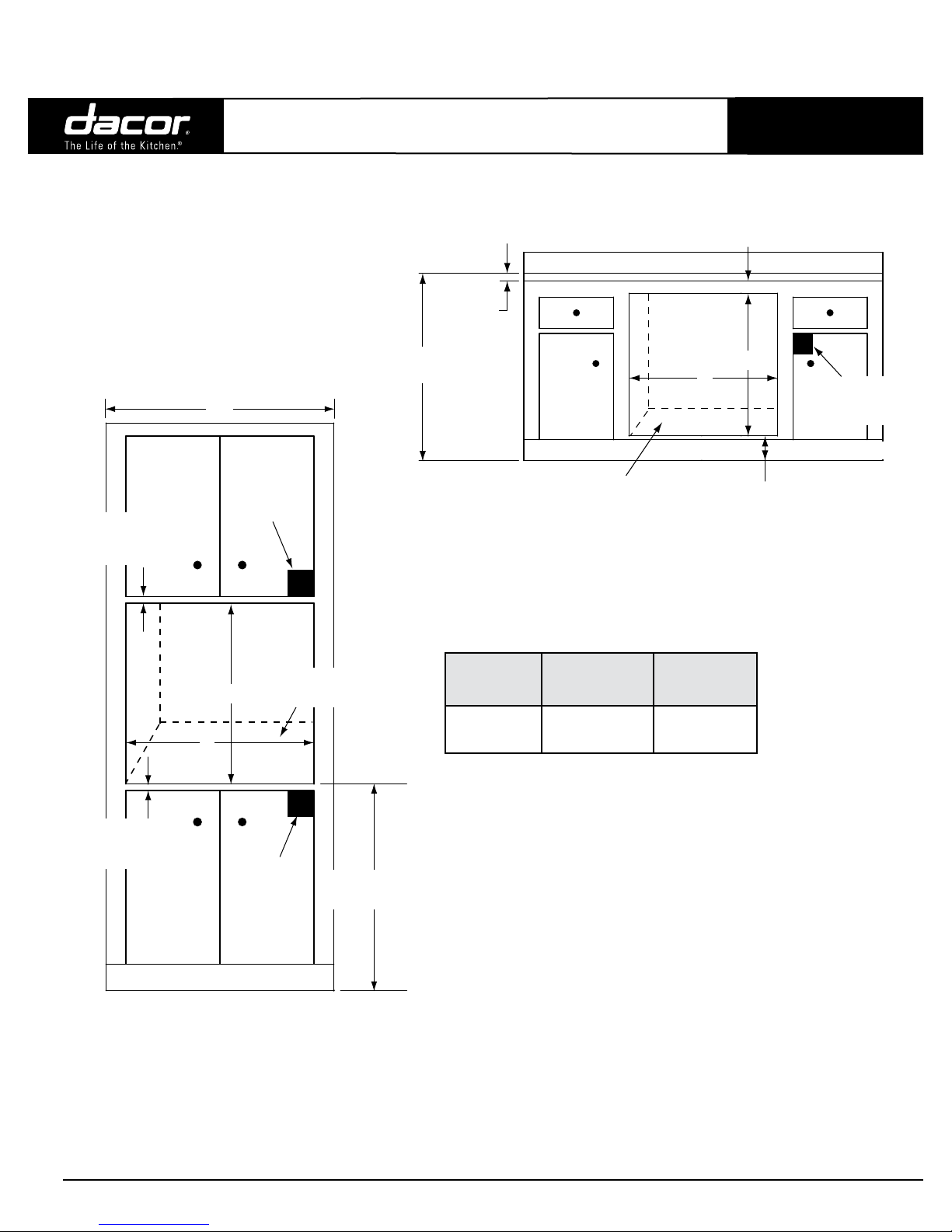

SINGLE WALL OVEN - INStALLED UNDER COUNtER

SINGLE WALL OVEN - CUtOUt DIMENSIONS

(N) Minimum

Cabinet

Width

(P) Minimum

Cut Out Width

(R) Minimum

Cutout Height

30”

(76.2 cm)

28 1/2”

(72.4 cm)

26 7/8”

(68.3 cm)

Minimum interior cabinet depth: 24” (61.0 cm)

Cabinet tolerances: +1/16” (+1.6 mm) -0, unless otherwise stated

Document # PG01-009 Revised 10/01/11 Page 2/2

1 1/2”

(3.8 cm)

typical counter

1“ (2.5 cm) min.

to combustible floor

3/4” (1.9 cm)

support platform

1“ (2.5 cm) min. to combustibles

Recommended

electrical

location

4” typical toe kick

36” typ.

(91.4 cm) P

Recommended

electrical

location

Alternate

electrical

location

4” typical toe kick

3/4” (1.9 cm)

support platform

31 1/4” (79.4 cm)

recommended

1” (2.5 cm) min.

to bottom of

cabinet door

1” (2.5 cm) min.

to top of

cabinet door
