Daewoo DSL-15D3 Bedienungsanleitung

LCD TELEVISION

INSTRUCTION MANUAL

DSL-15D3

DSL-17D3

DSL-20D3

DSL-15D4

DSL-17D4

DSL-20D4

PAL B/G, D/K, I/I,

SECAM B/G, D/K, L/L’, NTSC(AV)

TELETEXT

SCART/VIDEO/S-VIDEO/COMPONENT/PC

MULTI-LANGUAGE OSD

Caution

WARNING:To reduce the risk of fire or electric shock hazard, do not expose this appliance

to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK .

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous oltage” with-

in the product’s enclosure that may be of sufficient magnitude to constitute a risk

electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and ser icing instructions in the literature

accompanying the appliance.

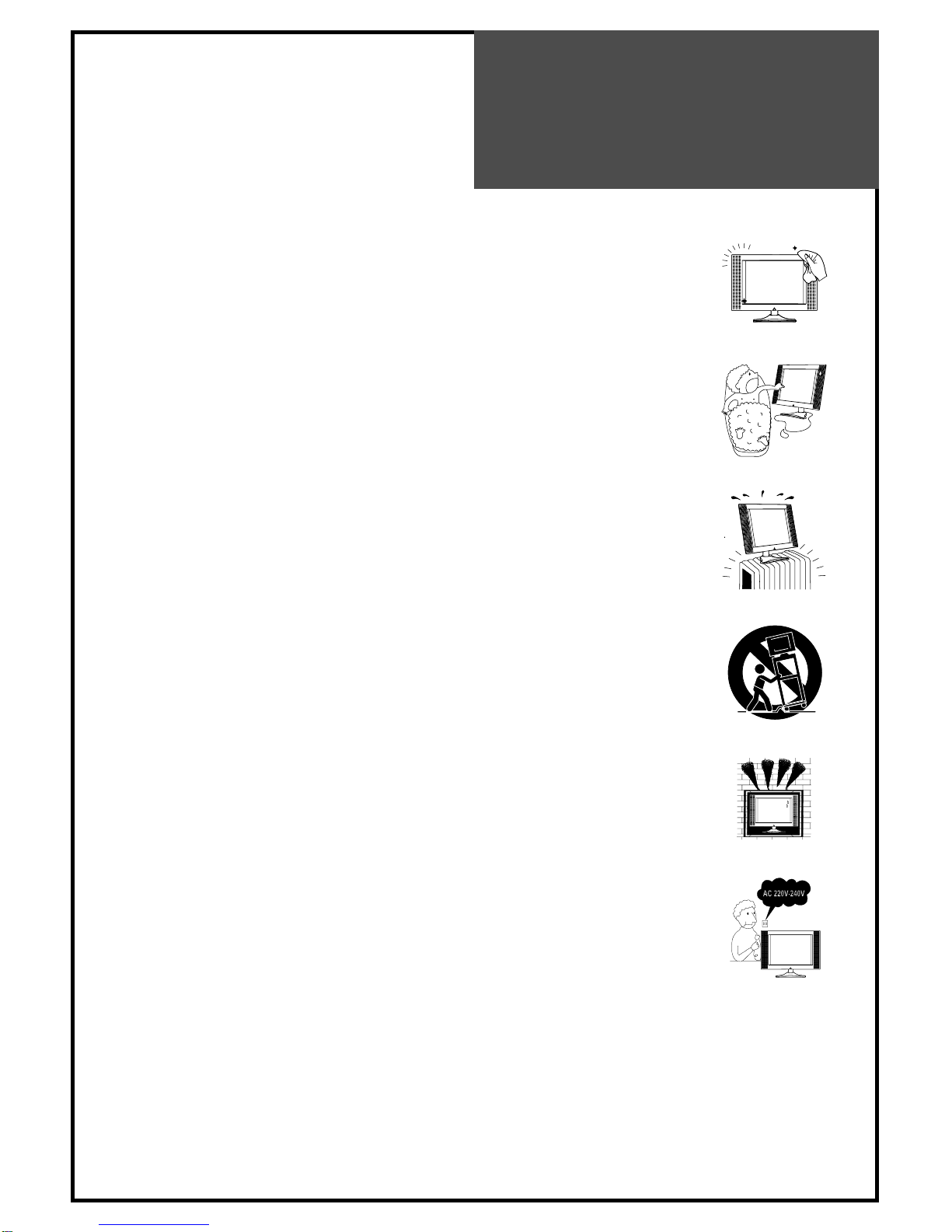

Safety

Precautions

1. CLEANING

Unplug this TV equipment from the AC power outlet before cleaning.

Do not use liquid cleaner or aerosol cleaners. Use a soft and damp cloth for

cleaning.

2. ATTACHMENTS

Do not use attachments not recommended by the TV equipment manufacturer

as they may result in the risk of fire, electric shock or other injury.

3. WATER AND MOISTURE

Do not place this TV equipment near water, for example, near bathtub,

kitchen sink, laundry tub, in a wet basement, or near a swimming pool, or

the like.

4. HEAT

Keep the TV equipment away from the heat sources such as radiator, heater,

sto es and other heat-generating products.

5. SETTING

Do not place this TV on unstable cart, stand, or table. Placing the TV on an

unstable base can cause the TV to fall, resulting in serious personal injuries

as well as damage to the TV. Use only a cart, stand, bracket or table

recommended by the manufacturer or salesperson.

6. WALL OR CEILING MOUNTING

When mounting the product on a wall or ceiling, be sure to install the

product using the designated mounting tool according to the method

recommended by the manufacturer.

7. POWER

This TV equipment should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power

supplied to your home, consult your TV dealer or local power company.

8. PIXEL

The LCD panel is a ery high technology product with 2,359,296(15")

2,949,120(17”) 1,440,000(20”) thin film transistors which gi e you fine

picture details. Occasionally, a few non-acti e pixels may appear on the

screen as a fixed point of blue, green or red please note that this does not

affect the performance of your product.

9. SET MOVING

When mo ing the product, place your fingers of one hand in the socket on

the back of the CTV and support the front of the TV with the other hand.

Contents

IMPORTANT SAFEGUARDS 5

SUPPLIED ACCESSORIES 6

FUNCTIONAL OVERVIEW 7

Front (Control panel) 7

Remote controller 8

PREPARATION 9

Inserting Batteries into the Remote Control Unit 9

Mains connection 9

Aerial connection 10

Connecting external equipment 12

INSTALLATION 14

Language selection 14

Automatic Tuning of TV Channels 14

Programme Editing 15

Manual Tuning 16

DAILY USE 18

Switching On and Off 18

Recall 18

Programme Selection 19

Picture Control 19

Sound Control 20

Special Features 21

Time setting 21

Wake up time setting 22

Sleep 22

Teletext (Option) 23

PC setup 25

WALL/ARM MOUNTING 27

TROUBLESHOOTING 28

PRODUCT SPECIFICATIONS 29

Important

Safeguards

Location

Heat, Moisture, Dust, Vibration

Position your set so that bright light or sunlight doesn't fall directly onto the screen.

Care should be taken not to expose the set to any unnecessary ibration, moisture, dust or

heat.

Do not expose the set to dripping or splashing.

Ventilation

Also ensure that the set is placed in a position to allow a free flow of air.

Do not co er the entilation openings on the back co er.

Lea e at least 10 cm around each side of the TV set.

Mounting

This set can be positioned by using the table top stand or wall mounting bracket.

When you install the set using the wall mounting bracket, fix it carefully so it is secure.

Object Entry

Do not insert foreign objects, such as needles and coins, into the entilation openings.

Lightning striking

You should disconnect your set from the mains and the aerial system during thunderstorms.

Cleaning

Unplug the set from the mains before cleaning.

Dust the set by wiping the LCD screen and the cabinet with a soft, clean cloth.

If the screen requires additional cleaning, use a clean, damp cloth.

Do not use liquid cleaners or aerosol cleaners.

Do not rub or strike the LCD with anything hard as this may scratch, or damage the LCD

permanently.

Service

Ne er remo e the back co er of the set as this can expose you to high oltage and other

hazards.

If the set does not operate properly,unplug it and call your dealer.

Supplied

Accessories

Make sure that the following accessories are provided with the product.

AC cord

AC/DC adapter

123

456

789

RECALL

SLEEP

MUTE POWER

VOL VOL

NORMAL

S.MODEASPECT

Remote controller

Batteries (Option)

(2x1.5V, AAA)

Instruction manual

Functional

Overview

Front (Control panel

Remote

sensor LED

indicator

PR MENU

Power

On/Off PR

Up/Down Volume

Up/Down AV MENU

Functional

Overview

Remote Controller

[ ] : Teletext function

123

456

789

RECALL

SLEEP

MUTE POWER

VOL VOL

NORMAL

S.MODEASPECT

MUTE POWER

UP (PR UP) [PAGE UP]

LEFT(VOLUME DOWN) RIGHT(VOLUME UP)

DOWN(PR DOWN)

[PAGE DOWN]

NORMAL

[HOLD]

SOUND MODE[SIZE]

[TELETEXT]

[INDEX]

NUMBER[PAGE]

SLEEP[SUBPAGE]

RECALL

ASPECT[MIX]

[CANCEL]

[REVEAL]

Preparation

Inserting Batteries into the Remote Control Unit

Mains Connection

1. Connect the DC plug of the AC adaptor to the DC 12V(DC 15V-only 20” input terminal of

the set.

2. Connect the AC adaptor and AC cord.

3. Plug the other end of AC cord into a Power outlet with 100V - 240V AC, 50/60Hz.

To load the batteries, turn the remote control

handset o er and open the battery compartment.

Insert the batteries (Two 1.5 , type R03 or AAA).

Make sure that the polarity matches with the (+)

and (-) marks inside of the battery compartment.

Note: To a oid damage from possible battery

leakage, remo e the batteries if you do not

plan to use the remote control handset for

an extended period of time.

Power outlet AC Adapter

AC Cord

DC 12V input terminal

(DC 15V-only 20”)

Preparation

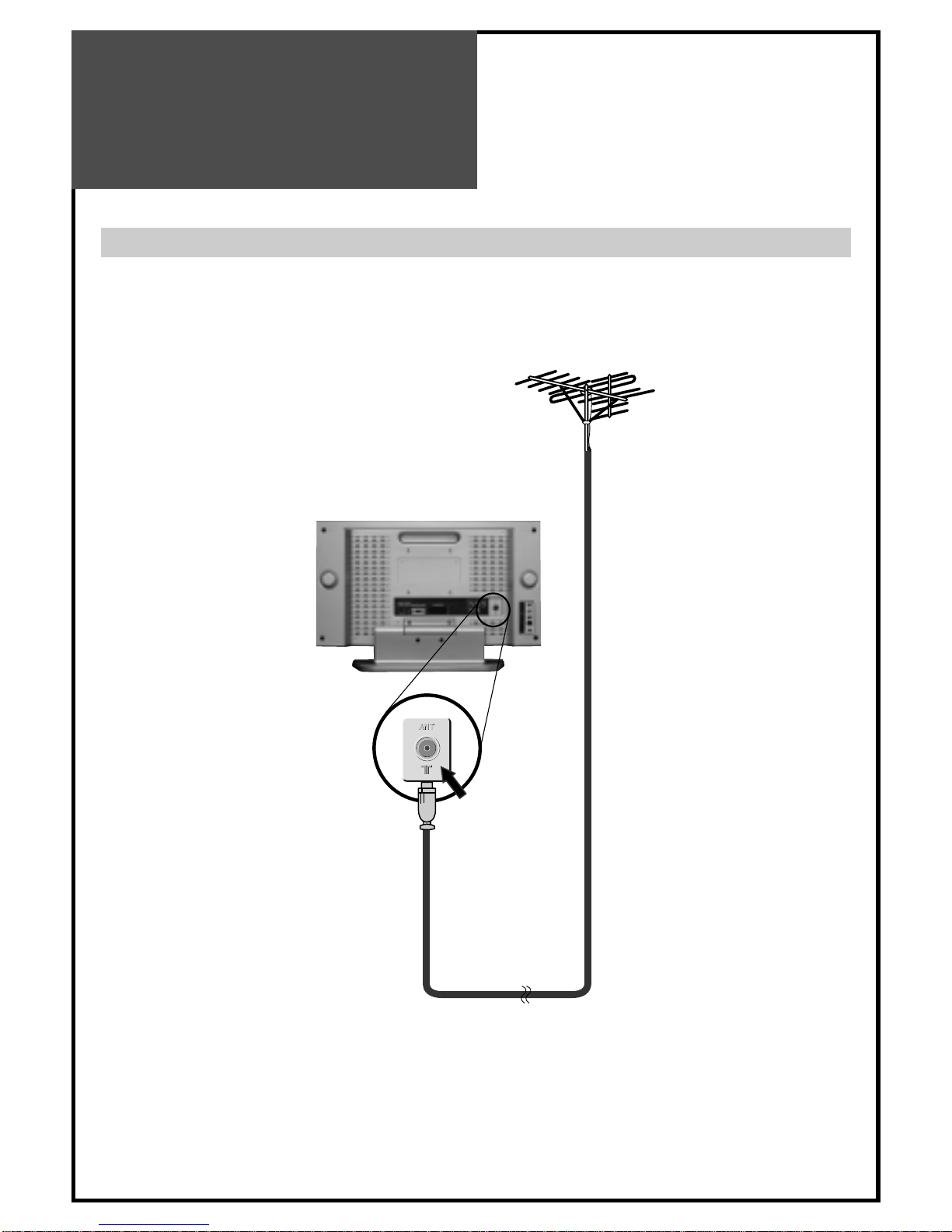

Aerial Connection

CONNECTING THE TV DIRECTLY TO AN AERIAL

Connect an aerial cable (75 ohm coaxial cable) to the Aerial terminal on the back of the TV

set.

Aerial cable

Aerial Terminal

Aerial
