Daewoo DMR - 08SO Bedienungsanleitung

Service Manual

Refrigerator

http : //svc.dwe.co.kr Mar 2002

DAEWOO ELECTRONICS CO., LTD.

S/M No. : DMR0811001

DMR - 08SO

DMR - 08SN

DMR - 08SE

DMR - 08D

DMR - 11S

DMR - 11D

MODEL :

1. SPECIFICATION

Division Contents CONTENTS Remark

Freezer(L)

Refrigerator(L)

Usable Capacity

TOTAL(L)

W(mm)

D(mm)

Products

H(mm)

Net Weight Products Weight(Kg)

Cooling System Fan Cooling Type

Defrosting Control Automatic On and Off

Compressor type HEL18YH-1

Gas Charge Volume(gr) 150 R-134a

Cooling

Control

System

Temp. Controlling Method F-Control Type

Rated Voltage 127V/60Hz

Rated Power Consumption of Motor 120V/7.2W

Rated Power Consumption of Heating System 120V/148W

Electric

Characteristics

Power Consumption

218

294

650

635

1650

1.Quality Contents

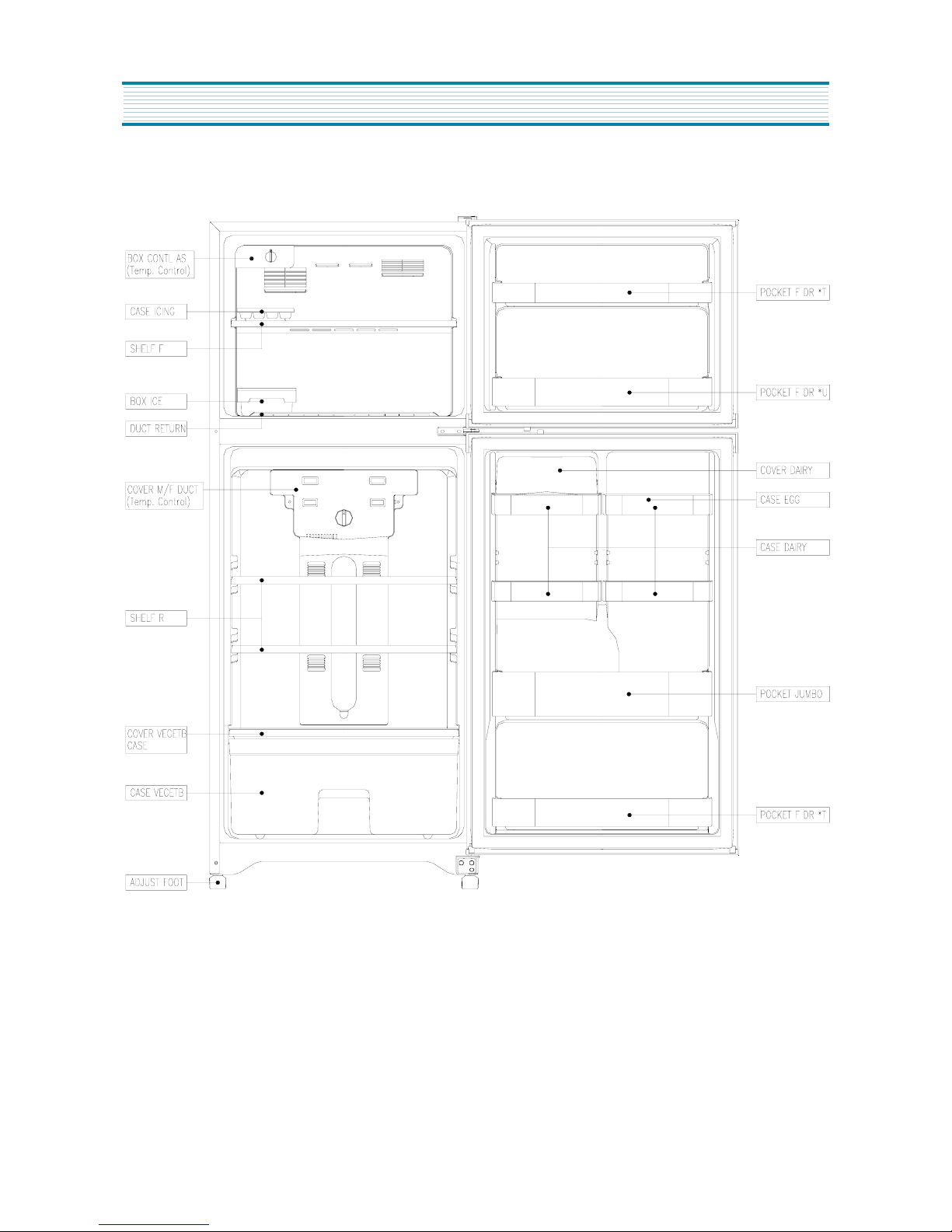

2. NAME OF PARTS

1.DMR-11S

Name of Parts

2.DMR-11D

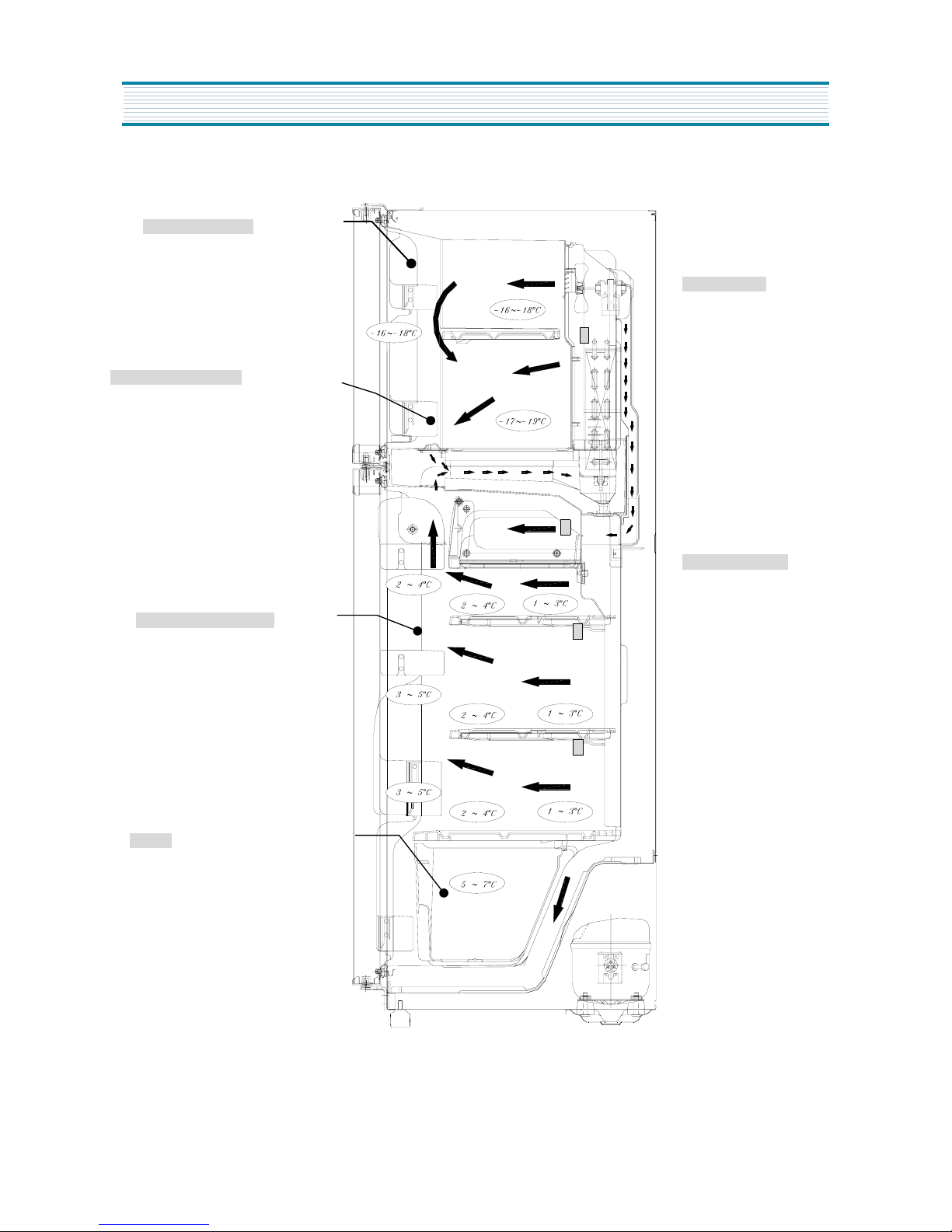

3. AIR FLOW DIAGRAM

Freezer door pocket

Do not put in ice cream or frozen

Food to store for a long term.

Open and shutting the door can rise

Up the temperature

Cold air absorbing duct

Do not place food in front of the duct

Because it is the entrance of the cold air

Refrigerator door pocket

Temperature is high even if the

Pocket is in the middle.

When storing margarine or cheese

Of one or two weeks, make use of

the refrigerator shelf.

Crisper

Suitable in storing fruits or vegetable.

Wraping can prevent then from dryness

Freezing Room

Do not put in any bottle

such as beer or beverage

because it can be frozen to

break.

Refrigerator Room

This model is multi-flow

type which flows ou

cold air from each shel

space. The hot air afte

making the refrigerato

cool flows into cooling

system through the low

temperature.

Do not put in food having much moisture at the middle par

of each shelf space(“A”,”B” and ”C” part).

It can be frozen owing to the low temperature

4. REFRIGRANT CYCLE DIAGRAM

5. DIAGRAM

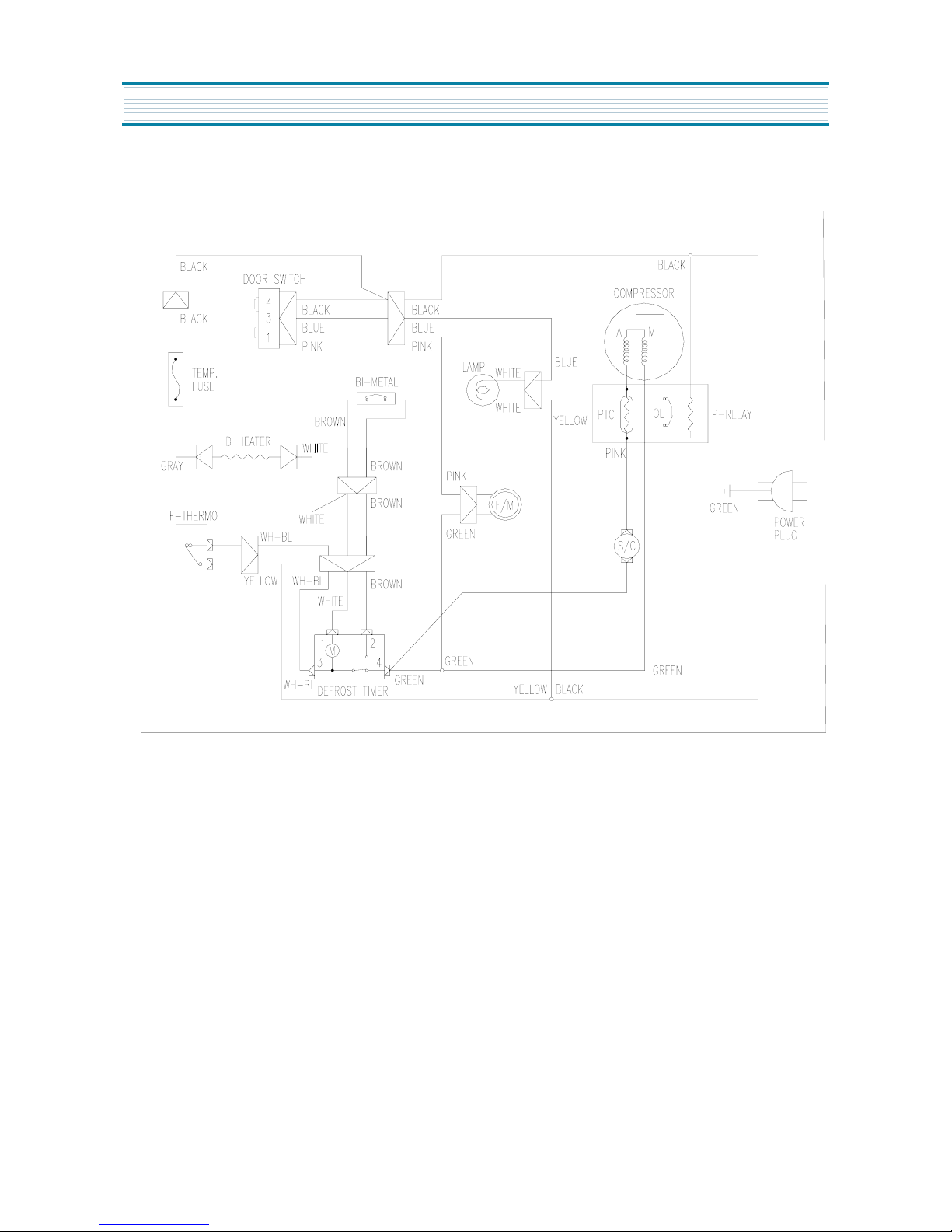

1) Wiring Diagram

Diagram

2)Practic Wiring Diagram

Diagram

3) Mechanical Room Piping and Assembly

6. Characteristics of Electric Parts

1) COMPRESSOR

2) RELAY

3) RUNNING CAPACITY

4) TEMP FUSE

5) DEFROSTING TIMER

DMR-11S/11D Remarks

Type

No. HEL18YH-1

Starting

Method RSCR

Rated Voltage 127V/60Hz

Main Core Resistance 2.76A

Aux.Cor Resistance 6.28A

DMR-11S/11D Remarks

Ty pe No. 308NHBYY-52

Resistance Value 6.8Ω

Max. Voltage 200V

PTC

Max. Current 10A

O.L Operating Current 2.18A, 90

DMR-11S/11D Remarks

Rated Voltage 200V

Rated capacitance 12㎌

DMR-11S/11D Remarks

Rated Voltage 250V

Rated Current 10A

Operating Temperature 77

Model DMR-11S/11D Remarks

Type Name TMDEY11UA1

Time 12H02M
