Daewoo FL-380VP Bedienungsanleitung

S/M No. : FR06300010

✔ Caution :

In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

DAEWOO ELECTRONICS Corp.

Mar. 2004

http : //svc.dwe.co.kr

Service Manual

Refrigerator

MODEL :

FL-380VP

DESPIECE

5 Exploded view

6 Parts list

Contents

1 Cover

2 The cooling system

3 The electrical diagram

Service manual

60CM Fridge

Model:FL-380VP

4 Trouble shooting guide

No Problem Possible Cause What To Do

Not plugged in. Plug in

Is the circuit breaker tripped or blown fuse? Put on the home circuit breaker or change

the new fuse.

Is the refrigerator temperature control setted at

“off”?

Set the temperature control knob at "4".

Is the refrigerator control dialed set to correct

location?

Set it to a colder temperature.

Is the refrigerator placed in direct sunlight or

closely a heat source?

Move the refrigerator to proper location.

Is the door closed completely? Close the door completely.

Is the door opened too frequently or too long? Open the door less often,

Does the door gasket seal properly? Make the gasket sealing properly.

Is the refrigerator overloaded? Load less food into it.

Is the refrigerator control dialed set to correct

location?

Set it to a warmer temperature.

Is the ambient temperature too low?

Hot-pipe is installed in two sides of

refrigerator.That makes refrigerator's

temperture lowquckly and save the power

Normal state.

Condensation can occur when you leave the

door open for a long time. Normal state.

5 Vibrations The refrigerator is not level and firm. Place the refrigerator in a level location.

Water bubbling comes from the refrigerant

circulating of the refrigerator.

Normal state.

Contraction and expansion of the insulation

inside the walls may cause popping and

cracking.

Normal state.

Is the refrigerator unstable or touching the wall? Keep the refrigerator leaving the wall.

Is the refrigerator not level? Adjust the refrigerator leveling.

Were the doors not properly installed? Assure the doors installed propertly.

Is the door gasket dirty and distortion? Cleaning and flatting the door gasket.

Has the home circuit breaker or fuse tripped? Put on the home circuit breaker or change

the new fuse.

Is the refrigerator's door close completely? Assure the door close completely.

Is the ambient temperature too high?

Is the temperature controller in freezer chamber

or in refrigerator chamber is set at “strong”

position

Sets it at a right position.

Too much food is loaded into the refrigerator

and insufficient spaces for airflow.

Load less food into the refrigerator.

Operating for all long

time.

Trouble shooting guide

1The refrigerator does

not get cold at all.

2The refrigerator does

not get cold enough.

3The food in the

refrigerator is frozen

8The lamp does not

work.

4Two sides of the

cabinet are hot:

condensation occurs.

6The refrigerator is

noisy.

7The door can not close

properly.

The door were not closed completely or the

gasket not sealing enough.

Close the doors completely or make the

gasket sealing enough.

Open the door too frequently. Decrease the open-door times.

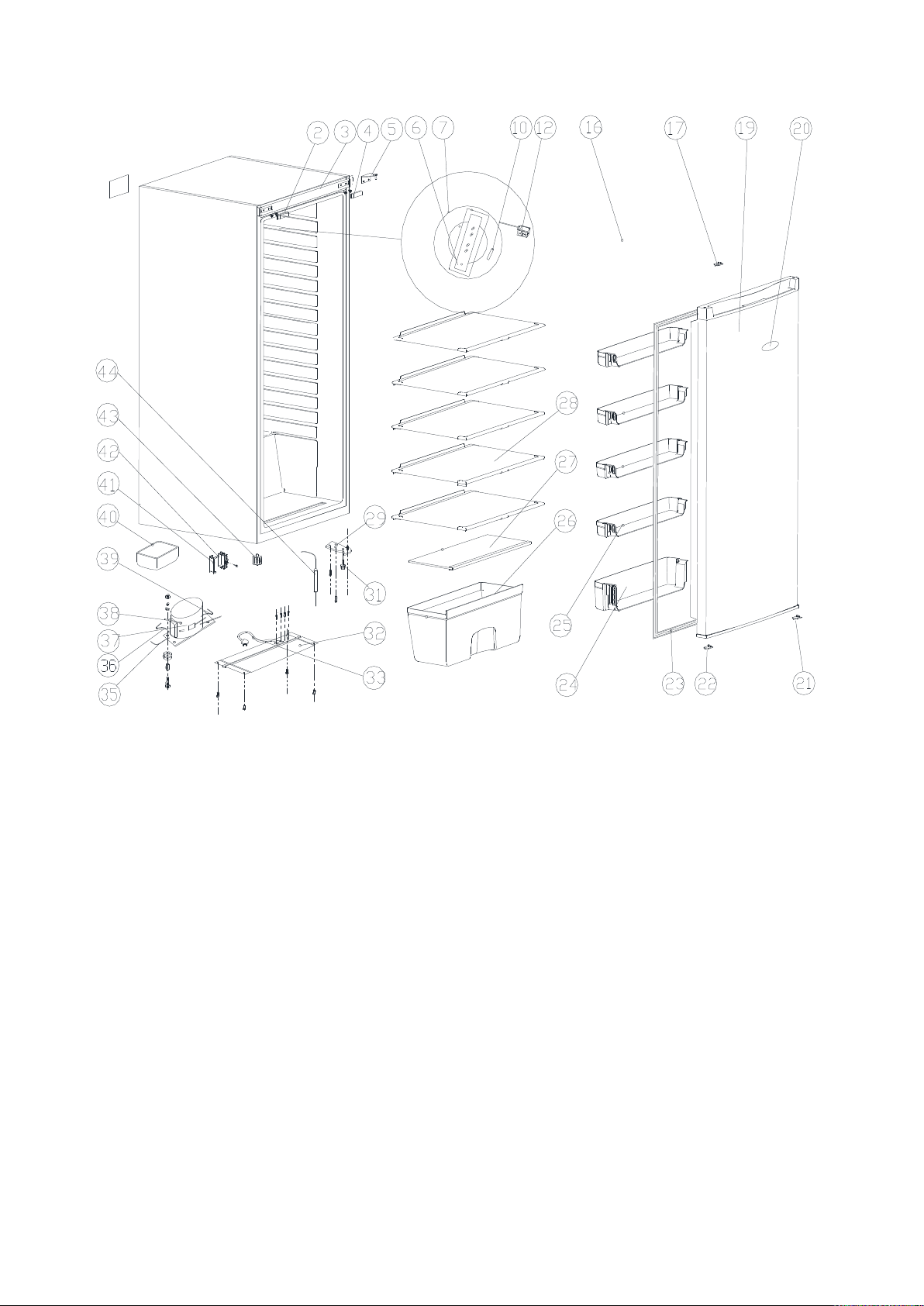

Exploded view

No. Parts code Description of Spare Part

2 20014867 Top front decorative cover

3 20014868 Decorative front

4 20014866 Right door hinge cover

5 20022078 Upper Hinge Assembly

6 20050278 LED light

7 20014165 Lamp Cover

10 20061654 Thermostat

12 20015505 Thermostat Knob

16 20015886 Top cover

17 20050016 Door switch

19 20101080075 Door

20 Trade mark

22 20023060 Lower door right aid-closer

21 20023061 Lower door left aid-closer

23 20015103 Door gasket

24 20014785 Lower Rack(ice blue)

25 20014784 Upper rack (ice blue)

26 20014330 Crisper drawer(ice blue)

27 10202760 Crisper cover

28 10202759 Shelf

29 20022157 Lower door hinge

31 20010123 Short adjust foot

32 10202768 Compressor base support

33 Power supply cord with plug

35 20050009 Compressor connecting wire

36 20050008 Compressor earthing wire

37 20061054 Compressor

38 20061718 Process tube

39 20060046 Connecting tube (short)

40 20012807 Drain pan

41 20014438 Base of wire box

42 20014437 Wire box

43 20014361 Long adjust foot

44 20060086 Drier filter (for R600a)

46 Carton

Totally Quantity:
