INSTRUCTION MANUAL

Color Television

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and servicing instructions in the literature accompanying

the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID

THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE TO CATV SYSTEM INSTALLER

THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE

820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR,

SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE

BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

CAUTION

The AC power cord provided with this product is polarized (one blade wider than the other).

To provide power to the TV, insert the AC plug into a standard 120V 60Hz polarized outlet.

NOTE

Never connect the plug to an electrical source other than one providing 120V 60Hz power. Use only the attached power cord.

If the polarized AC cord does not fit into a non-polarized outlet, do not cut or file the blade. You are responsible for having the

obsolete outlet replaced with a polarized outlet.

If you feel a static discharge when touching the unit, and the unit does not function, simply unplug the unit from the outlet.

When you plug the unit back in, it should work normally.

Do not install power cords near any heating element or cooking appliances.

Daewoo Electronics

Corporation of America

120 Chubb Avenue,

Lyndhurst, NJ 07071

1-800-DAEWOO8 (1-800-323-9668)

Fax:201-935-5284

Dear Customer :

Daewoo Electronics Corporation of America would like to thank you for choosing this color television

receiver. It incorporates a host of features designed to give you excellent performance for many years to

come.

We realize that you’re eager to turn it on and begin enjoying the high-quality pictures it delivers just as

quickly as possible, but we ask you to take a few minutes to read the instructions in the booklet to familiarize

yourself with the receiver, its functions and some features which may be new to you. If you follow the

instructions, this unit should give you many years of viewing pleasure.

If for any reason it does not, we want to hear about it. Please write to us at the address above. Daewoo

always welcomes comments and suggestions on this or any of our other products.

On the other hand, when you discover the enjoyment, reliability and ease of use that is built into it, we

hope that you will tell your friends, and consider Daewoo when you make your next purchase of home

entertainment equipment.

In addition to TV receivers, Daewoo produces a full line of audiovisual products built to the same high

design, engineering, and manufacturing standards as this unit.

Here are a few tips that will keep your TV receiver looking great and performing for years to come.

.Avoid putting it in excessively hot locations. Damage to the cabinet or premature component failures

can result.

.There are ventilation holes in the bottom and rear of the cabinet. Make sure that they remain unob-

structed. Do not place the receiver on top of a thick cloth.

.If you don’t plan to use the receiver for several days, it’s a good idea to unplug it from the power outlet.

.Many common household cleaning agents, sprays, solvents, and polishes will cause permanent damage to

the surface of the cabinet. The best cleaning agents are mild soap and a damp cloth.

Again, thank you for choosing this Daewoo product. We have employed advanced engineering techniques

in its design, and manufactured it in one of the world’s most up-to-date production facilities. The result is

a TV receiver that we know you will be as proud to own as we were to create.

Very truly yours,

DAEWOO ELECTRONICS

CORPORATION OF AMERICA

CONTENTS

Table of Contents

Chapter 1: Overview of Your Equipment ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯2

Your TV's Front Panel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯2

Your TV's Back Panel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯3

Your Remote Control ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4

Installing your remote control batteries ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5

Notes ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5

Chapter 2: Connecting an Antenna or Cable to Your TV ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6

Connecting an Antenna ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6

Connecting a Cable System ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯7

Connecting Other Pieces of Equipment ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8

Safety Note ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8

Chapter 3: Operating Your TV ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9

Turning your TV On ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9

Programming Your TV's Channel Memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9

Changing Channels⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10

Changing the Volume ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10

Changing The TV's Channel Memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11

Adding/Deleting a channel to memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11

Displaying the Current Channel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11

Changing the TV’s Input ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯12

Adjusting Video Settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯13

Returning to the factory settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯14

Descriptions of video settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯14

Chapter 4: Using Timer Functions ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15

Setting the Clock ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15

Setting the Wake-up Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15

Setting the Off Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯16

Canceling the Wake-up Time or Off Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯16

Setting the Sleep Timer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯17

Chapter 5 : Using the Special Features⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18

Changing the Language of the On-Screen Menus ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18

Captioning ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18

CC on Mute ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯19

Power Restore⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯19

Parental Control Settings, Description of Parental Control Settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯20~21

Ch Labels ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯23

Chapter 6 : Adjusting the Sound⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25

Selecting stereo/SAP ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25

Adjusting the Bass ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯26

Adjusting the Treble ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯27

Chapter 7 : Troubleshooting ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯28

Warranty ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯29

Overview of Your Equipment

Your TV comes with a remote control. The section below summarizes the buttons, controls, and ter-

minals that you will use with your TV.

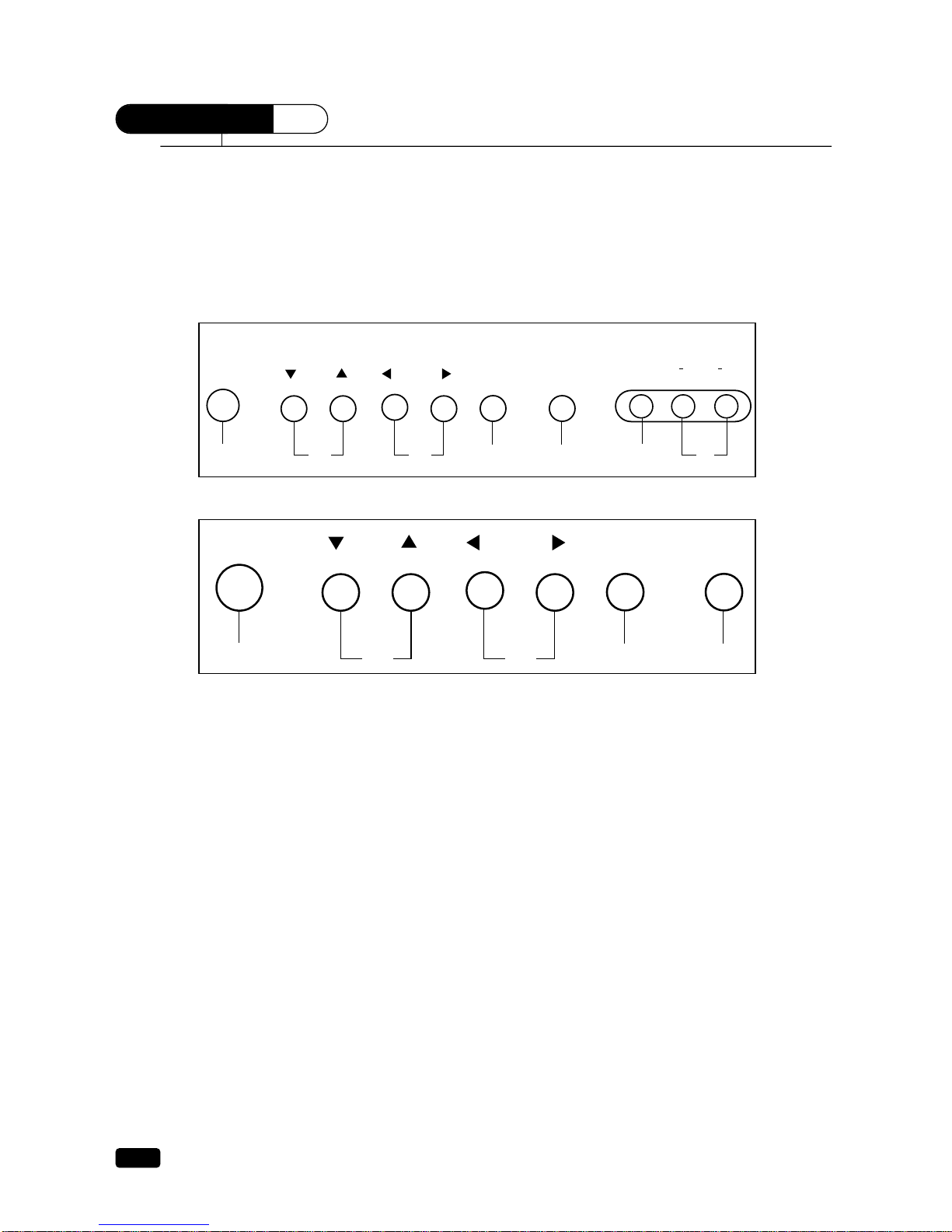

Your TV's Front Panel

1 POWER

Use this button to turn your TV on or off.

2WCHV

Use these buttons to change channels on your TV, or to select items in the menu

system.

3 CVOLB

Use these buttons to change your TV's volume, to activate selections in the menu

system, or to change audio and video settings.

4 MENU

Use this button to turn the TV's menu system on and off.

5 Remote control receiver

This receiver receives a signal from your remote control. Do not block it.

6 VIDEO IN jack

Use this jack to receive a video signal from another A/V component.

7 AUDIO IN jack

This receiver reUse this jack to receive a audio signal from another A/V component.

Chapter 1 :

Overview of Your Equipment

CHAPTER

12 345

POWER CH VOL MENU

VIDEO 2 IN

VIDEO (MONO)

AUDIO

CM27101S

12 345

POWER CH VOL MENU

CM25101S

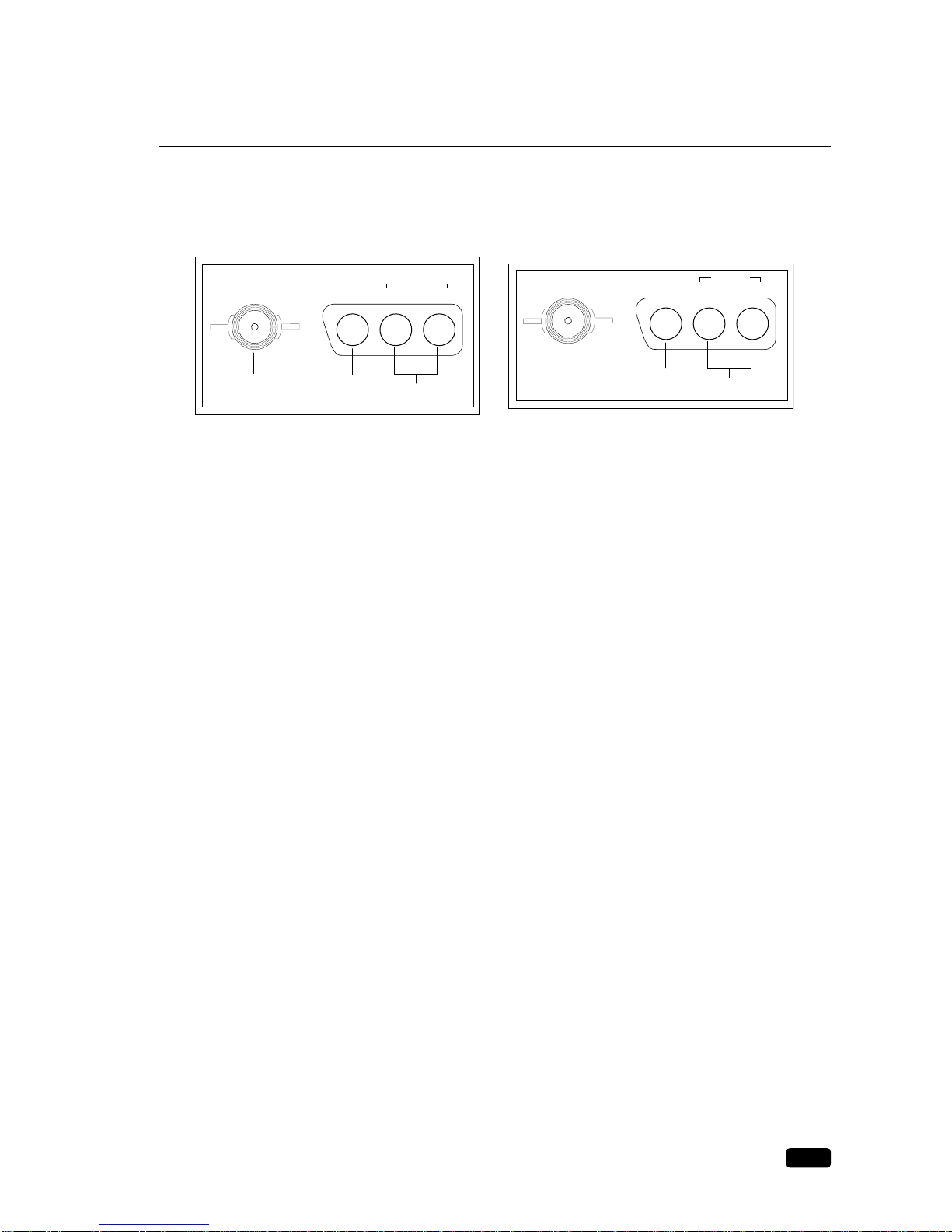

Your TV's Back Panel

1 Antenna terminal(ANT)

Use this terminal to attach an antenna or cable system to your TV.

2 VIDEO IN

This terminal allows the TV to receive a video signal from another component,

such as a VCR.

3 AUDIO IN

This terminal allows the TV to receive an audio signal from another component,

such as a VCR.

Chapter 1 :

Overview of Your Equipment

123

VIDEO

VIDEO 1 IN

AUDIO

L(mono) R

ANT

123

VIDEO AUDIO

L(mono) R

ANT

CM27101S CM25101S

Chapter 1 :

Overview of Your Equipment

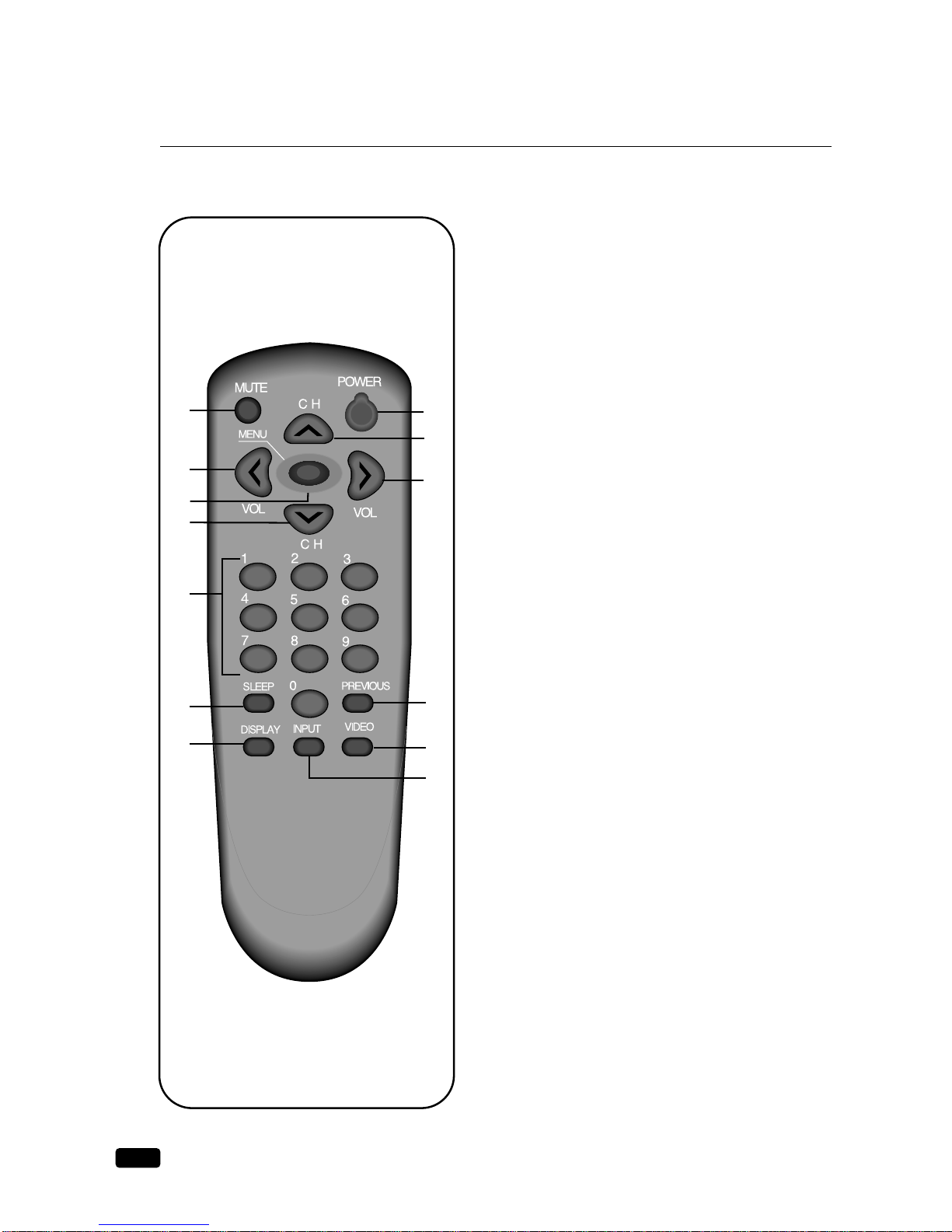

Your Remote Control

1. POWER

Use this button to turn your TV on or off.

2. MUTE

Use to turn the TV’s sound on and off.

3. WCHV

Use these buttons to change channels on your TV, or

select items in the menu system.

4. C

VOL

Use these buttons to change your TV's volume, to

activate selections in the menu system, or to change

audio and video settings.

5. MENU

Use this button to turn the TV’s menu system on and

off.

6. DISPLAY

Use this button to display the channel

number and status.

7. INPUT

Use this button to select the TV

’

s signal source.

8. VIDEO

Use this button to display video adjustment

items.

9. 0-9

Use these buttons to change channels.

10. SLEEP

Use this button to program the TV to turn off after a

certain time.

11. PREVIOUS

Use this button to return to the previous channel you

were watching.

Chapter 1 :

Overview of Your Equipment

Installing your remote control batteries

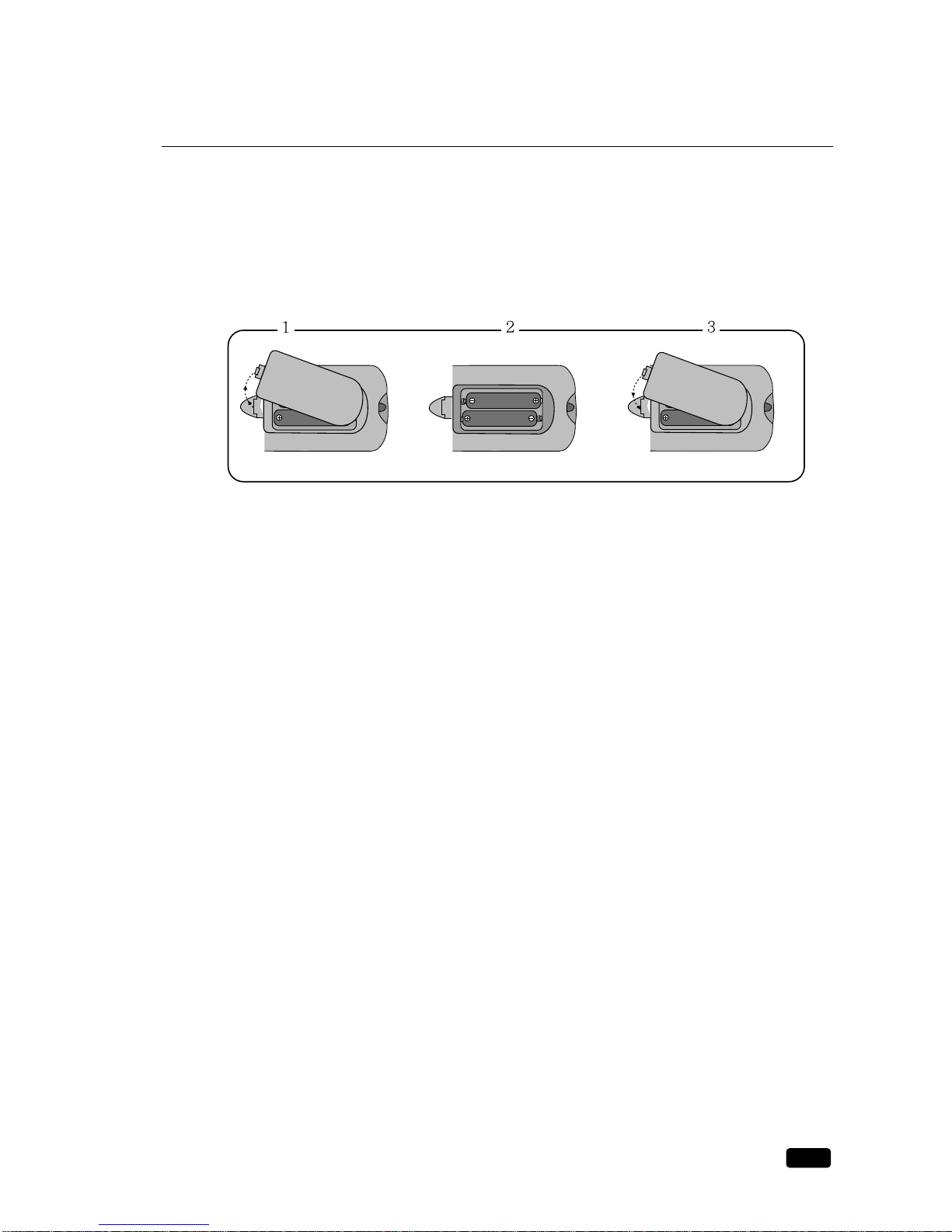

Open the battery compartment on the back of the remote control.

Install two AA-size batteries (not included) as shown. Make sure the “+” and “-” terminals are

oriented correctly.

Replace the cover.

Notes

Do not mix different types of batteries, or mix an old and a new battery.

Remove and replace weak batteries. Weak batteries can leak and damage your controller. Dispose

of batteries properly; never throw them into a fire.

Point your remote at the receiver on the center of the front of the TV. Make sure the receiver is not

blocked.

The remote control can operate up to 30 feet away from the TV, if you are directly facing the front

of the TV. Operating distance diminishes as you move to the sides of the TV.

CHAPTER

Chapter 2 :

Connecting an Antenna or Cable to Your TV

Your TV will provide you with the best performance if you connect it to an external antenna or

cable system. Follow the directions below make this connection. Please note that you will normally

only have to make one of the connections shown below, not all of them.

All connections will be made to the antenna terminal on the back of your TV. The antenna terminal

is a silver metal post partially surrounded by two plastic tabs. For help in locating the antenna termi-

nal, see “Your TV’s Back Panel” on page 5.

Connecting an Antenna

If your antenna ends in a single coaxial lead, simply

press or screw the cable onto the antenna terminal on the

back of your TV.

If your antenna ends in a pair of 300 ohm twin leads,you must use a 300-ohm/75-ohm

adapter(available at your local electronics store). Place the leads underneath the screws on the

adapter, tighten the screws, then press the adapter onto the antenna terminal on the back of the TV.

Chapter 2 :

Connecting an Antenna or Cable to Your TV

Antennas with two sets of leads

You might have two sets of leads from your antenna system, especially if you have one antenna for

VHF signals and one antenna for UHF signals.

If your antenna system has both a coaxial lead and twin 300-ohm leads

,you must obtain a combin-

er (available at your local electronics store). Press or screw the coaxial lead onto the combiner; place

the twin leads underneath the screws on the combiner and tighten the screws. Press the cable from

combiner onto the antenna terminal on the back of your TV.

If your antenna system has two sets of twin 300-ohm leads,

you must obtain a combiner (available

at your local electronics store). Place one set of twin leads underneath the screws on the combiner

and tighten the screws. Do the same with the other set of twin leads. Press the cable from the com-

biner onto antenna terminal on the back of your TV.

Connecting a cable system

If your cable set-up is not described below, please

contact your cable company for more information.

If your cable system does not require the use of a

cable box,

simply press or screw the incoming

cable onto the antenna terminal on the back your

TV.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daewoo Fernseher Handbücher

Daewoo

Daewoo DTQ-14J4FC Bedienungsanleitung

Daewoo

Daewoo CP-520 Bedienungsanleitung

Daewoo

Daewoo DTW - 28W2F Bedienungsanleitung

Daewoo

Daewoo DTD-14D3 ME Bedienungsanleitung

Daewoo

Daewoo DTT-3250 100 Series Bedienungsanleitung

Daewoo

Daewoo DSC-3210E Bedienungsanleitung

Daewoo

Daewoo DTR-14D3VG Bedienungsanleitung

Daewoo

Daewoo KR14E5/DTA-14V3VM Bedienungsanleitung

Daewoo

Daewoo DTQ-20S1SSFV Bedienungsanleitung

Daewoo

Daewoo WP-895 Bedienungsanleitung

Daewoo

Daewoo DTQ - FSPN Bedienungsanleitung

Daewoo

Daewoo DTQ-25G4FS Bedienungsanleitung

Daewoo

Daewoo DT-21C1 Bedienungsanleitung

Daewoo

Daewoo DTT-2193TU Bedienungsanleitung

Daewoo

Daewoo DWP-28W2ZLF Bedienungsanleitung

Daewoo

Daewoo DSC-3270E Bedienungsanleitung

Daewoo

Daewoo DTE-28 Series Bedienungsanleitung

Daewoo

Daewoo DTQ-29U1SC/SSP Bedienungsanleitung

Daewoo

Daewoo DTQ-14D4SSPM Bedienungsanleitung

Daewoo

Daewoo DTC-14D9T Bedienungsanleitung

Daewoo

Daewoo KR14E5 Bedienungsanleitung

Daewoo

Daewoo DTR Series Bedienungsanleitung

Daewoo

Daewoo DTF-2950-100D Bedienungsanleitung

Daewoo

Daewoo DTQ-14V1FC Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
