Daewoo DTD-14D3 ME Bedienungsanleitung

Colour Television

Instruction Manual

MODEL No.

DTD -14D3, 20D3, 21D3,21D3TP

14D4, 20D4, 21D4

14D6, 21D6

14D7, 20D7, 21D7

21U6, 21U8

IDENTITY OF FEATURES ON LOCAL AND REMOTE CONTROL

LOCAL CONTROL

REMOTE CONTROLER

NORMAL

RECALL

MODE

SKIP

23 12

SLEEP

PinP

SWAP

POSITION

SIZE TV/VIDEO

CH.LOCK

DELETE

MOVE

P.SIZE

TV mode

①ON/OFF

②PR (CURSOR) UP

③VOLUME UP (CURSOR RIGHT)

④RECALL

⑤NUMBER 0~9

⑥NORMAL

⑦SIZE(PIP)

⑧TV/VIDEO(PIP)

⑨SOUND MODE

⑩SOUND SYSTEM

⑪CH.LOCK

⑫DELETE(Edit mode)

⑬MUTE

⑭VOLUME DOWN

(CURSOR LEFT)

⑮PR(CURSOR) DOWN

⑯SLEEP

⑰AV

⑱SWAP(PIP)

⑲PinP ON/OFF(PIP)

⑳TV/TEXT

󱇽SKIP(Edit mode)

󱇾POSITION(PIP)

󱇿MOVE(Edit mode)

PICTURE SIZE

TELETEXT MODE

①POWER

②PAGE UP

③SUB PAGE

④REVEAL

⑤NUMBER 0~9

⑥INDEX

⑦CANCEL

⑧Cyan Key

⑨Yellow Key

⑩MUTE

⑪HOLD

⑫PAGE DOWN

⑬SIZE

⑭MIX

⑮TV/TEXT

⑯Red Key

⑰Green Key

MAIN

POWER

BUTTON VIDEO 2

INPUT RL

(MONO) HEAD

PHONE STAND-BY

INDICATOR REMOTE

SENSOR MENU

BUTTON

VOLUME

DOWN/UP

BUTTONS

PROGRAMME

DOWN/UP

BUTTONS

TV/VIDEO REMOTE

SENSOR

(OPTION)

VIDEO 2 AUDIO

(MONO)

VIDEO 1

IN MONITOR

OUT

VIDEO

(MONO)

FRONT BACK

CONTENTS

* Identity of features on Local and Remote Control 1

* Important safeguards 3

* Installation 4

After moving the set 4

Inserting Batteries into the Remote Control Unit 4

Aerial connection 4

Mains connection 4

First installation of TV 4

* Switching the set on and off 5

Switching On 5

Switching Off 5

Language selection 5

* Tuning the TV Channels 6

Automatic Tuning System 6

Edit 6

Manual Channel Setting 6

Fine Tuning 7

Select Sound System 7

* Daily use 8

Selecting a Programme Number 8

Sound Control 8

PictureControl 9

16:9 / Zoom 9

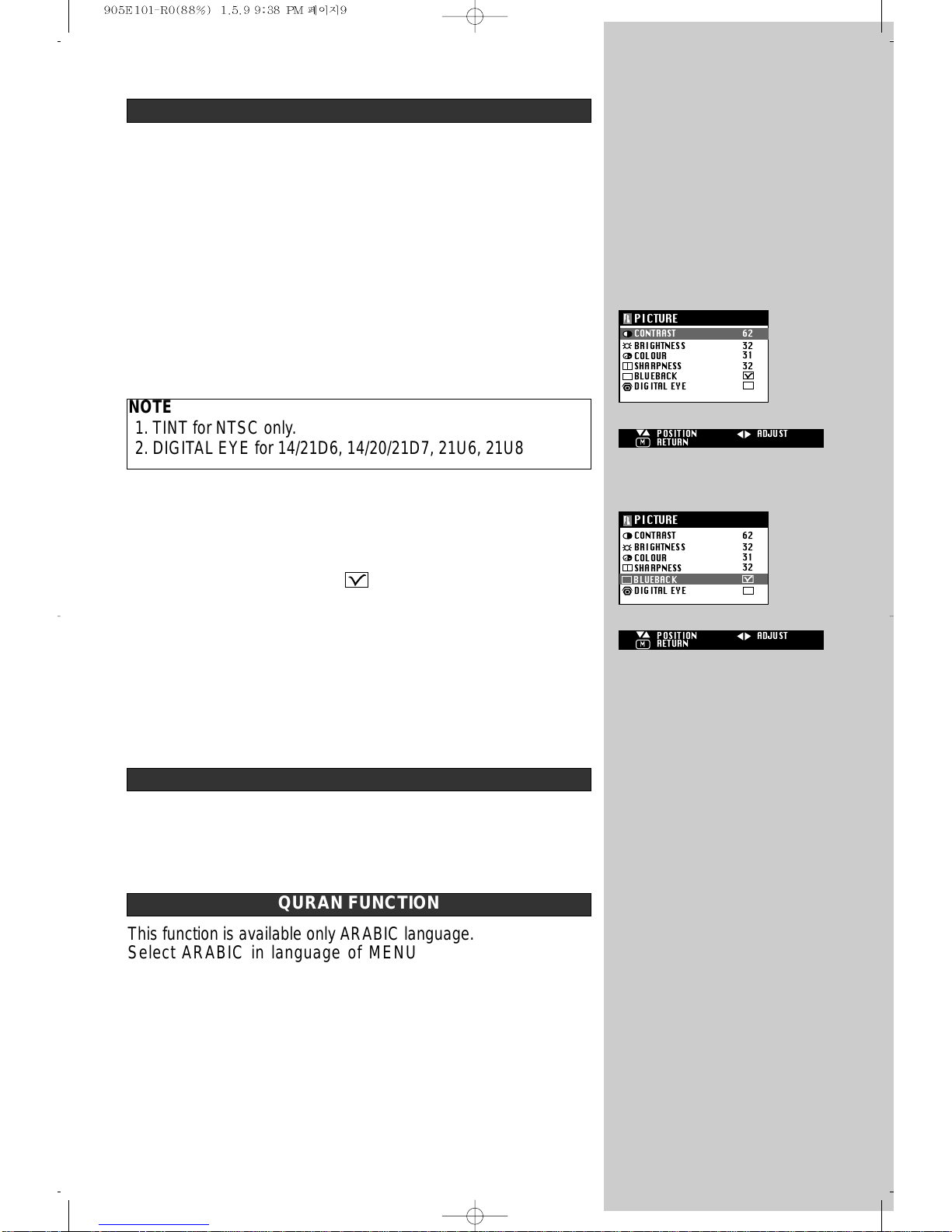

Quran function 9

Picture-in-Picture(Option) 10

Timer 10

Sleep 10

Recall 11

Channel Lock 11

Child Lock 11

Local control key Mode 11

*Connecting the External Equipment 12

*TELETEXT 12

IMPORTANTSAFEGUARDS

FEATURES

Water / Moisture: Never install the set in the following places: in the bathroom, in a

wet basement.

Do not place any containers with liquid (e.g. flower vases) on

the set.

Heat: Never place the set near heat source(e.g. radiator)

Ventilation: Do not cover the ventilation openings on the cabinet.

Never place the set in a confined space such as a bookcase or

built-in cabinet, unless proper ventilation is provided. Leave a 10cm

gap all around the unit.

Object Entry: Do not insert foreign objects, such as needles and coins, into the

ventilation openings.

Lightning Striking:You should disconnect your set from the mains and the aerial

system during thunderstorms.

Cleaning: Unplug the set from the mains before cleaning.

16:9 / ZOOM Screen : You can select a desired 16:9(or ZOOM) screen mode for

movies as well as the normal 4:3 picture mode.

Selectable picture and selectable sound :

Allows one-touch selection of your favorite picture quality and

tone quality.

Off-timer and On-timer: Turns off the TV automatically and will turn it back on at a

preset time.

Picture-In-Picture (Option)

Digital-Eye (Option)

Teletext(Option)

INSTALLATION

AFTER MOVING THE SET

If the used set is moved or placed in a different direction, the

ON/OFF button must be switched off for at least 15minutes in

order to take out a colour stain on the screen.

INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT

Press down the battery compartment grip and slide the cover.

Insert the batteries supplied(two 1.5V, type AA).

Make sure that the polarity matches with the (+) and (-) marks

inside of the battery compartment.

Used batteries should be disposed of properly.

AERIAL CONNECTION

For better picture and sound quality, an effective aerial

installation is the most important.

If you are located in a relatively strong area, you will be able to

use the indoor aerial.

When using an outdoor aerial, it is usually connected to the set

by means of 75 ohm coaxial cable.

MAINS CONNECTION

Plug the mains cable into the power socket with 100~250V AC,

50/60Hz.

FIRST INSTALLATION OF TV

If you turn on the TV firstly, LANGUAGE menu will be displayed.

Select the language you want with PR up/down button and press

MENU button on the Remote Controller.

Then blinking of PLEASE WAIT, searching programs, will not

stop until EDIT menu appears.

In EDIT menu, select the proper sound system with PR up/down,

LEFT/RIGHT button on the Remote Controller.

If undesirable pictures are searched, skip the channel.

Press MENU button 3 times if you finish the edit programs.

Auto-power-off

If broadcasting signal is not present for 30 minutes, the TV will

automatically turn off after about 30 minutes. However, if the Off-

time or Sleep time is operating, it takes precedence.

This Auto-Power-Off function does not operate in the “AV1” or

“AV2” mode.

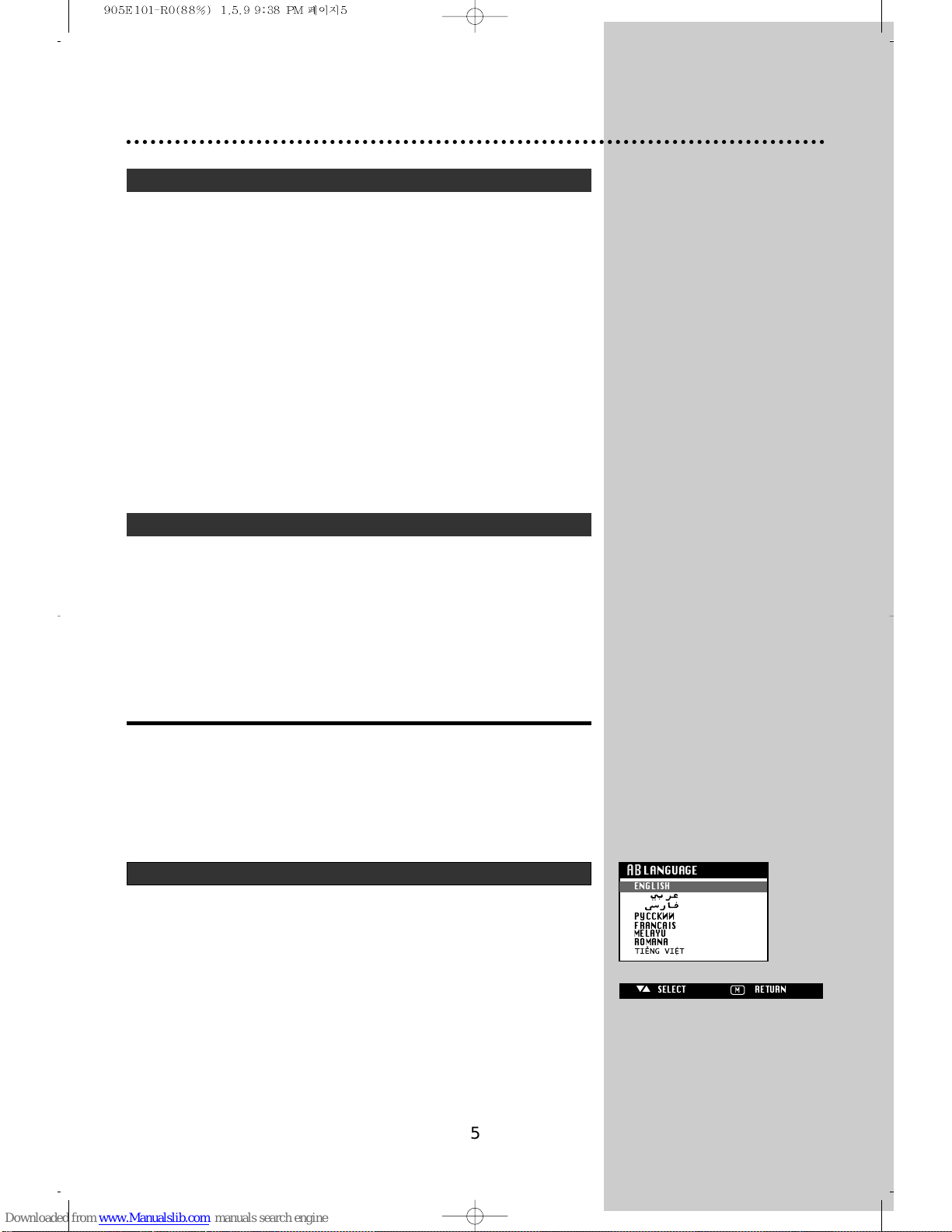

LANGUAGE SELECTION

Select a LANGUAGE menu at the MENU by placing the cursor

on the LANGUAGE with UP/DOWN buttons and pressing the

right button.

You can choose language you require with UP/DOWN buttons.

Press the MENU button to return to the MENU.

Rumanian and Vietnamese language are not available on

teletext model.

SWITCHING THE SET ON AND OFF

SWITCHING ON AND OFF

Switching On

Switch the set on with the MAIN POWER button in front of

the receiver. The set will turn on.

If not, press either : - PR UP or DOWN buttons on the front of

set - or POWER button or the UP/DOWN buttons or one of

the NUMBER buttons 0..9 on the remote controller.

The STAND-BY INDICATOR will flicker during 3 times and a

picture will appear on the screen.

Switching Off

Press POWER button on the remote controller to return the

set to its stand-by mode.

The STAND-BY INDICATOR will be on.

If you don't use the set for extended period of time, turn it off

with MAIN POWER button in front of the receiver.

SWITCHING OFF

Press POWER button on the remote controller to return the set to

its stand-by mode.

The STAND-BY INDICATOR will illuminate.

If you don’t use the set for extended period of time, turn it off with

MAIN POWER button on front of the TV.

LANGUAGE

ENGLISH

FRANCAIS

ELAYU

ANA

P CCK

SELECT RETURN

TUNING THE TV CHANNELS

AUTOMATIC TUNING SYSTEM

Press the menu button to select the “INSTALL”

Press the right button and then select a sound system.

Press the right button to start AUTO SETUP.

Please wait until the EDIT menu appears

EDIT

DELETE PROGRAMME POSITION DATA

Press the menu button to select the EDIT menu and move the

yellow bar to the EDIT with the up/down buttons.

Position the yellow-bar to the programme to delete with the

up/down buttons and then DELETE button.

The deleted programme is moved to the programme no.99 and

the programmes below the deleted programme no will be shifted

to the programme no lower by one.

The programme moved to no.99 will be initialized to Skip

“

Yes

”

Locate a cursor to MANUAL TUNE with the up/down buttons

and then press the left/right buttons.

The tuning screen will appear and the cursor will move from left

to right or from right to left. The channel will be searched from the

band area of current programme. If you continuosely press the

left or right button over 5 seconds, the current band area is

shifted to the next band area. (VHF-L VHF-H UHF)

After searching a station, the tuning screen will disappear.

To stop searching, press the MENU button.

CHANGING THE ORDER OF THE CHANNELS

Position the yellow-bar to a programme to move with the

up/down buttons and then press the MOVE button.

Press the up/down buttons to positon the yellow-bar to another

programme to exchange.

By pressing the MOVE button again, selected two programmes

will be exchanged

ENTER A STATION NAME

Locate the cursor to below NAME with left/right buttons.

Using the up/down buttons, select the desired letter, number or

blank. Press the right button to select the next position.

SKIPPING THE CHANNELS

You can select SKIP “Yes” or “No” with the SKIP button in EDIT

mode or locate the cursor to below SKIP with the left/right buttons

and then press the up/down buttons to skip the desired programme.

A programme marked with Skip “Yes” is skipped when changing

channel using the Programme UP/DOWN.(on normal opertion)

Press the NUMBER button 0..9 or UP/DOWN buttons to select

programme number you want.

The screen will change according to the selected programme

number.

MANUAL CHANNEL SETTING

INSTALL

AUTO SETUP

ANUAL TUNE

FINE TUNE

EDIT

POSITION

RETURN ACCESS

SELECT

POSITION

OVE

SKIP

DELETE

RETURN

EDIT

PR NA

E PICTURE SOUND

SKIP

90 ---- ------- ----

91 ---- ------- ----

92 ---- ------- ----

93 ---- ------- ----

94 ---- ------- ----

SELECT

POSITION

OVE

SKIP

DELETE

RETURN

EDIT

PR NA

E PICTURE SOUND

SKIP

90 ---- ------- ----

91 ---- ------- ----

92 ---- ------- ----

93 ---- ------- ----

94 ---- ------- ----

INSTALL

AUTO SETUP

ANUAL TUNE

FINE TUNE

EDIT

POSITION

RETURN ADJUST

FINE TUNING

If you can’t get a good picture or sound because of a poor

broadcasting signal, it is possible to adjust the fine tuning.

Move the cursor to FINE TUNE and press left/right buttons to

activate fine tuning.

It operates only when the left/right buttons is being pressed.

The changes are memorized automatically.

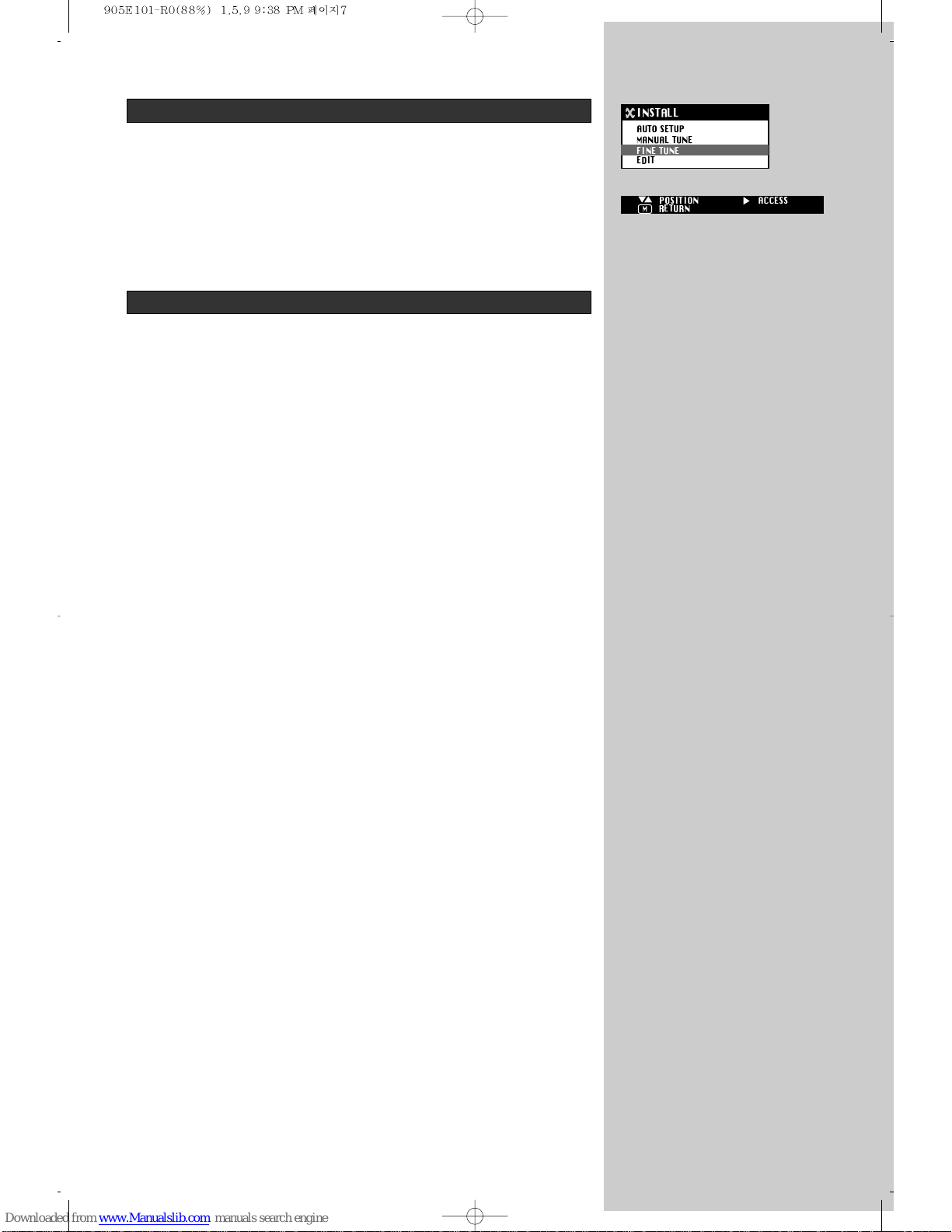

SELECT SOUND SYSTEM

When the sound is abnormal, press the MODE button on the

remote controller.

BG, DK, I, MN can be selected repeatedly.

Select the correct sound system.

INSTALL

AUTO SETUP

ANUAL TUNE

FINE TUNE

EDIT

POSITION

RETURN ACCESS

DAILY USE

SELECTIING A PROGRAMME

The set has a total of 100 pragramme numbers, 00..99.

The NUMBER buttons 0..9 are used for direct programme

selection. In order to select two-digit programme, press the

second numbered button within two seconds.

PR UP/DOWN bottons are used for changing the stored channel

step by step.

SOUND CONTROL

VOLUME CONTROL

Adjust the volume with the VOLUME DOWN/UP buttons on the

front of the set, or with the LEFT/RIGHT buttons on the remote

control.

MUTE

Pressing the MUTE button once turns the sound off. At the same

time, mute sign( ) is displayed on the screen.

The sound returns if the button is pressed once more or the

volume is adjusted with the VOLUME DOWN/UP buttons, or with

the LEFT/RIGHT button.

To select the SOUND MODE

Press the ♪button on the remote controller to select the desired

sound quality.

MEMORY(user set), MOVIE, MUSIC, NEWS can be selected.

To adjust the TREBLE/BASS

Press the MENU button to select the SOUND, then the feature

of OSD on the right will be appeared.

Select the TREBLE or BASS with the UP/DOWN buttons.

The LEFT/RIGHT buttons to adjust each function.

To adjust the BALANCE

Press the MENU button to select the SOUND and then to be

displayed on the right appearance.

Select the BALANCE with the UP/DOWN buttons.

The LEFT/RIGHT buttons to adjust the BALANCE.

SOUND EFFECT

Press the MENU button to select the SOUND and then to be

right appearance.

Select the EFFECT with UP/DOWN buttons. By pressing the

LEFT/RIGHT buttons. EFFECT on: function is changed

cyclically.

SOUND

TREBLE

BALANCE

BASS 25

EFFECT

POSITION

RETURN ADJUST

SOUND

TREBLE

BALANCE

BASS 25

EFFECT

POSITION

RETURN ADJUST

PICTURE CONTROL

16:9 / ZOOM

By pressing the P.SIZE button repeatedly, you can select one of

the following settings :

16:9 -> ZOOM -> 4:3 -> 16:9 -> ......

NORMAL PICTURE SELECTION

When you press the NORMAL button repeatedly you can call up

three picture settings;

for Normal I(hard picture), Normal II(soft picture),

Favourite(adjustable picture).

PICTURE CONTROL

Press the MENU button to call up the Menu.

Press the RIGHT button to call up the Picture menu.

You can select each function with the UP/DOWN buttons.

Use the LEFT/RIGHT button to adjust each function:

CONTRAST-BRIGHTNESS-COLOUR-SHARPNESS-

TINT- BLUEBACK-DIGITAL EYE

The last set value is automatically stored in FAVOURITE mode.

BLUEBACK FUNCTION

Select the BLUEBACK with the up/down buttons. By pressing the

left or right button, BLUEBACK function is on and off.

If you set Blueback function

“”

, you can see the bluescreen

when the TV receives no signal. In AV mode screen is always

displayed the bluesceen when no signal.

DIGITAL- EYE FUNCTION

Select the DIGITAL EYE with the up/down buttons.

By pressing the left or right button, DIGITAL EYE function is on

and off


BRIGHTNESS

COLOUR

SHARPNESS

BLUEBACK

DIGITAL EYE

CONTRAST 62

POSITION

RETURN ADJUST


BRIGHTNESS

COLOUR

SHARPNESS

BLUEBACK

DIGITAL EYE

CONTRAST 62

POSITION

RETURN ADJUST

NOTE

1. TINT for NTSC only.

2. DIGITAL EYE for 14/21D6, 14/20/21D7, 21U6, 21U8

QURAN FUNCTION

This function is available only ARABIC language.

Select ARABIC in language of MENU then language will be

changed with ARABIC and leave out the MENU.

Press “DELETE” button on the remote controler.

Quran will be displayed .

Press DELETE key once more. The quran will be disappeared.

Andere Handbücher für DTD-14D3 ME

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daewoo Fernseher Handbücher

Daewoo

Daewoo WP-895 Bedienungsanleitung

Daewoo

Daewoo DTQ 25S3FC Bedienungsanleitung

Daewoo

Daewoo DTY-25G1 Bedienungsanleitung

Daewoo

Daewoo DTH-20D5FS Bedienungsanleitung

Daewoo

Daewoo DTC-20, DTC-21, DTY-21, DTY-25 Bedienungsanleitung

Daewoo

Daewoo DTQ-2133SSFN Bedienungsanleitung

Daewoo

Daewoo DTQ-13V6FCB Bedienungsanleitung

Daewoo

Daewoo DTW-28W2 Series Bedienungsanleitung

Daewoo

Daewoo DTQ-2132SSS Bedienungsanleitung

Daewoo

Daewoo D50DM54UAMS Bedienungsanleitung

Daewoo

Daewoo DTL-29U8ZLP Bedienungsanleitung

Daewoo

Daewoo DTY-29Z9 Bedienungsanleitung

Daewoo

Daewoo DTH-25G1FST/FSP/FS Bedienungsanleitung

Daewoo

Daewoo DTR-29M5ME/MP/MT/MZ Bedienungsanleitung

Daewoo

Daewoo SuperVision GB14Q2T Bedienungsanleitung

Daewoo

Daewoo DTY-29Z9 Bedienungsanleitung

Daewoo

Daewoo DTR-29M5MP Bedienungsanleitung

Daewoo

Daewoo DTY-29G1 Bedienungsanleitung

Daewoo

Daewoo DTH-29M2FS Bedienungsanleitung

Daewoo

Daewoo DTQ14P1FC Bedienungsanleitung

Daewoo

Daewoo DUB-2850GB, DUB-2842GB Bedienungsanleitung

Daewoo

Daewoo DTH-14V1FS Bedienungsanleitung

Daewoo

Daewoo DTQ-29U9FS Bedienungsanleitung

Daewoo

Daewoo DTQ 27U5SC Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
