Foreword I

Foreword

General

This Quick Start Guide (hereinafter referred to be "the Manual) introduces the functions and

operations of the NVR devices (hereinafter referred to be "the Device").

Safety Instructions

The following categorized signal words with defined meaning might appear in the Manual.

Signal Words

Meaning

CAUTION

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, lower performance, or unpredictable

result.

TIPS

Provides methods to help you solve a problem or save you time.

NOTE

Provides additional information as the emphasis and supplement

to the text.

Revision History

No.

Version

Revision Content

Release Time

V1.0.0

First release.

July 2019

Privacy Protection Notice

As the device user or data controller, you might collect personal data of others such as face,

fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be

in compliance with the local privacy protection laws and regulations to protect the legitimate

rights and interests of other people by implementing measures including but not limited to:

providing clear and visible identification to inform data subject the existence of surveillance

area and providing related contact.

About the Manual

The Manual is for reference only. If there is inconsistency between the Manual and the

actual product, the actual product shall prevail.

We are not liable for any loss caused by the operations that do not comply with the Manual.

The Manual would be updated according to the latest laws and regulations of related

regions. For detailed information, see the paper manual, CD-ROM, QR code or our official

website. If there is inconsistency between paper manual and the electronic version, the

Foreword II

electronic version shall prevail.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the Manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or

errors in print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the Manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the Manual are the

properties of their respective owners.

Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Important Safeguards and Warnings III

Important Safeguards and Warnings

The following description is the correct application method of the Device. Read the Manual

carefully before use to prevent danger and property loss. Strictly conform to the Manual during

application and keep it properly after reading.

Operating Requirement

Install the PoE front-end device indoors.

Do not place and install the device in an area exposed to direct sunlight or near heat

generating device.

Do not install the device in a humid, dusty or fuliginous area.

Keep its horizontal installation, or install it at stable places, and prevent it from falling.

Do not drip or splash liquids onto the device; don’t put on the device anything filled with

liquids, in order to prevent liquids from flowing into the device.

Install the device at well-ventilated places; don’t block its ventilation opening.

Use the device only within rated input and output range.

Do not dismantle the device arbitrarily.

Transport, use and store the device within allowed humidity and temperature range.

Power Requirement

Make sure to use the designated battery type. Otherwise there may be explosion risk.

Make sure to use batteries according to requirements. Otherwise, it may result in fire,

explosion or burning risks of batteries!

To replace batteries, only the same type of batteries can be used.

Make sure to dispose the exhausted batteries according to the instructions.

The product shall use electric wires (power wires) recommended by this area, which shall

be used within its rated specification.

Make sure to use standard power adapter matched with this device. Otherwise, the user

shall undertake resulting personnel injuries or device damages.

Use power supply that meets SELV (safety extra low voltage) requirements, and supply

power with rated voltage that conforms to Limited Power Source in IEC60950-1. For

specific power supply requirements, please refer to device labels.

Products with category I structure shall be connected to grid power output socket, which is

equipped with protective grounding.

Appliance coupler is a disconnecting device. During normal use, please keep an angle that

facilitates operation.

Table of Contents IV

Table of Contents

Foreword.................................................................................................................................................... I

Important Safeguards and Warnings.................................................................................................... III

1Checking the Components................................................................................................................ 1

2 Installing HDD........................................................................................................................................ 2

2.1 SMART 1U..................................................................................................................................... 2

2.2 MINI 1U, COMPACT 1U, 1U......................................................................................................... 4

3 Connection............................................................................................................................................. 6

4 GUI Operations...................................................................................................................................... 7

4.1 Booting Up..................................................................................................................................... 7

4.2 Initializing the Device..................................................................................................................... 7

4.3 Modifying IP Address................................................................................................................... 10

4.4 Registration...................................................................................................................................11

4.5 Schedule.......................................................................................................................................11

4.6 Playback...................................................................................................................................... 12

4.7 Shutdown..................................................................................................................................... 13

5Web Operations ................................................................................................................................ 14

6 P2P........................................................................................................................................................ 15

Cybersecurity Recommendations................................................................................... 17Appendix 1

Checking the Components 1

1 Checking the Components

All the installation and operations here should conform to the local electric safety rules. The

Device does not support wall mounting with the front panel facing down.

When you receive the Device, please check against the following checking list. If any of the

items are missing or damaged, contact the local retailer or after-sales engineer immediately.

Sequence

Checking items

Requirement

Package

Appearance

No obvious damage.

Packing materials

No broken or distorted positions that

could be caused by hit.

Accessories

No missing.

Labels

Labels on the Device

Device model conforms to the



purchase order.

Not torn up.



Do not tear up or throw away the

labels; otherwise the warranty

services are not ensured. You need

to provide the serial number of the

product when you call the after-sales

service.

Device

Appearance

No obvious damage.

Data cables, power

cables, fan cables,

mainboard

No connection loose.

If there is any loose, please contact

the company after-sales service in

time.

Installing HDD 2

2 Installing HDD

The following figures are for reference only. The actual product shall govern.

Shut off the power before you replace the HDD.

2.1 SMART 1U

For the first time installation, check whether the HDD has been installed or not. It is

recommended to use HDD of enterprise level or surveillance level. It is not recommended to

use PC HDD.

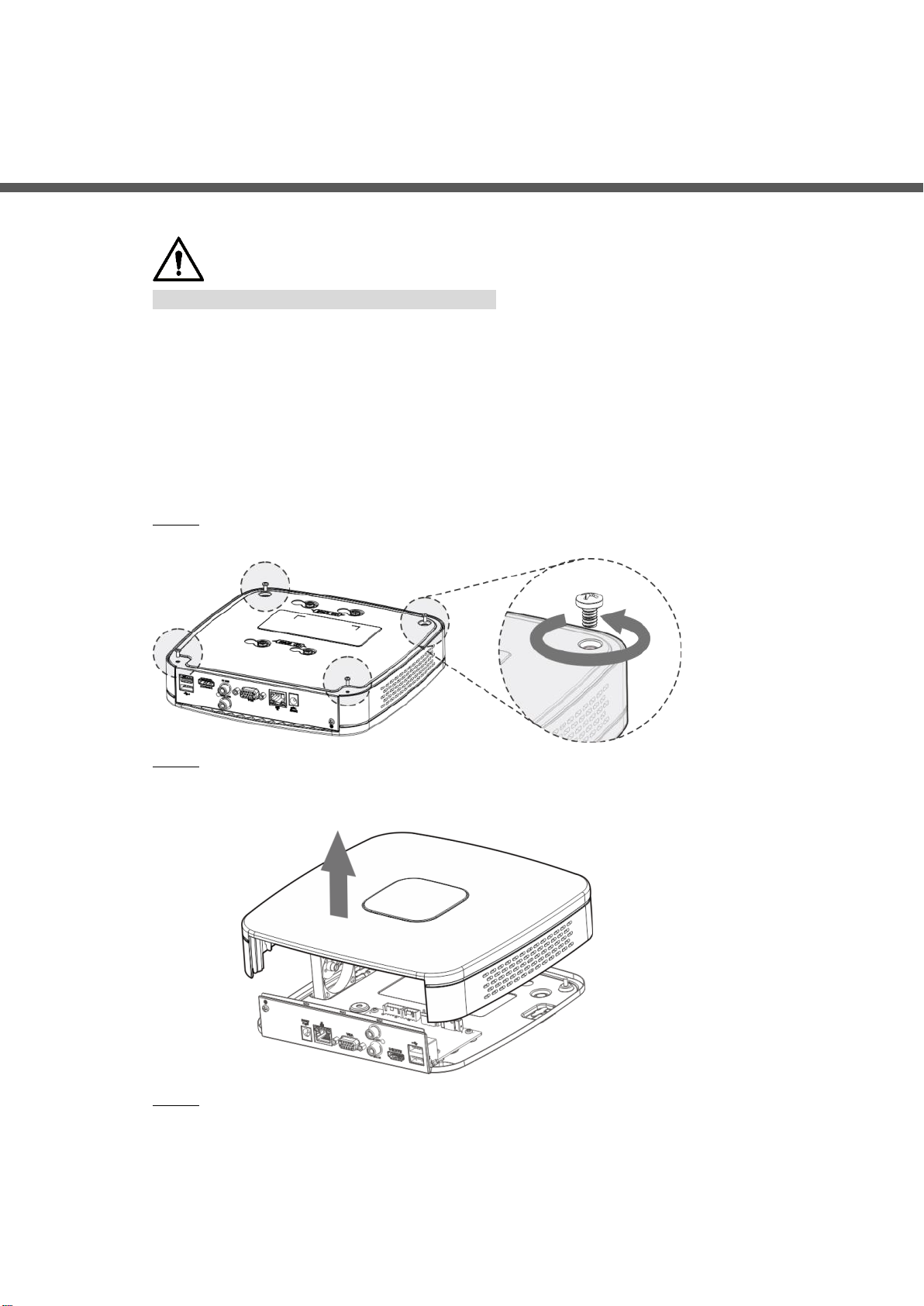

Turn over the device and remove the four fixing screws on the baseboard of the device.Step 1 Installing HDD (1)Figure 2-1

Remove the case cover along the direction shown in the following

Step 2

arrow. Installing HDD (2)

Figure 2-2

Match the four holes on the baseboard to place the HDD.

Step 3

Installing HDD (3)

Figure 2-3

Installing HDD 3

Turn the device upside down, match the screws with the holes on

Step 4

the HDD and then fasten them. The HDD is fixed to the

baseboard. Installing HDD (4)

Figure 2-4

Connect the HDD data cable and power cable to the device.

Step 5

Installing HDD (5)

Figure 2-5

Put back the cover and fasten the four screws on the baseboard

Step 6

to complete the installation.

Installing HDD (6)

Figure 2-6

Installing HDD 4

2.2 MINI 1U, COMPACT 1U, 1U

For the first time installation, make sure whether the HDD has been installed or not. It is

recommended to use HDD of enterprise level or surveillance level. It is not recommended to

use PC HDD.

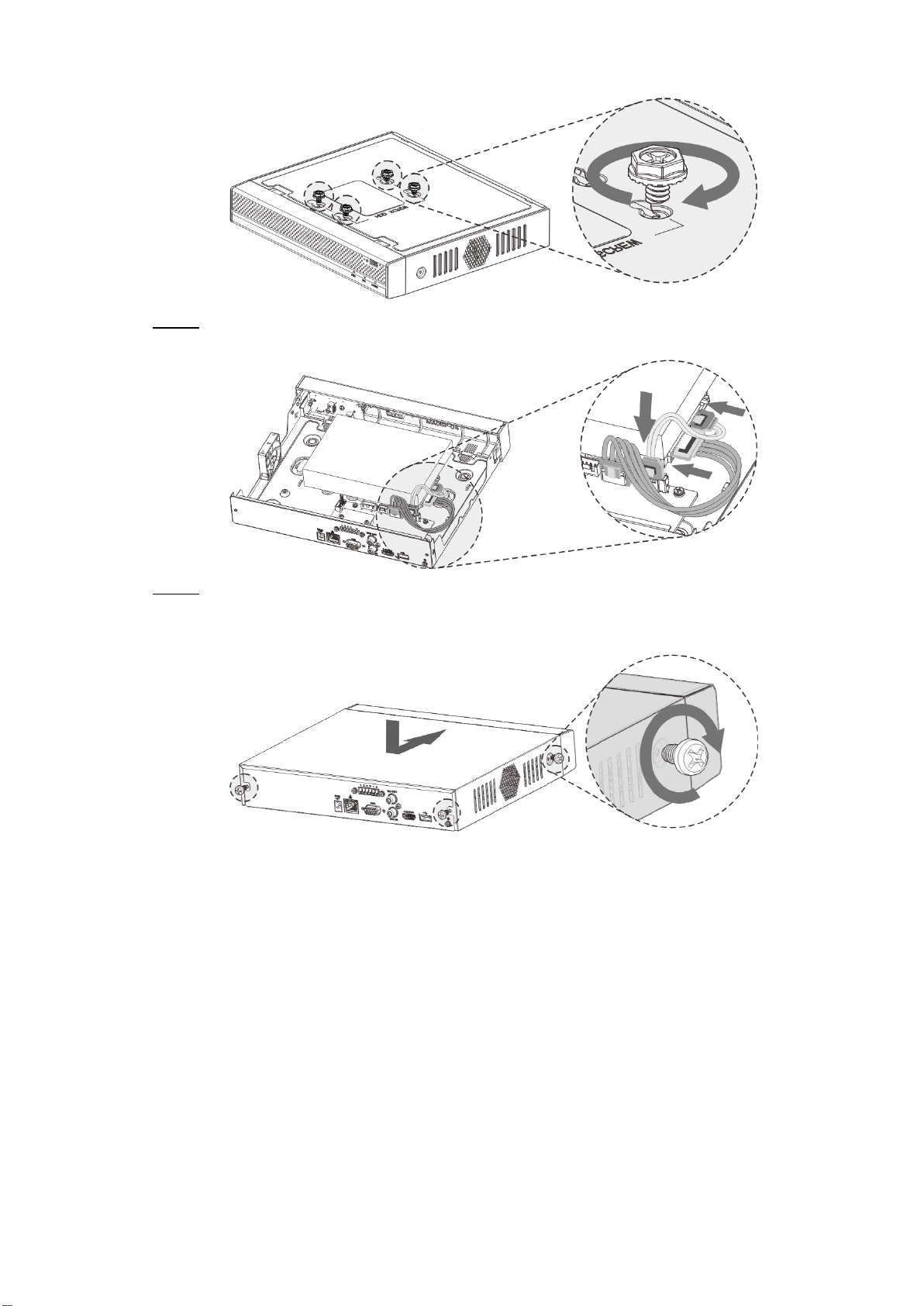

Remove the fixing screws of the case cover (including the two screws on the rear panelStep 1 and two screws on the left and right panels).

Installing HDD (1)Figure 2-7

Remove the case cover along the direction shown in the following arrow.Step 2 Installing HDD (2)Figure 2-8

Match the four holes on the baseboard to place the HDD.Step 3 Installing HDD (3)Figure 2-9

Turn the device upside down, match the screws with the holes on the HDD and thenStep 4 fasten them. The HDD is fixed to the baseboard.

Installing HDD 5

Installing HDD (4)Figure 2-10

Connect the HDD data cable and power cable to the device.Step 5 Installing HDD (5)Figure 2-11

Put back the cover and fasten the screws on the rear panel and side panels toStep 6 complete the installation. Installing HDD (6)Figure 2-12
