DH-SP-PIXX

User’s Manual

V1.0.0

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

User’s Manual

Foreword

General

This manual introduces the installation, functions and operations of the device (hereinafter referred to

as "the Device"). Read carefully before using the device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning

DANGER

Indicates a high potential hazard which, if not avoided, will result in

death or serious injury.

WARNING

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

CAUTION

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, reductions in performance, or

unpredictable results.

TIPS Provides methods to help you solve a problem or save time.

NOTE Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.0 First release. May 2023

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number.You need to be in compliance with your local privacy protection

laws and regulations to protect the legitimate rights and interests of other people by implementing

measures which include but are not limited: Providing clear and visible identification to inform people

of the existence of the surveillance area and provide required contact information.

About the Manual

The manual is for reference only. Slight differences might be found between the manual and the

product.

User’s Manual

We are not liable for losses incurred due to operating the product in ways that are not in

compliance with the manual.

The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

All designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

There might be errors in the print or deviations in the description of the functions, operations and

technical data. If there is any doubt or dispute, we reserve the right of final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and company names in the manual are properties of their

respective owners.

Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

If there is any uncertainty or controversy, we reserve the right of final explanation.

User’s Manual

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, and comply with the

guidelines when using it.

Transportation requirements

Please transport the equipment within the allowed humidity (≤ 95% RH) and temperature range (-10 ℃

to +50 ℃).

Storage requirements

Please store the equipment within the allowed humidity (≤ 95% RH) and temperature range (-10 ℃to

+50 ℃).

Installation requirements

WARNING

To avoid electric shock to the human body or damage to the product, please turn off the AC

power supply before connecting (non plug and play) devices each time.

Avoid using this product in environments with high or low temperatures (operating temperature:

-10 to 50 degrees Celsius; humidity: 10% to 95%; storage temperature: -20 to 70 degrees Celsius).

Do not subject the product to strong impact or vibration, as it may cause equipment malfunction

or damage.

When moving the product, be sure to unplug the AC power supply.

NOTE

Do not install the device in a damp place.

User’s Manual

Maintenance Requirements

WARNING

Do not use a damp cloth to clean your computer to prevent liquid from dripping into the

computer and causing it to burn.

To avoid unnecessary damage to the product caused by frequent switching on and off, wait at

least 30 seconds before turning on the machine.

NOTE

Please do not disassemble the equipment randomly. Professional personnel must be present for

maintenance and installation.

User’s Manual

Table of Contents

Foreword............................................................................................................................................................ I

Important Safeguards and Warnings............................................................................................................. III

1 Summarize ..................................................................................................................................................... 1

2 Product Introduction .................................................................................................................................... 1

Product Configuration ............................................................................................................................................................. 1

IO interface ................................................................................................................................................................................... 2

Cybersecurity Recommendations............................................................................................... 4

Product Warranty Card..................................................................................................................................... 7

User’s Manual

1Summarize

Thank you for choosing our products.

Before using your product, please make sure your packaging is complete, if there have been damaged or you

find any shortage, please contact your agency as soon as possible.

OPS X 1

Product manual X 1

ATN Screw X 2

WiFi antenna X 2

User’s Manual

2Product Introduction

Product Configuration

Processor - DH-SP-PIXX

CPU - Intel® Tiger Lake Mobile Processor

Graphics - Intel® Iris® Xe Graphics

Storage

- 1 x M.2 2280 size for NVMe/SATA SSD

- 1 x 2.5’’ SATA Interface

Memory - 2 x SO-DIMM DDR4 3200 MHz，Max 32GB

Audio - Realtek ALC897 HD Audio IC

Front IO interface

- 1 x HDMI1.4

- 2 x USB3.1, 1 x USB2.0, 1 x Type-C (USB3.1)

- 1 x RJ45

- 1 x Line-out & MIC-In Two In One Connector

- 2 x Wi-Fi/BT ANT

- 1 x Power button

- 1 x Reset button

Rear IO interface

- 1 x 80pin：1 x HDMI 2.0 out，1 x USB3.0，2 x USB2.0

，

TTL

- 1 x 2.5/5.5 DC IN JACK

Wireless - 1 x M.2 2230 WIFI/BT Module

Network - Realtek Gigabit Ethernet

User’s Manual

Watchdog - Support

Power input - 12-19V DC IN

Environmental

requirement

- Working temperature / storage temperature: -

5 ~

45 ℃/ - 20 ~ 70 ℃

- Working / non working humidity:

10% ~ 90% non

condensing / 5% ~ 95% non condensing

OS - Support Windows10 / Windows11 / Linux

Dimensions - 119 x 180 x 30 mm

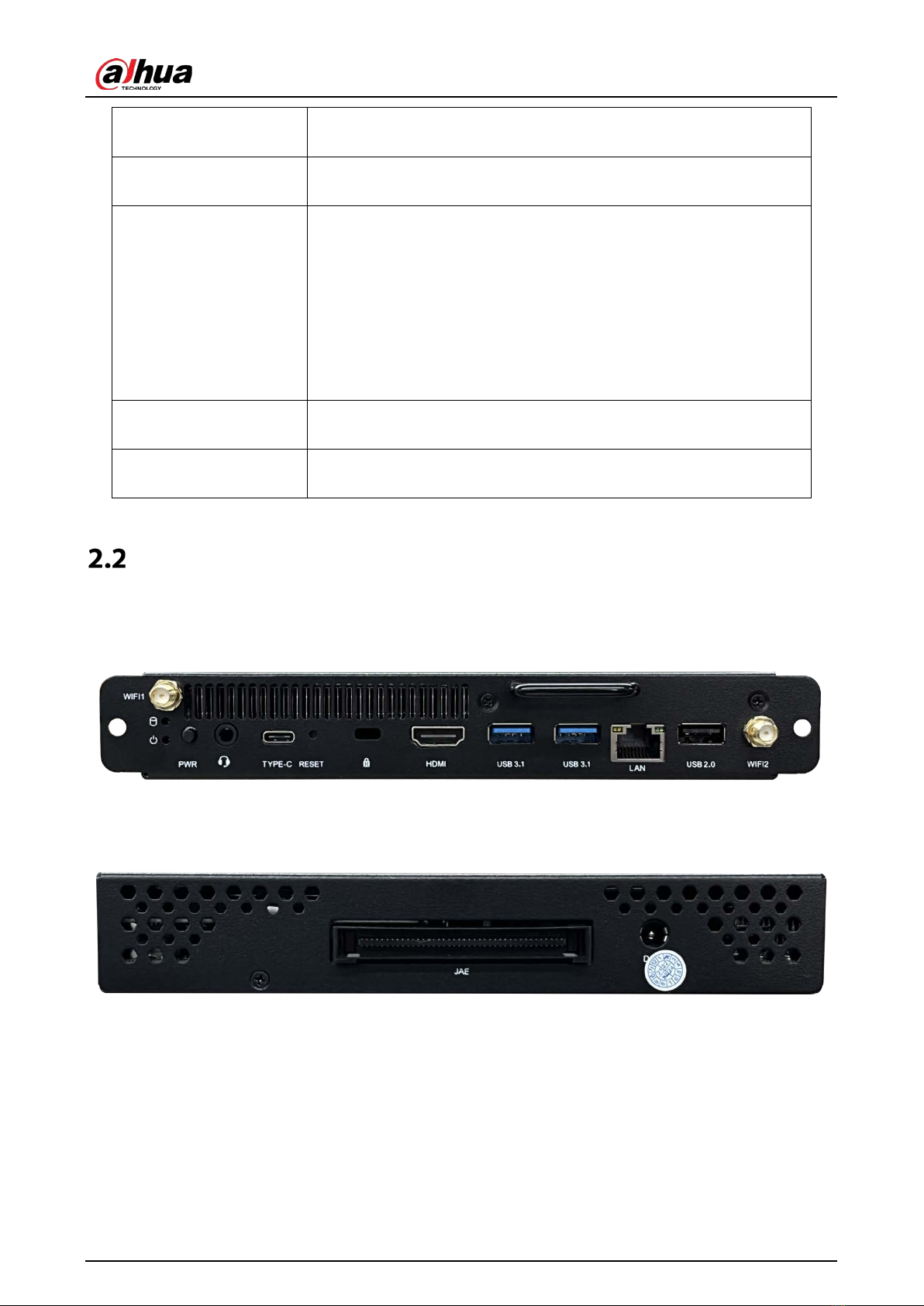

IO interface

Front IO interface

Rear IO interface

• WIFI-1/2：WIFI/BT antenna

• POWER BUTTON: Power Switch Button

• LINE_OUT&MIC-IN Two in One Connector: Audio output interface with mic

• LED: (top) hard disk indicator, (bottom) power indicator

• TYPE_C: TYPE_ C port

• RESET: Reset button

• Lock: Anti-theft hole

User’s Manual

• HDMI: High definition multimedia display interface

• USB3.1: USB3.1 port

• LAN: RJ-45 network interface

• USB2.0: USB2.0 port

• JAE 80PIN: 80 pin extension port

• DC IN: DC power interface
