Dahua HAC-HFW1200D Bedienungsanleitung

IR Waterproof Fixed-focal Fixed HDCVI Camera

User’s Manual

Version 1.0.0

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

2Framework and Dimensions.....................................................................................................2

3Installation....................................................................................................................................5

4Menu.............................................................................................................................................8

4.1 HDCVI Series DVR Settings.......................................................................................8

4.2 Menu Operation............................................................................................................8

Appendix ⅠMaintenance.................................................................................................................11

Appendix ⅡToxic or Hazardous Materials or Elements ............................................................12

Welcome

Thank you for purchasing our HDCVI camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series HDCVI camera should be installed in a cool, dry place away from direct sunlight or strong

light, inflammable, explosive substances and etc.

This series camera shall work on the specified working temperature. Please keep it away from the

electromagnetic radiation object and environment.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the

mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.

Please put the dustproof cap to protect the CMOS component when you do not use the camera.

Applicable Models

This manual can be applied to the models of HAC-HFWXXXXB, HAC-HFWXXXXD and HAC-

HFWXXXXE.

Note:

“XXXX”are the 4 numbers in the model, such as 2120.

1General Introduction

1.1 Overview

This series HDCVI camera conforms to the HDCVI standard. It supports video signal high-speed

long distance transmission without any delay. It can be controlled by the DVR conforming to the

HDCVI.

1.2 Features

High-performance CMOS image sensor, megapixel definition.

Support HD video, control signal coaxial transmission.

720P series support 75-3 coaxial cable transmission without any loss. The distance is over

500m. 1080P series support 75-3 coaxial cable transmission without any loss. The distance

is over 300m.

High speed, long distance real-time transmission.

Support HDCVI HD and analog SD switch output.

Support 3D noise reduction, excellent low illumination performance.

Support ICR switch to realize surveillance both in the daytime and at night.

Support OSD menu adjustment parameters.

Support intelligent IR function.

Support DC12V power supplying.

Support IP66 protection level.

Can be applied to the environments with darker light or no illumination like road, warehouse,

underground parking lot, bar, pipeline and etc.

2Framework and Dimensions

Please refer to the following figure for dimension information of HAC-HFWXXXXB. The unit is

mm. See Figure 2-1.

Figure 2-1

Please refer to the following figure for dimension information of HAC-HFWXXXXD. The unit is

mm. See Figure 2-2.

Figure 2-2

Please refer to the following for dimension information of HAC-HFWXXXXE. The unit is mm. See

Figure 2-3.

Figure 2-3

Please refer to the following figure for structure information. See Figure 2-4.

Figure 2-4

Please refer to the following sheet for detailed information.

Name

Function

Lens

It is to receive the optical signal from the environments.

Sunshield Cover

Bracket

Support camera body and rotate to adjust monitor angle.

Power input port

Connect to the DC 12V power to input the power.

Video output port

BNC port is to output HDCVI/CVBS standard definition video signal.

You can connect to the devices such as the DVR or the NVS

conforming to the HDCVI specifications.

Standard

definition/high

definition switch

control cable

When the standard definition/high definition switch control cable is

short circuit, system outputs standard definition video. Otherwise,

when the circuit is open, system outputs the high definition video.

Note:

When SD/HD switch control cable is in short circuit, it can realize the switch from HD video

output to SD video output. On the contrary, the control cable will be switched back to HD

video output in the open circuit.

Some models have photosensitive components; please refer to the actual object for more

3Installation

Important

Please make sure the installation surface can min support the 3X weight of the camera

and the bracket.

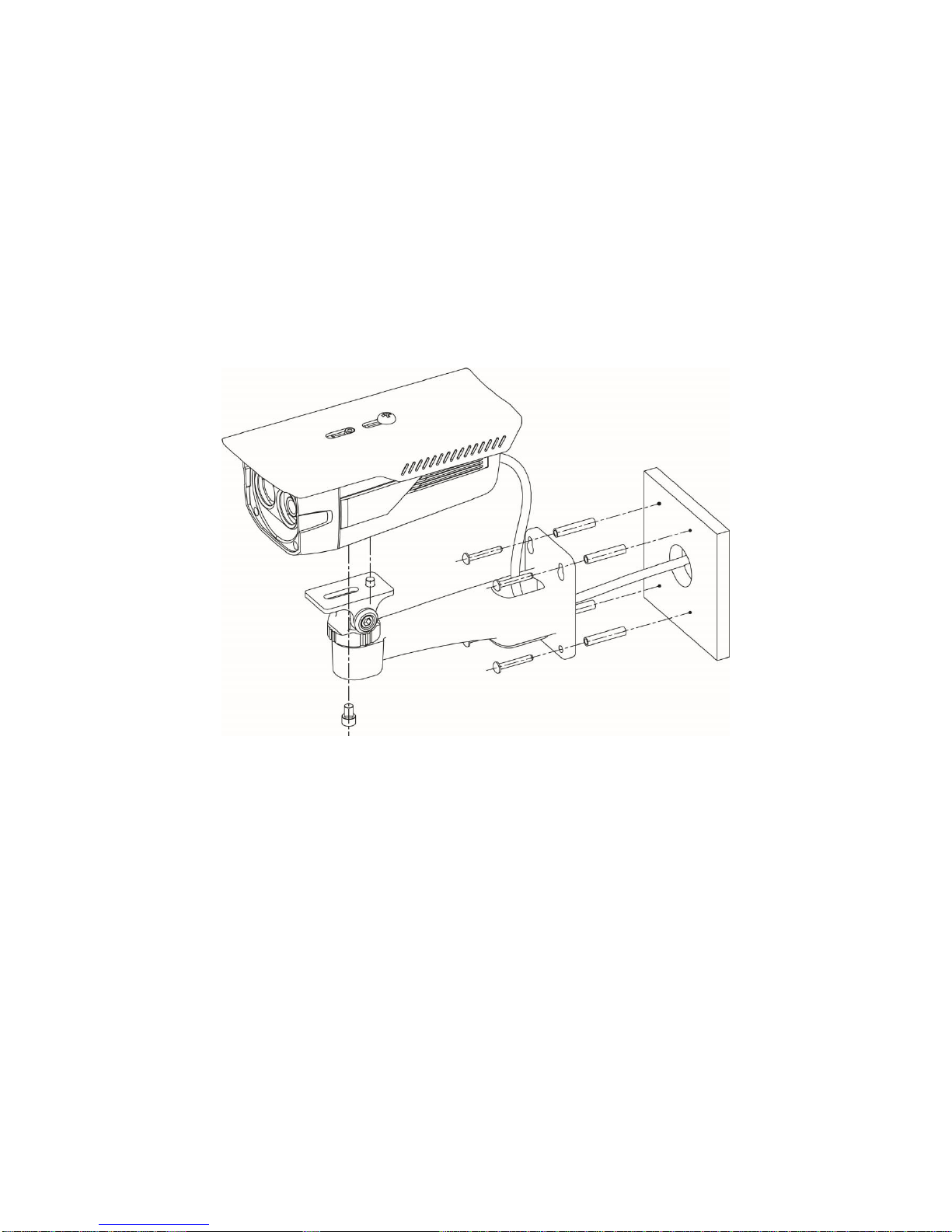

Step 1 Install camera bracket

Please install the expansion bolt if you want to install in the cement wall (Please make sure

the installation holes of the expansion bolts are the same with the bracket.) Then you can

install the bracket. See Figure 3-1.

If you want to install in the wood surface, please skip the first step and then use the self-

tapping screws to install the bracket directly.

Figure 3-1

Step 2 Install the camera

Use the installation pedestal on the bottom of the camera and use screws to install the camera

on the bracket.

Step 3

Adjust the camera to a location which needs to be monitored, tighten the screw on the bracket

and fix the camera.

Note:

The installation figure above is an example of HAC-HFWXXXXB, which is the same as HAC-

HFWXXXXD.

Important

Before the installation, please make sure the installation surface can sustain at least

3X weight of the bracket and the camera.
