Dahua IPC-HDW4431C-A Bedienungsanleitung
HD IR Waterproof Network Camera Quick Start Guide
1

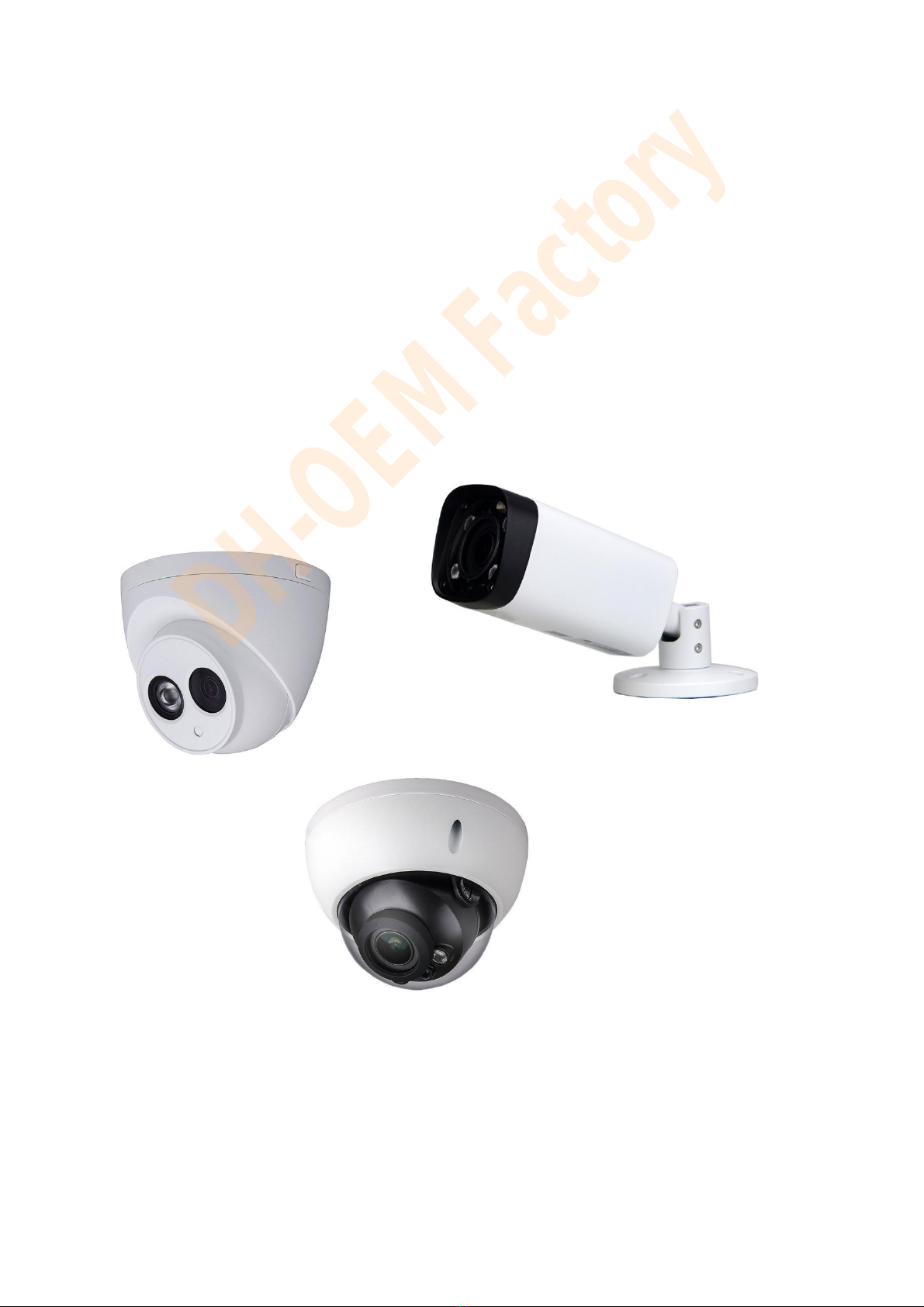

HD IR Waterproof Eyeball Network Camera
Quick Start Guide
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
2
Important Notice

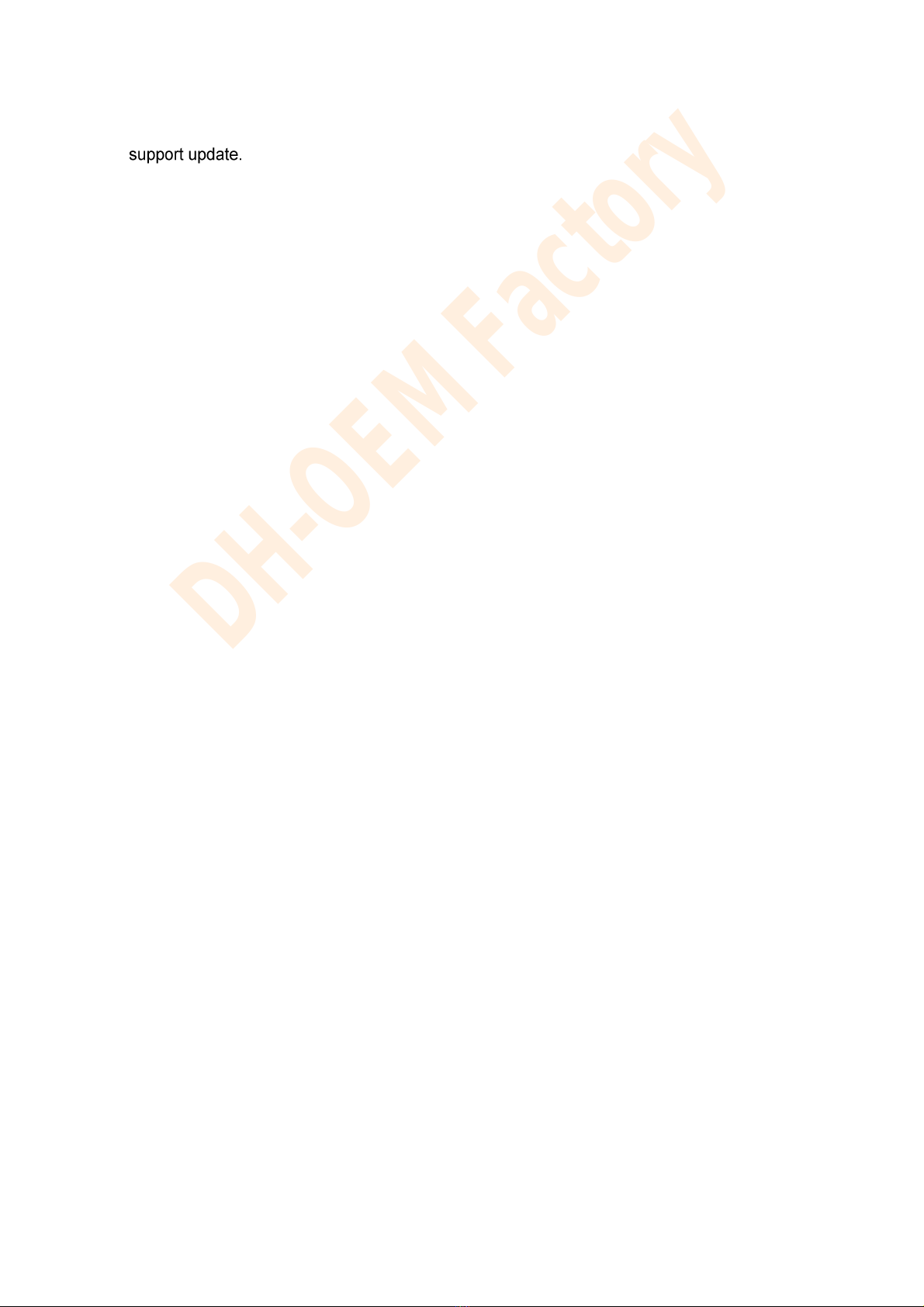

1. Please don’t update the firmware as it is updated from Chinese version and don’t
2. This user manual is taking IPC-HDW4431C-A as an example, but applies to other
models (IPC-HDBW4431R-S, IPC-HDBW4431R-AS, IPC-HDBW4431R-ZS, IPC-HFW4431R-
Z, IPC-HFW4431M-I2, IPC-HDW4433C-A, IPC-HDBW4433R-S(R-AS),(R-ZS)).
Table of Contents
1. Network Configuration..............................................................................................3
1.1 Modify IP Address .........................................................................................................3
1.2 Login WEB Interface.....................................................................................................5
2.Connect to NVR ...........................................................................................................12
2.1 NVR Configuration.....................................................................................................13
2.2 ONVIF NVR Configuration .....................................................................................14
3.Mobile Phone APP.......................................................................................................18
3.1 Downloading and Installation....................................................................................18
3.2 Add Device .....................................................................................................................19
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
3
1. Network Configuration
Note: Camera power is DC 12V or POE 803.2a.f
In order to make the camera get access to the network smoothly, please plan the useable IP segment
reasonably according to the actual network environment.
1.1 Modify IP Address
IP address can be acquired and modified through quick configuration tool for the cameras which are
accessed via wired network. In this chapter, it will introduce the approach of modifying IP address via
“Quick Configuration Tool”; also you can modify the IP address in the network parameters of the WEB
interface.
Note: Currently the quick configuration tool only supports the cameras which apply to the same
network segment with computer IP address.

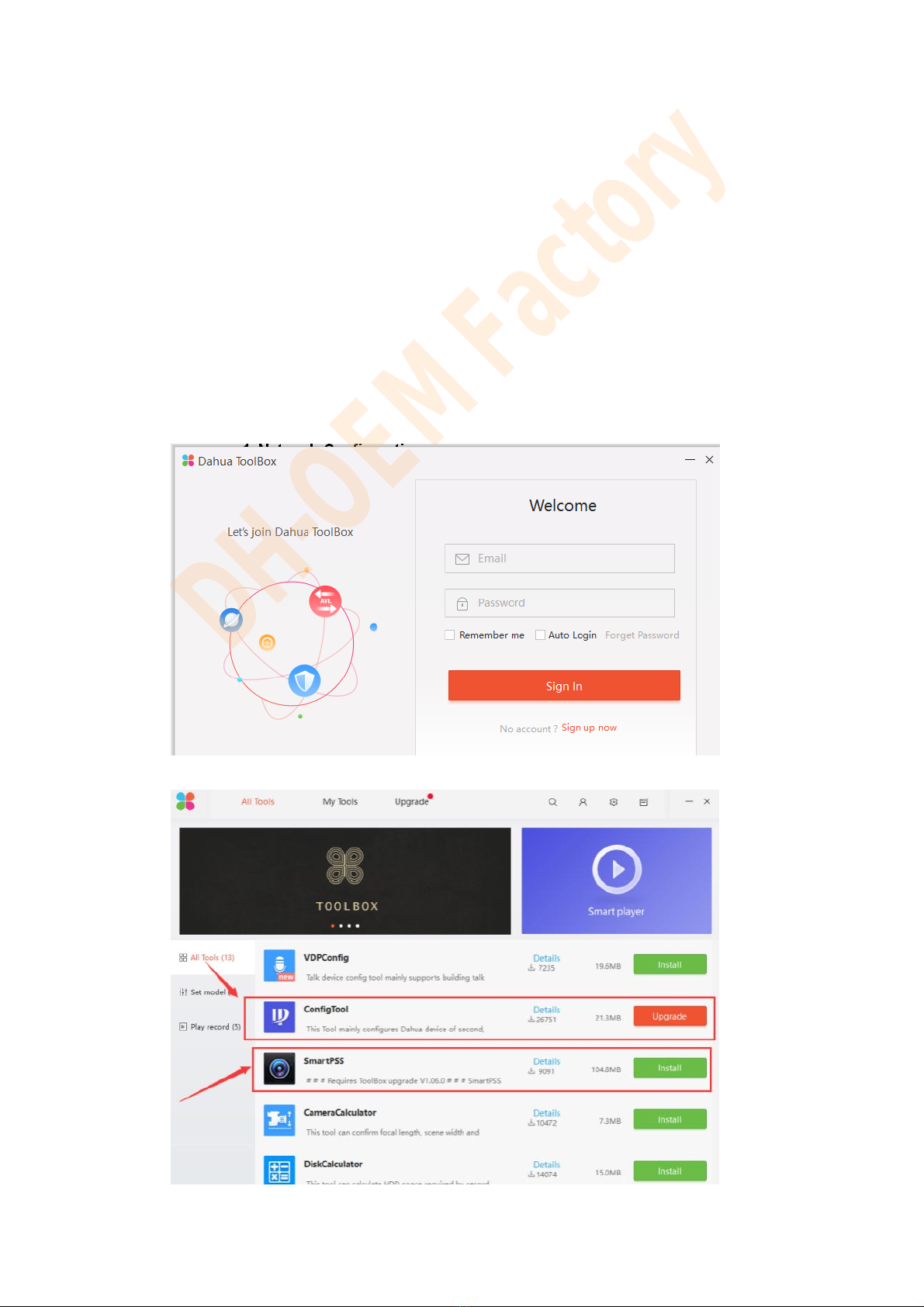

Step 1: Install ConfigTooL (download the ToolBox via official website, login the ToolBox, then
install the ConfigTool.)
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
4

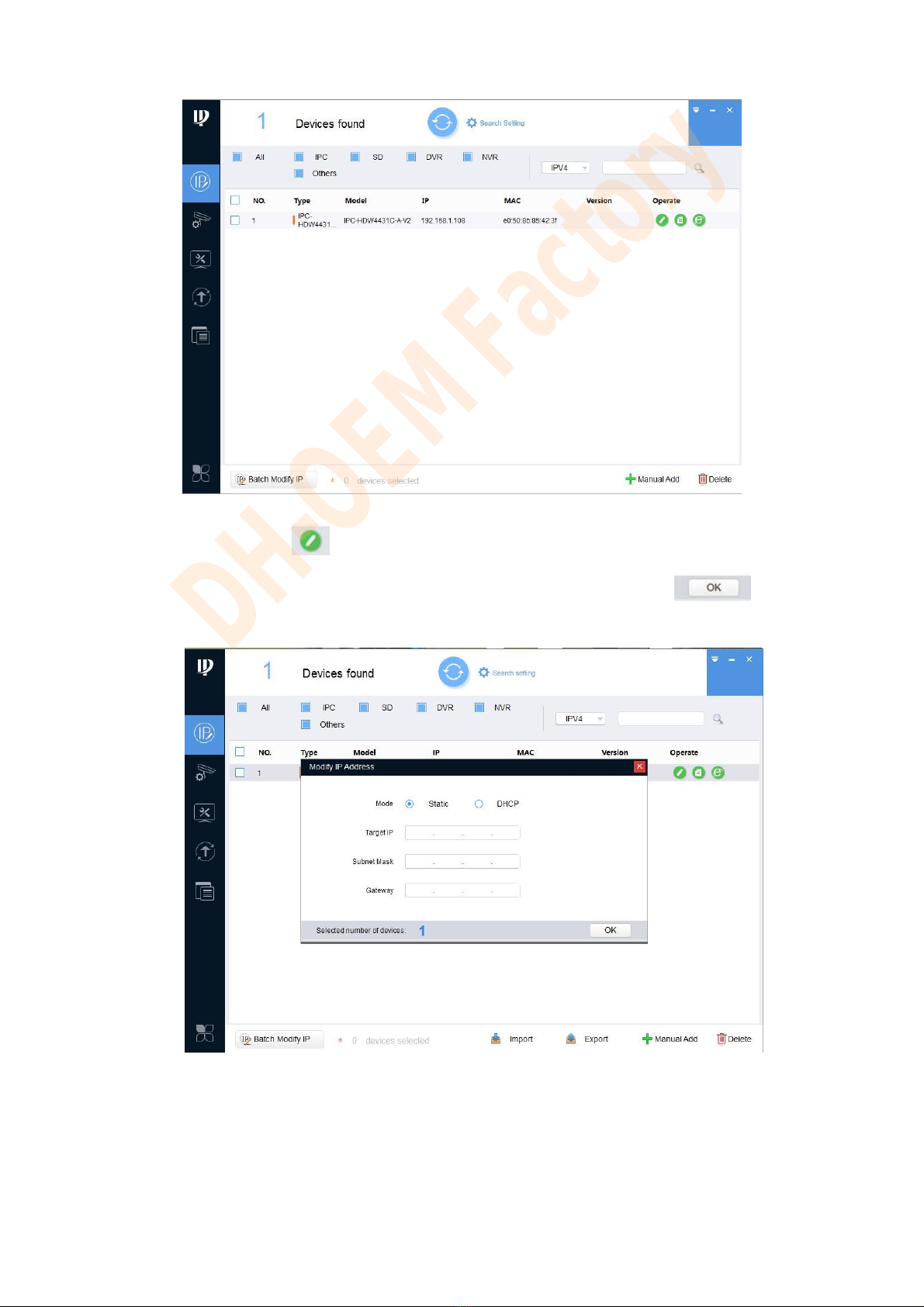

Open the ConfigTool. If the camera is connected correctly，it will show as Figure 1-1.
Figure 1-1
Step 2: Click the icon , input the IP address, which must be the same network segment with
your computer, to target IP as below. Input Subnet Mask and Gateway, and then click . Please
refer to Figure 1-2 for more details.
Figure 1-2

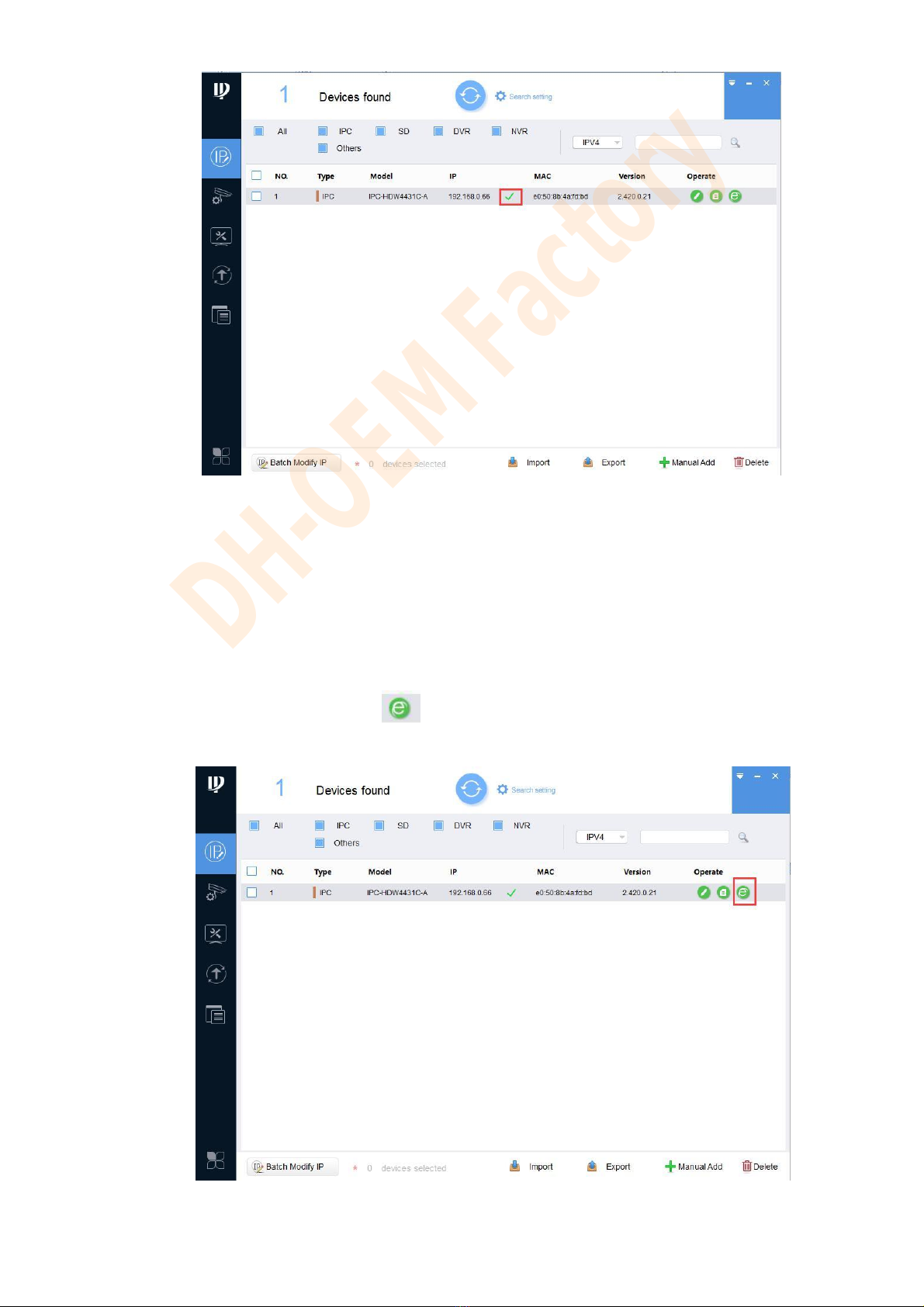

After entrying all information correctly, you will get the dialogue box as Figure 1-3:
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
5
Figure 1-3
1.2 Login WEB Interface
Note: Different devices may have different WEB interfaces, the figures below just for reference.
Install WEB plug-in when you use WEB client for the first time, the exact operation steps are shown
as follows:
Step 1: Two ways can open web interface successfully
1): Based on above steps, click icon , then it will connect IE directly. Please refer to Figure1-4.
2): Open IE and input the modified camera IP address in the address bar.
Figure 1-4
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
6

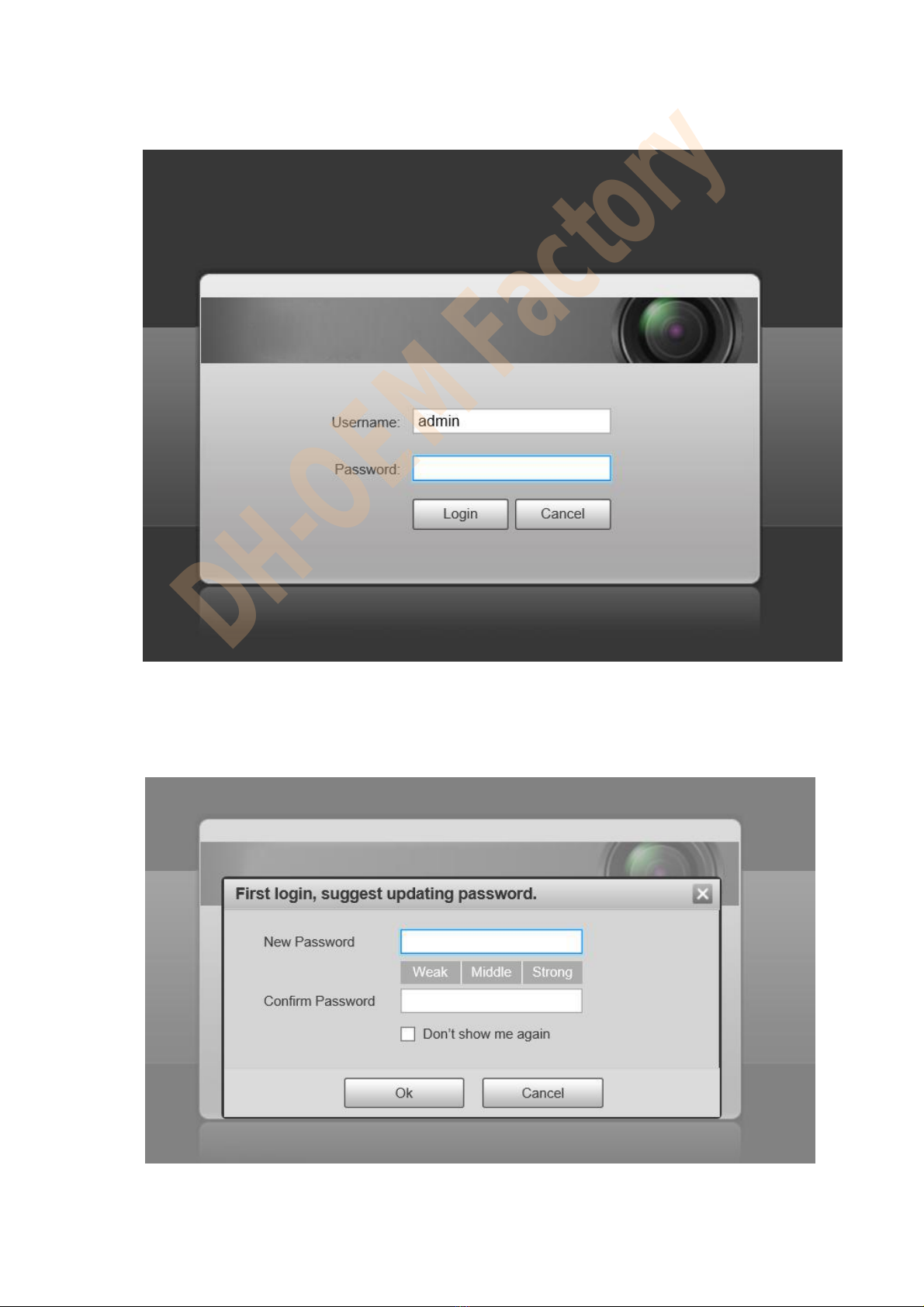

Step 2: Page turn to the login interface shown as below, input your user name and password. Default
factory user name and passwords is admin ,( new model camera is uninitialized, Need to set a new
password to initialize it) then click “login”. See Figure 1-5 for more details.
Figure 1-5
Note: The system will display “Update Password” prompt box for your first login, users need to
modify the password and save it properly. Write it down in case forget.. See Figure 1-6.
Figure 1-6
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
7

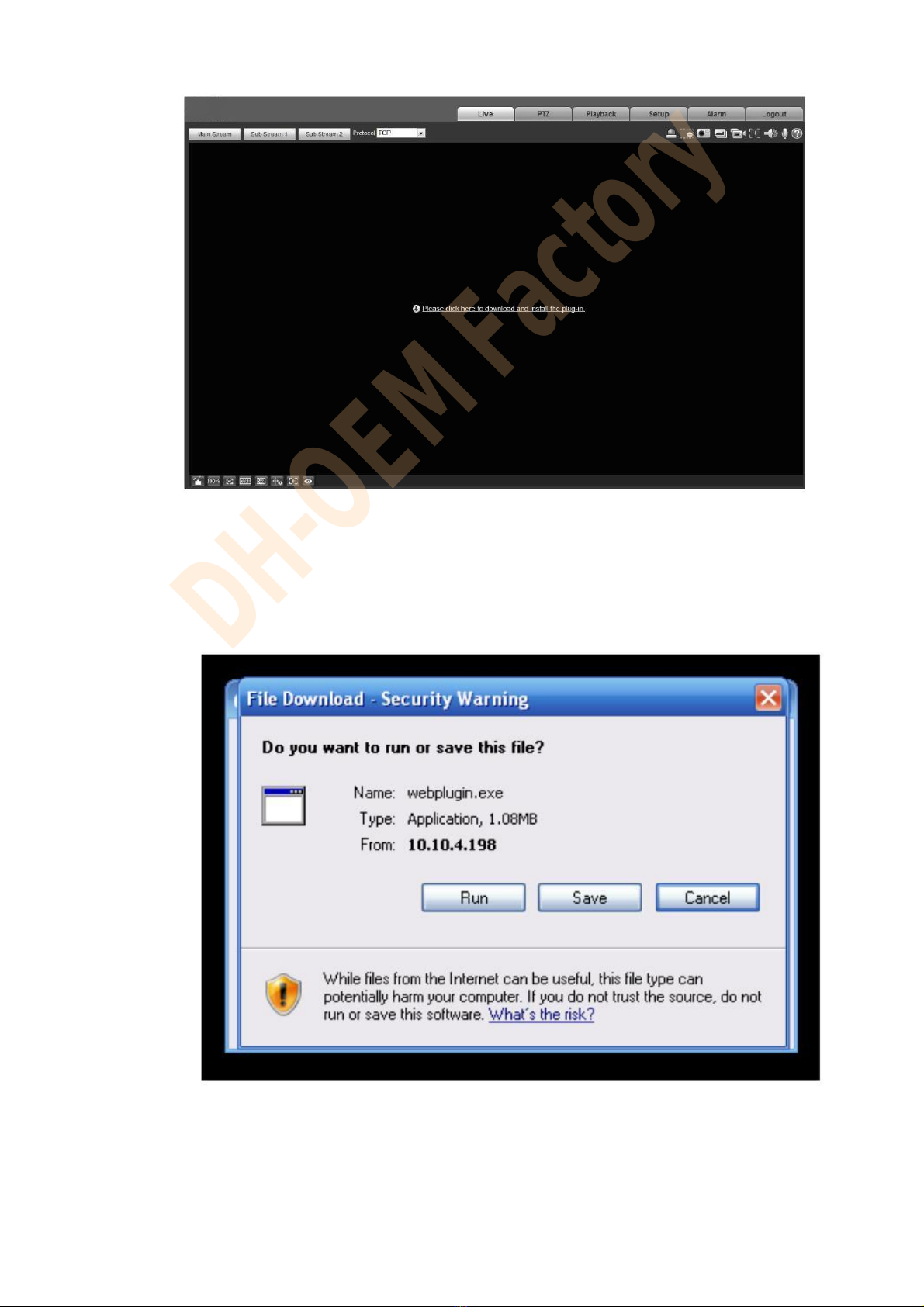

Step 3: After logining successful , you may see the interface shown as in Figure 1-7.
Figure 1-7
Click on “Please click here to download and install the plug-in”. The system pops up a
warning information siad “do you want to run or save this file? ”. See Figure 1-8
Figure 1-8
DH-OEMFactory
HD IR Waterproof Network Camera Quick Start Guide
8

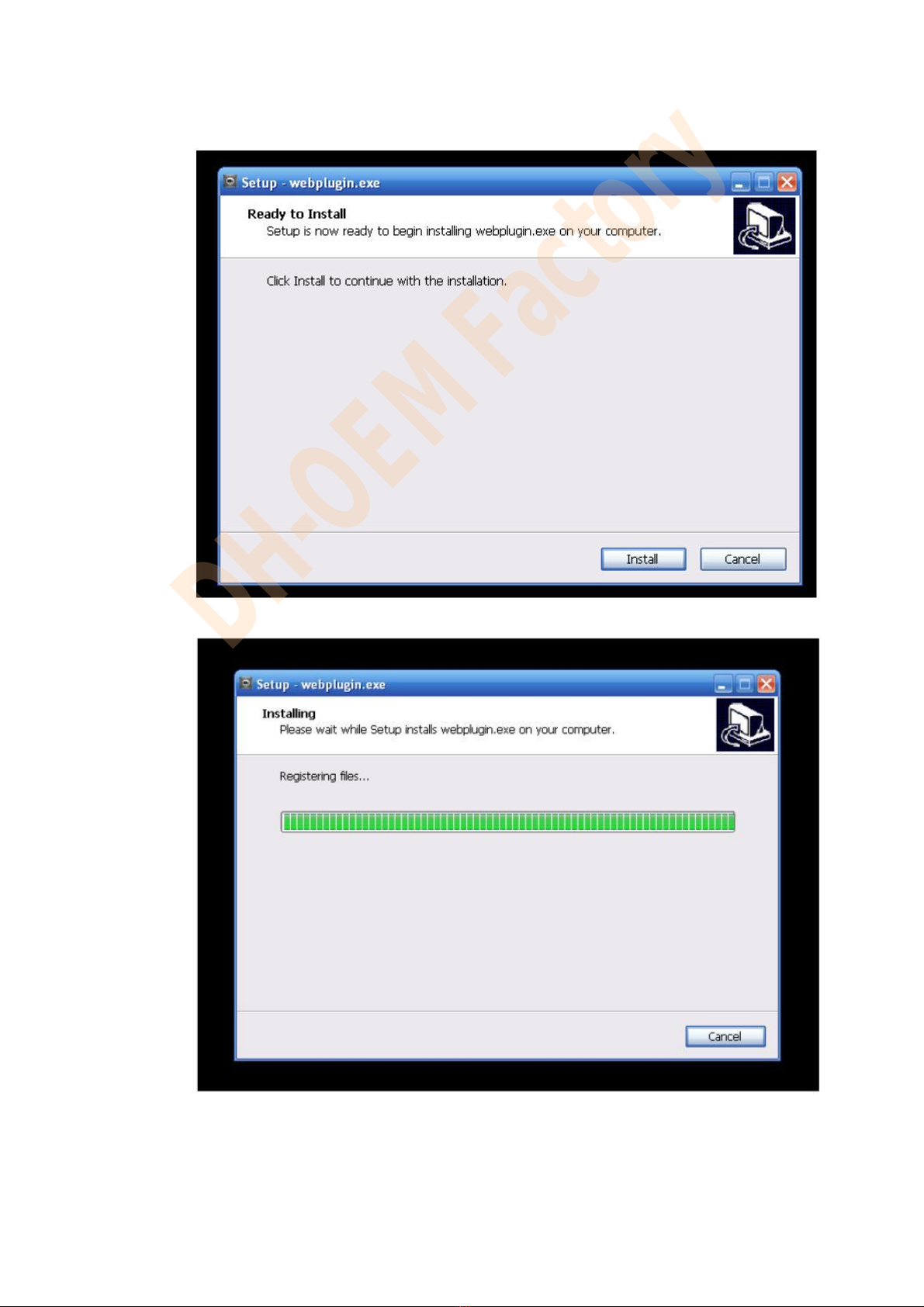

Click the “run” directly or save the file ,then install it. Follow the following steps,see Figure 1-
9 and Figure 1-10.
Figure 1-9
Figure 1-10
DH-OEMFactory
