Dahua ITC237-PW1A-IRZ Bedienungsanleitung

ITC237-PW1A-IRZ

Installation Manual

V 1.0

1 Overview

1.1 Objective

Standard construction documents for the sales staff, regional technical support,

engineering and construction personnel to ensure the device installed in accordance with

regulatory requirements.

1.2 Scope

The instructions apply to model ITC237-PW1A-IRZ integrated camera to snapshot

the construction commissioning guidance. The camera is suitable for parking

management systems, residential entrance management systems.

1.3 Device Structure

1.3.1 Appearance

ITC237-PW1A-IRZ appearance is shown in Figure 1- 1.

Figure 1- 1

1.3.2 Dimensions

ITC237-PW1A-IRZ dimensions are shown in Figure 1- 2. Unit is mm.

Figure 1- 2

1.3.3 Technical Parameter and Port Wiring

Parameter

Type

Parameter Name

Value

Model

ITC237-PW1A-IRZ

Camera

Sensor Type

1/1.9 inch CMOS

Shutter

1/12.5～1/10000，manual or auto

Min Illumination

0.002Lux/F1.2

（color）,0.0002Lux/F1.2（B/W）

Scan Method

Progressive

Day/Night

IR-CUT

Exposure Mode

Full auto, customize range,

customize

White Balance

Full auto, color temperature range

auto, customize color temperature

HLC

Support

Edge Enhance

Support

Lens

Lens Port

φ14

Focus

4mm~8mm

Aperture

F1.8

Aperture Control

DC drive

Zoom Type

Motorized


Parameter

Image Compression

Standard

JPEG

Image Resolution

1920×1080

Video Compression

Standard

H.264/H.264H/

Video Bit Rate

H.264 rate adjustable

Video Frame Rate

Video Resolution

1920×1080

Parameter

Type

Parameter Name

Value

Trigger

Mode

I/O Coil Trigger

Support

Video Detection

Support

Function

White List

Max support 10000 white list

vehicles, may directly link gateway output

Intelligent Recognition

Plate recognition, plate color, vehicle

color, brand recognition

Remote Control

Remote config, control via WEB

OSD Overlay

Support, may customize time,

location, direction, lane no.

Waterproof

Support, video/picture with

watermark parity

Port

Built-in IR Light

Built-in 2 LED IR lights

Network Port

1, 100M/1000M Ethernet port

Alarm Input Port

2-ch, optocoupler input(switch)，for

coil input

Alarm Output

1-ch, relay output, may used to link

gateway

Audio Port

N/A

General

Power Supply

AC 24V

External Frequency

Sync

Support

Consumption

<15W

Work Temperature

﹣30℃～﹢60℃

Protection Level

IP66

Work Humidity

≤95%

Dimensions

94.92mmX94.92mmX272.90mm

Weight

1.4kg

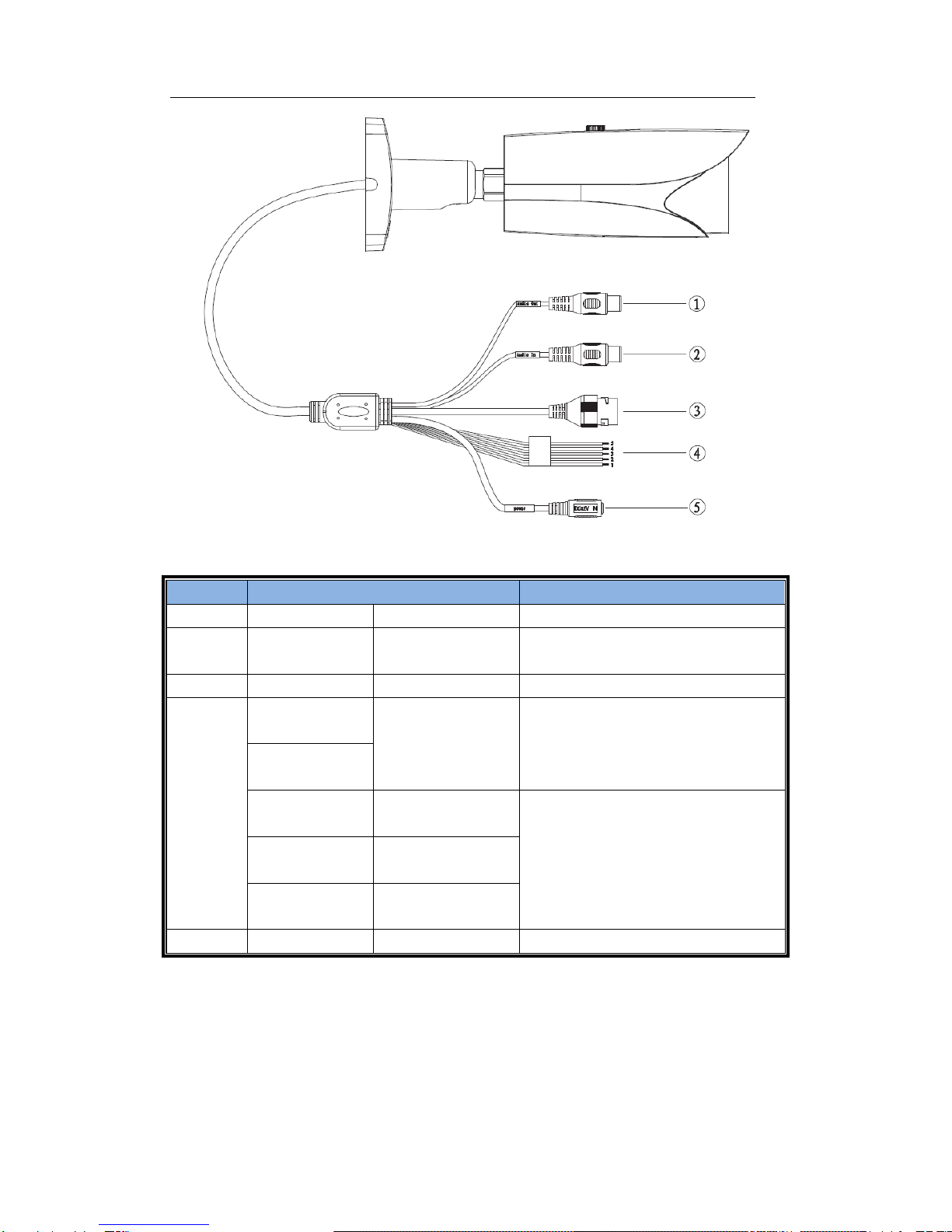

Waterproof group wiring port is shown in Figure 1- 3.

Figure 1- 3

No.

Port Note

Port Function

①

Audio Out

Audio Output Port

Output audio signal（N/A）

②

Audio In

Audio Input

Port

Input audio signal（N/A）

③

Network Port

Connect to standard Ethernet

④

ALARM_N

Alarm Output

Port

Output alarm signal

ALARM_C

ALARM_IN

Alarm Input Port

IO input port, max support 2-ch

ALARM_IN

Alarm Input

Port 2

ALARM_G

GND

⑤

POWER

Power Port

Input AC24V power

2 Device Installation

2.1 Installation Specifications

2.1.1 Standard Installation

See Figure 2- 1.

Height 1.2 meters

Horizontal distance 4 meters

Snapshot line position

Width ≤3.5 meters

Figure 2- 1

Note:

1. Camera monitoring the scene channel width requirements ≤3.5 m. > 3.5 m, requiring

physical isolation parallel with the camera at 3.5 m spacing, make the passageway to

meet the requirements of ≤3.5 m (Note: Refer to Fout! Verwijzingsbron niet

gevonden.);

2. The camera is mounted on the safety of the island, mounting bracket and channel

boundary spacing should be <0.15 m. > 0.15 m, it will increase the angle of view of

the license plate, the effects of camera algorithm (Note: Refer to Fout!

Verwijzingsbron niet gevonden.).

3. The camera installation height of 1.2 to 1.5 m, 1.2 m recommended;

4. Snapshot camera is mounted on the snapshot line (or coil) pitch (horizontal distance)

from 4 to 6 meters location, recommended 4 m;

5. Scene width adjustment, take a picture of the license plate from 100 to 140 pixels to

identify the best effect.

6. We recommend using a coil to snapshot program.

2.1.2 Before Installation

Many factors affect the camera identification, such as channel width outside the camera

monitoring capabilities, the camera installation point setting unreasonable. These are the

physical factors related vision camera can face up to identify whether the conditions of the

license plate or license plate angle question meets, from a technical level, cannot be

solved. Therefore, in front of the camera installation is a good program, to be

circumvented. The following is a preliminary plan to install cameras Important note:

1. The installation position of the camera in the vehicle into the parking lot should be

planned passage complete turn, straighten the front and then moved back 4 meters

The vehicle has a turning procedure when entering (or exiting) parking lot entrance

channel, when the license plate and the camera is a certain angle, cause the camera

not face license plate or license plate angle is too large, the impact of recognition.

Therefore, the camera should be set up to snapshot the point of complete turn in the

vehicle at the camera front plate. Determine the position of the camera to snapshot

the line, the camera mounting position can be determined by reference to standard

protocols that snapshot the line after 4 meters. See Fout! Verwijzingsbron niet

gevonden..

Right turn

Left turn

Yellow section is

vehicle’s continuous

turning area, do not

set snapshot line

here!

Entrance Exit

Red line and below are

finished turning area,

plate is upright, you can

draw snapshot line!

Install camera at 4

meters behind

snapshot line

Parking lot entrance/

exit

Figure 2- 2

2. The camera monitor channel width 3.5 meters maximum. Greater than 3.5 m, and

respond channel do physical isolation, to meet the requirements;

3. The camera bracket mounting points and channel boundary of Requirement: The

camera mounting bracket and channel boundary spacing of less than 0.15 m

spacing, as shown in Fout! Verwijzingsbron niet gevonden.:

Entrance channel

Width≤3.5 meters

Camera

bracket

Camera bracket

and lane border

＜1.15 meter

Pedestrian

island

Snapshot coil

Channel is too wide,

make physical isolation

Figure 2- 3

2.2 Coil Cut

2.2.1 Coil Cut Specification

Select coil snapshot scheme system, need to cut coil, see Figure 2- 4.

Figure 2- 4

Note:

1. Coil edge safety distance 30cm;

2. Coil edge depends on lane width;

3. Coil length (vehicle driving direction) 60cm;

4. Coil wind 4 times.

2.2.2 Coil Recommendation

Loop coils are buried beneath the road surface, it is required that it should have good heat

resistance, cold resistance, pull, anti-corrosion performance and flexibility. FVN1.5 ㎡

recommended temperature cables.

2.2.3 Process Requirement

Coil detection system, in order to ensure that the camera is stable coil normal snapshot,

and correct construction process coil is a coil job security. Therefore, make construction

according to process requirements.

Coil cut process is in Figure 2- 5,
