Dahua Long Range 4-Port PoE Switch User’s Manual

Dahua Long Range 4-Port PoE Switch

User’s Manual

V1.0.1

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Dahua Long Range 4-Port PoE Switch User’s Manual

Important Safeguards and Warnings

Please read the following safeguards and warnings carefully before using the product in order to avoid

damages and losses.

Attentions:

Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or electric

shock.

Do not install the device at position exposed to sunlight or in high temperature. Temperature rise

in device may cause fire.

Do not expose the device to humid environment. Otherwise it may cause fire.

The device must be installed on solid and flat surface in order to guarantee safety under load and

earthquake. Otherwise, it may cause device to fall off or turnover.

Do not place the device on carpet or quilt.

Do not block air vent of the device or ventilation around the device. Otherwise, temperature in

device will rise and may cause fire.

Do not place any object on the device.

Do not disassemble the device without professional instruction.



Warning:

Please use battery properly to avoid fire, explosion and other dangers.

Please replace used battery with battery of the same type.

Do not use power line other than the one specified. Please use it properly. Otherwise, it may cause

fire or electric shock.

Special Announcement:

This manual is for reference only.

All the designs and software here are subject to change without prior written notice.

All trademarks and registered trademarks are the properties of their respective owners.

If there is any uncertainty or controversy, please refer to the final explanation of us.

Please visit our website for more information.

Dahua Long Range 4-Port PoE Switch User’s Manual

Table of Contents

1Product Overview............................................................................................. - 1 -

1.1 Product Introduction .........................................................................................................- 1 -

1.2 Features............................................................................................................................- 1 -

1.3 Typical Application............................................................................................................- 1 -

2Device Structure............................................................................................... - 3 -

2.1 Front Panel.......................................................................................................................- 3 -

2.2 Rear Panel........................................................................................................................- 4 -

2.3 PoE Power Supply............................................................................................................- 4 -

3Installation Guide ............................................................................................. - 5 -

4AppendixⅠTechnical Specifications.............................................................. - 6 -

5AppendixⅡePoE Power Supply Specifications (CAT).................................. - 7 -

6AppendixⅢePoE Power Supply Specifications (RG59 Coaxial Cable)...... - 7 -

Dahua Long Range 4-Port PoE Switch User’s Manual

- 1 -

1 Product Overview

1.1 Product Introduction

4-port PoE switch is a layer two industrial switch, which supports long distance Ethernet power supply. It

provides four 10/100M Ethernet ports, one 1000M Ethernet port and one 1000M fiber port. The product

is equipped with three self-adaptive transmission modes which are IEEE, E100 and E10. It supports both

twisted-pair transmission and coaxial cable transmission.

1.2 Features

Common features:

Two-layer industrial PoE switch.

Support IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards.

MAC auto study and aging, MAC address list capacity is 8K.

Support MDI/MDIX self-adaptive.

Port 1-4 are RJ45 ports which support 10/100M self-adaptive; support IEEE802.3af, IEEE802.3at

standard power supply; Port 5 is RJ45 port which supports 10/100/1000M self-adaptive.

Industrial wide temperature design.

Adopt metal structure.

Support DC48-57V power supply.

Individual features:

The product owns one 100/1000M self-adaptive fiber port, one 10/100/1000M self-adaptive RJ45

port and four 10/100M self-adaptive RJ45 ports.

The number 4 port supports Hi-PoE 60W power supply.

It supports three transmission modes, which includes IEEE, E100 and E10. IEEE mode is the

standard Ethernet mode when it is transmitted via twisted-pair, which supports max transmission

distance up to 100m; E100 mode supports max transmission distance up to 300m and E10 mode

supports max transmission distance up to 800m. When it is transmitted via coaxial cable, IEEE

mode supports max transmission distance up to 100m, E100 mode supports max transmission

distance up to 400m and E10 mode supports max transmission distance up to 1000m.

The product adopts 96W power adapter.

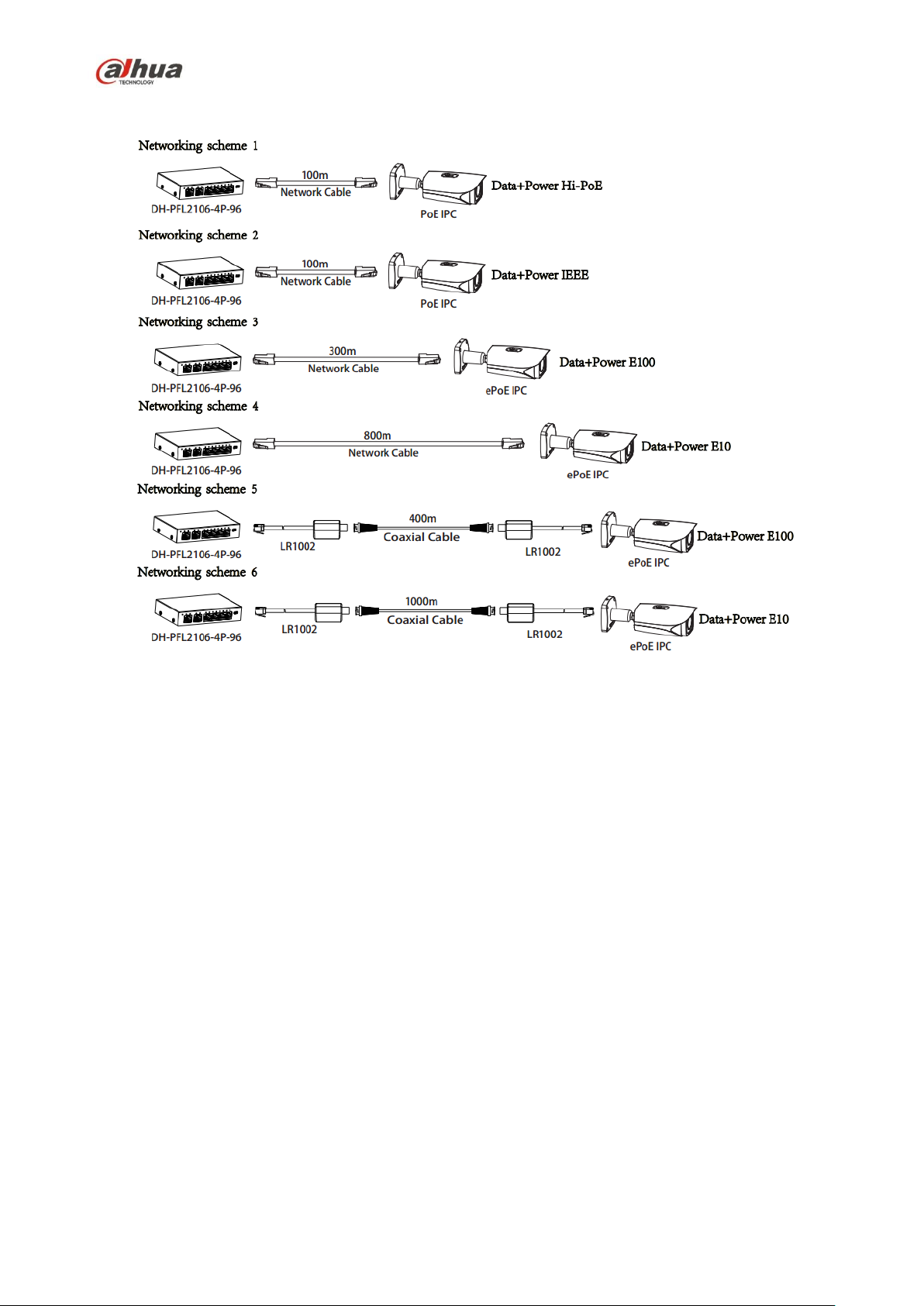

1.3 Typical Application

Dahua Long Range 4-Port PoE Switch User’s Manual

- 2 -

Figure 1-1

Dahua Long Range 4-Port PoE Switch User’s Manual

- 3 -

2 Device Structure

2.1 Front Panel

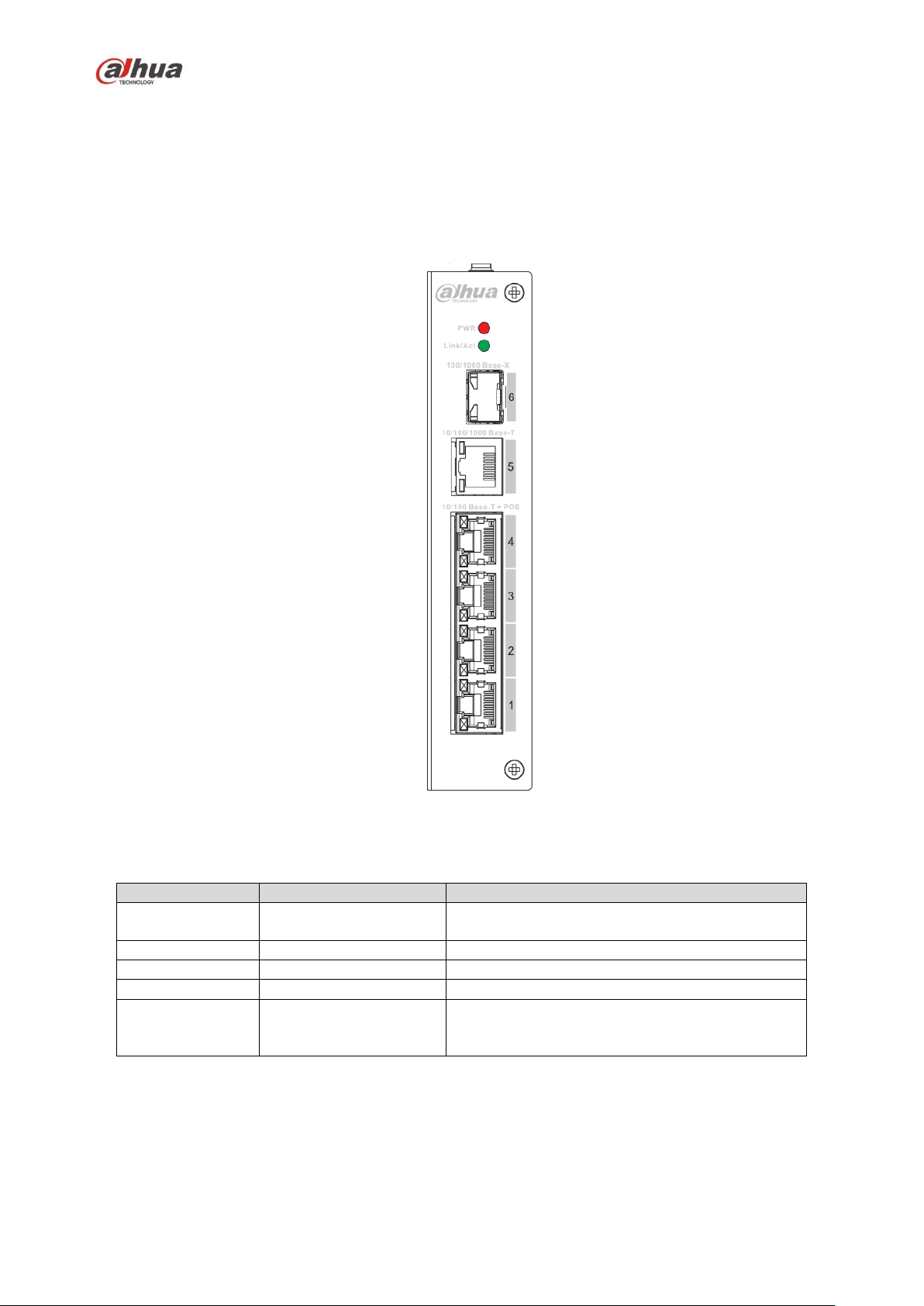

The front panel is shown in Figure 2-1.

Figure 2-1

Refer to Table 2-1 for more details about the front panel.

Name

Function

10/100 Base-T

4* 10/100M self-adaptive PoE power supply

ports

10/100/1000 Base-T

10/100/1000M self-adaptive RJ45 port

100/1000 Base-X

100/1000M self-adaptive fiber port.

Link / Act

Fiber port status indicator light.

PWR

Power indicator light, used as PoE power

supply status indicator light as well, refer to the

following sheet for more details.

Table 2-1

The power indicator light can display the current operation status of PoE power supply, which includes

three statuses: single port device power on, single port device power off and total device consumption

overload. Please refer to Table 2-2 for more details.

Dahua Long Range 4-Port PoE Switch User’s Manual

- 4 -

Operation Status

Display Mode

Single port device power on

Slow flash twice

Single port device power off

Quick flash once, slow flash once

Total device consumption

overload

Quick flash twice

Table 2-2

Port indicator light is to display the status of current transmission mode for the port, which includes IEEE

mode, E100 and E10. Please refer to Table 2-3 for more details.

Working mode

Indicator light display

IEEE mode

Normally on

E100

On for 3 seconds, off for 1 second

E10

On for 1 second, off for 1 second

Table 2-3

2.2 Rear Panel

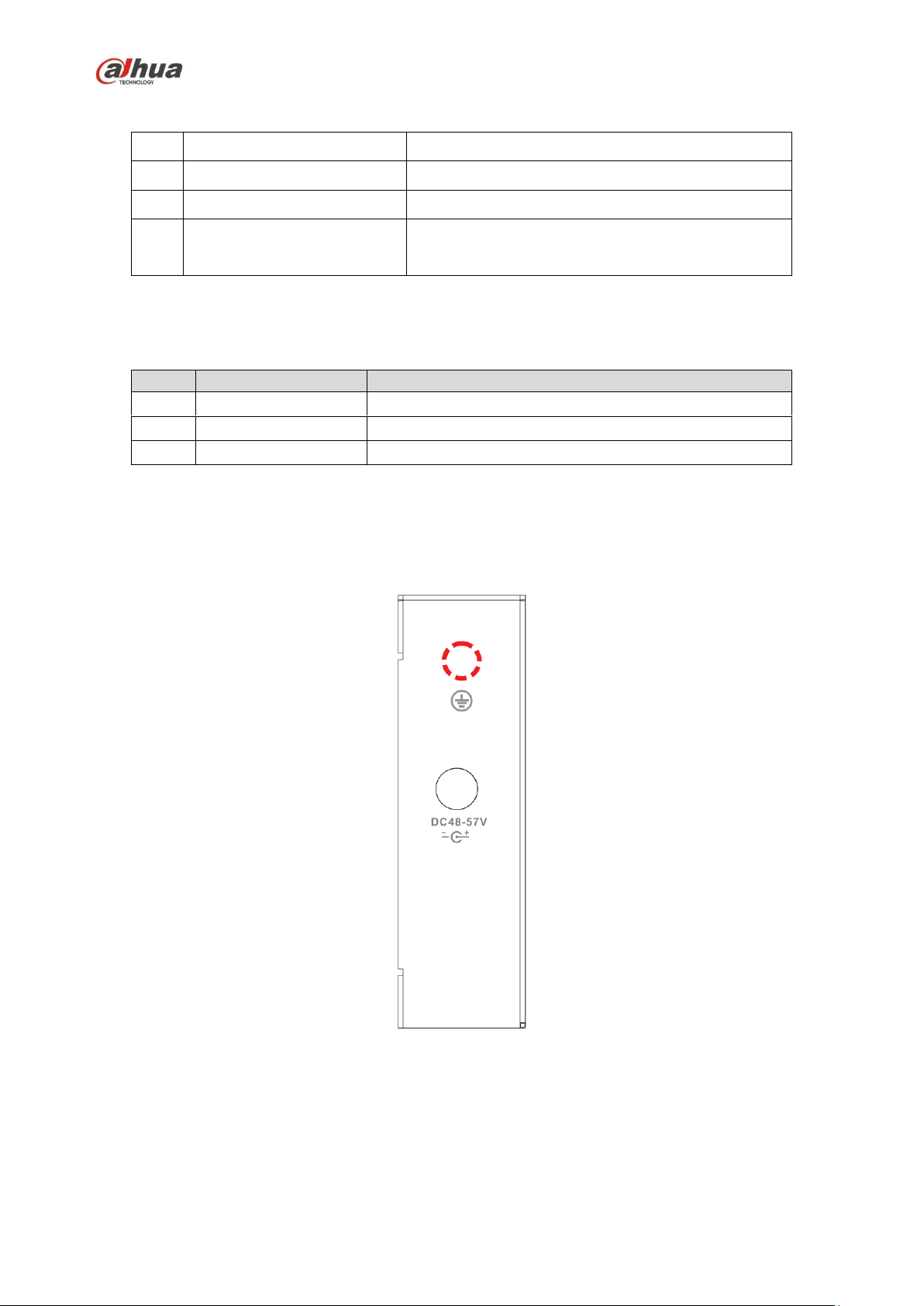

The device power port is shown in Figure 2-2; it supports DC48-57V power supply.

Figure 2-2

2.3 PoE Power Supply

Three 100M RJ45 ports support IEEE802.3af, IEEE802.3at standard power supply.

Dahua Long Range 4-Port PoE Switch User’s Manual

- 5 -

One 100M RJ45 port supports IEEE802.3af, IEEE802.3at standard and Hi-PoE 60W power supply.

Total power consumption of PoE device is not allowed to exceed the reserve value of device PoE

power consumption.

3 Installation Guide

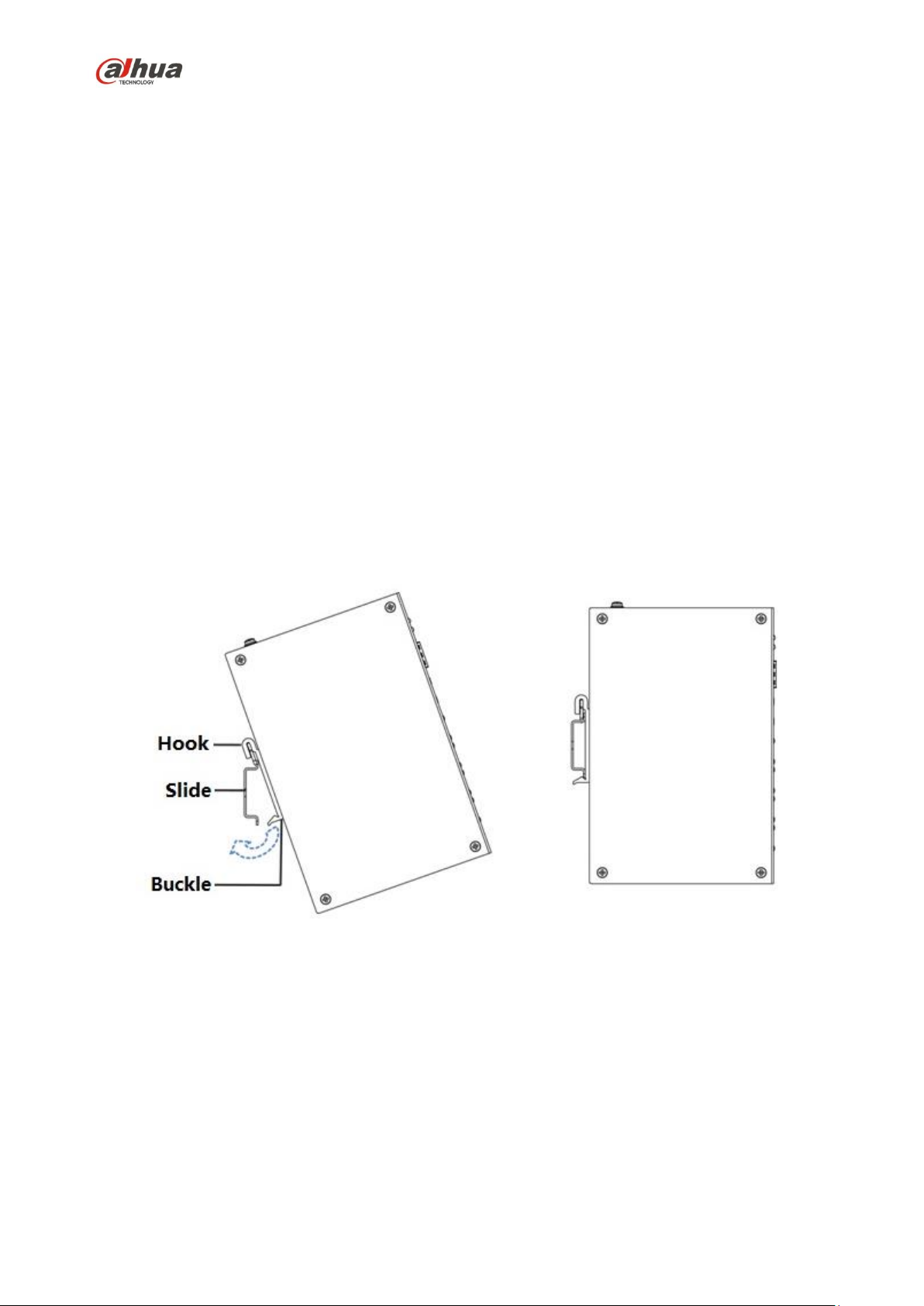

The product supports DIN rail mounting. Lay the switch hook on the rail, press the PoE switch to make

the buckle get into the slide, see Figure 3-1.

Note:

4-port PoE switch supports the slide width of 28mm.

Figure 3-1

Dahua Long Range 4-Port PoE Switch User’s Manual

- 6 -

4 AppendixⅠTechnical Specifications

Technical parameter

DH-PFL2106-4ET-96

Physical interface

Business Port

1*100/1000 Base-X,

1*10/100/1000 Base-T,

4*10/100 Base-T（POE power supply）

Technical index

Exchange capacity

6.80Gbps

Packet forwarding

rate

3.57Mpps

Exchange mode

Store and forward

MAC study

MAC address auto study, address list capacity 8K

General parameters

Lightning protection

level

Lightning protection level 4

Indicator light

Power indicator light, fiber port status indicator light, RJ45

transmission

mode indicator light

Power

DC48-57V power adapter

Power consumption

≤96W

Operation humidity

10%～90%

High and low

temperature

﹣30℃～65℃

Unit weight

480g

Dimension

150mm×100mm×30mm

Dahua Long Range 4-Port PoE Switch User’s Manual

- 7 -

5 AppendixⅡePoE Power Supply Specifications (CAT)

Cable Length

(m)

Communication

Bandwidth

(Mbps)

PoE Max Load

Capacity (W)

Hi-PoE Max

Load Capacity

(W)

Network

Operating

Mode

100

IEEE/E100

200

100

E100

300

100

E100

500

E10

800

E10

ePOE switch power supply voltage is 48V.

The cable is CAT5 or CAT6, 100m DC impedance is no more than 10Ω.

Cable Length

(m)

Communication

Bandwidth

(Mbps)

PoE Max Load

Capacity (W)

Hi-PoE Max

Load Capacity

(W)

Network

Operating

Mode

100

IEEE/E100

200

100

E100

300

100

E100

500

E10

800

E10

ePOE switch power supply voltage is 53V.

The cable is CAT5 or CAT6, 100m DC impedance is no more than 10Ω.

6 AppendixⅢePoE Power Supply Specifications
