Dahua PFS4307-4ET-96 Bedienungsanleitung

Hardened Managed Switch

Quick Start Guide

V1.0.1

Foreword

General

This manual introduces the installation, functions and operations of the hardened managed switch

(hereinafter referred to as "the Device"). Read carefully before using the device, and keep the manual

safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning

Indicates a high potential hazard which, if not avoided, will result in

death or serious injury.

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, reductions in performance, or

unpredictable results.

Provides methods to help you solve a problem or save you time.

Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.1 Updated the description of the

introduction and the laser product. June 2022

V1.0.0 First release. February 2022

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

●The manual is for reference only. Slight differences might be found between the manual and the

product.

●We are not liable for losses incurred due to operating the product in ways that are not in

compliance with the manual.

●The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

●All designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

●There might be errors in the print or deviations in the description of the functions, operations

and technical data. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and company names in the manual are properties of their

respective owners.

●Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, and comply with the

guidelines when using it.

Transportation Requirements

Transport the device under allowed humidity and temperature conditions.

Storage Requirements

Store the device under allowed humidity and temperature conditions.

Installation Requirements

●Do not connect the power adapter to the device while the adapter is powered on.

●Strictly comply with the local electrical safety code and standards. Make sure that the ambient

voltage is stable and meets the power supply requirements of the device.

●Personnel working at heights must take all necessary measures to ensure personal safety

including wearing a helmet and safety belts.

●Do not place the device in a place exposed to sunlight or near heat sources.

●Keep the device away from dampness, dust, and soot.

●Put the device in a well-ventilated place, and do not block its ventilation.

●Use an adapter or cabinet power supply provided by the manufacturer.

●The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no

higher than PS2. Please note that the power supply requirements are subject to the device label.

●Do not connect the device to two or more kinds of power supplies, to avoid damage to the

device.

●The device is a class I electrical appliance. Make sure that the power supply of the device is

connected to a power socket with protective earthing.

●The device must be grounded by a copper wire with a cross-sectional area of 2.5 mm2and a

ground resistance no more than 4 Ω.

●Voltage stabilizer and lightning surge protector are optional depending on the actual power

supply on site and the ambient environment.

●To ensure heat dissipation, the gap between the device and the surrounding area should not be

less than 10 cm on the sides and 10 cm on top of the device.

●When installing the device, make sure that the power plug and appliance coupler can be easily

reached to cut off power.

Operation Requirements

●Do not disassemble the device without professional instruction.

●Operate the device within the rated range of power input and output.

●Make sure that the power supply is correct before use.

●Make sure the device is powered off before disassembling wires to avoid personal injury

●Do not unplug the power cord on the side of the device while the adapter is powered on.

●Use the device under allowed humidity and temperature conditions.

●Do not drop or splash liquid onto the device, and make sure that there is no object filled with

liquid on the device to prevent liquid from flowing into it.

●Operating temperature: –30 °C (-22 °F) to +65 °C (+149 °F).

●This is a class A product. In a domestic environment this may cause radio interference in which

case you may be required to take adequate measures.

●Do not block the ventilator of the device with objects, such as a newspaper, table cloth or curtain.

●Do not place an open flame on the device, such as a lit candle.

Maintenance Requirements

●Power off the device before maintenance.

●Mark key components on the maintenance circuit diagram with warning signs.

Table of Contents

Foreword ........................................................................................................................................................................................................I

Important Safeguards and Warnings............................................................................................................................................ III

1 Overview................................................................................................................................................................................................... 1

1.1 Introduction ................................................................................................................................................................................. 1

1.2 Features..........................................................................................................................................................................................1

2 Port and Indicator ................................................................................................................................................................................ 2

2.1 Front Panel.................................................................................................................................................................................... 2

2.2 Side Panel ......................................................................................................................................................................................3

3 Installation...............................................................................................................................................................................................4

4 Wiring ......................................................................................................................................................................................................... 5

4.1 Connecting GND......................................................................................................................................................................... 5

4.2 Connecting Power Cord..........................................................................................................................................................5

4.3 Connecting SFP Ethernet Port............................................................................................................................................. 6

4.4 Connecting Ethernet Port......................................................................................................................................................8

4.5 Connecting PoE Port ................................................................................................................................................................8

5 Quick Operation.................................................................................................................................................................................... 9

5.1 Login through Web................................................................................................................................................................... 9

5.2 Restoring to Factory Settings.............................................................................................................................................. 9

Appendix Cybersecurity Recommendations............................................................................................................................10

1 Overview

1.1 Introduction

The product is a professional device. The Device is layer-2 hardened switch. Equipped with high

performance switching engine and large buffer memory, it features low transmission delay and high

reliability. The full-metal and fanless design and efficient surface heat dissipation enable it to work in

the environment from –30 °C (–22 °F) to +65 °C (+149°F). With web management and direct

connection to iLinksView, the Device can offer multiple working modes and meet different

requirements under different scenarios.

The Device is applicable for use in different scenarios, including corridors, factories and offices.

1.2 Features

●4 × 100 Mbps Ethernet ports, and 3 × 1000 Mbps uplink optical ports.

●All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also

conform to Hi-PoE and IEEE802.3bt standards.

●4 kV/CM, 2 kV/DM, lightning and surge protection.

●IEEE802.1Q-based VLAN configuration.

●250 m long-distance PoE transmission (10 Mbps).

●PoE watchdog.

●Fanless.

●Desktop mount and DIN-rail mount.

2 Port and Indicator

2.1 Front Panel

The following figures are for reference only, and might differ from the actual product.

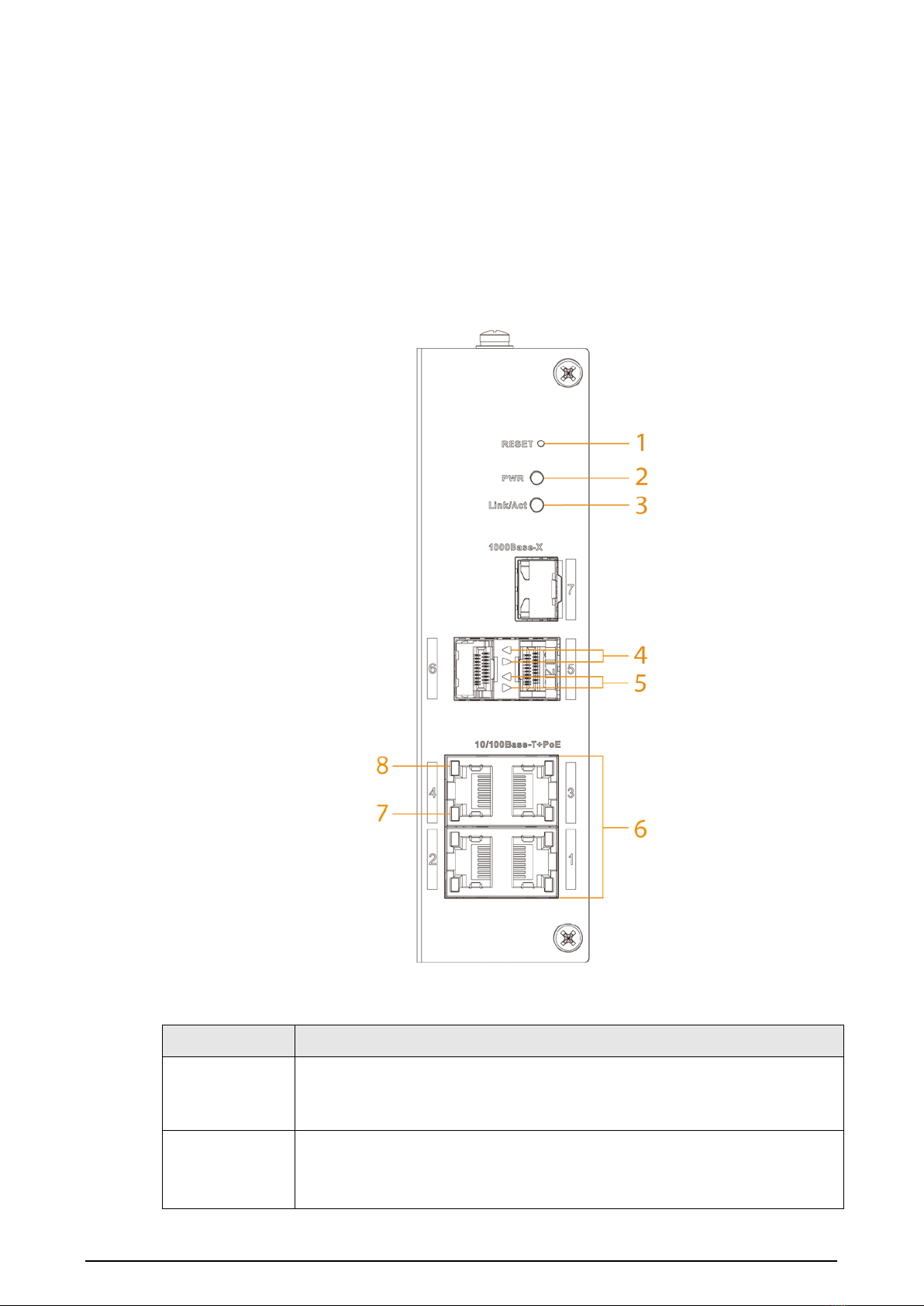

Figure 2-1 Front panel

The following are all the ports and indicators on the front panel of the Device.

Table 2-1 Description of front panel

No. Description

Reset button.

Press and hold it for more than 5 s, and release after the panel status

indicators are all on to restore the Device to default settings.

Power Indicator.

●On: Power on.

●Off: Power off.

No. Description

Optical-port connection or data transmission status indicator (Link/Act).

●On: Connected to device.

●Off: Not connected to device.

●Flashes: Transmitting 1000 Mbps data.

Optical-port connection status indicator (Link).

●On: Connected to device.

●Off: Not connected to device.

Optical-port connection or data transmission status indicator (Link/Act).

●On: Connected to device.

●Off: Not connected to device.

●Flashes: Transmitting 1000 Mbps data.

6 10/100 Mbps adaptive PoE port.

Single-port connection or data transmission status indicator (Link/Act).

●On: Connected to device.

●Off: Not connected to device.

●Flashes: Transmitting data.

Single-port PoE status indicator.

●On: Powered by PoE.

●Off: Not powered by PoE.

2.2 Side Panel

The following figure is for reference only, and might differ from the actual product.

Figure 2-2 Side panel

Table 2-2 Port description

No. Description

1 Power port (dual power backup). Supports 48–57 VDC.

2 GND screw.

3 Installation

The Device supports DIN-rail mount. Hang the hook on the rail, press the Device to make the buckle

stuck into the rail.

The width of the guide rail supported by the Device is 50 mm.

Figure 3-1 DIN rail

Table 3-1 Component description

No. Description

1 Hook

2 Rail

3 Buckle
